Description
The Extreme Duty Solution

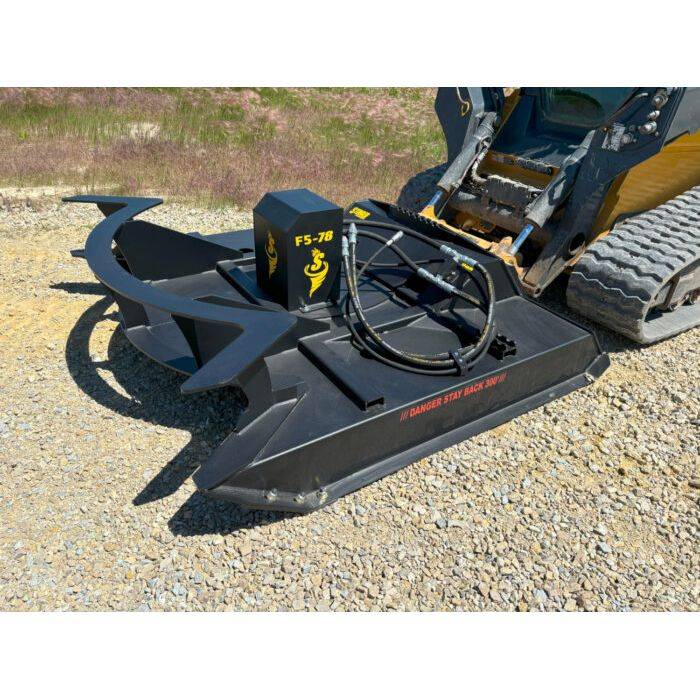

The Stinger F5 is not just a brush cutter; it is a dedicated Forestry Disc Mulcher. Engineered for commercial land clearing, it features a massive 1-inch thick blade carrier equipped with both steel blades and carbide mining teeth to grind 8-inch trees down to the soil.
The Power Source
Driven by a high-torque Radial Piston Motor (Direct Drive), the F5 eliminates the gearbox entirely. This "bi-directional" motor allows you to cut in both directions and creates the massive inertia needed to mulch hardwoods without stalling.
⚙️ Technical Specifications
Mulching Capacity: 8" Diameter Trees
Blade Carrier: 1" Thick Solid Steel (4-Blade)
Teeth: 12-16 Carbide Mining Teeth (Included)
Motor Tech: Radial Piston (Direct Drive)
Weight: 2,200 - 2,350 lbs (Heavy Duty)
Warranty: 2-Year Deck / 1-Year Motor
⚠️ Setup Requirement: Case Drain
This Radial Piston motor uses a Case Drain (3rd line) to relieve internal pressure.
To protect the motor seals, this line must be connected to your machine's Case Drain coupler (Direct-to-Tank).
Note: Failure to connect this line will instantly damage the motor seals and void the warranty.
✅ Machine Compatibility
1. Weight Requirement (Critical):
Your machine must have a Rated Operating Capacity (ROC) of 2,300 lbs or greater.
(Warning: This unit weighs 2,200+ lbs. Do not mount on mid-frame loaders).
2. Hydraulic Check:
Requires 24 - 45 GPM.
(Note: While some large Standard Flow machines work, High Flow is strongly recommended for max performance).
3. Confirmed Series Fitment:
- Kubota: SVL95-2, SVL97-2. (SVL75 requires High Flow & Counterweights).
- Bobcat: T770, T870, A770, S850.
- CAT: 289D3, 299D3 (XE models preferred).
- John Deere: 331G, 333G.
- Case: TV450B, TV620B.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 2-Year Deck / 1-Year Motor |
| Required Flow Rate | 17 - 45 GPM |
| Max Operating Pressure | 4000 PSI |
| Operating Weight | 2600 lbs |
| Cut Capacity | 8.0 in |
| Material Thickness | 3/8" |
