Description
The Solution for Large Square Bales.

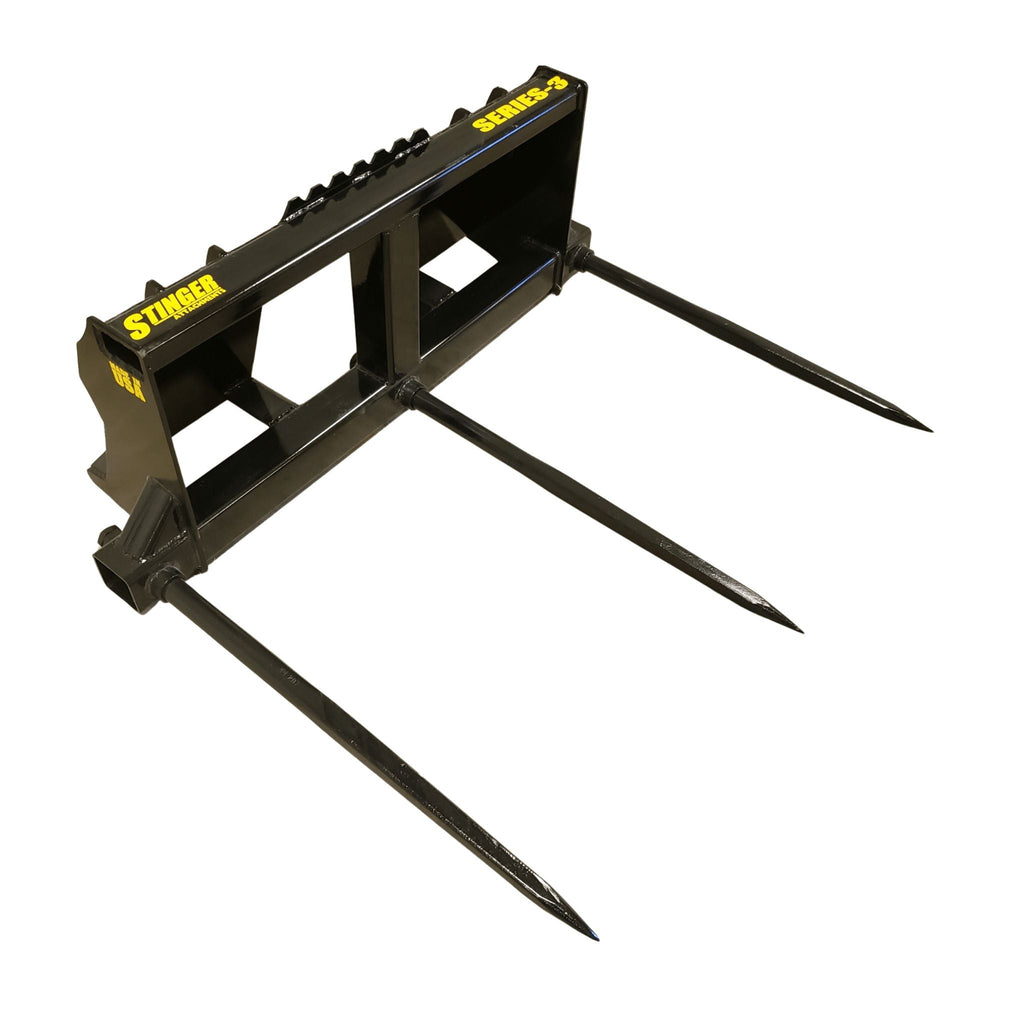

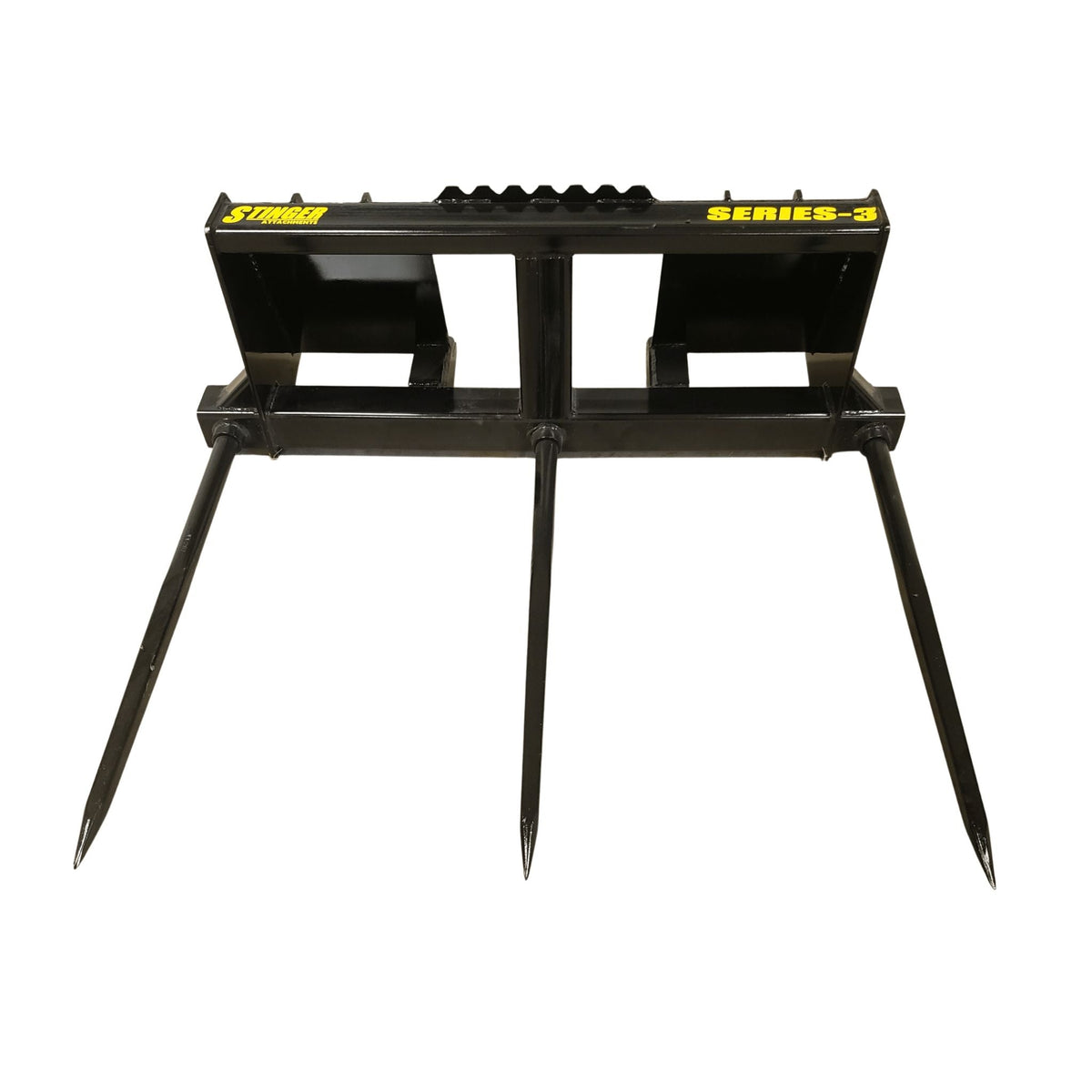

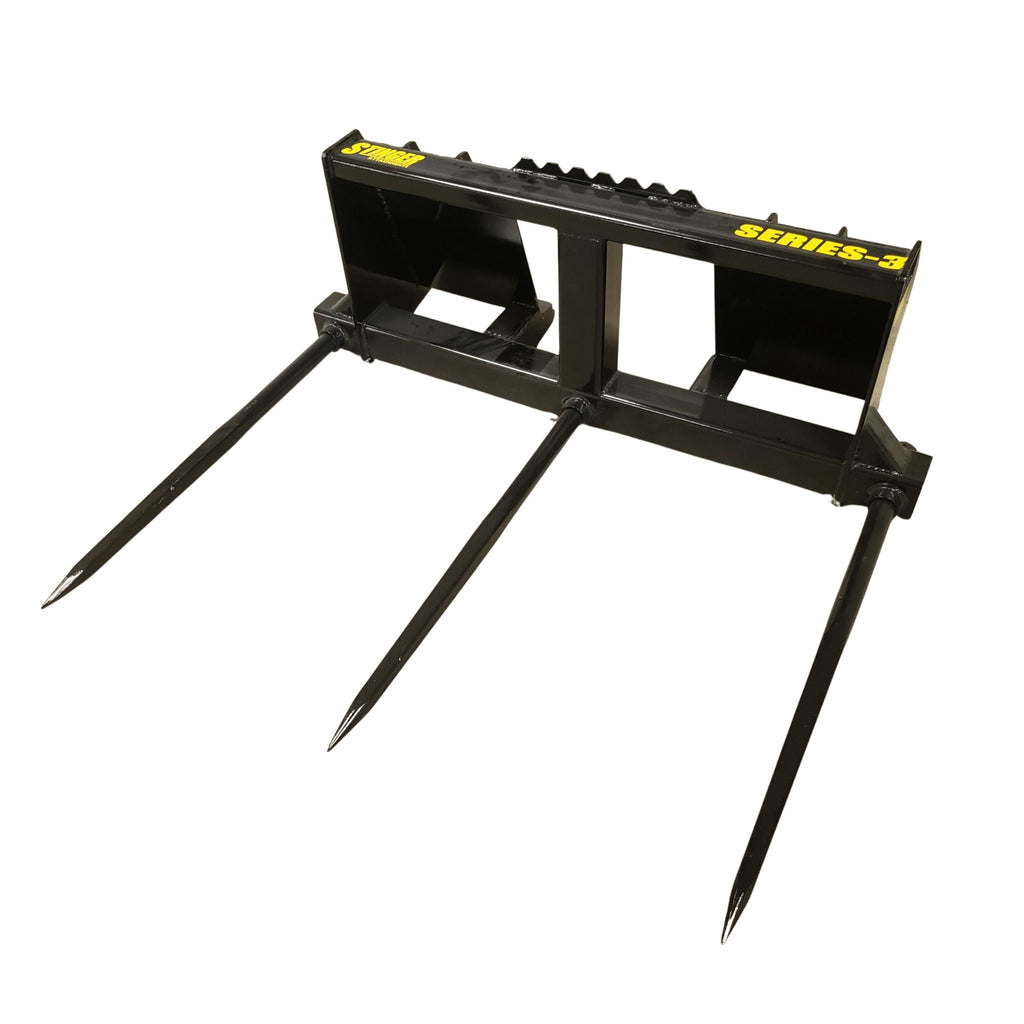

The Stinger Series 3 (Triple Spear) is purpose-built for commercial hay producers moving 3x3, 3x4, and 4x4 large square bales. Unlike single or double spear setups that can leave wide bales unstable, the Series 3 features three parallel Conus 2 spears spaced evenly across a 52" width. This wide footprint supports the entire bale structure, preventing sagging or breaking during transport.
Commercial Grade Strength: Designed for high-volume operations, this frame is built with a 4" x 4" x ¼" Structural Steel Support Tube and reinforced with Grade 50 Side Plates. With a massive 10,500 lb capacity, you can confidently stack or load semi-trailers without frame flex.
Select Your Configuration:
Standard Series 3: Heavy-duty frame for standard farm use.
Series 3 XD (Extreme Duty): Extra reinforcement for industrial/commercial daily use.
⚙️ Technical Specifications
| Lift Capacity: | 10,500 lbs |
| Spear Count: | 3 x Conus 2 Forged Spears |
| Outer Spacing: | 52 Inches (Wide Stance) |
| Frame Construction: | 4" x 4" x ¼" Bottom Tube | 4" x 2" x ¼" Top Tube |
| Side Plates: | Grade 50 High-Tensile Steel |
| Safety: | Integrated Safety Step |
| Warranty: | 1-Year Structural Warranty |
⚠️ Safety & Setup Note
Ballast Critical: This attachment is rated for 10,500 lbs, but your machine likely is not. Always check your loader's Rated Operating Capacity (ROC) and ensure proper rear ballast is installed to prevent tipping when handling heavy square bales.
Transport Width: Be aware of your total width when moving through gates, as the 52" wide tine spacing plus the bale can exceed standard gate widths.
✅ Machine Compatibility
1. Mount Type:
Universal Skid Steer Quick Attach (SSQA). Fits most modern skid steers, compact track loaders, and utility tractors.
2. Ideal For:
- Large Square Bales: 3x3, 3x4, and 4x4 sizes.
- Double Stacking: The 3-spear design offers superior stability when lifting two bales at once.
- Commercial Hay: Fast loading of flatbed trailers.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Machine Size Class | ["Skid Steer"] |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 1/4" |
