Description

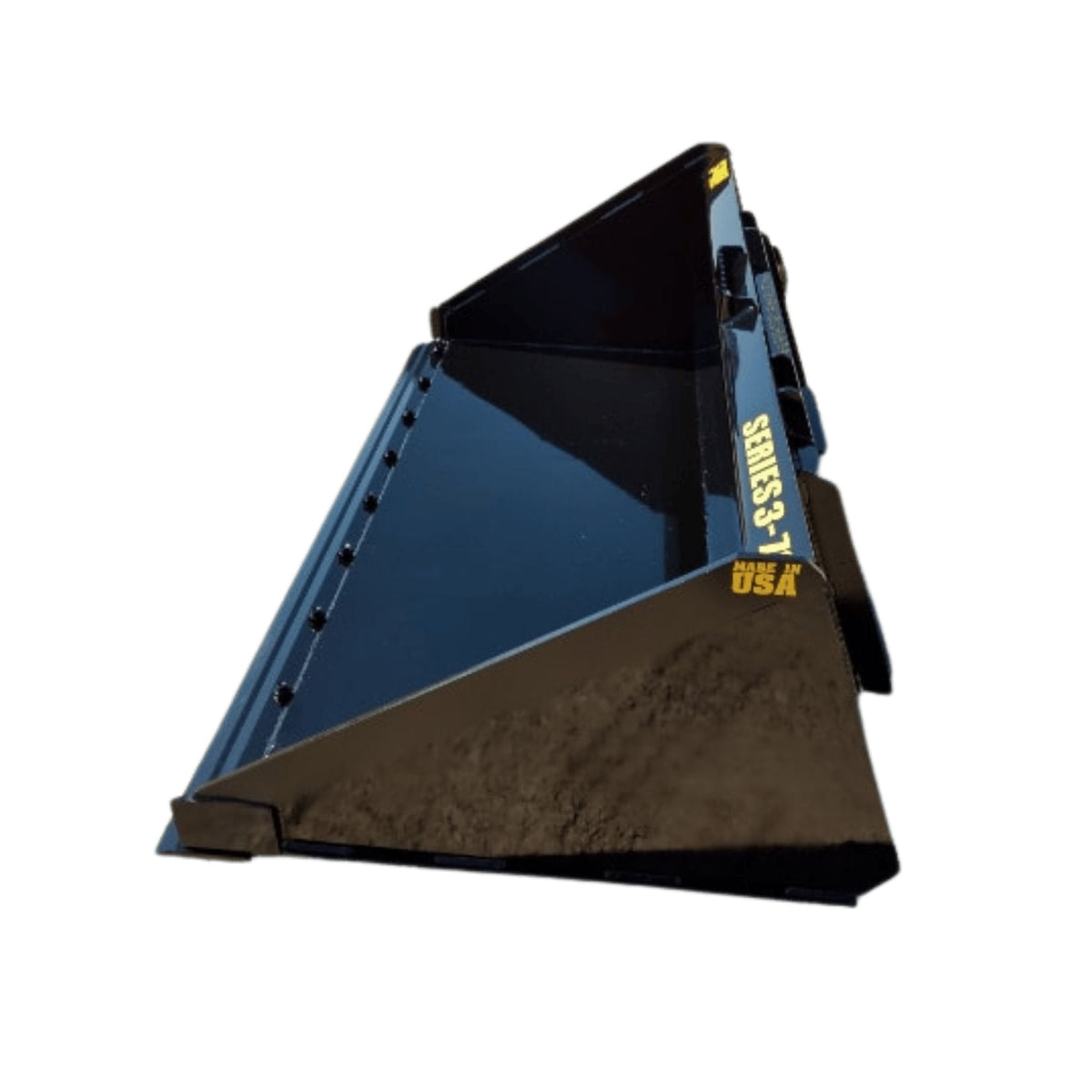

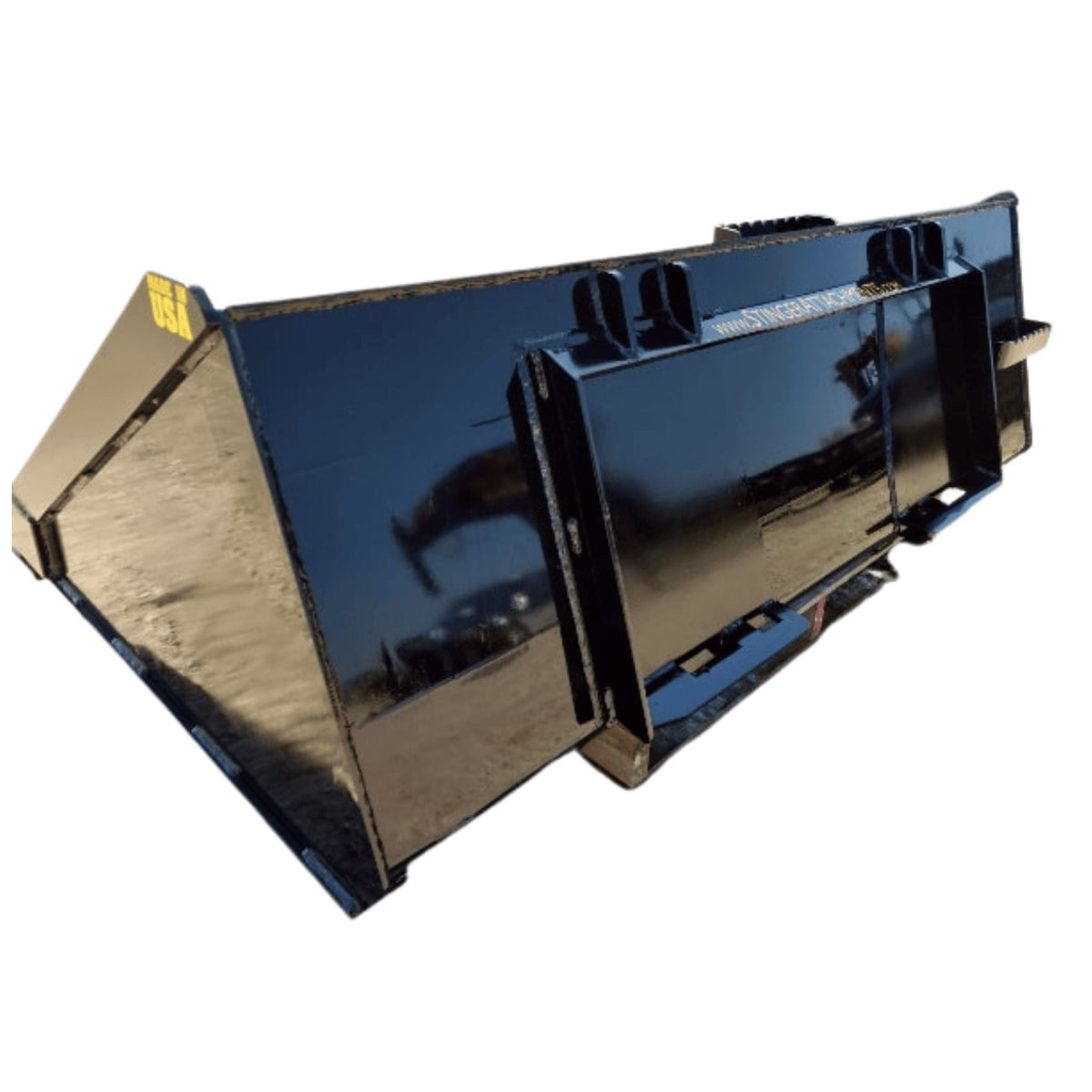

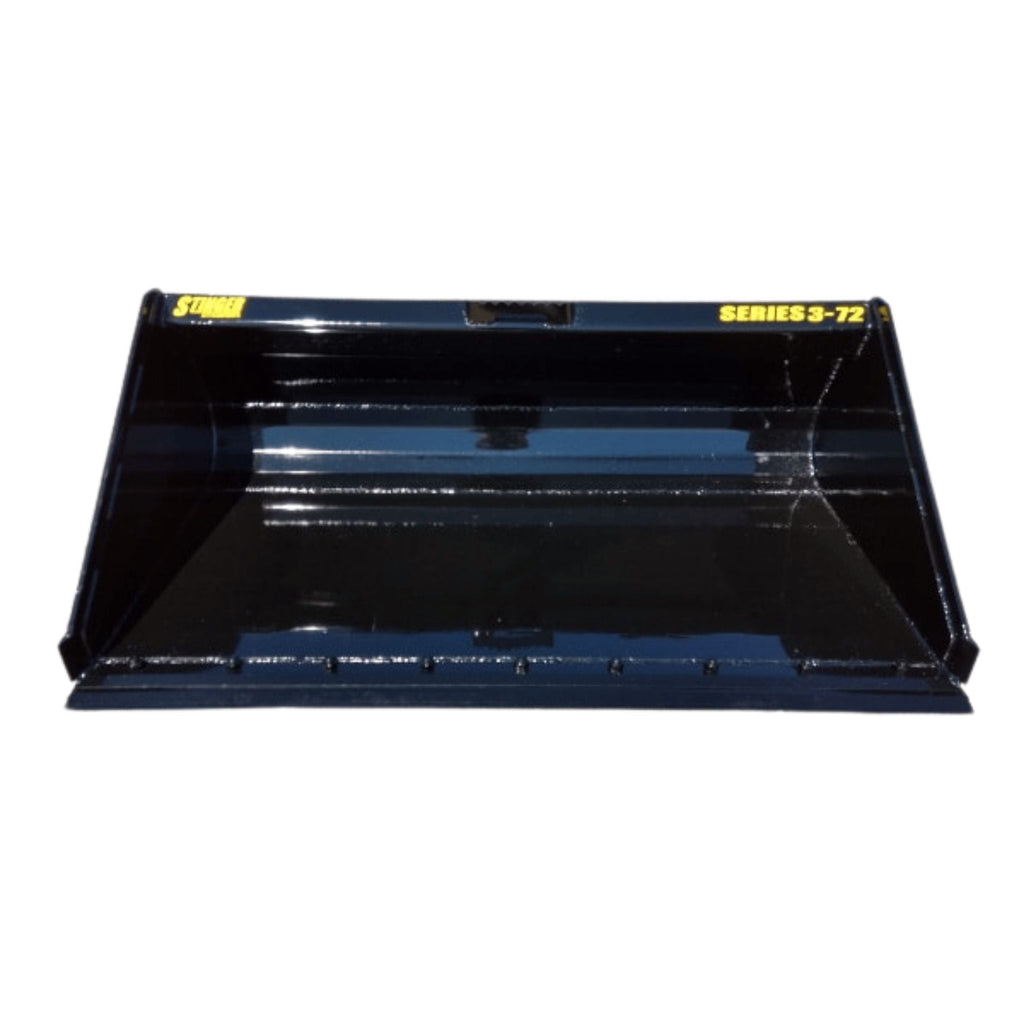

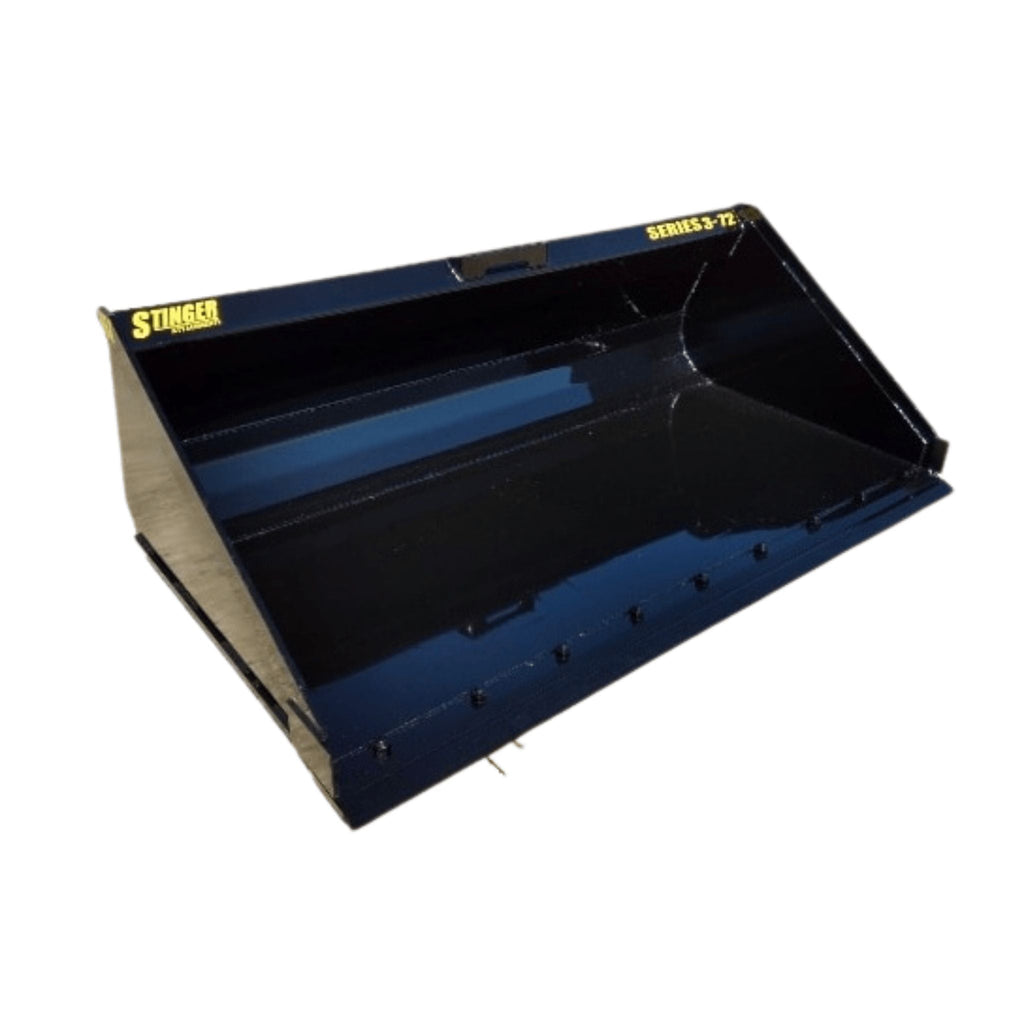

Maximum Volume, Maximum Efficiency: The Stinger Series 3 (MB3) is the high-capacity king of the material bucket lineup. By extending the bottom depth to 43.79 inches and raising the height to 25 inches, Stinger has created a bucket that captures significantly more material per cycle than standard utility buckets.
Built for Large Machines: Designed for Large-Frame Skid Steers, Utility Tractors, and Compact Payloaders, the MB3 utilizes a 3/16" Grade 50 shell reinforced with a top tube and 1/2" side braces. It features the signature Rolled Radius Insert for superior strength and effortless cleanout of sticky material.
⚙️ Technical Specifications
Bottom Depth: 43.79 Inches (Extra Deep)
Front Height: 25.10 Inches (Tall Profile)
Shell Material: 3/16" Grade 50 Steel
Wear Protection: 1/2" x 4" Underside Wear Bars
Cutting Edge: 3/4" x 8" (Weld-On or Bolt-On)
Warranty: 1-Year Structural
⚠️ Critical Warning: Lift Capacity
High Capacity Hazard: This bucket holds up to 23.8 cu ft (heaped). A full load of wet gravel can exceed 3,000 lbs.
Ensure your machine has the Rated Operating Capacity (ROC) and rear ballast to handle this volume safely.
✅ Machine Compatibility
1. Mount Type:
Universal Quick Attach (SSQA). Fits all standard skid steers and utility tractors.
2. Size Recommendation:
60" - 72": Ideal for Utility Tractors (50HP+) & Mid-Frame Skid Steers.
78" - 84": Ideal for Large Frame Skid Steers (e.g., Bobcat T870) & Compact Wheel Loaders.
3. Confirmed Fitment:
- Kubota: SVL95-2, SVL97-2, M-Series Tractors.
- Bobcat: S770, S850, T770, T870.
- John Deere: 331G, 333G, Compact Wheel Loaders.
- CAT: 289D, 299D3, 906M/908M (with SSQA adapter).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Operating Weight | 614 lbs |
| Struck Capacity | 14.2 cu ft |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 3/16" |
