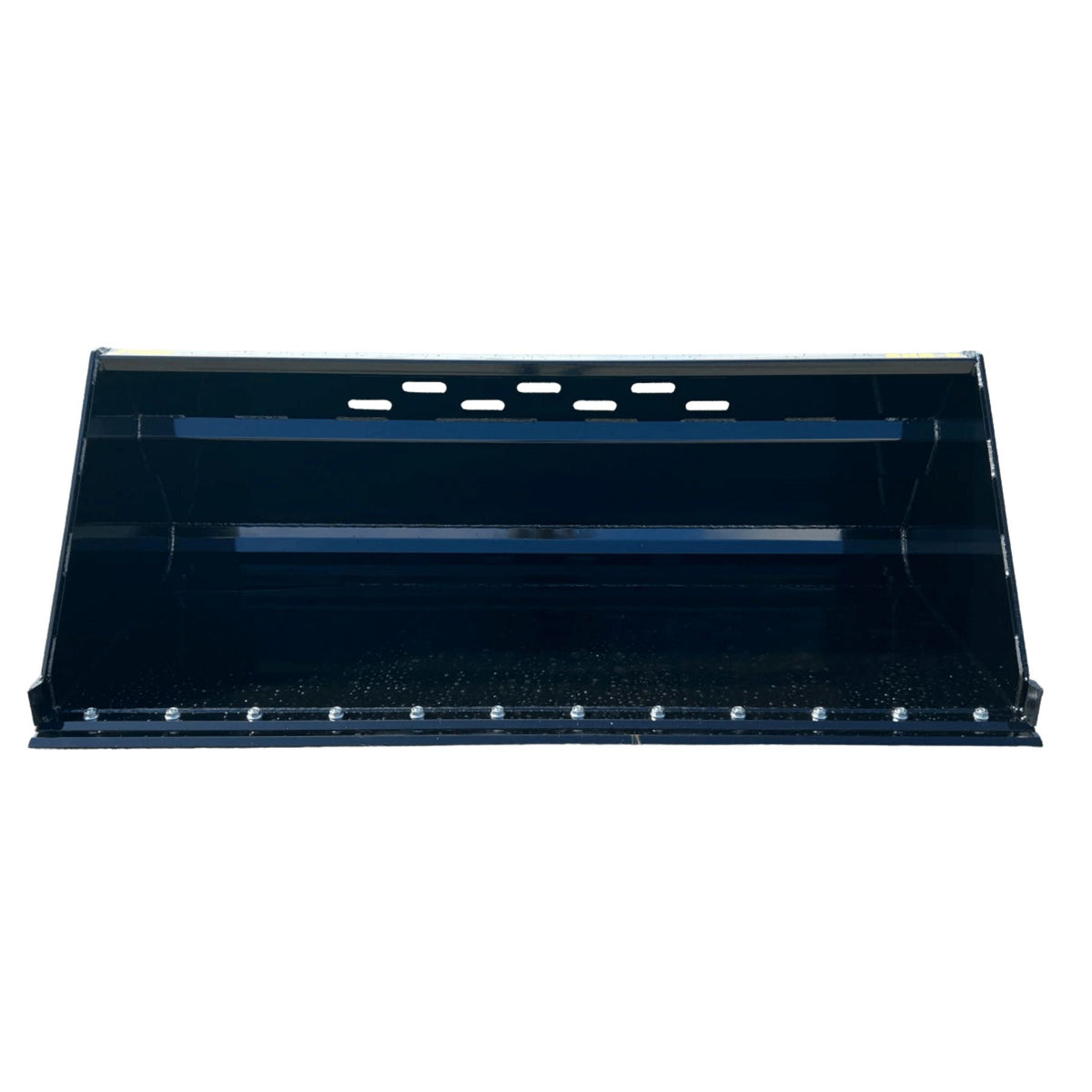

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft

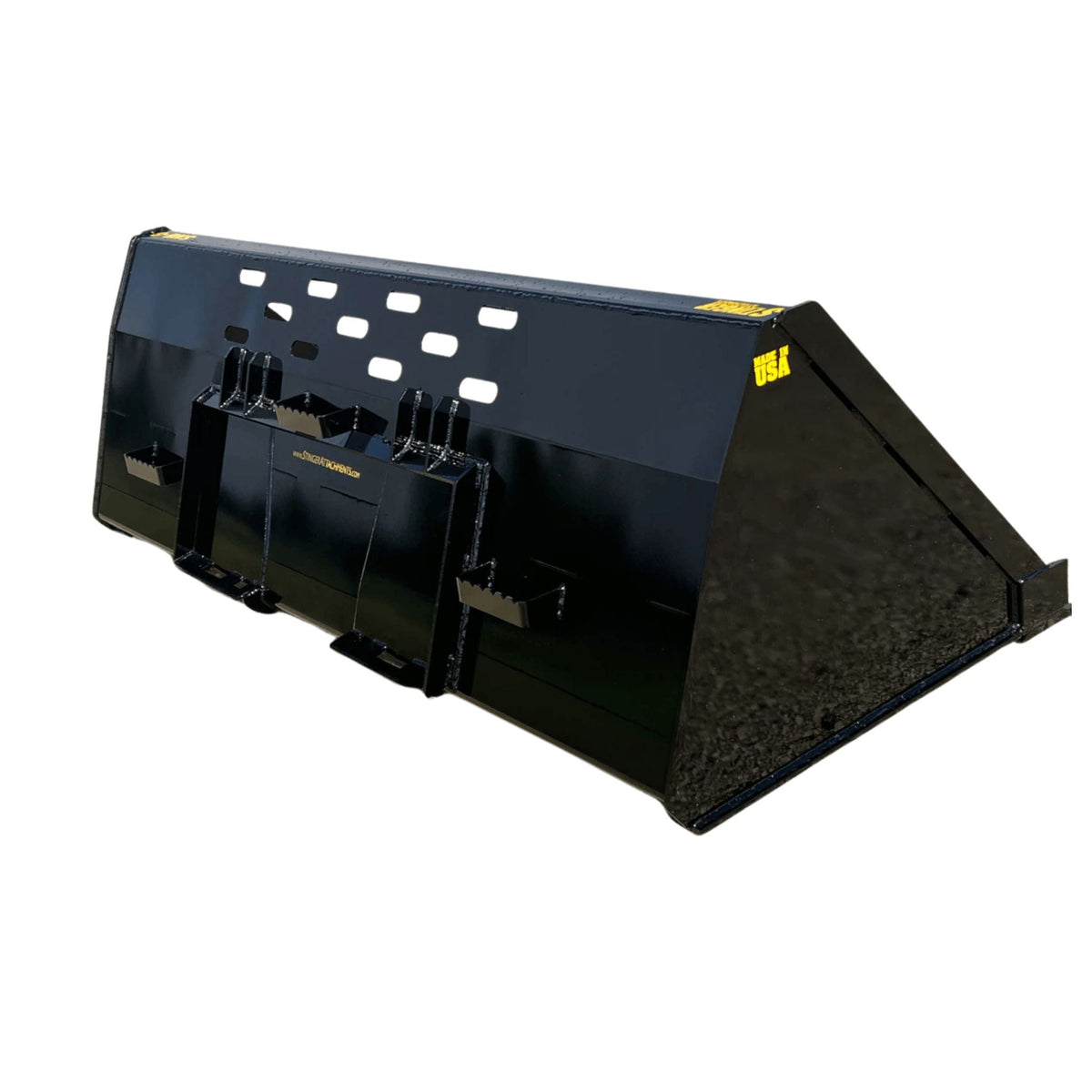

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft - View 2

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft - View 3

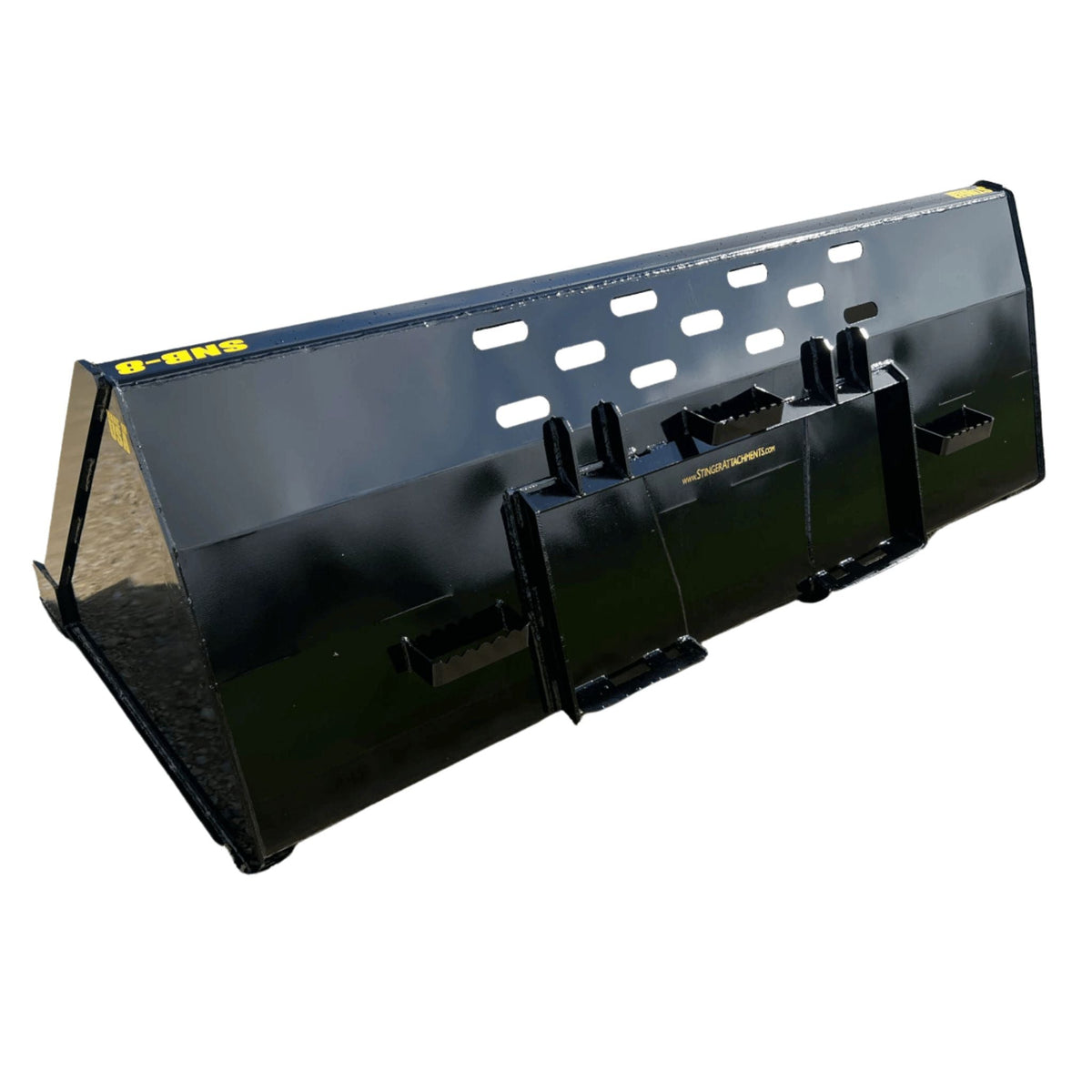

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft - View 4

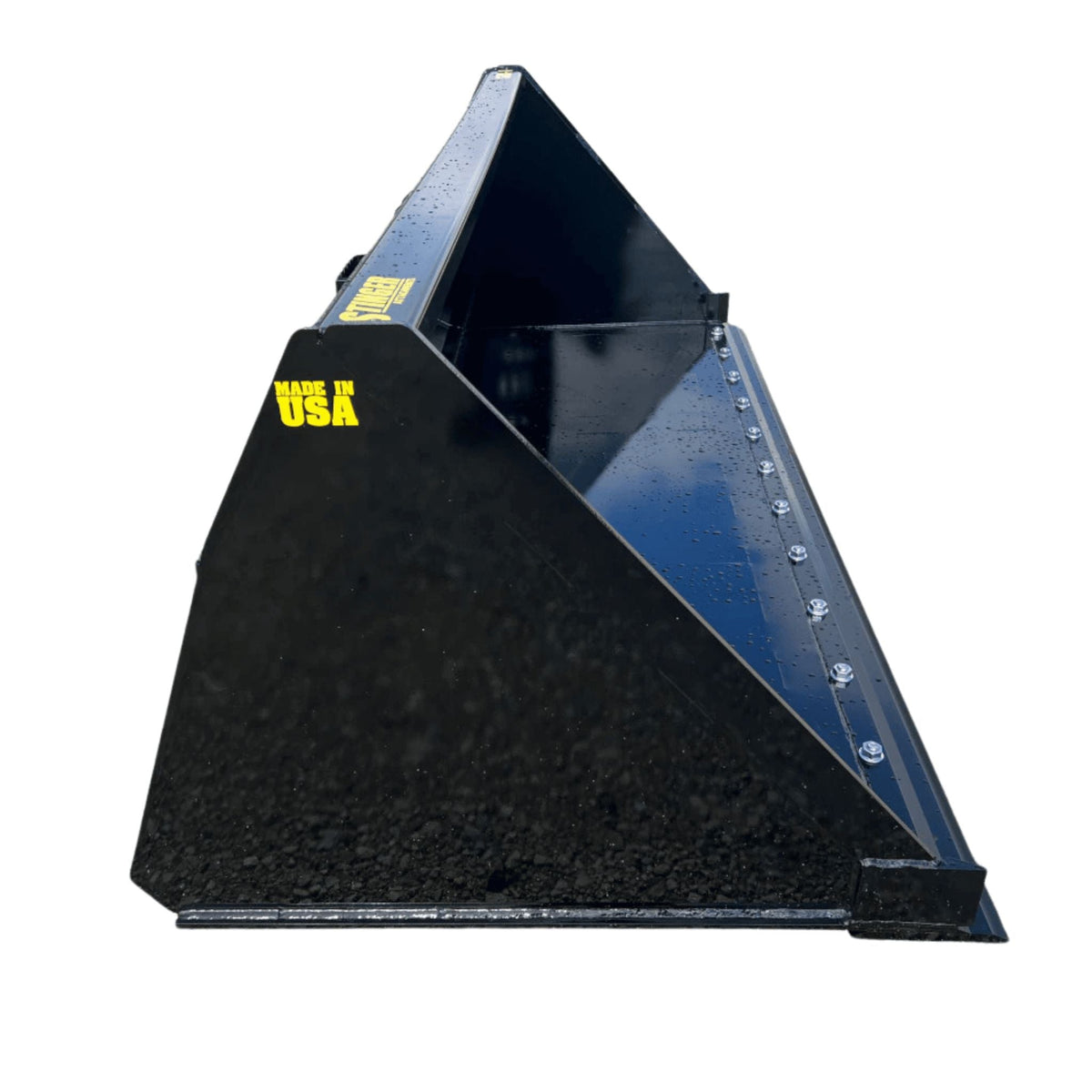

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft - View 5

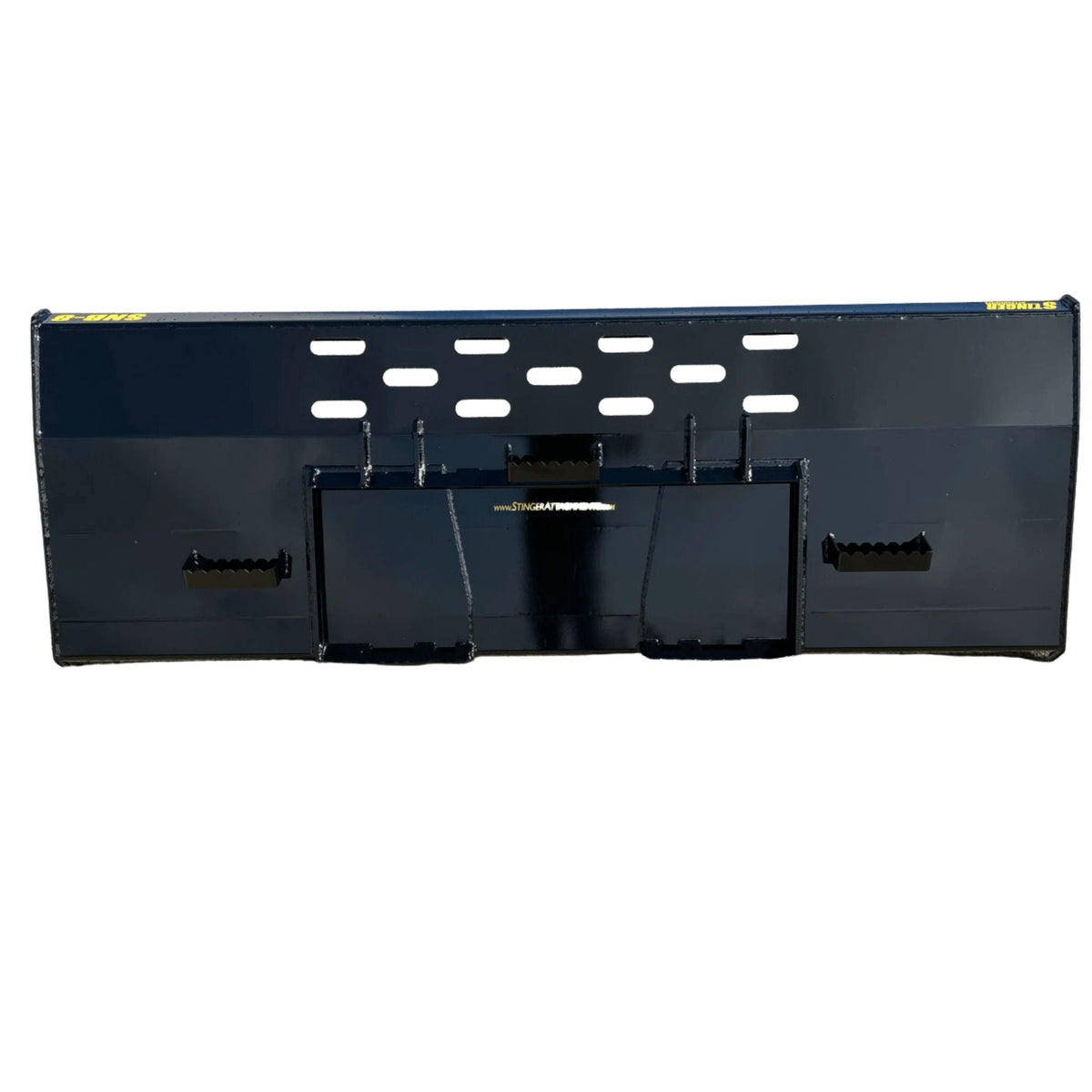

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft - View 6

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft - View 7

Roll over image to zoom in Click on image to zoom

🇺🇸 Made in USA | Authorized Dealer | Guaranteed Fitment | Direct-to-Site Delivery

Stinger Skid Steer Snow Bucket | High Capacity & See-Through | 6ft - 10ft

❄️ High-Volume Snow

Stinger Attachments

Width: 6ft

Cutting Edge Type: Standard Weld-On Edge

Price:

$3,390 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

Move Volume, Not Just Weight: The Stinger Attachments High-Volume Snow Bucket is engineered for speed and efficiency. Unlike standard dirt buckets that spill light materials, this High Capacity Design allows you to move massive amounts of snow, mulch, or wood chips in a single pass.

Drive with Vision: Standard high-volume buckets are solid walls of steel that block your view. Stinger’s unique See-Through Back Design gives you clear sightlines to your cutting edge. This means faster stacking, safer operation, and fewer accidents in crowded lots.

Smart Engineering:

Rolled Cleanout Insert

The back of the bucket features a rolled radius support. This prevents wet snow from packing into the corners, ensuring a clean dump every time.

Grade 50 Steel

Built with a 3/16" Grade 50 shell and reinforced with a 4" x 2" top tube to resist twisting under heavy loads.

Year-Round Versatility

While built for snow, this is the perfect "Light Material Bucket" for landscaping, easily handling mulch and leaves in the off-season.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

45–135+ HP Skid Steer / CTL / Tractor

Hydraulics

None (Mechanical)

Heaped Capacity

32.3 to 45.6 Cubic Feet

Mount Interface

Universal SSQA

1. Select Width & Volume by Carrier Lift Capacity (See-Through Back Design):

6 ft / 72" (850 lbs | 32.3 Cu Ft) & 7 ft / 84" (900 lbs | 37.5 Cu Ft)Ideal for 50–85 HP Mid-Frame Skid Steers, CTLs & Utility Tractors (Kubota SSV65/SSV75/SVL75-3, Bobcat S590/S650/T66, Deere 317G–325G, CAT 246D3/259D3/255)

8 ft / 96" (1,025 lbs | 43.0 Cu Ft), 9 ft (1,090 lbs) & 10 ft (1,150 lbs | 45.6 Cu Ft)Ideal for 85–135 HP Large-Frame CTLs, Telehandlers & Compact Wheel Loaders (SVL97-2, Bobcat T76/T770/T86/T870, Deere 331P/333G/333P, CAT 279D3–299D3, 265–285)

2. Confirmed Compatible Skid Steers, CTLs & Ag Tractors:

Kubota (Loaders & Tractors)L3301, L3901, L4701, MX5400, MX6000, M4D, M5, M6060, M7060, SSV65, SSV75, SVL65-2, SVL75-3, SVL97-2

John Deere (Loaders & Tractors)3038E, 3039R, 4044M, 4052M, 4066R, 5055E, 5065E, 5075E, 5090E, 317G, 320G, 324G, 325G, 331P, 333G, 333P

Bobcat & CATBobcat S570, S590, S650, S64, S66, S76, T590, T64, T66, T76, T770, T86; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 250, 255, 265, 275

Case IH, New Holland, Kioti & MFCase IH Farmall / SV280B–TV450B; New Holland Workmaster / PowerStar / L328 / C337; Kioti DK/NS/RX Series; Massey Ferguson 1835M–4700 Series

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Edge Selection Guide

Weld-On Edge: A permanent 3/4" x 8" edge welded to the bucket. Good for general use.
Bolt-On Edge (Recommended): A replaceable 3/4" x 6" edge bolted over the main lip. This extends the life of the bucket significantly and is recommended for asphalt/concrete use.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Shell Thickness	3/16" High-Tensile Grade 50
Side Thickness	1/4" with 1/2" Support Ribs
Top Reinforcement	4" x 2" Steel Tube
Wear Bars	4 to 5 Bars (1/2" x 4")
Back Angle	70 Degrees (Optimized for Roll-Back)
Warranty	2-Year Structural
Operating Weight	6ft: 850 lbs (386 kg) \| 7ft: 900 lbs (408 kg) \| 8ft: 1,025 lbs (465 kg) \| 9ft: 1,090 lbs (494 kg) \| 10ft: 1,150 lbs (522 kg)
Included Standard	SNB High-Capacity See-Through Snow Bucket, Rolled Cleanout Insert, 3/4"x8" Cutting Edge (Weld-On or Bolt-On) & Universal SSQA Mount
