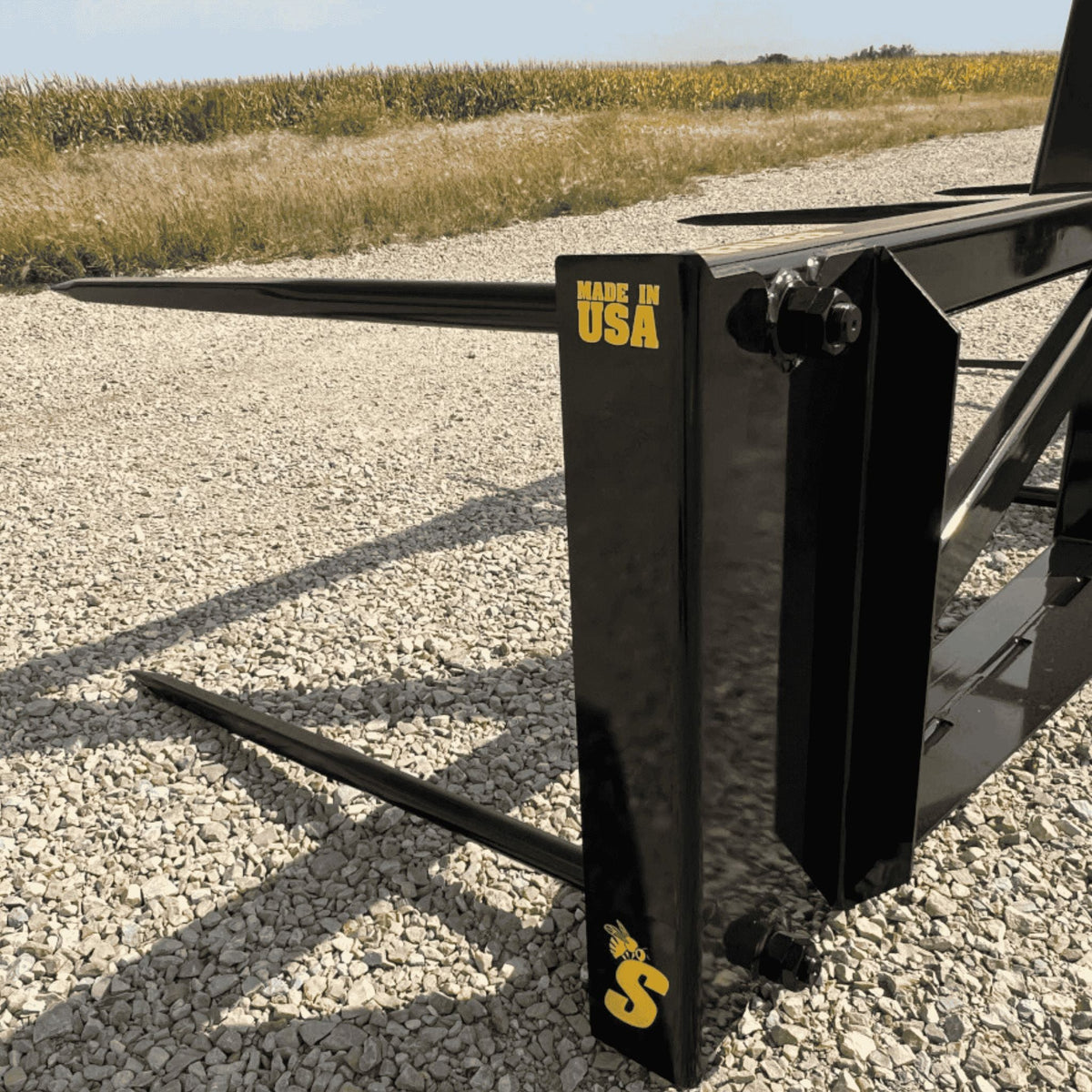

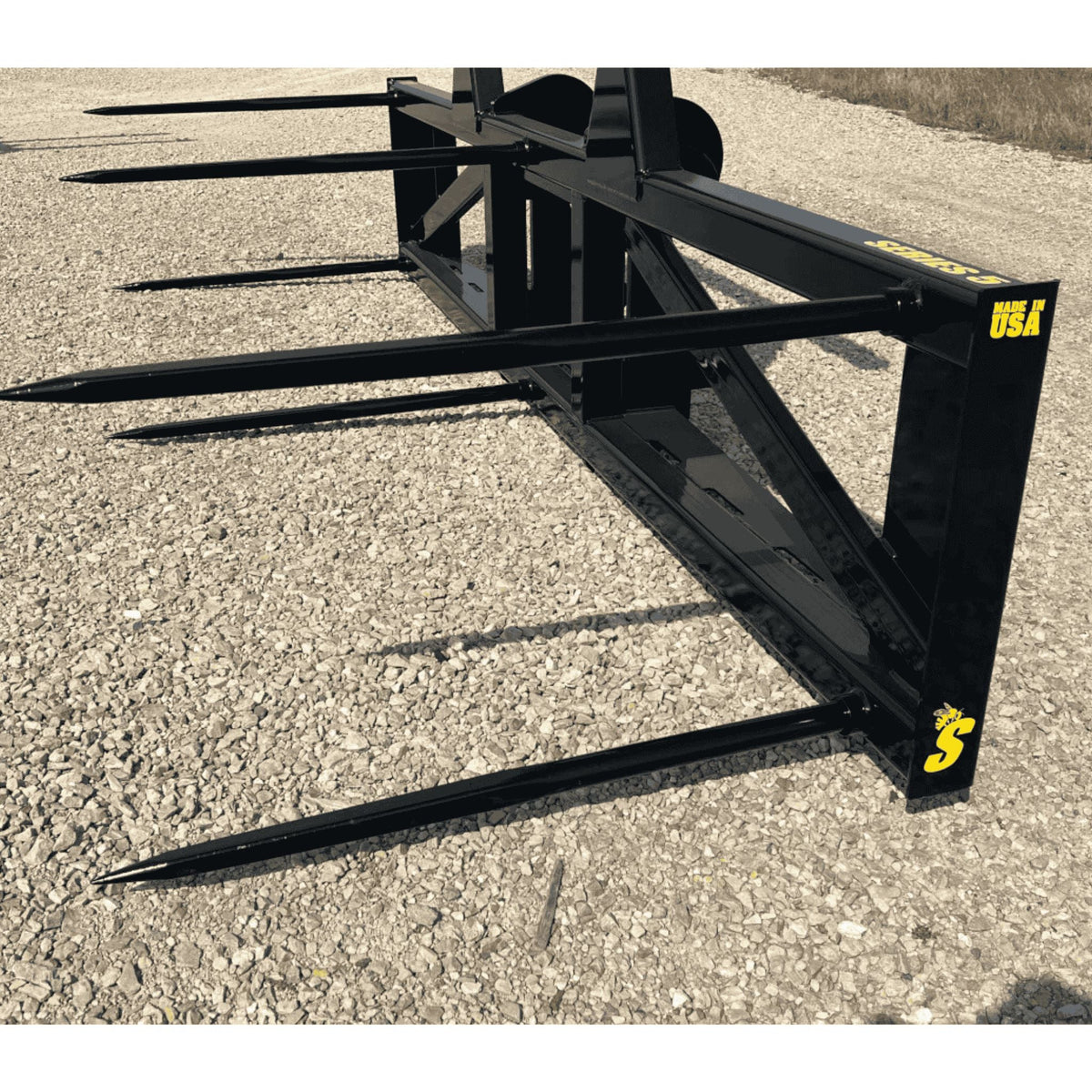

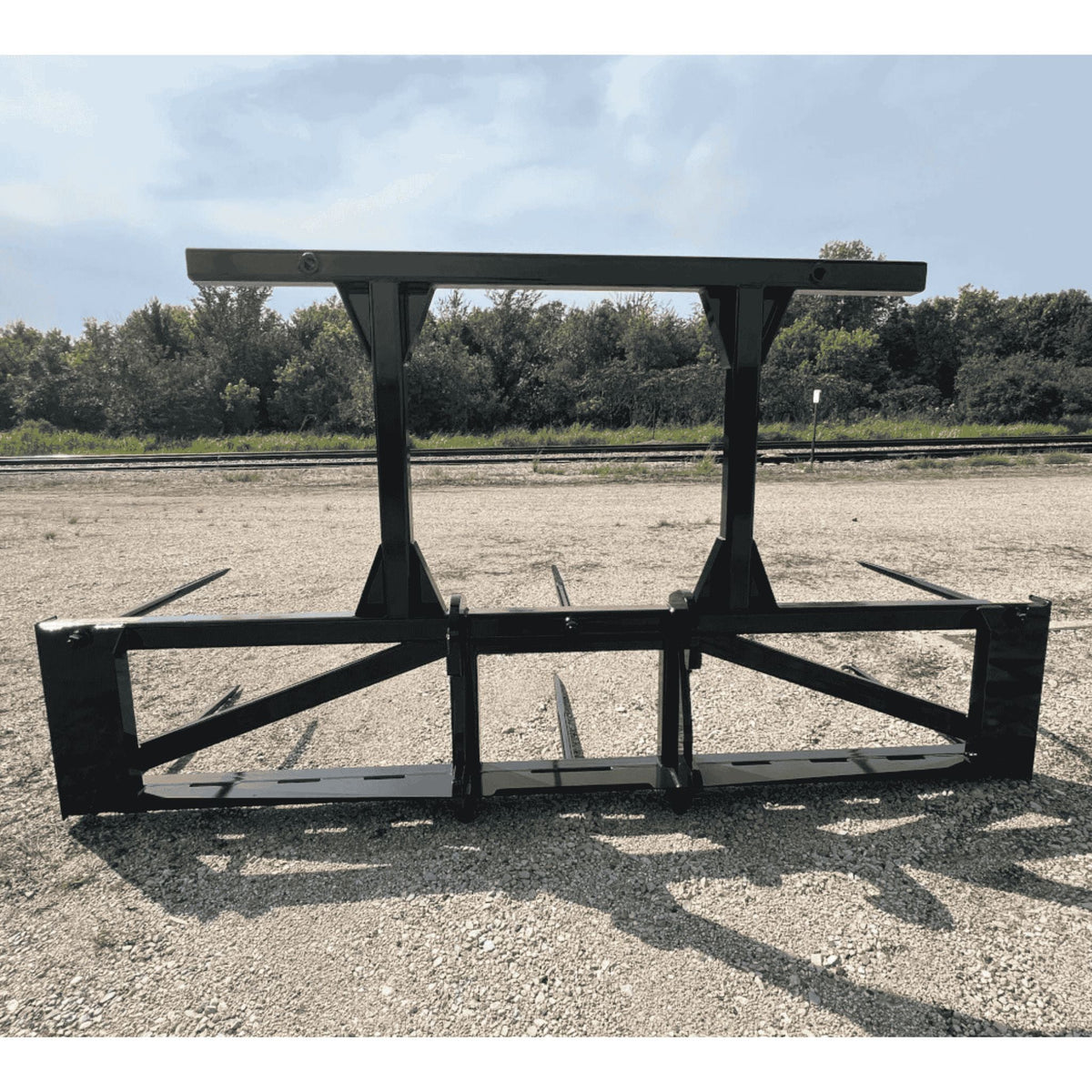

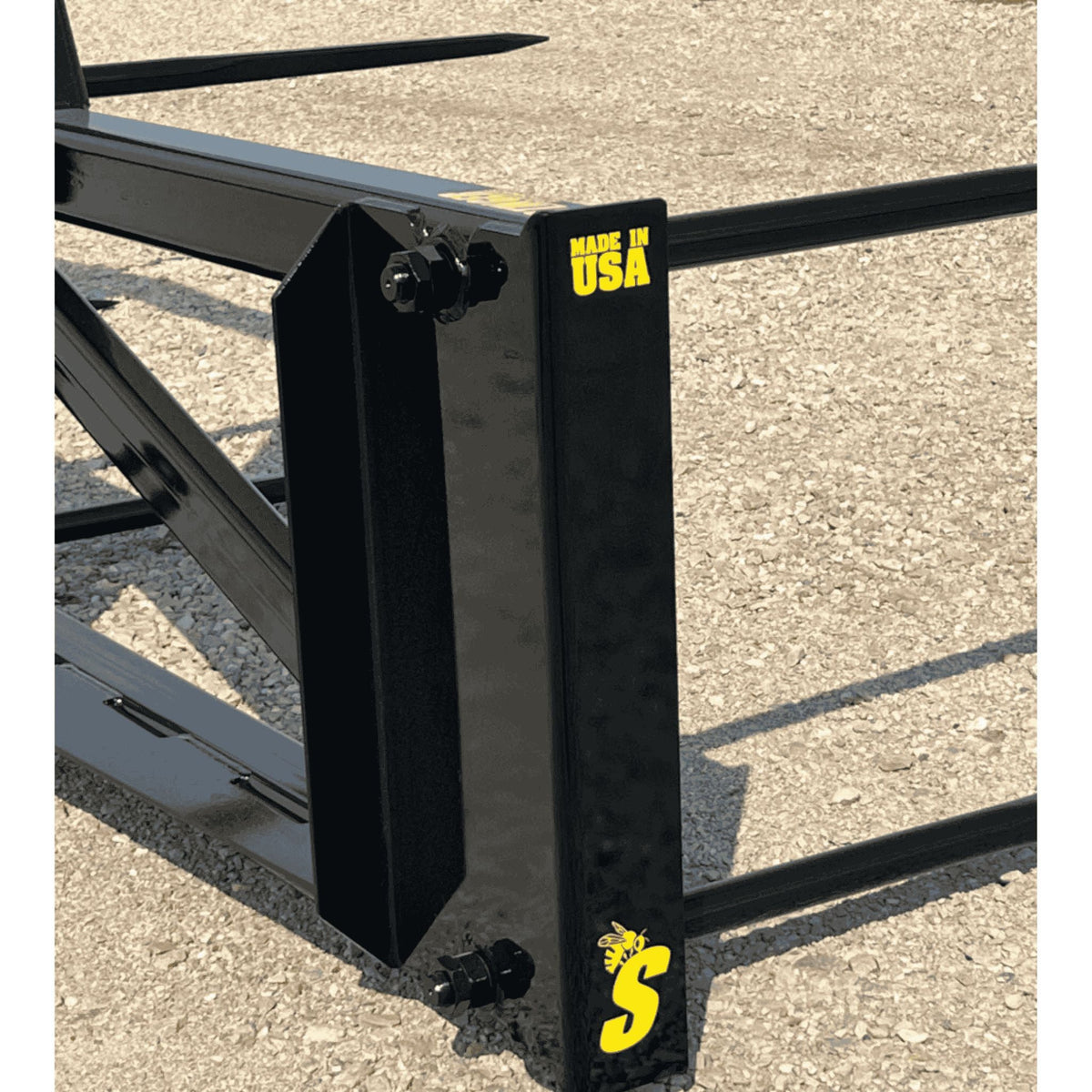

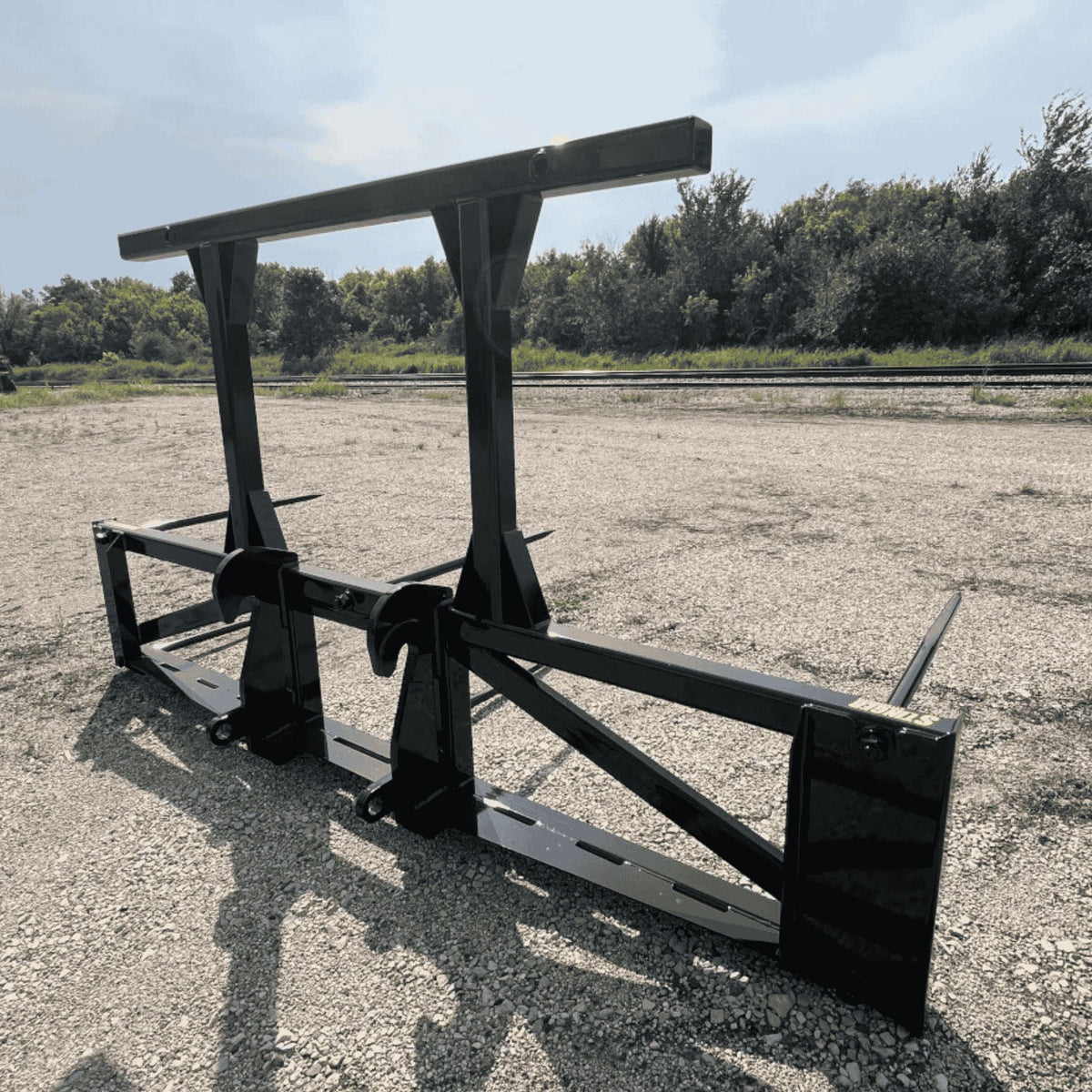

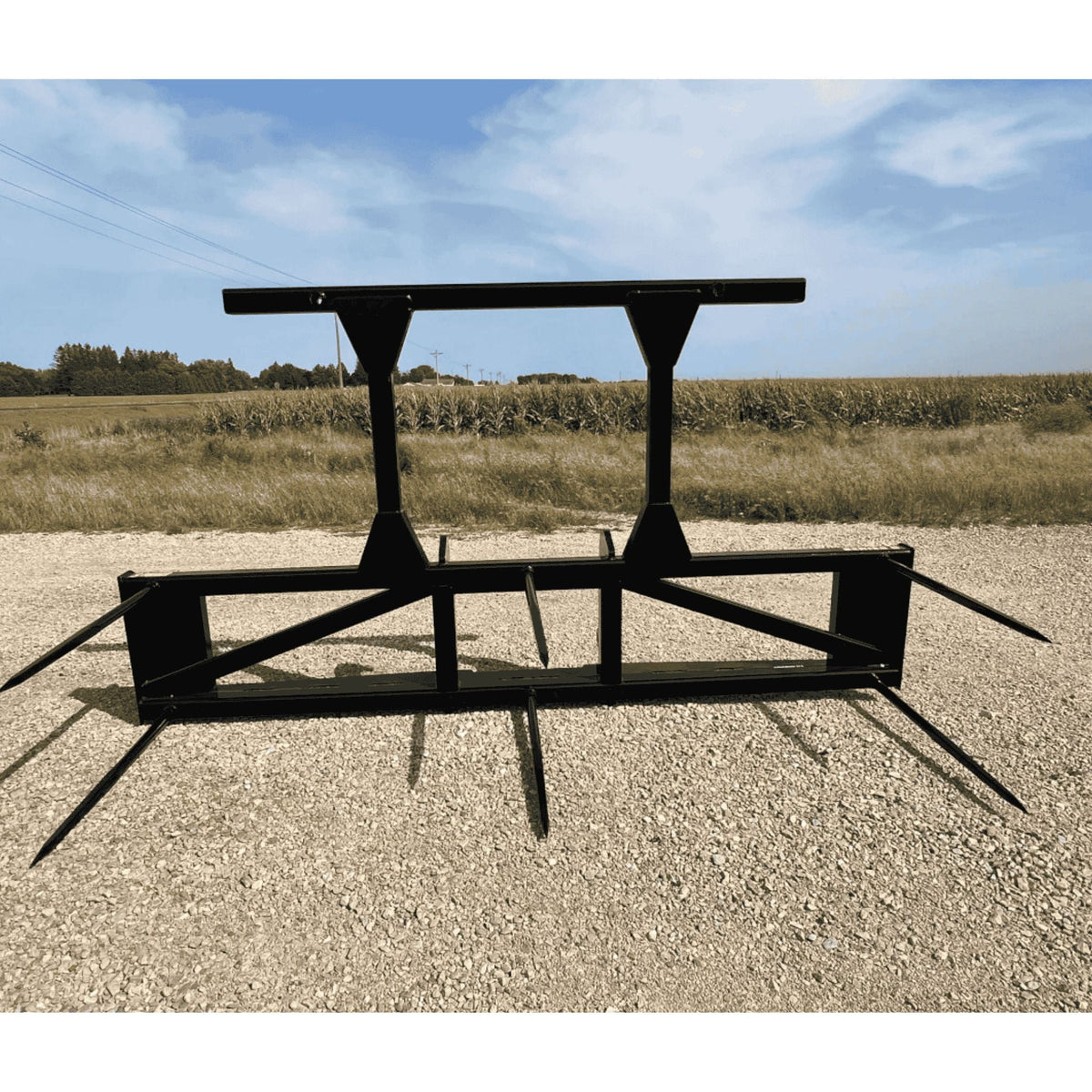

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity - View 2

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity - View 3

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity - View 4

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity - View 5

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity - View 6

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity - View 7

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity - View 8

Roll over image to zoom in Click on image to zoom

🇺🇸 Made in USA | Authorized Dealer | Guaranteed Fitment | Direct-to-Site Delivery

Stinger Telehandler Multi-Bale Spear | 3 & 5 Round Bale Mover | 21,000 lb Capacity

🌾 #1 Prairie Ag Seller

Stinger Attachments

Configuration: 3-Bale Mover (Base)

Spear Length: 39 in

Price:

$4,670 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

The Ultimate Efficiency Tool for Commercial Hay: The Stinger Series 5 Bale Mover is engineered for large-scale producers who measure productivity in tons per hour. Designed specifically for Telehandlers and Wheel Loaders, this 12-foot wide beast allows you to move massive amounts of hay in a single trip.

The "Pyramid" Stacking Advantage:

Bottom Row

Carries three (3) large 6' round bales side-by-side using heavy-duty Conus 2 spears.

Top Row (5-Bale Model)

Features upper support sleeves to carry two (2) additional bales nested on top, stabilizing the load for transport.

Industrial Construction: We stepped up the steel for this series. The frame is built from 4" x 4" x 3/8" Structural Tubing (upgraded from 1/4") and reinforced with Grade 50 side plates to handle a staggering 21,000 lb Working Load Limit.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

Telehandlers & Wheel Loaders

Working Load Limit

21,000 lbs (3–5 Bales)

Frame Width

144" (12 Feet Wide)

Mount Interface

Selectable Telehandler / Loader Coupler

1. Select 3-Bale or 5-Bale Pyramid Configuration:

3-Bale Base Mover (750 lbs | 21,000 lb WLL)Carries three (3) 6-foot round bales side-by-side on a 4"x4"x3/8" structural steel frame

5-Bale Pyramid Mover (890 lbs | 21,000 lb WLL)Adds upper support sleeves to nest two (2) additional round bales on top (5 bales per trip)

2. Confirmed Compatible Telehandlers & Wheel Loaders:

JCB & Manitou TelehandlersJCB 531-70, 535-95, 538-60, 541-70, 542-70, 560-80 Agri; Manitou MLT 630, MLT 635, MLT 737, MLT 741, MLT 841, MLT 961

Merlo, Claas, CAT & JLG/GenieMerlo TF33.7, TF35.7, TF38.10, TF42.7; Claas Scorpion 736, 741, 746; CAT TH255C, TL642, TL943, TL1055, TL1255; JLG / Genie GTH

Ag & Construction Wheel LoadersJohn Deere 244L, 324L, 344L, 444P, 524P; CAT 906M, 908M, 910, 914, 926M; Volvo L25H–L60H; Case 521G; Komatsu WA150–WA200

🔩 Mounting Interface: Built to order with your exact OEM coupler: JCB Q-Fit, Manitou, Merlo, John Deere, CAT/JRB, Volvo/Global ISO, or Universal SSQA.

⚠️ Critical Machine Requirement

NOT FOR SKID STEERS: This attachment is 12 feet wide and creates a massive leverage point. It is strictly designed for Telehandlers or Large Wheel Loaders.

Ballast Warning: A fully loaded 5-bale mover can exceed 10,000 lbs of payload plus the attachment weight. Ensure your machine is rated for this tipping load.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Lift Capacity	21,000 lbs (Extreme Duty)
Frame Width	12 Feet (144 Inches)
Frame Thickness	4" x 4" x 3/8" (Bottom) \| 4" x 2" x 3/8" (Top)
Primary Spears	Conus 2 Forged (Double Nut Replaceable)
Secondary Spears	Sleeves ready for Conus 1 (Top Row)
Safety	Integrated Safety Step
Operating Weight	3-Bale Mover (Base): 750 lbs (340 kg) \| 5-Bale Mover (With Upper Support): 890 lbs (404 kg)
Included Standard	12-Foot Series 5XD Multi-Bale Frame, Conus 2 Forged Spears & Selected Telehandler / Wheel Loader Quick-Attach Coupler
Warranty	2-Year Structural Warranty
