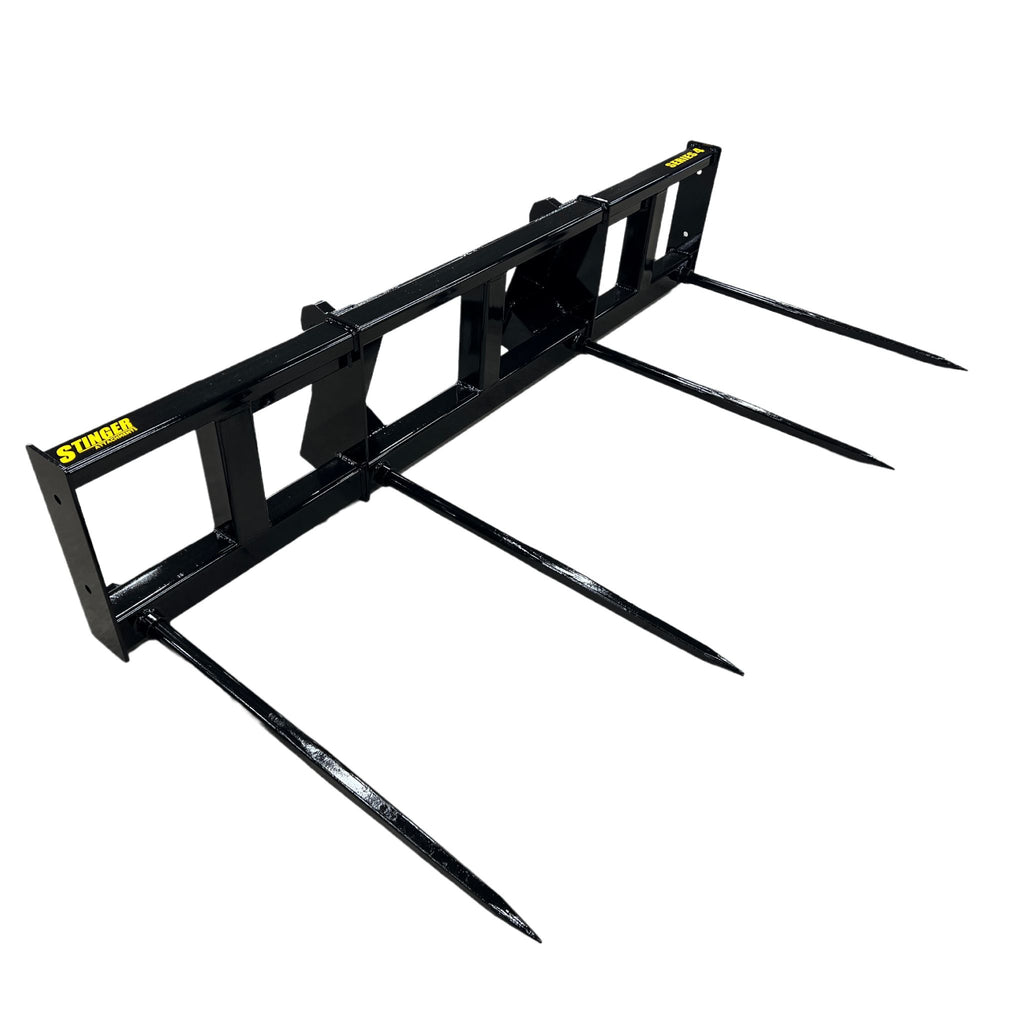

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity

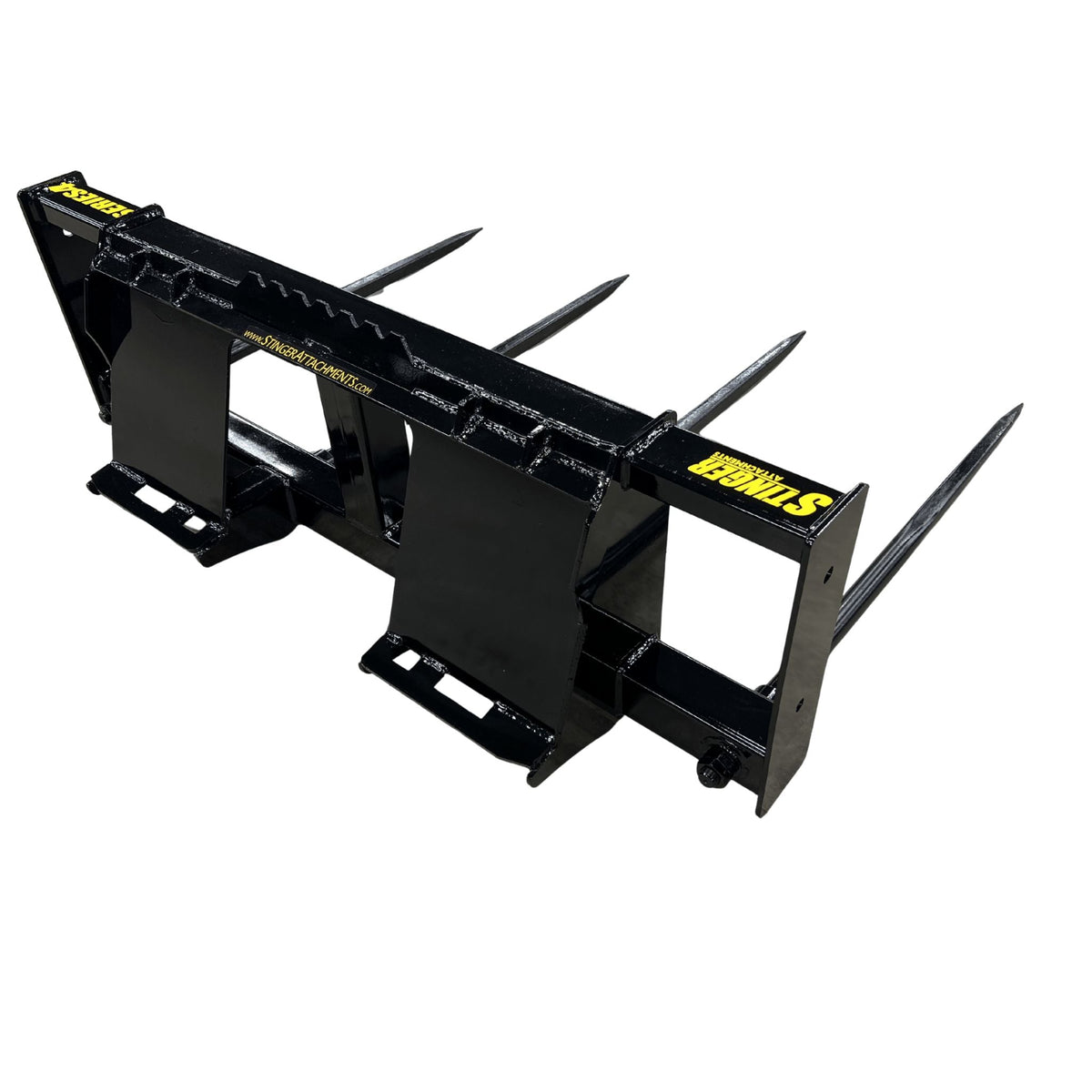

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 2

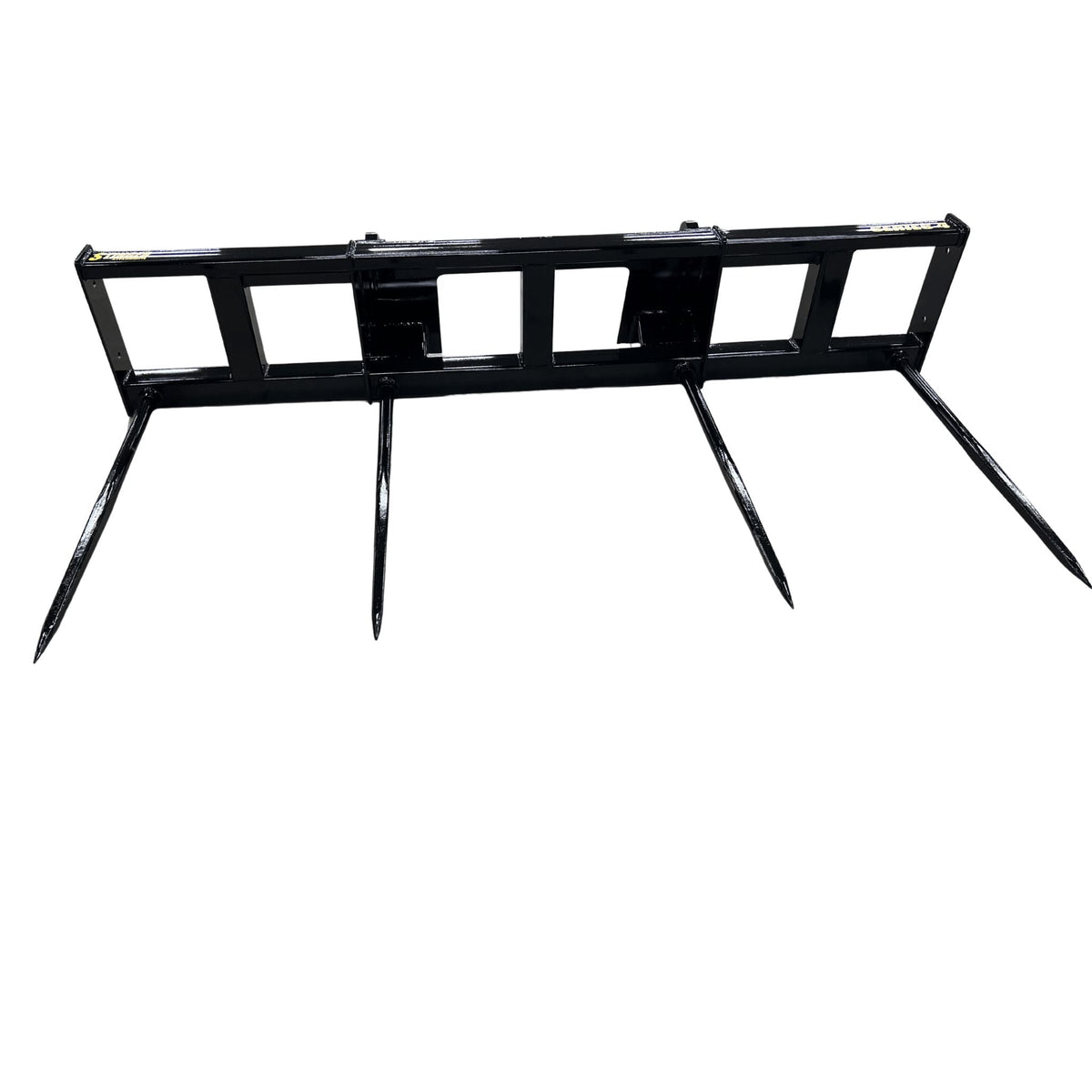

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 3

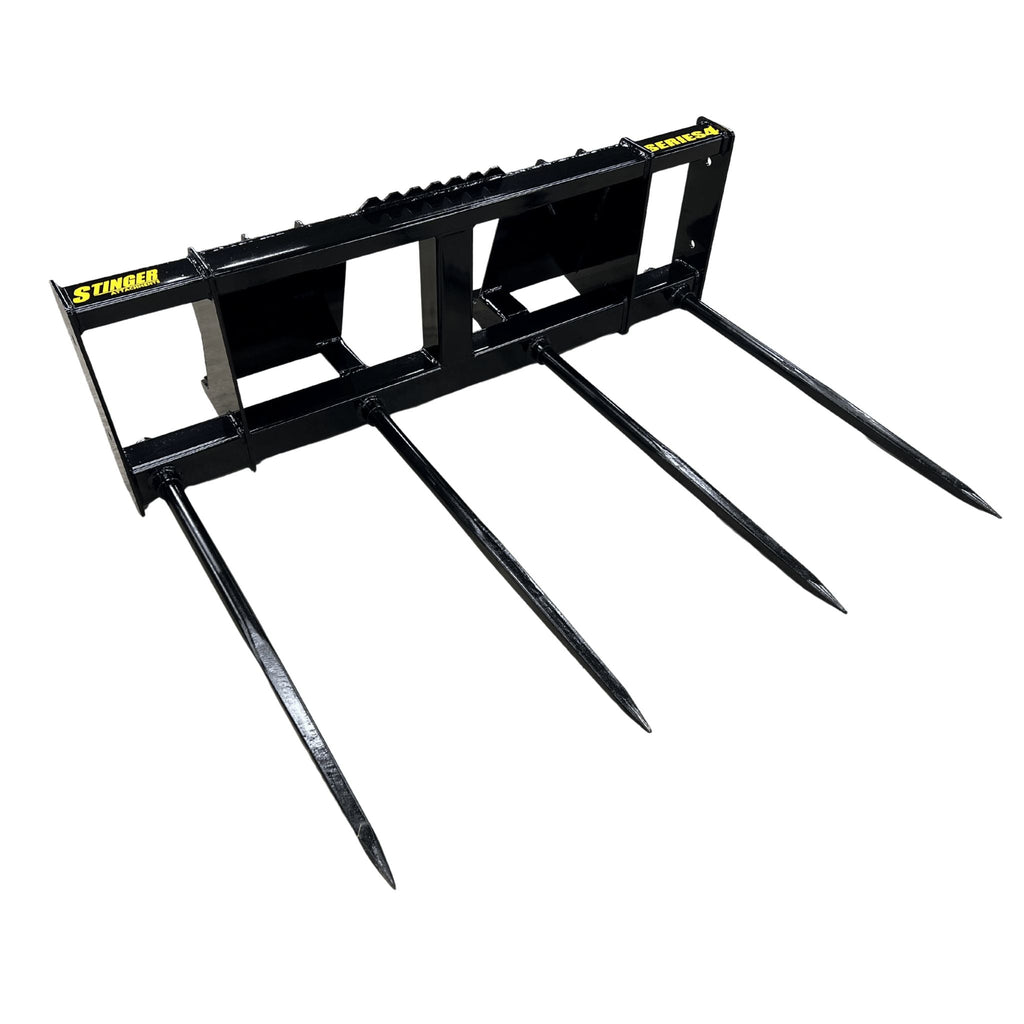

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 4

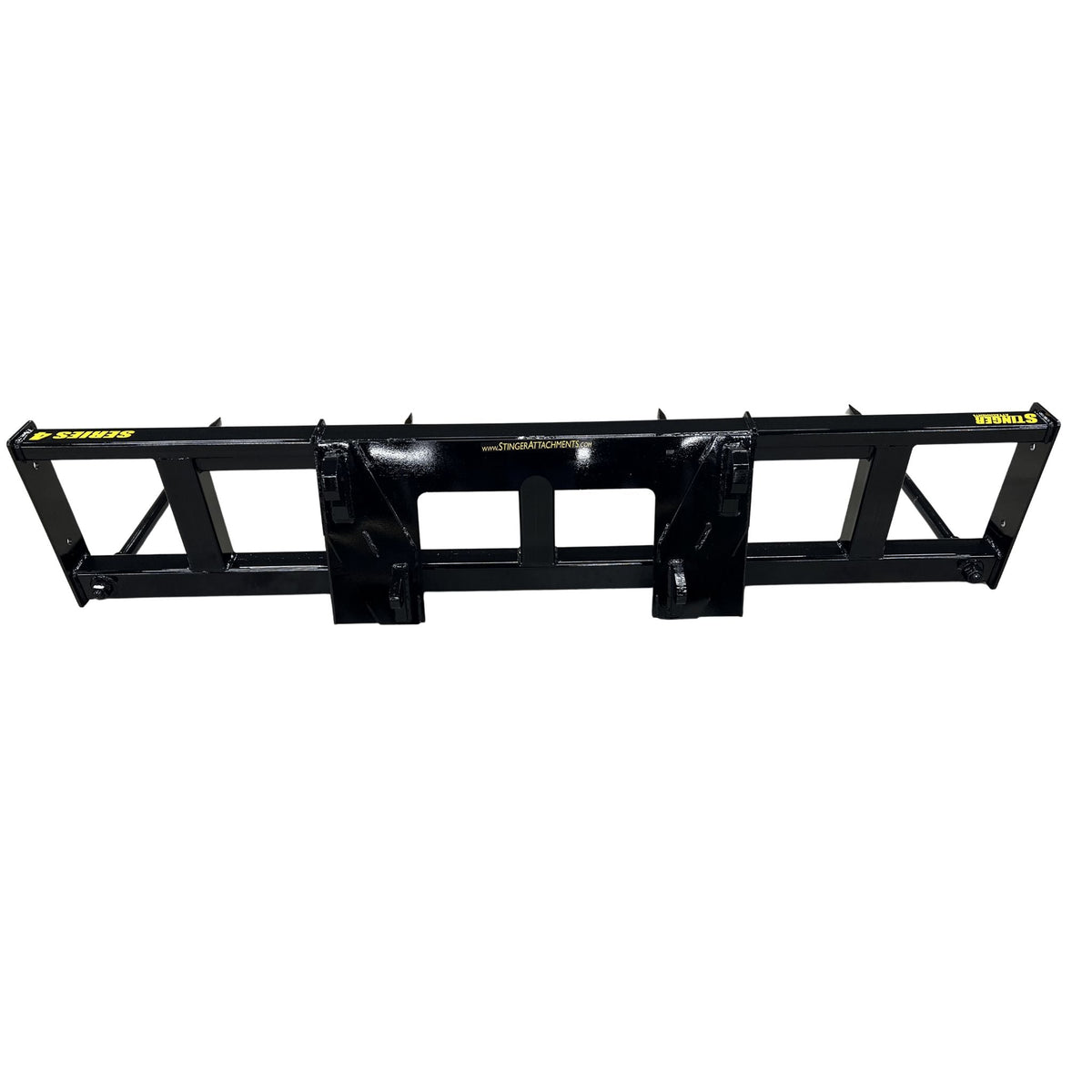

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 5

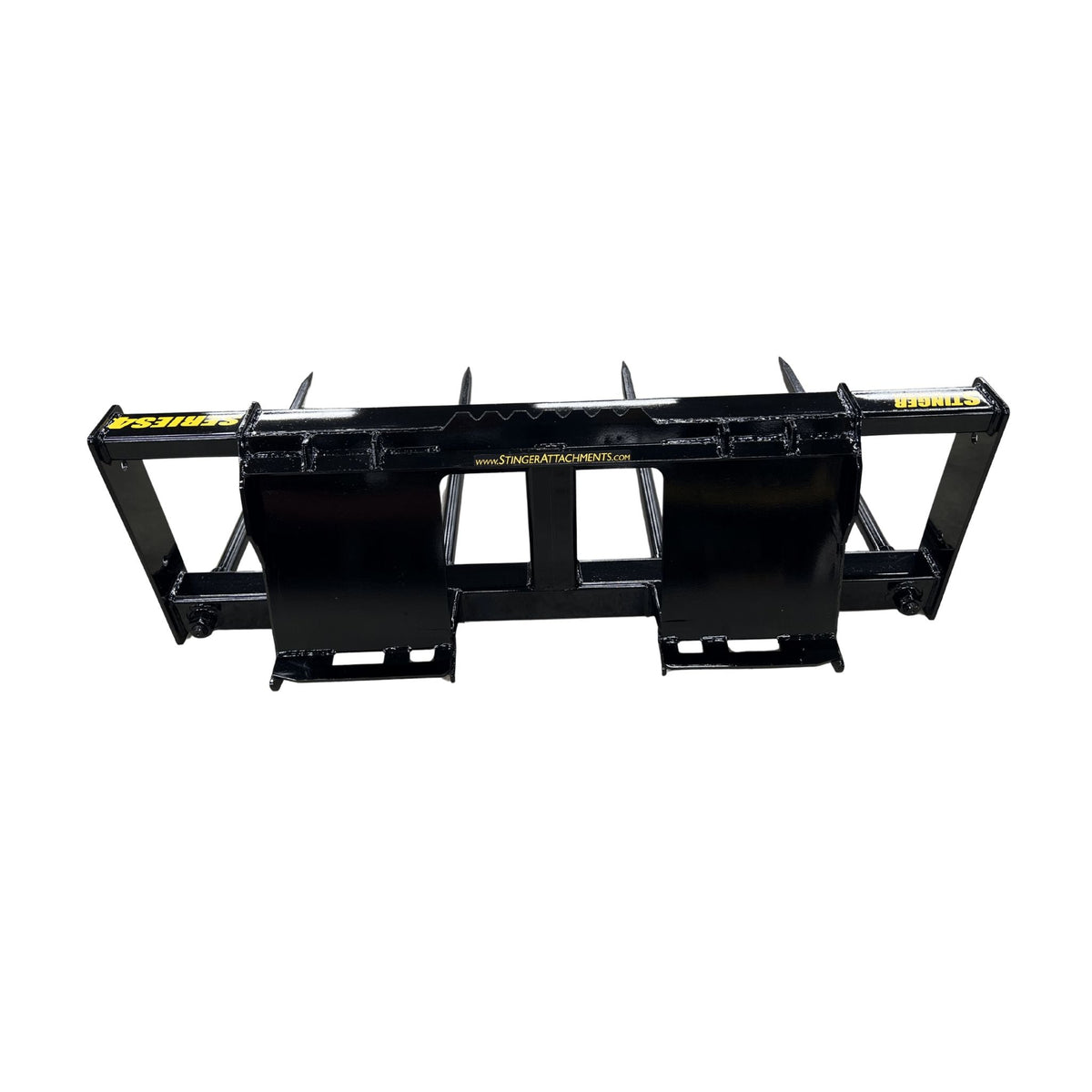

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 6

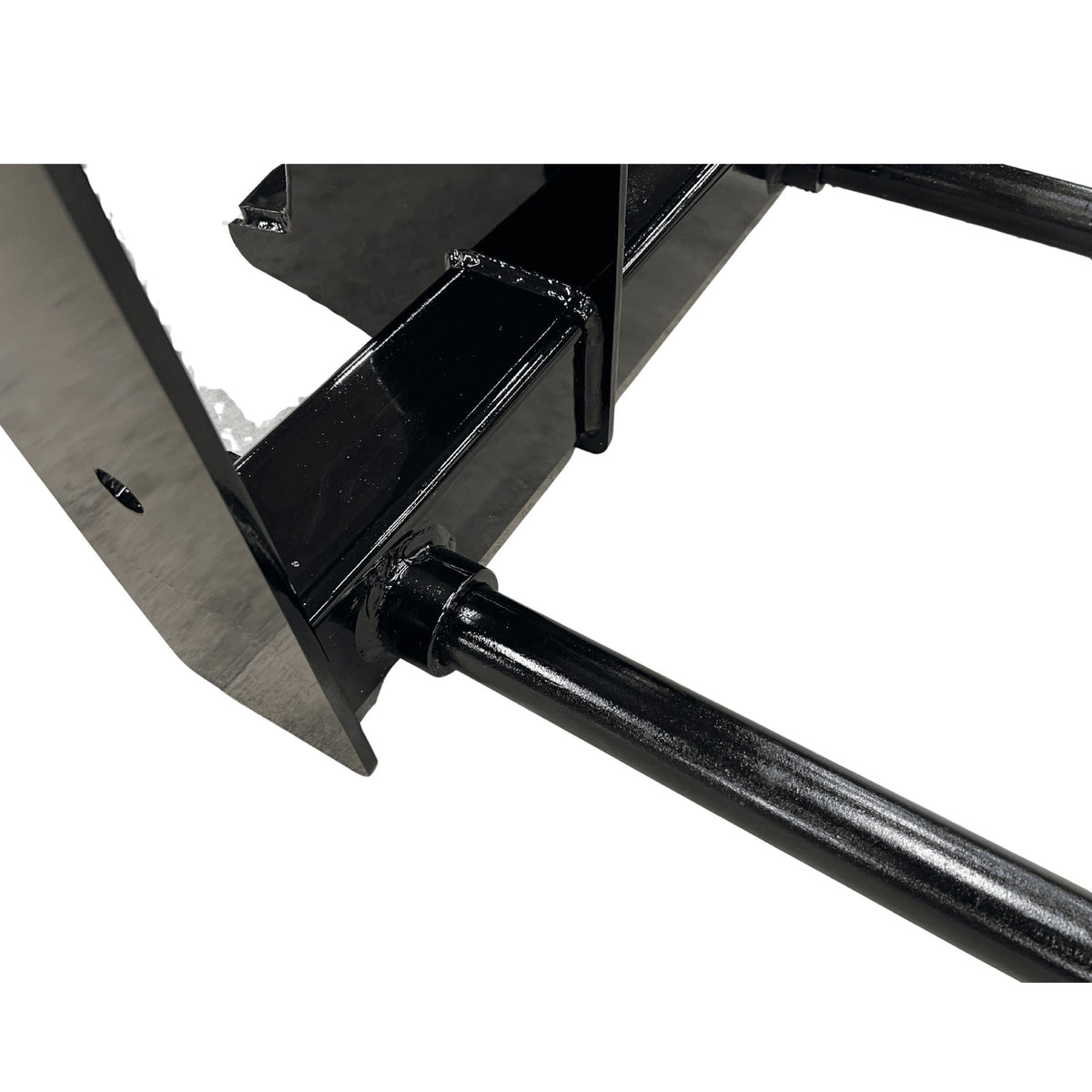

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 7

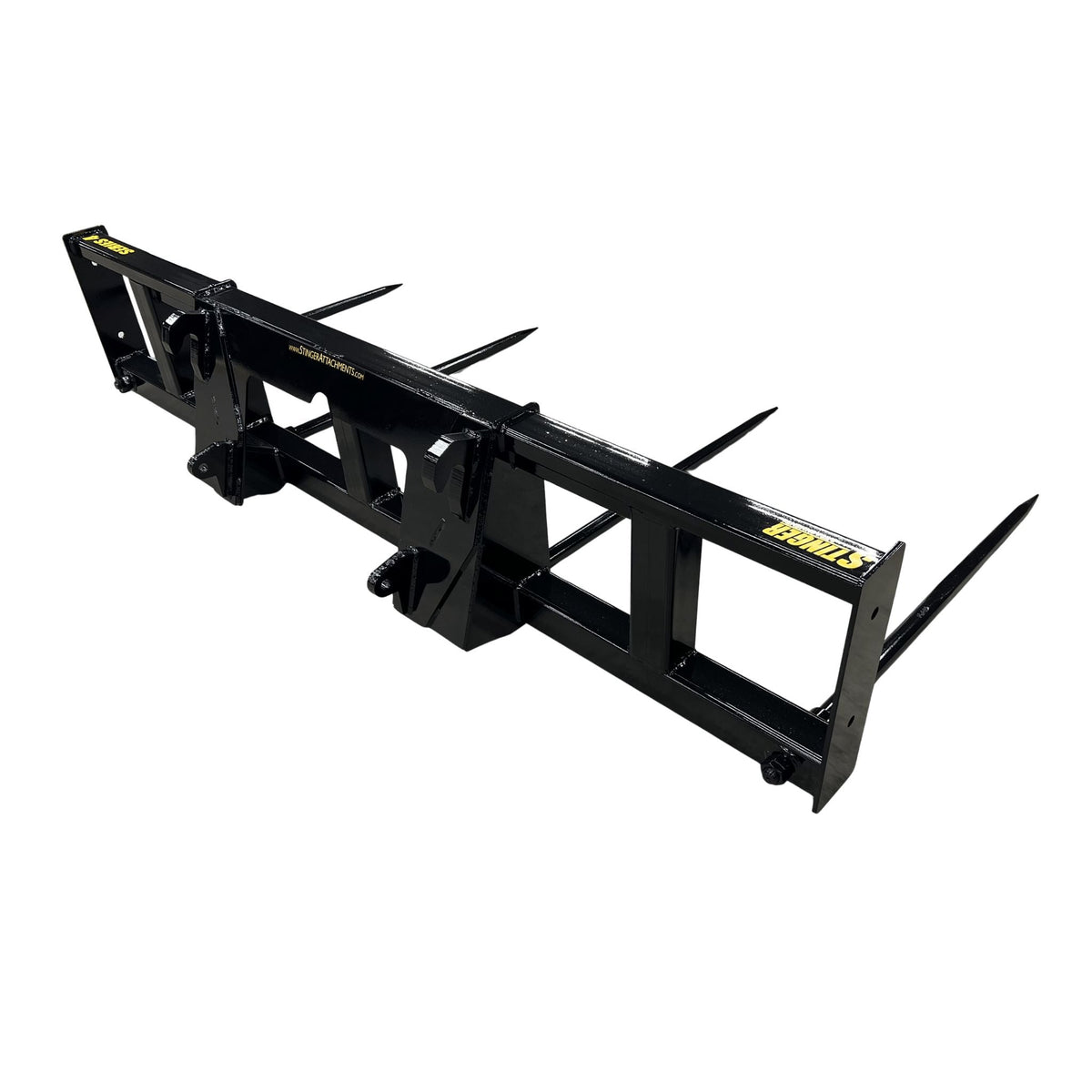

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 8

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 9

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 10

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 11

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity - View 12

Roll over image to zoom in Click on image to zoom

🇺🇸 Made in USA | Authorized Dealer | Guaranteed Fitment | Direct-to-Site Delivery

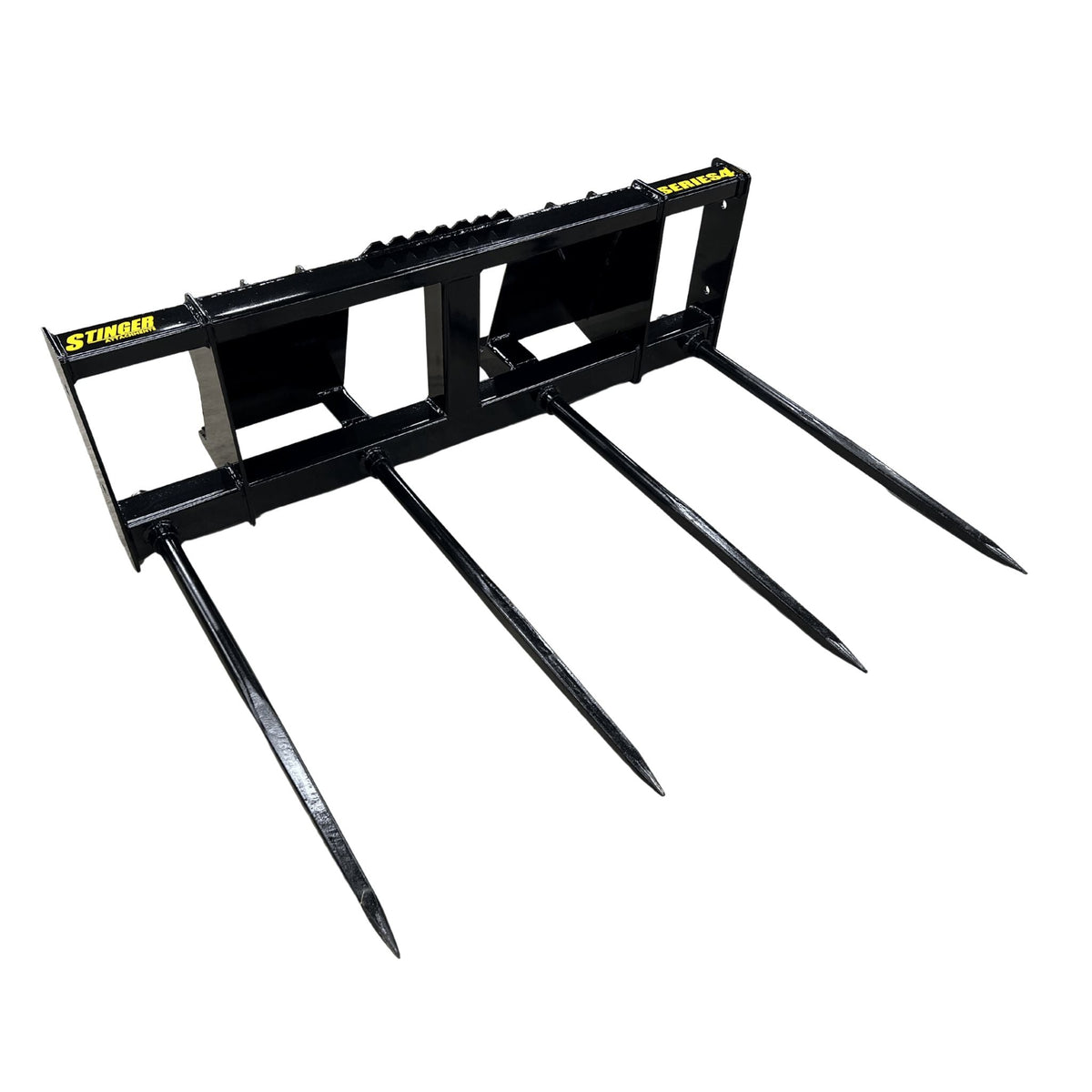

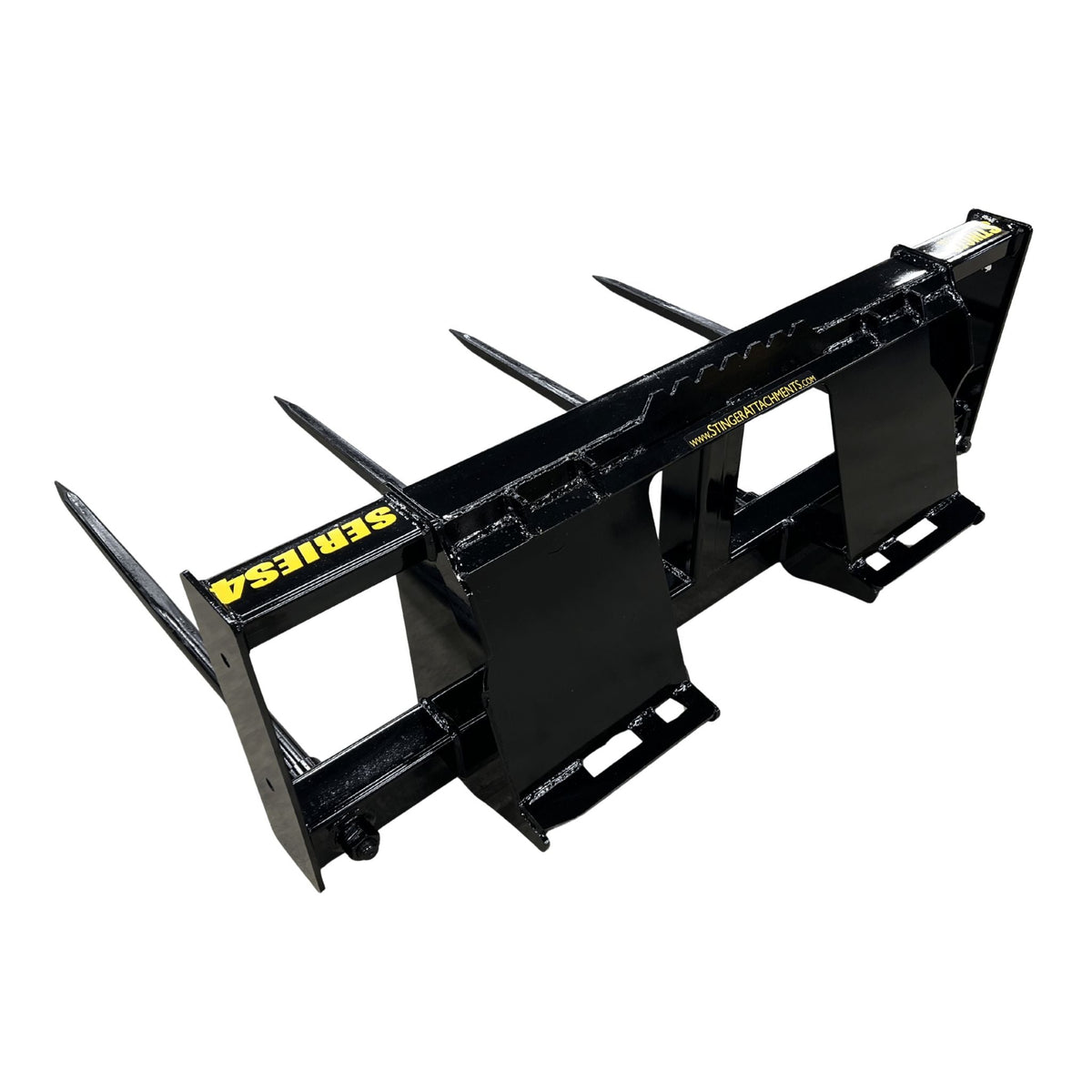

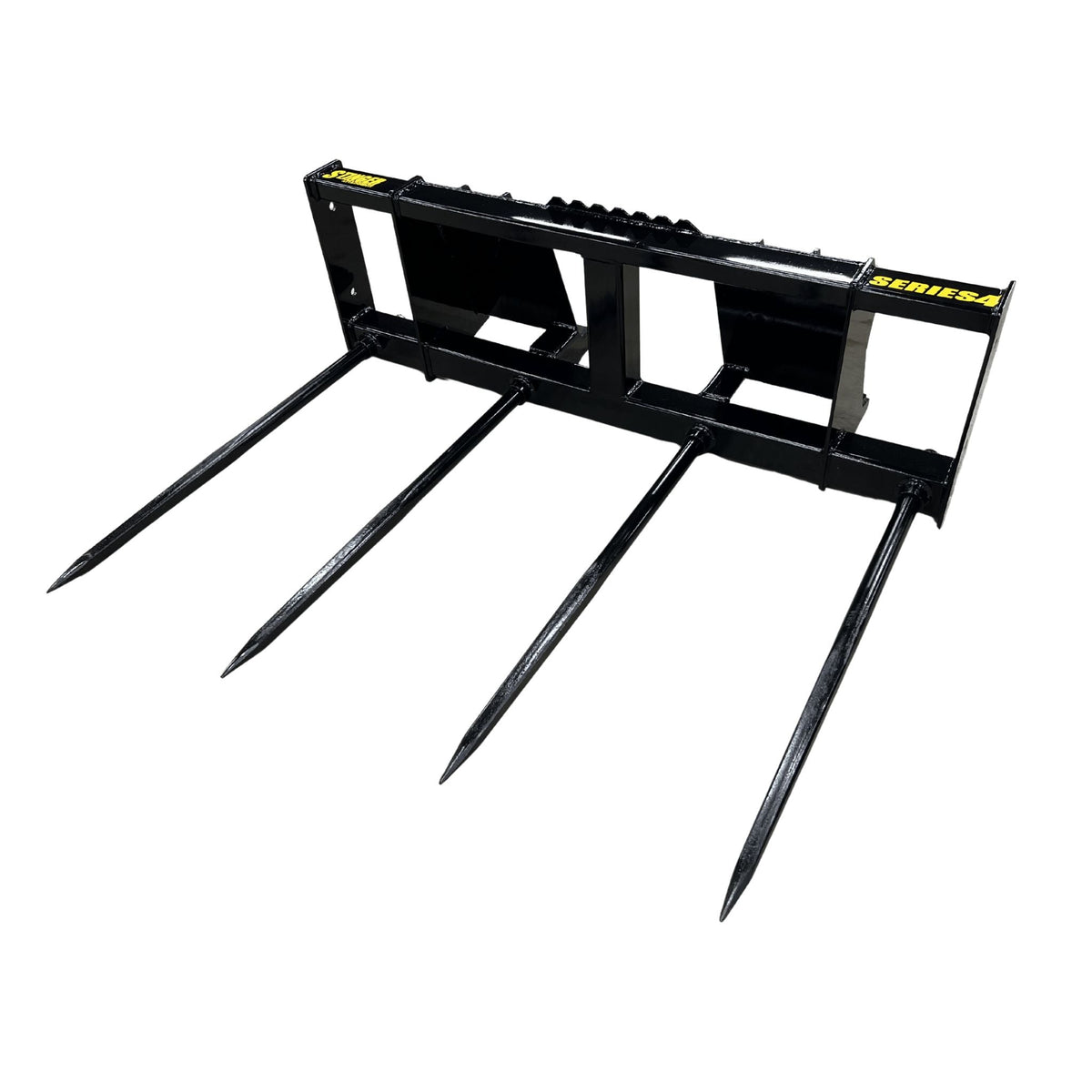

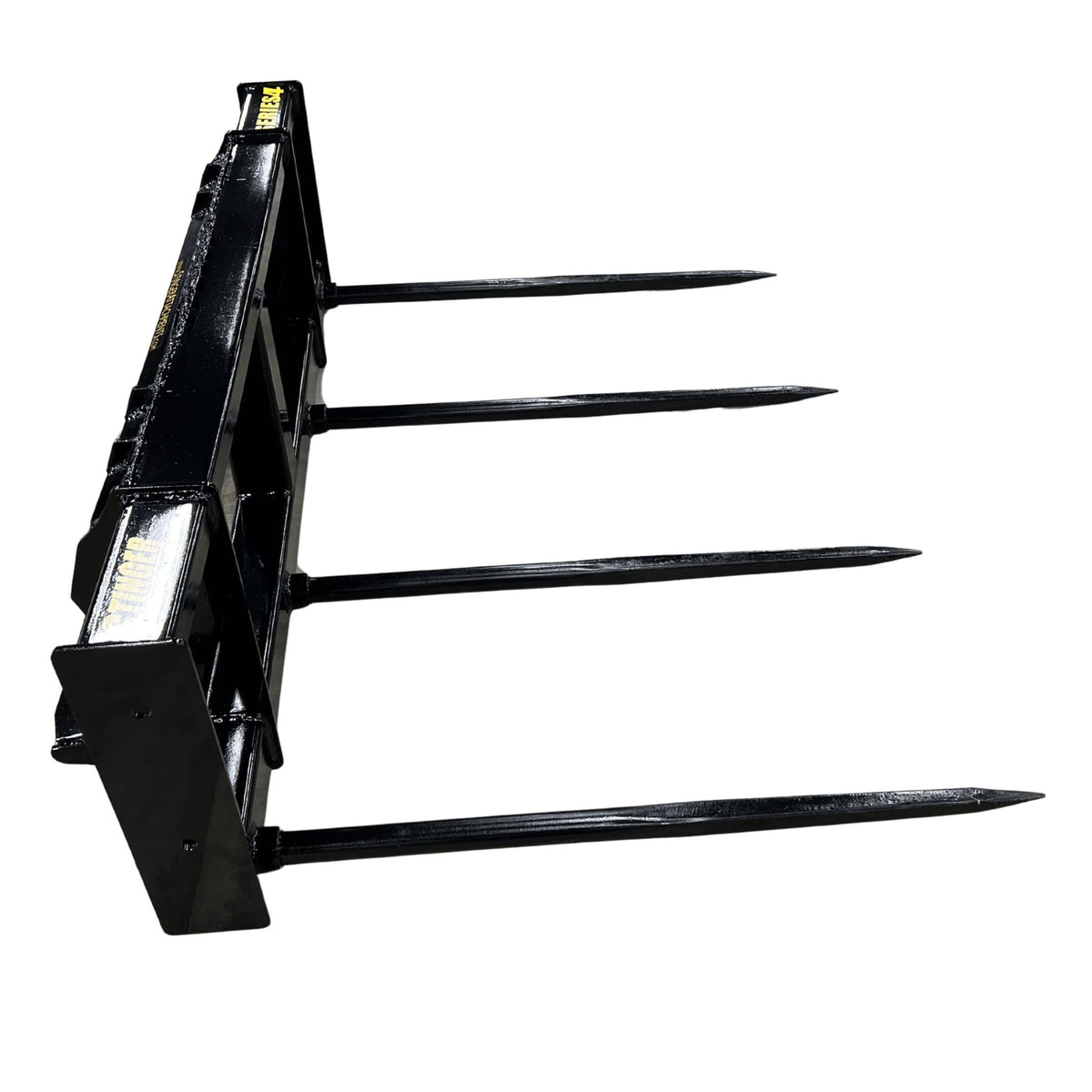

Stinger Skid Steer Quad Bale Spear | Multi-Bale Handler | 14,000 lb Capacity

Stinger Attachments

Model & Width: 61" Quad (Standard)

Spear Length: 39 in

Uprights: No Uprights

Price:

$2,270 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

Cut Your Field Time in Half: The Stinger Series 4 (Quad Spear) is engineered for high-volume producers who need to move tonnage fast. Why move one bale when you can move two? Featuring a massive 14,000 lb lift capacity and four replaceable Conus 2 spears, this attachment is built for large frame skid steers and telehandlers.

61" Width (Square & Stacking)

Designed with 4 spears on a 61" frame. Perfect for moving large square bales, double-stacking, or handling 2 round bales (stacked/nested).
*Optional Bolt-On Uprights available for added stability when stacking high.

100" Width (Double Round)

The "Wide Load" specialist. Spaced to spear two large round bales side-by-side. Clear the field in 50% fewer trips.

Standard vs. XD

Available in Standard Duty (Daily Farm Use) or XD (Extreme Duty) with reinforced gusseting for commercial 24/7 feedlot operations.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

85–150+ HP Large Loader (2,800+ lb ROC)

Lift Rating

14,000 lbs (4 Spears)

Frame Widths

61" Square or 100" Dual-Round

Mount Interface

Universal SSQA

1. Select Frame Width & Duty:

61" Quad Frame (520–570 lbs | 14,000 lb Rating)Four Conus 2 spears across 61" (optional bolt-on upper backrest) for double-stacking large square bales

100" Wide Quad Frame (620–680 lbs | 14,000 lb Rating)Spaced to spear and carry two large round bales side-by-side—cutting field clearing trips in half

2. Confirmed High-Capacity Carrier Models (2,800+ lb ROC):

Large-Frame Skid Steers & CTLsKubota SVL95-2s, SVL97-2; John Deere 325G, 331G, 331P, 333G, 333P, 335P; CAT 262D3, 272D3, 279D3, 289D3, 299D3, 265, 275, 285; Bobcat S76, S770, S86, T76, T770, T86, T870

Case, New Holland, Takeuchi & ASVCase TV370B, TV450B, TV620B; New Holland C337, C345, C362; Takeuchi TL11R3, TL12V2, TL12R2; ASV RT-75, RT-120, RT-135

Ag Tractors & Telehandlers (With SSQA)John Deere 5M / 6M Series; Kubota M5 / M6 Series; Case IH Maxxum / Puma; New Holland T5 / T6; JCB, Manitou, Merlo & Claas Telehandlers

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Machine Requirement Warning

Large Machine Required: This attachment alone is heavy. Combined with two bales, the load can exceed 5,000 lbs. This is designed for Large Frame Skid Steers (90hp+) or Telehandlers. Do not use on small machines.

Ballast: Counterweights are almost certainly required when carrying dual bales to prevent tipping.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Lift Capacity	14,000 lbs
Spear Count	4 x Conus 2 Forged Spears (Double Nut)
Frame Options	61" Outer Spacing OR 100" Outer Spacing
Frame Construction	4" x 4" x ¼" Bottom Tube \| 4" x 2" x ¼" Top Tube
Side Plates	Grade 50 High-Tensile Steel
Safety	Integrated Safety Step
Operating Weight	61" Quad (Standard): 520–565 lbs (236–256 kg) \| 61" Quad (XD Extreme): 570 lbs (259 kg) \| 100" Wide (Standard): 620 lbs (281 kg) \| 100" Wide (XD Extreme): 680 lbs (308 kg)
Included Standard	Series 4 Quad Bale Spear Frame (61" or 100"), (4) Replaceable Conus 2 Forged Spears & Universal SSQA Mount
Warranty	2-Year Structural Warranty

🇺🇸Made in the United States

✔

Honest Timelines

Card pre-authorized at checkout. Payment captured after timeline approval.

⛟

Flat Freight

Predictable, transparent shipping to commercial hubs across Canada.

🍁

Canadian

100% owned and operated in Canada. We handle the customs, brokerage, and border friction.

⚙

Commercial Grade

US Grade 50, AR200/AR400 & Swedish SSAB Hardox® 450 wear steel built for frozen ground and daily abuse.
