Description

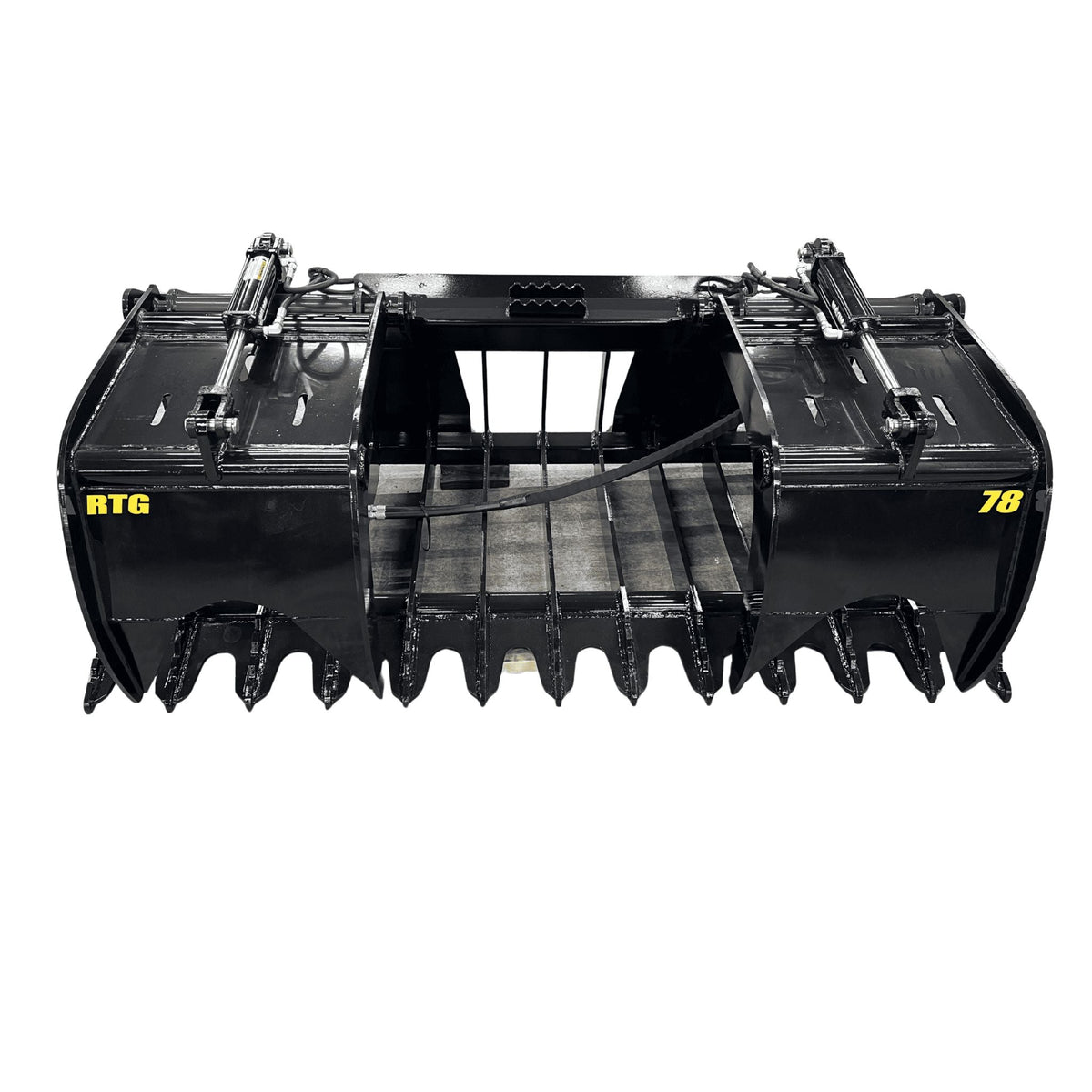

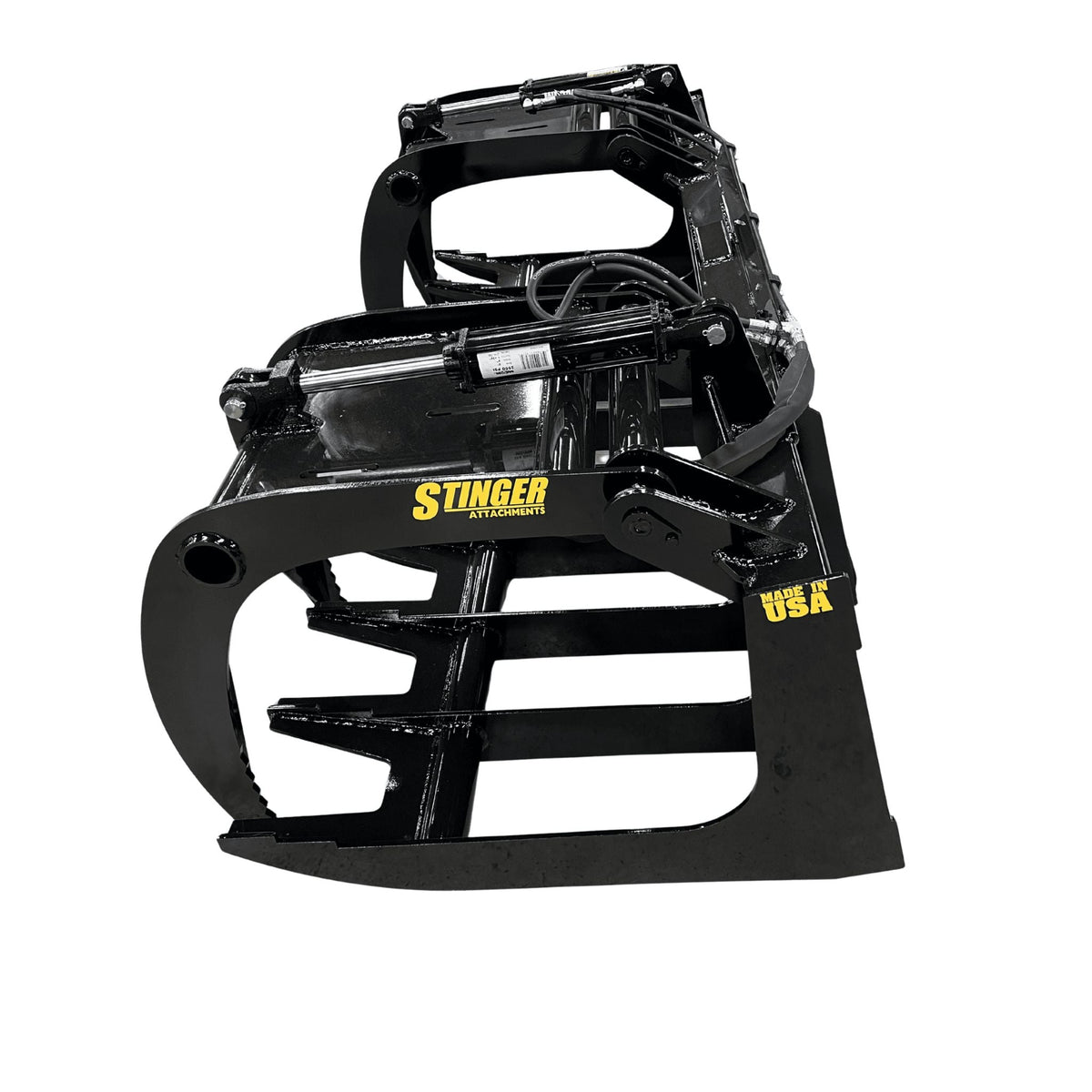

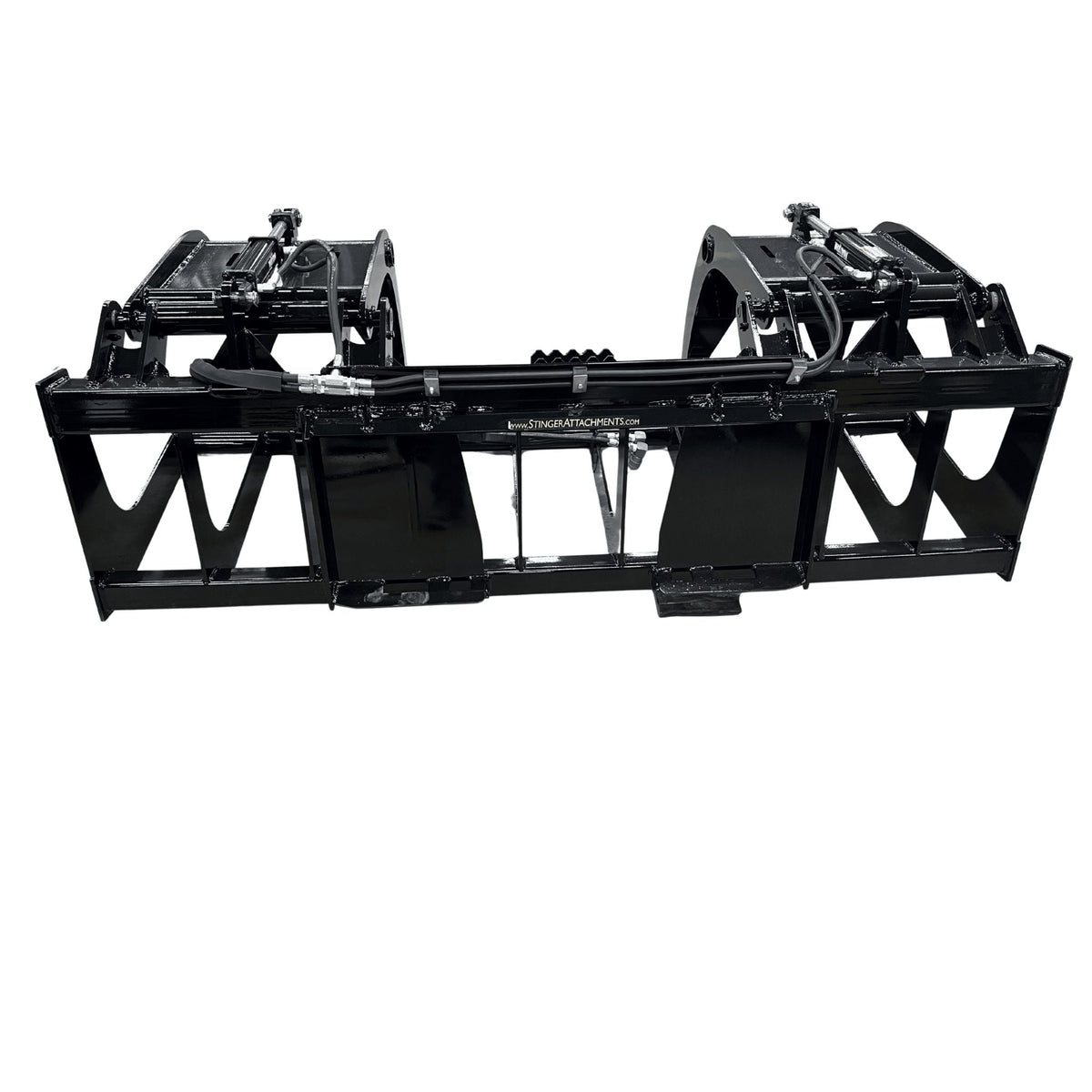

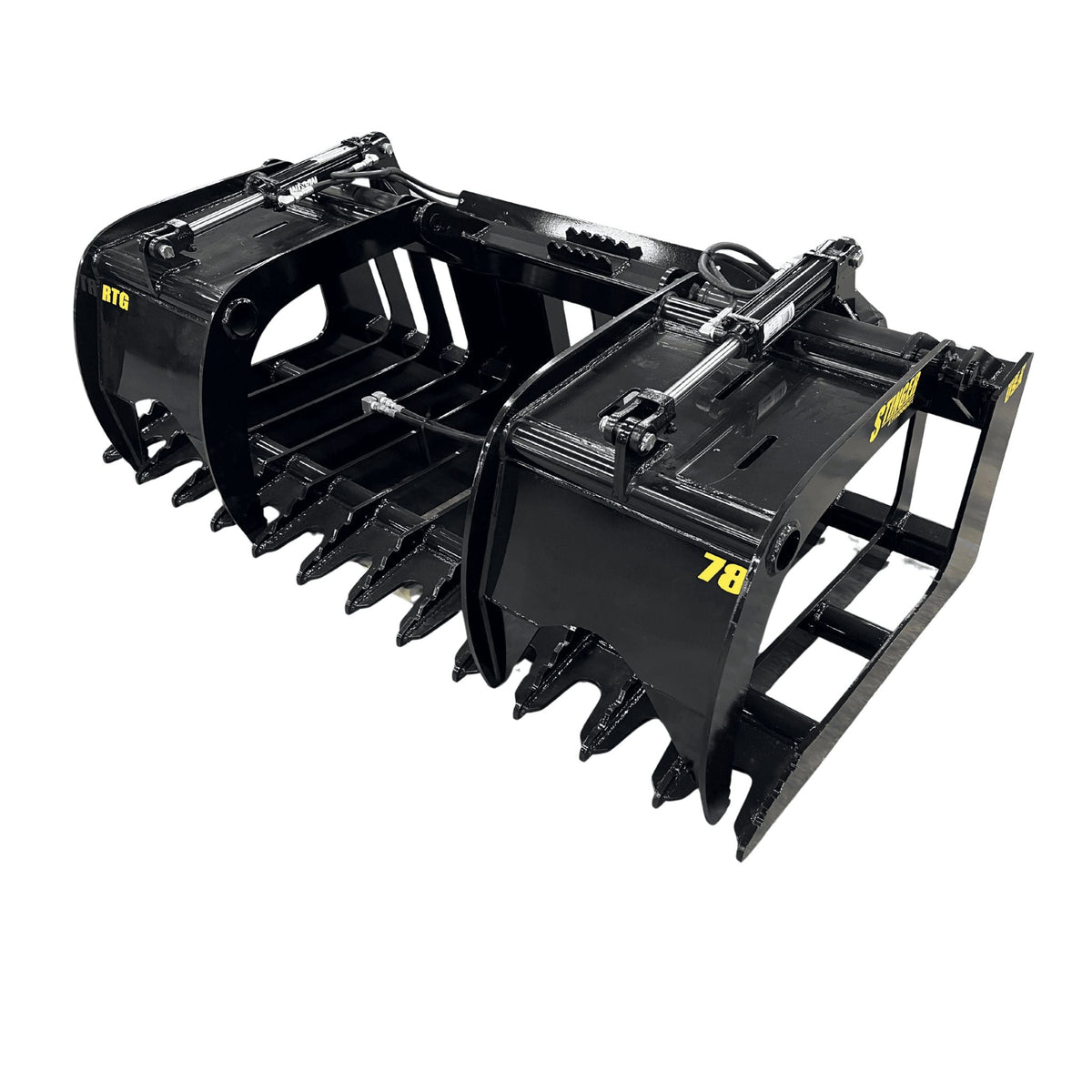

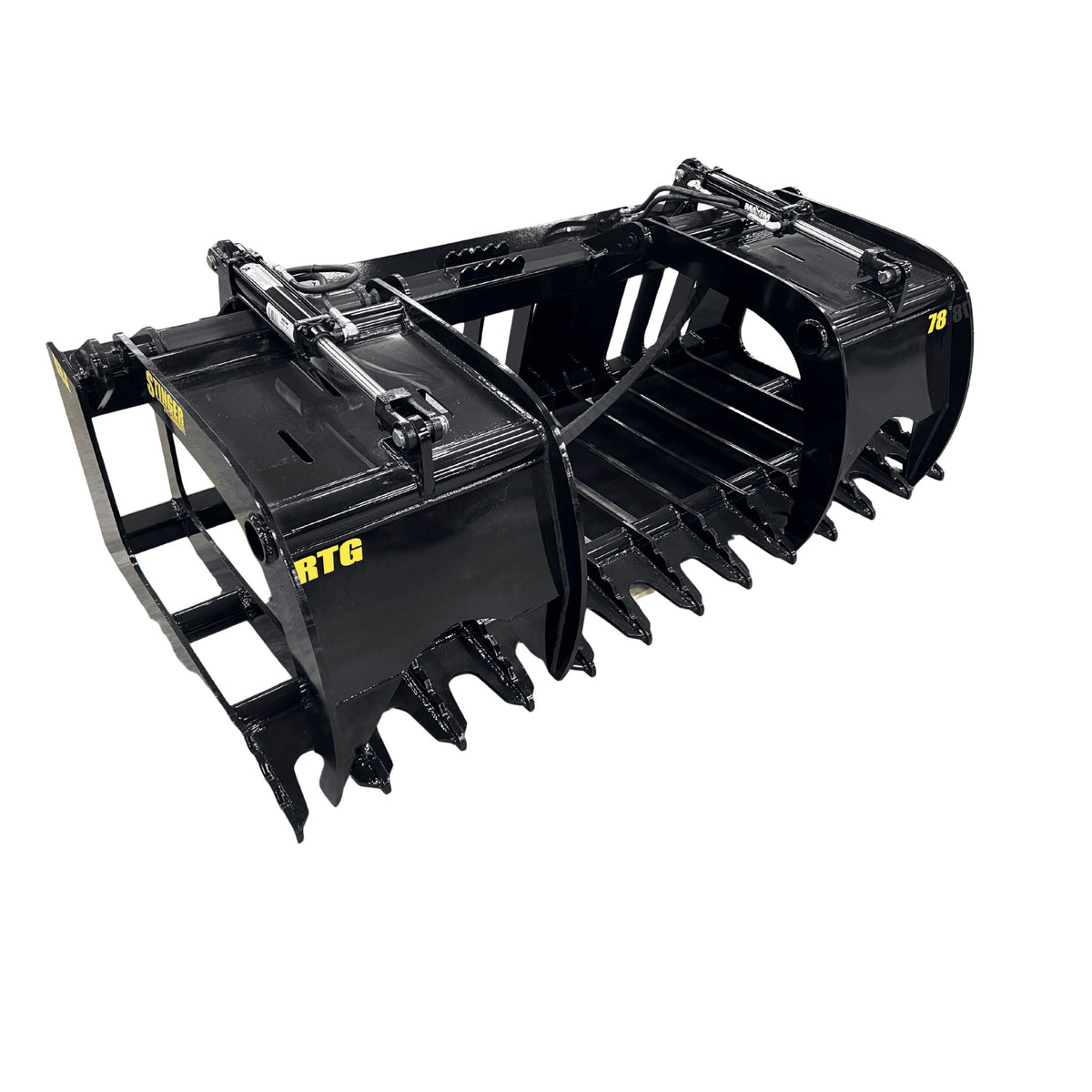

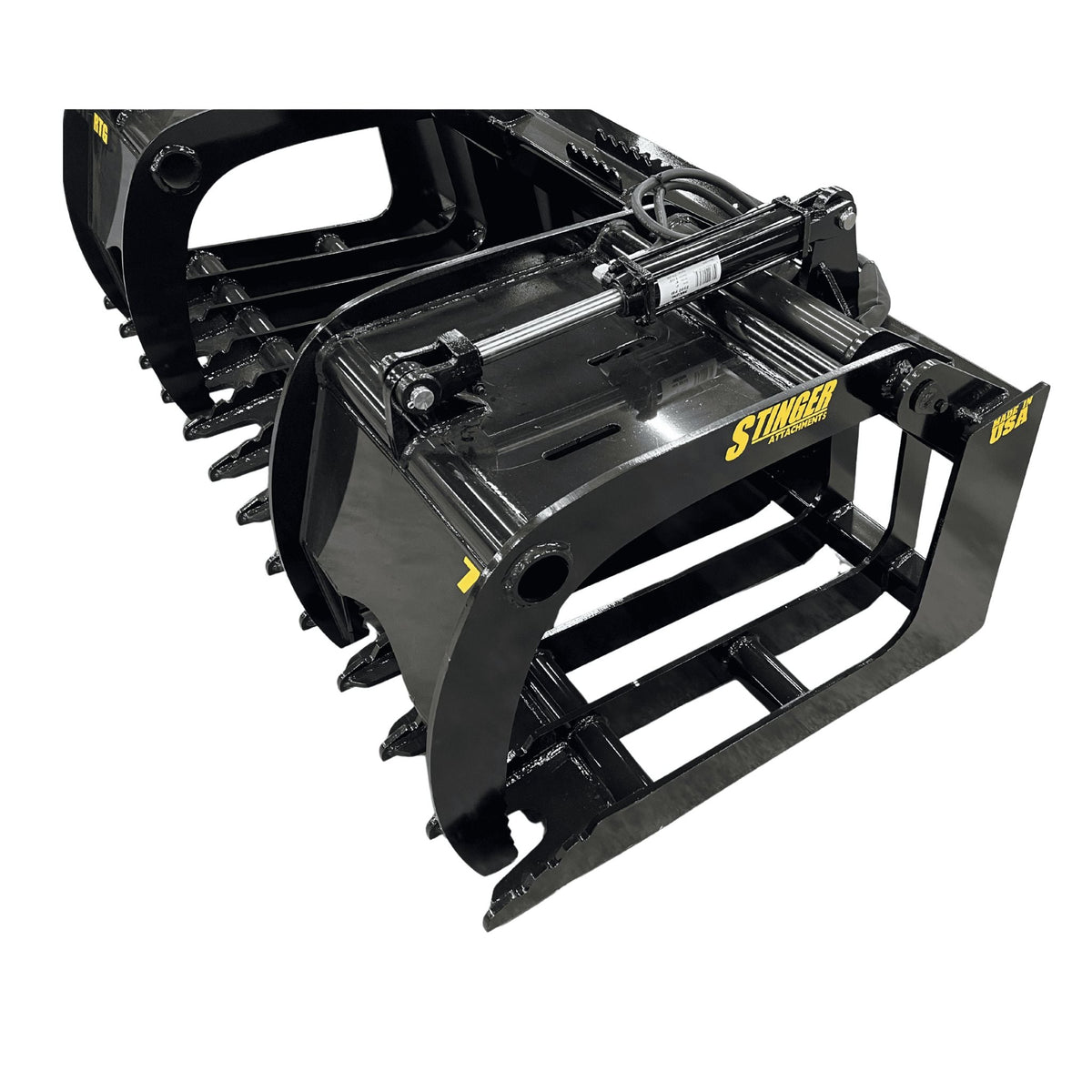

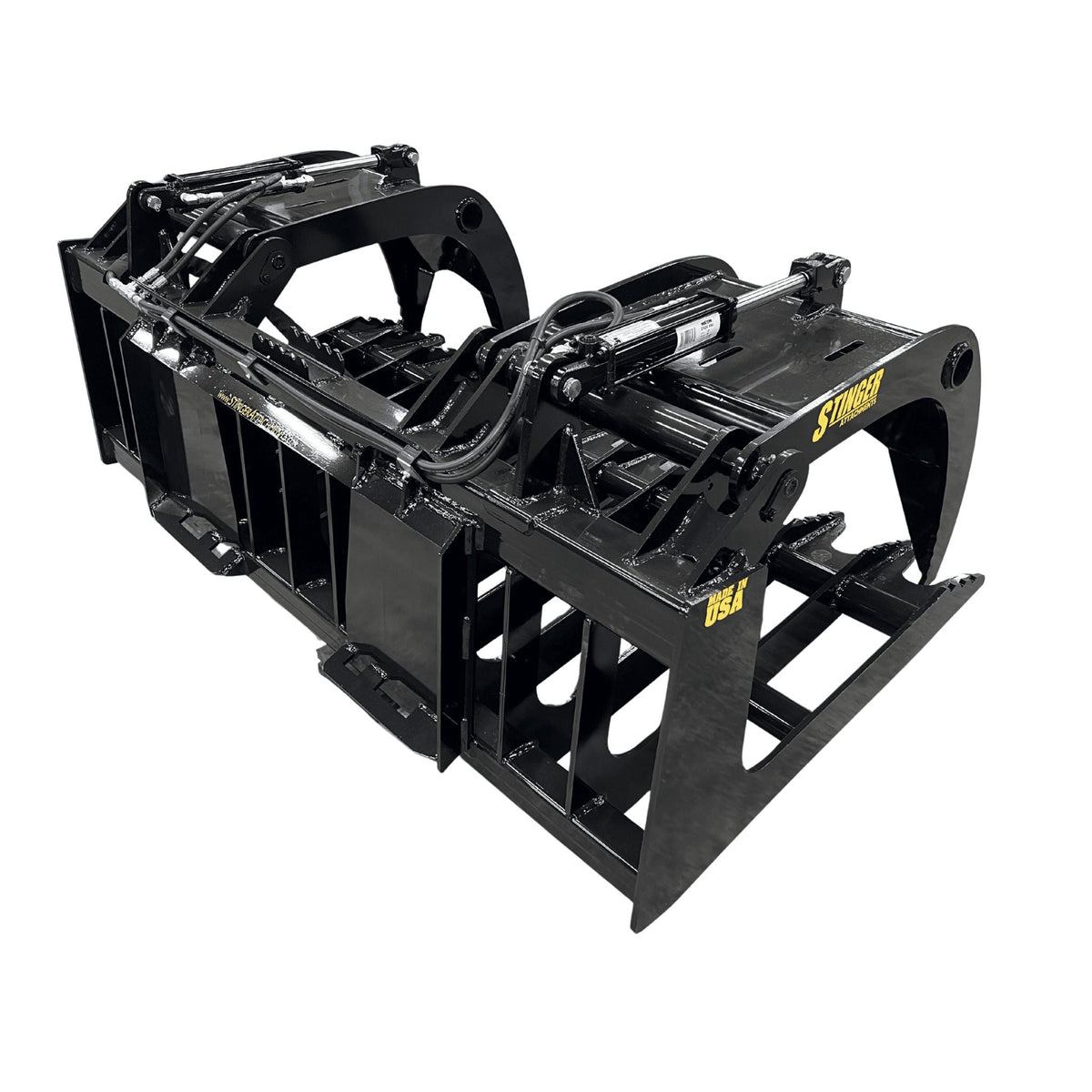

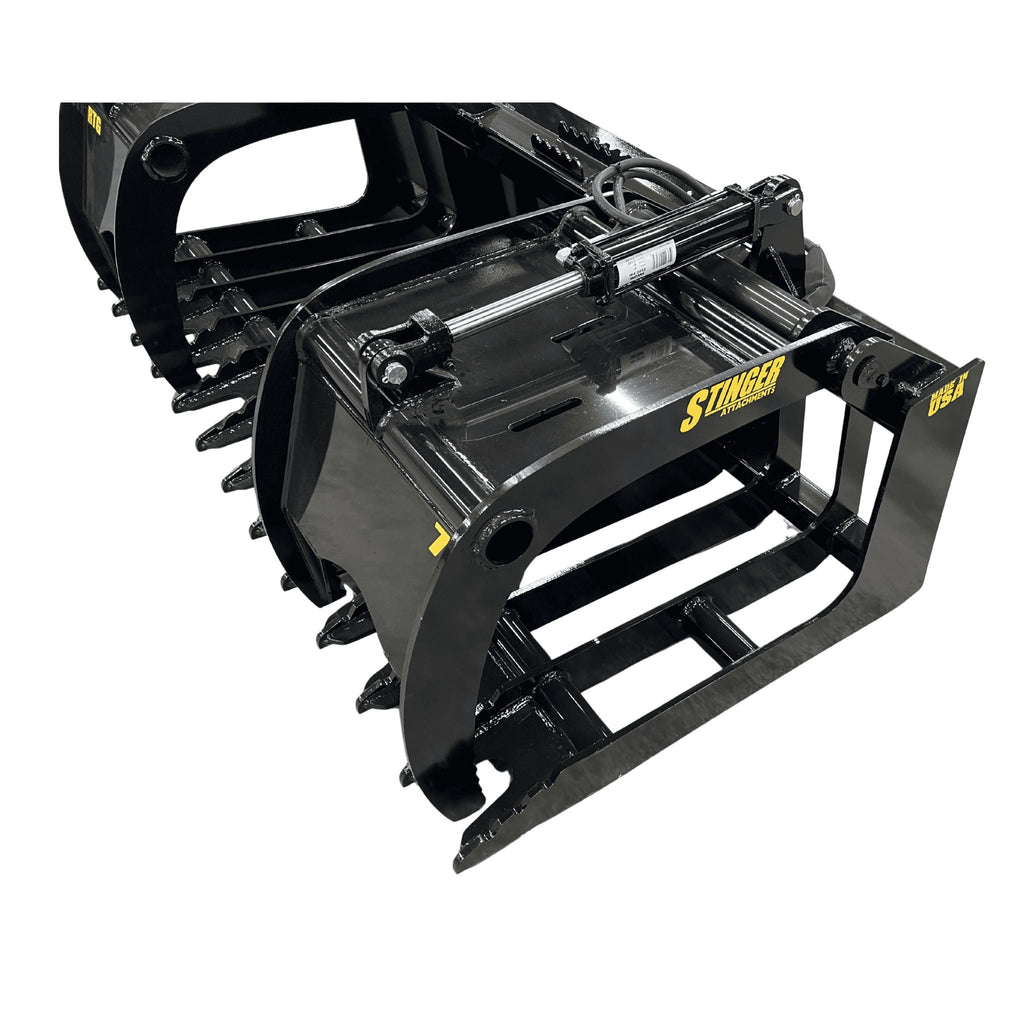

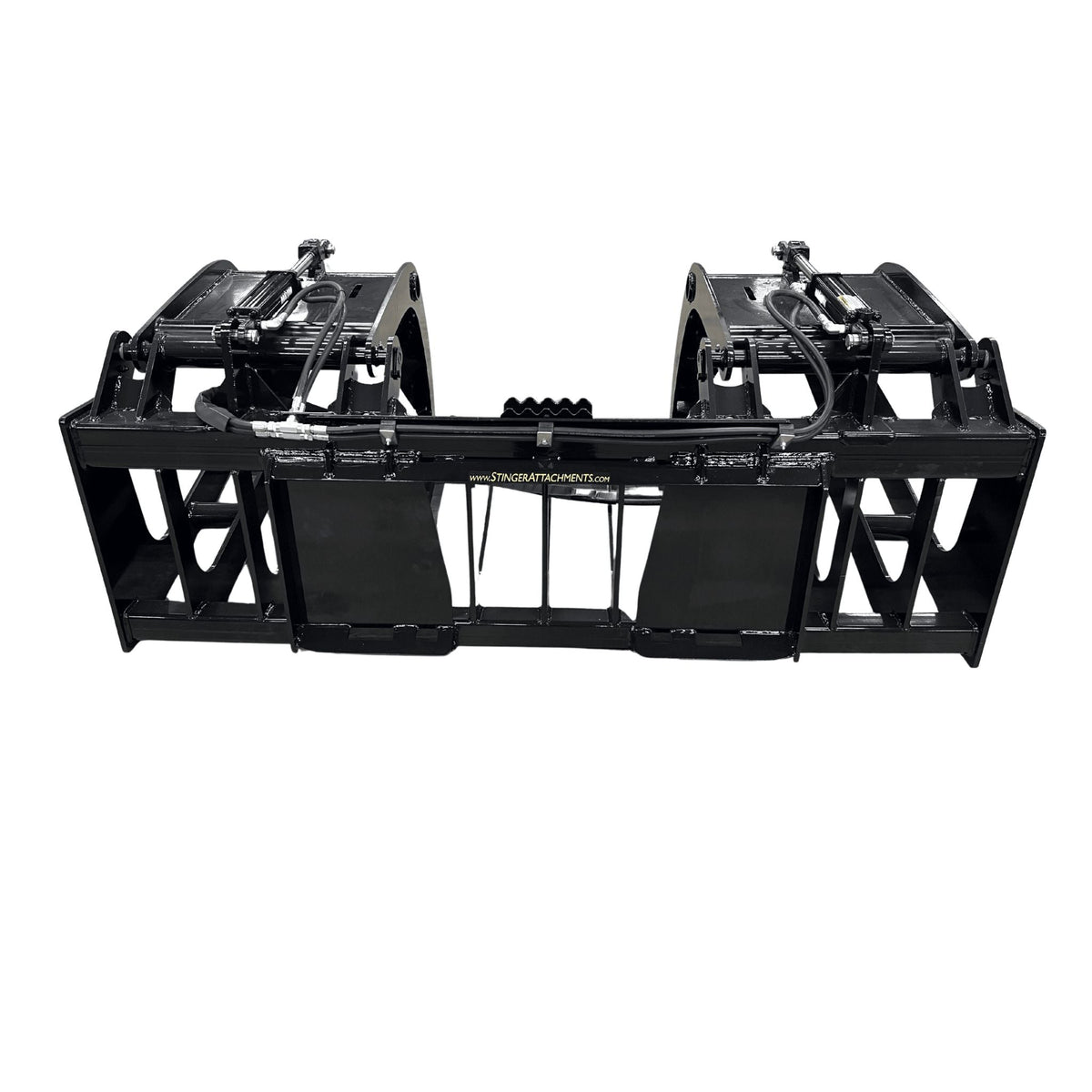

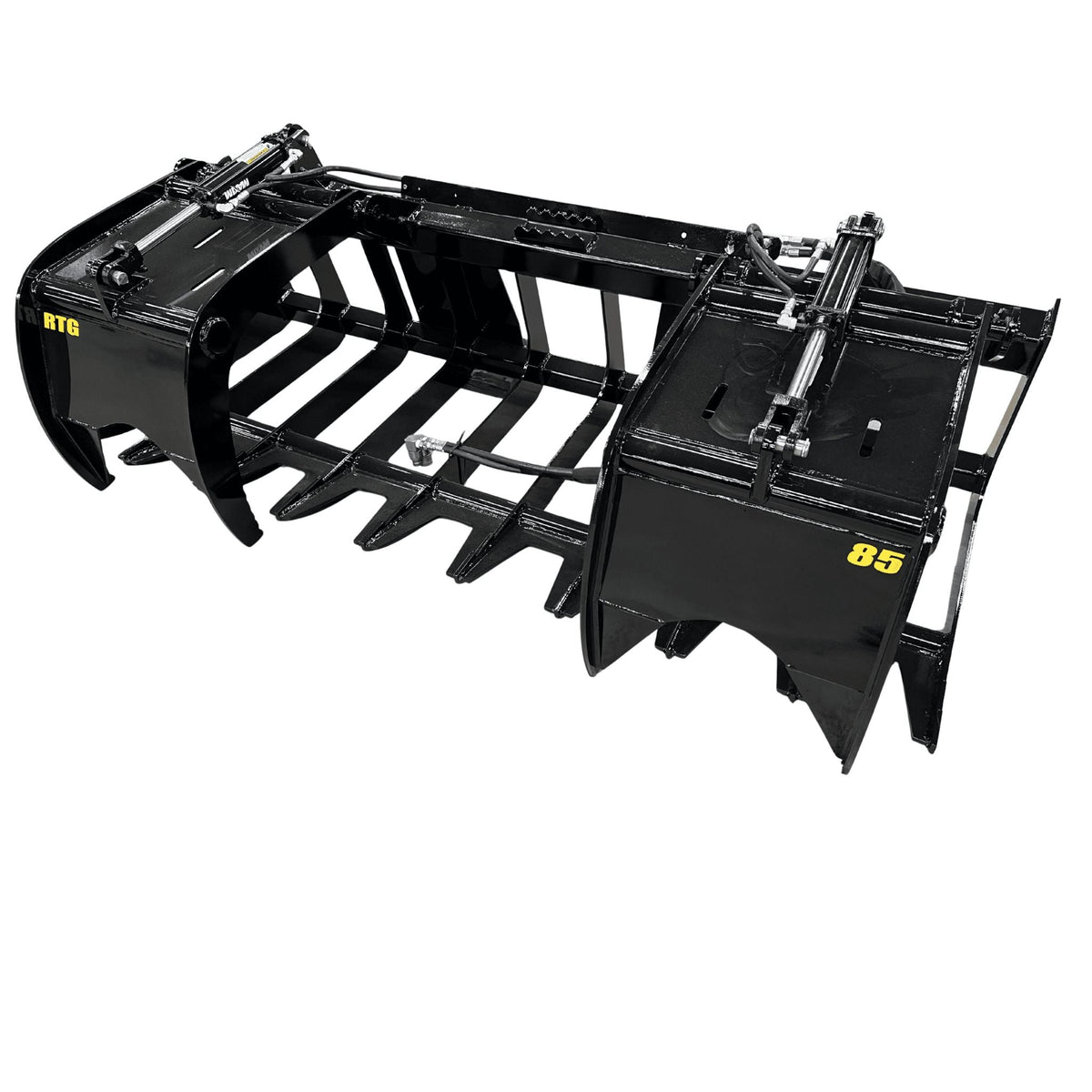

The Root Ripper: The Stinger RTG Series is engineered for penetration. Unlike rock grapples that glide over the surface, the RTG is designed to dig. The Standard Series (66"-85") features aggressive "Hooked Tines" with wide 9-inch spacing, allowing you to plunge deep into the soil to rip out stubborn root balls, vines, and stumps without taking a load of dirt with you.
The XD Upgrade: For commercial operators running high-horsepower machines, the RTG-XD Series (78"-91") offers a severe-duty alternative. It upgrades to a Flat-Tine Design with tighter 6-inch spacing and massive 1/2" thick steel. This profile excels at sliding under heavy logs and concrete debris, providing maximum structural support for uneven loads.
⚙️ Technical Specifications
Steel Grade: A572 Grade 50 (USA)
Structural Backbone: 4x4" Top Tube / 3x3" Bottom Tube

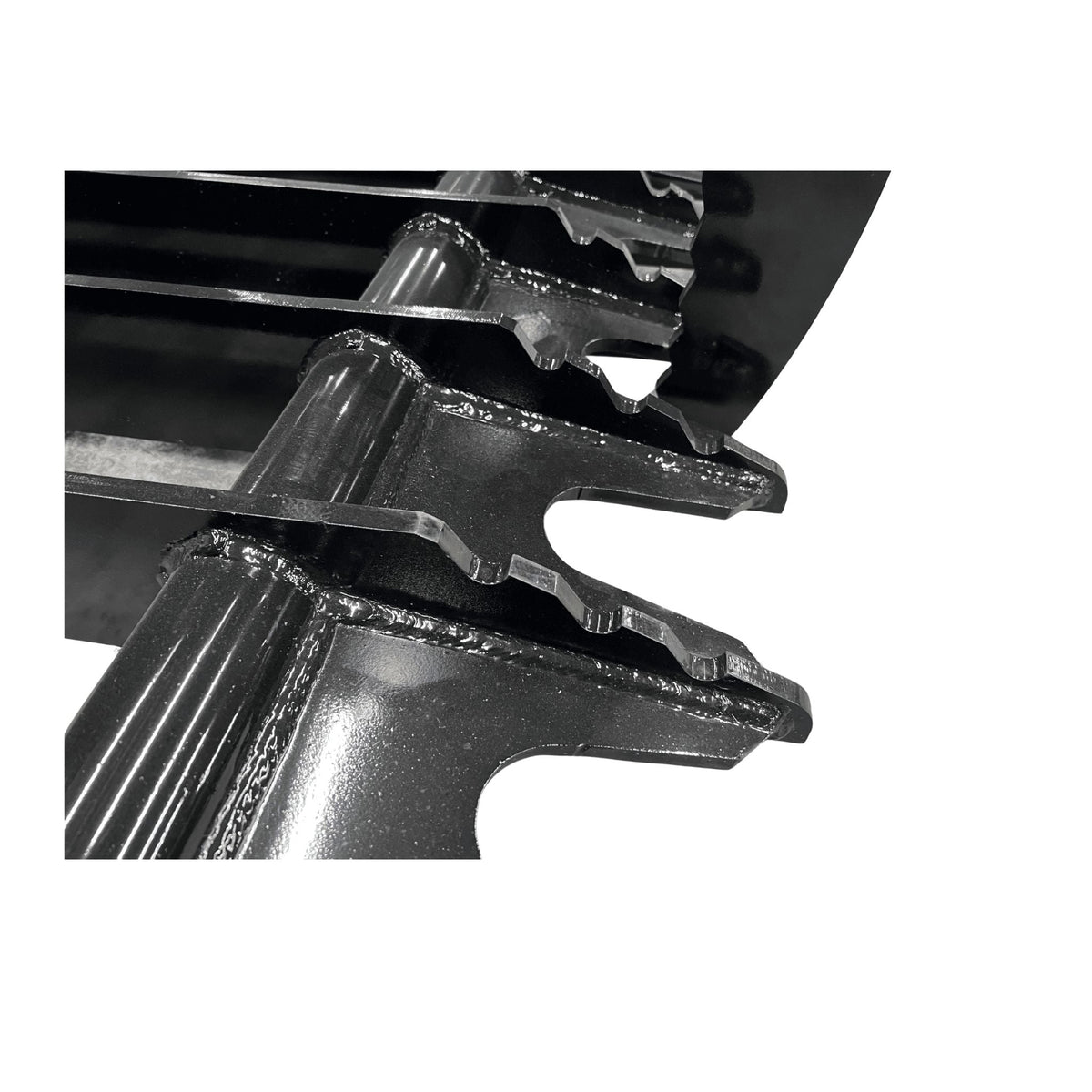

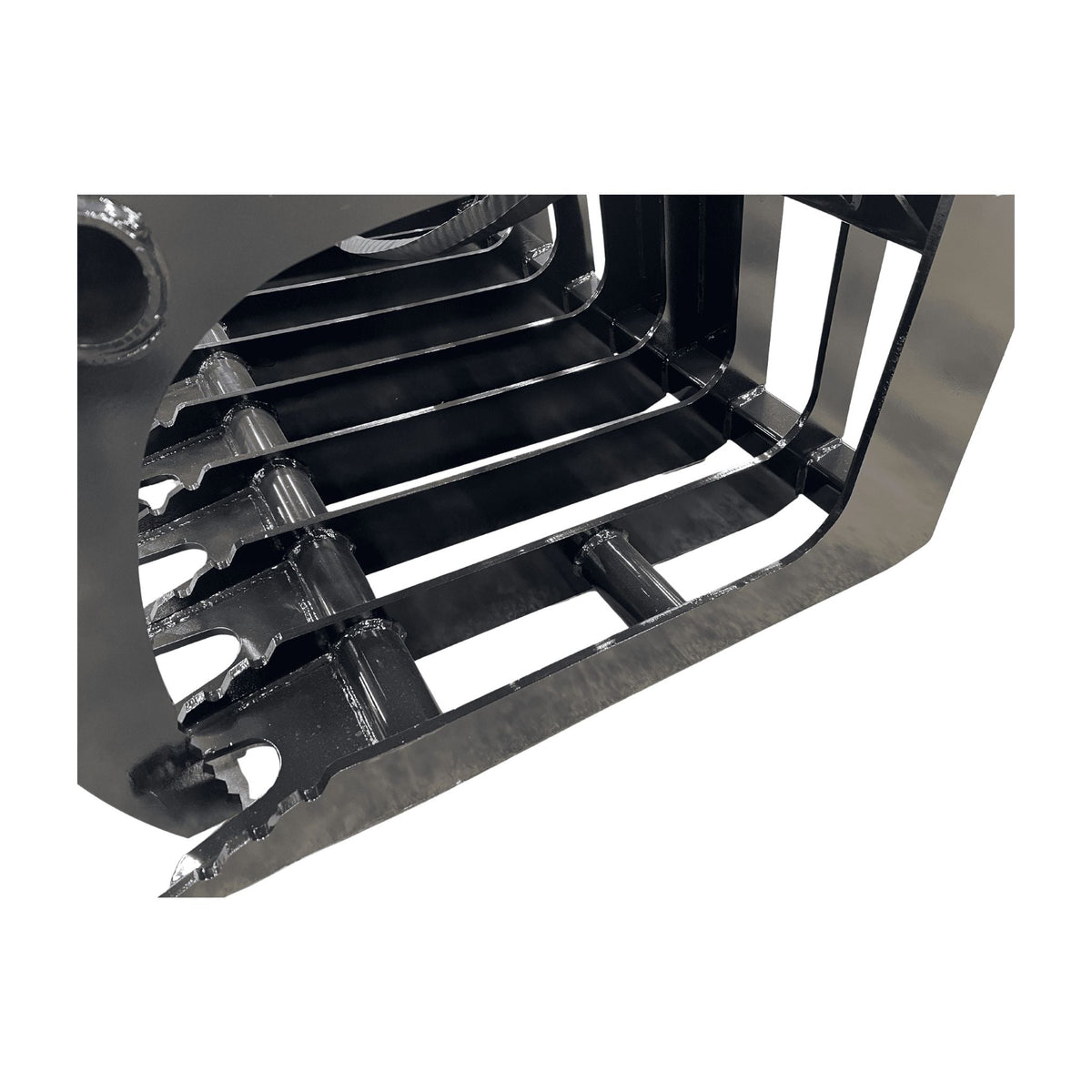

Standard Tines: 3/8" Hooked Design (9" Spacing)

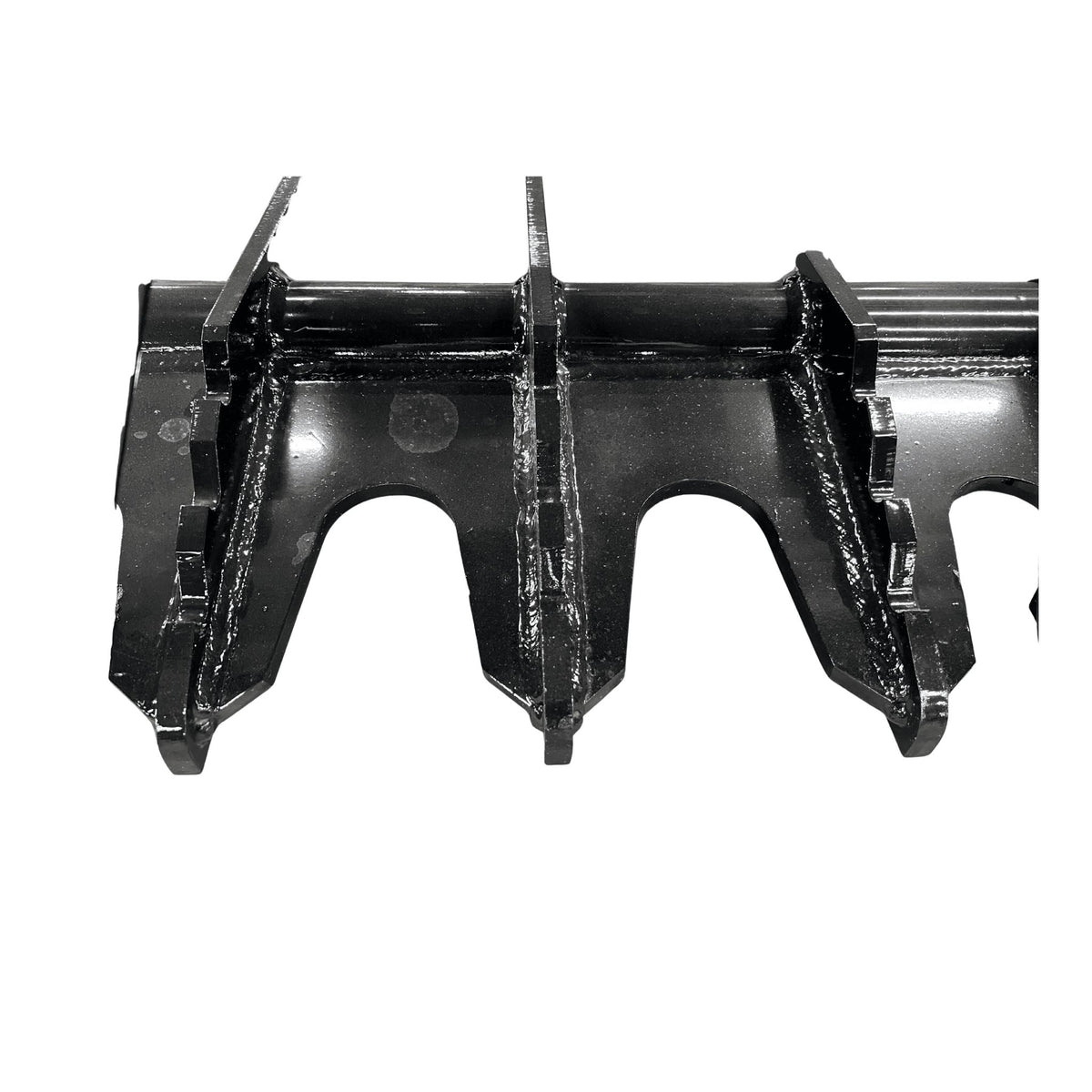

XD Tines: 1/2" Flat Design (6" Spacing)
Grapple Opening: 45 Inches
Optional Upgrade: Extreme Duty Clamps (Cylinder Guards)
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play

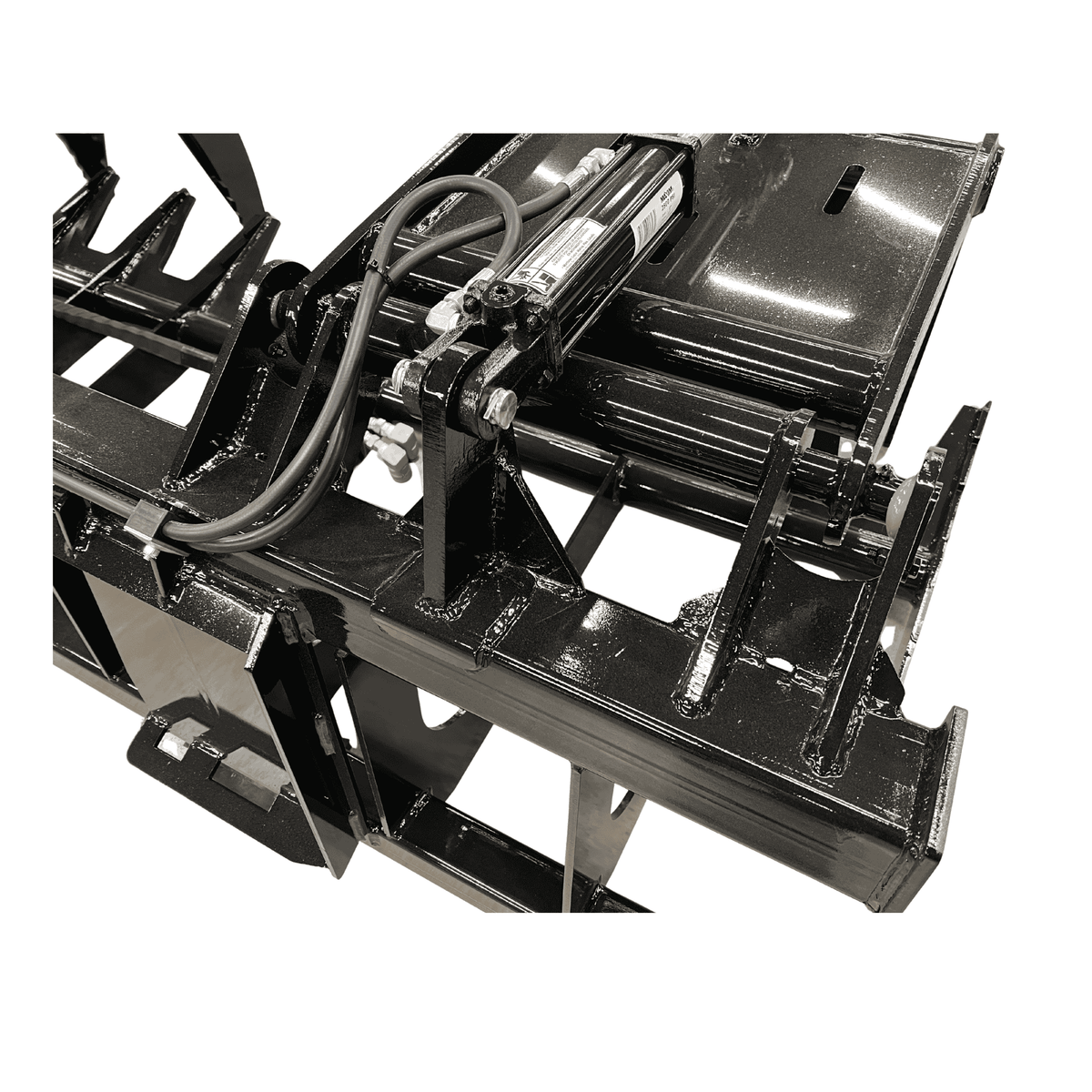

Hydraulics: Uses Standard Flow auxiliary hydraulics. Includes 1/2" Flat-Face Couplers (ISO 16028).
No Case Drain required.
Note: The XD Series weighs over 1,000 lbs. Ensure your machine has sufficient lift capacity (ROC) before ordering.
✅ Machine Compatibility
1. Weight Requirement (Safety):
Standard Series: Requires 1,500 lb+ ROC.
XD Series: Requires 2,300 lb+ ROC (Large Frame Only).
2. Hydraulic Check:
Requires Standard Flow (Plug & Play).
3. Confirmed Series Fitment:
- Kubota: SSV75, SVL75-2, SVL95-2, SVL97-2.
- Bobcat: S650, T650, T770, T870.
- CAT: 259D, 279D, 289D, 299D3.

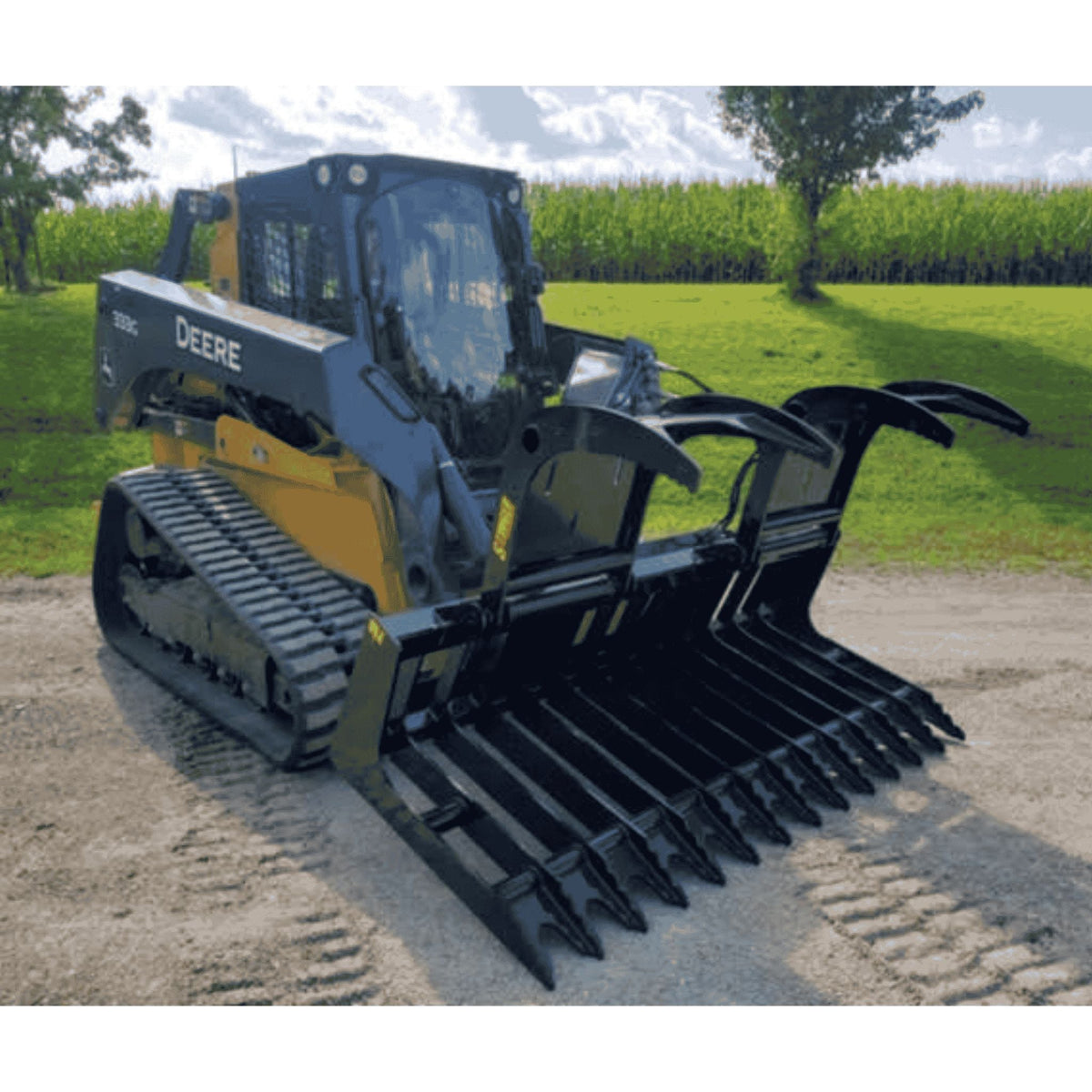

- John Deere: 320G, 331G, 333G.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 2500 PSI |
| Operating Weight | 746 lbs |
| Grapple Opening | 45.0 in |
| Tine Spacing | 9.375 in |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 3/8" |
