Description

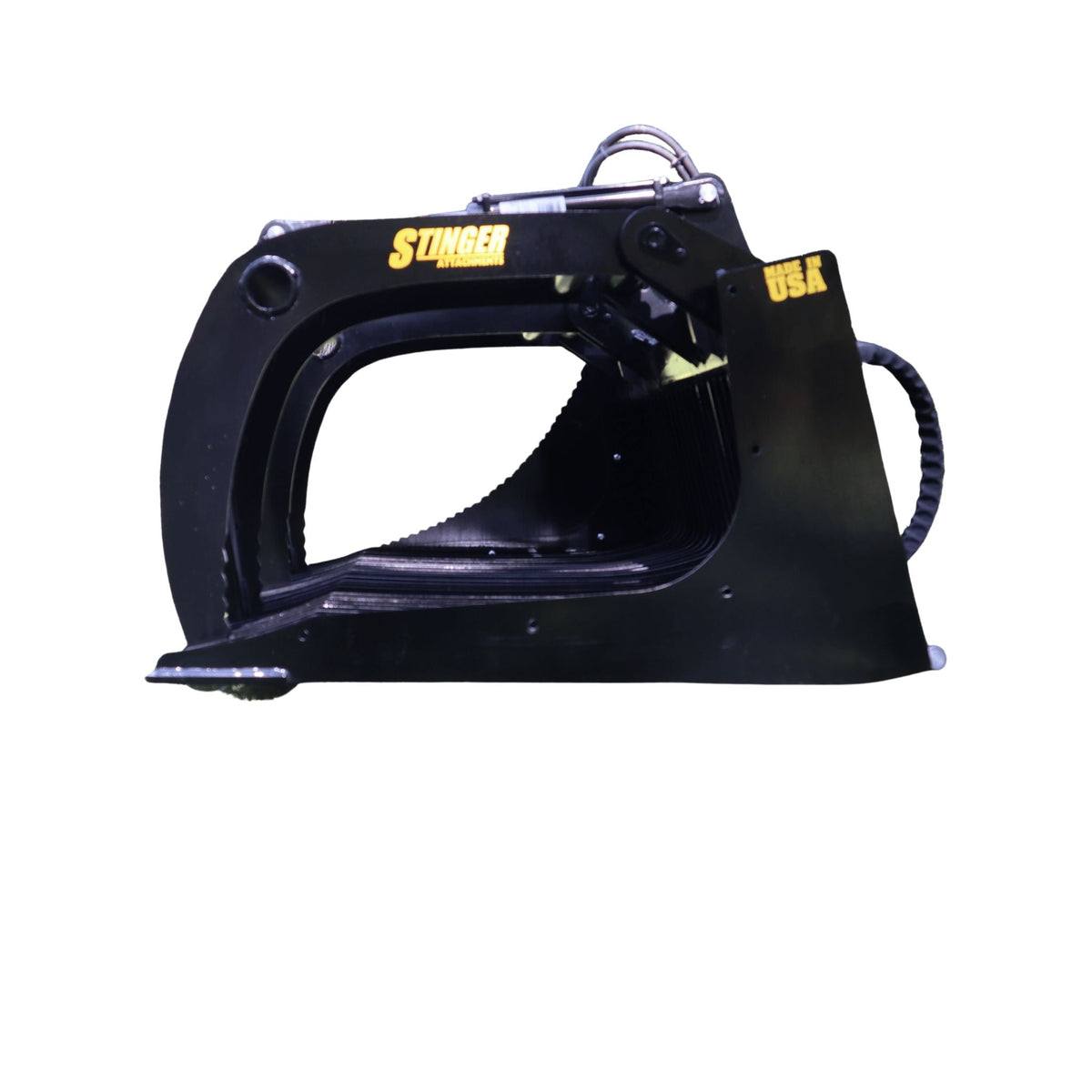

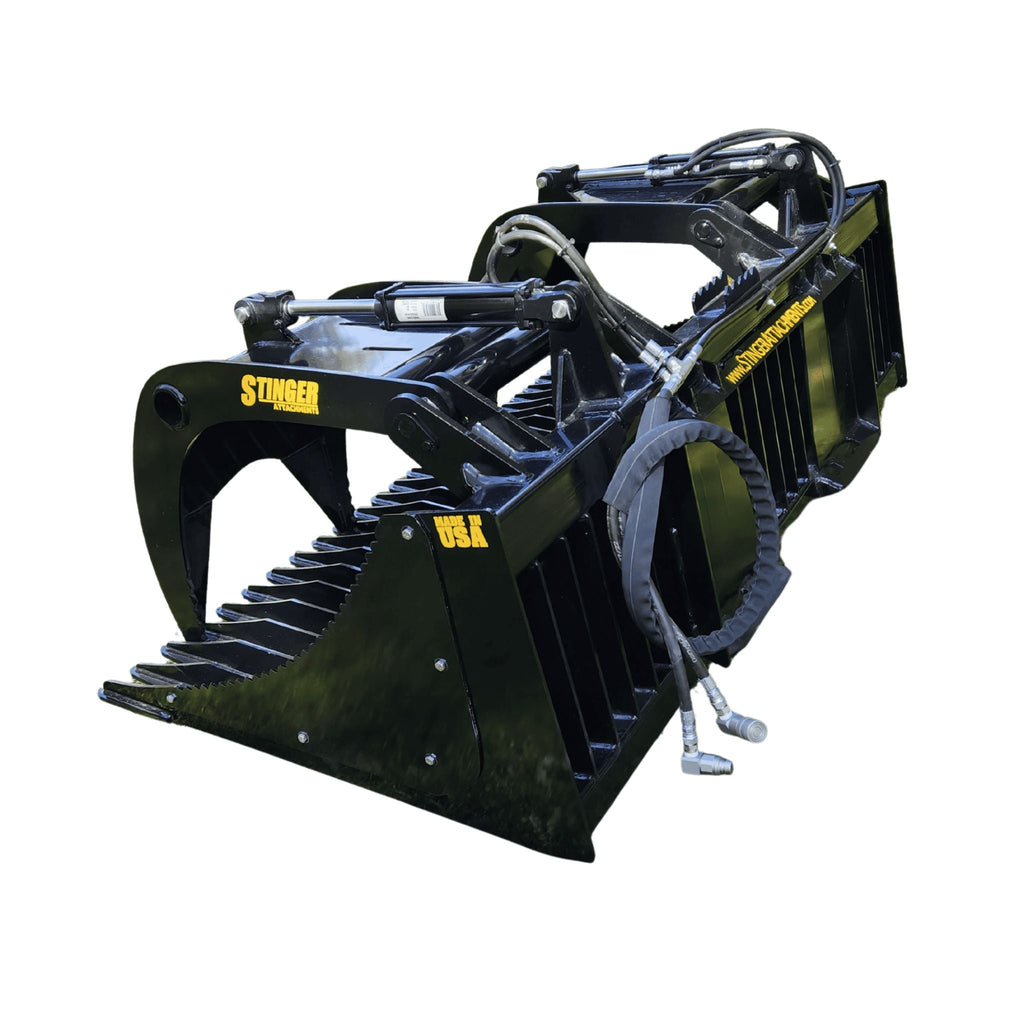

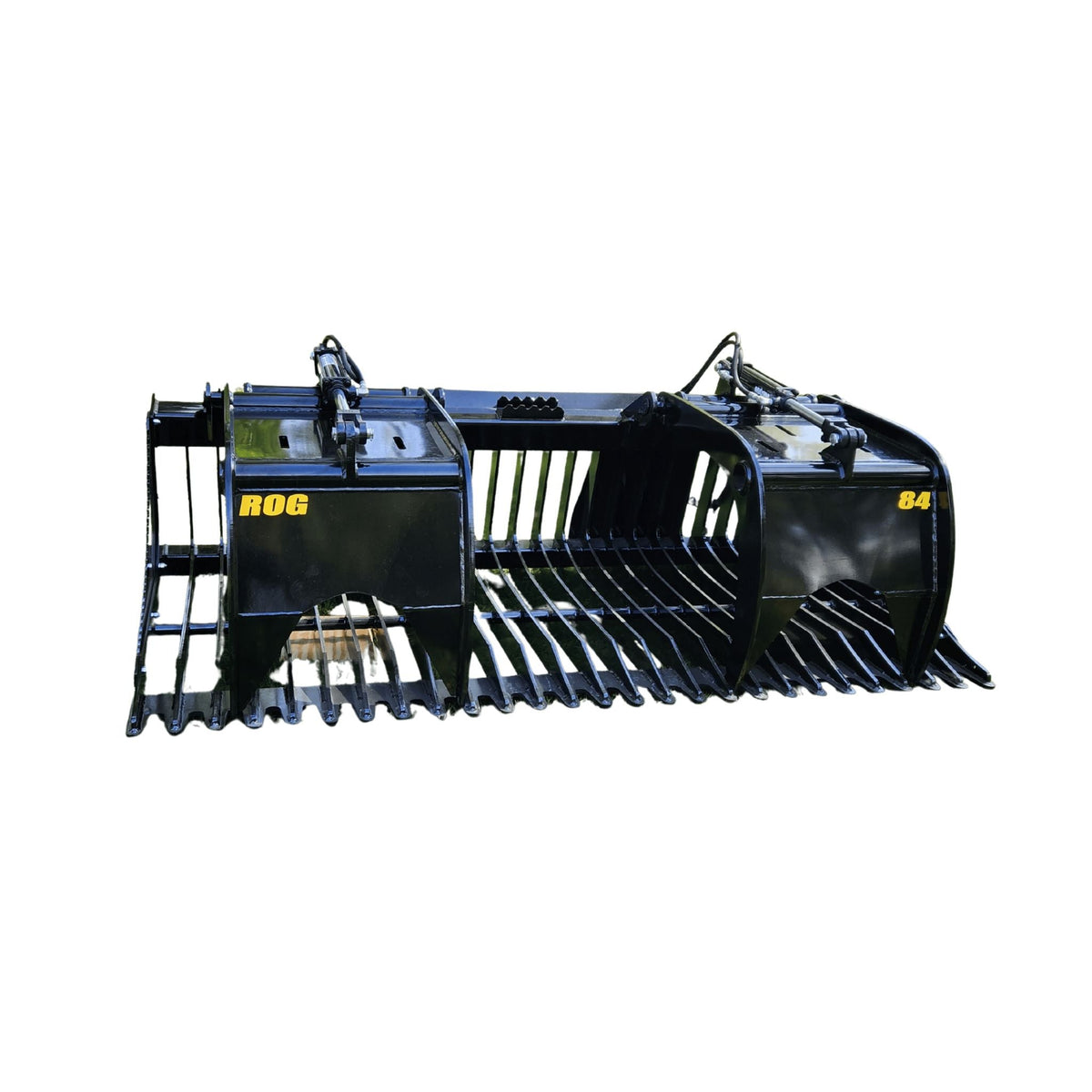

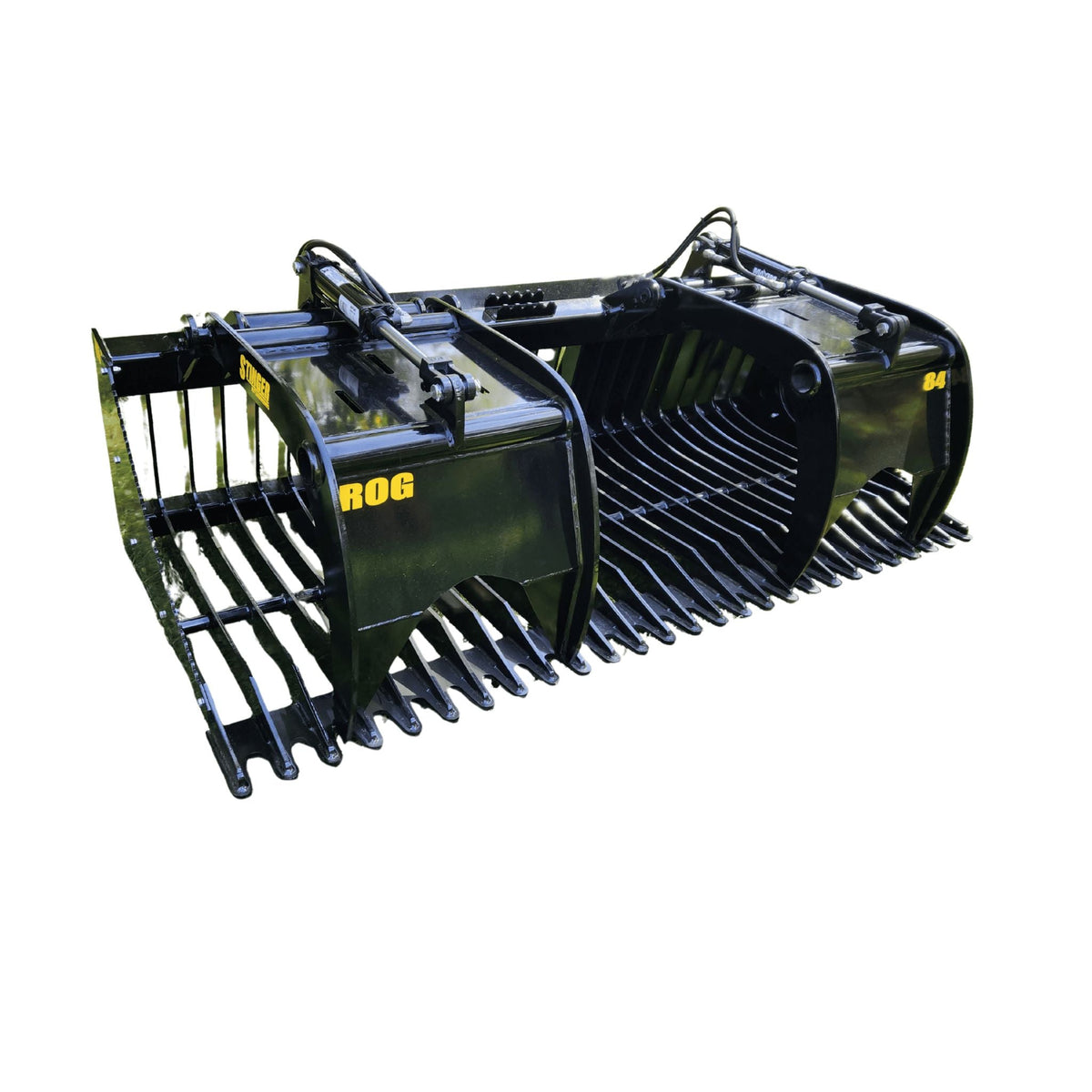

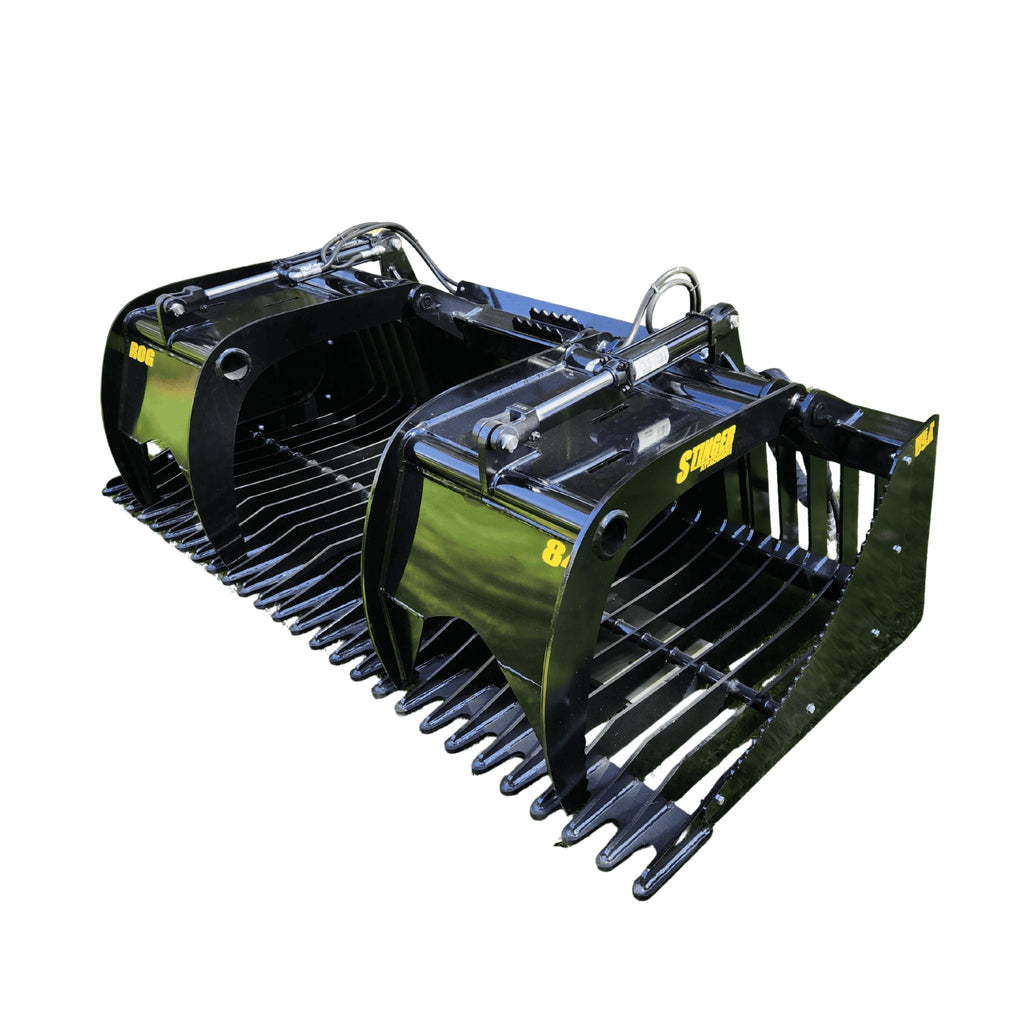

The Log Handler: The Stinger ROG Series features an Open-Side Design that eliminates the side plates found on traditional buckets. This allows operators to clamp and carry logs, poles, or brush that are significantly wider than the grapple itself, making it the ultimate tool for forestry cleanup and brush management.
The Flat-Tine Advantage: Unlike the contoured tines of the RG Series, the ROG uses **One-Piece Flat Tines** made of 3/8" Grade 50 Steel. This flat profile allows the grapple to slide smoothly along the ground to scoop up debris, while the 1-piece design wraps around the 3x3" backbone for superior structural strength.
⚙️ Technical Specifications
Steel Grade: A572 Grade 50 (USA)
Structural Backbone: 4x4" Top Tube / 3x3" Bottom Tube
Tine Design: 3/8" One-Piece (Flat Bottom)
Grapple Opening: 45 Inches
Standard Cylinder: 2" x 8" (2,500 PSI)
Optional Upgrades: Extreme Duty (Cylinder Guards) & Bolt-On Sides
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play
Hydraulics: Uses Standard Flow auxiliary hydraulics. Includes 1/2" Flat-Face Couplers (ISO 16028).
No Case Drain required.
Note: For the 48" model, ensure your machine has proper rear ballast to counter the weight of the load.
✅ Machine Compatibility

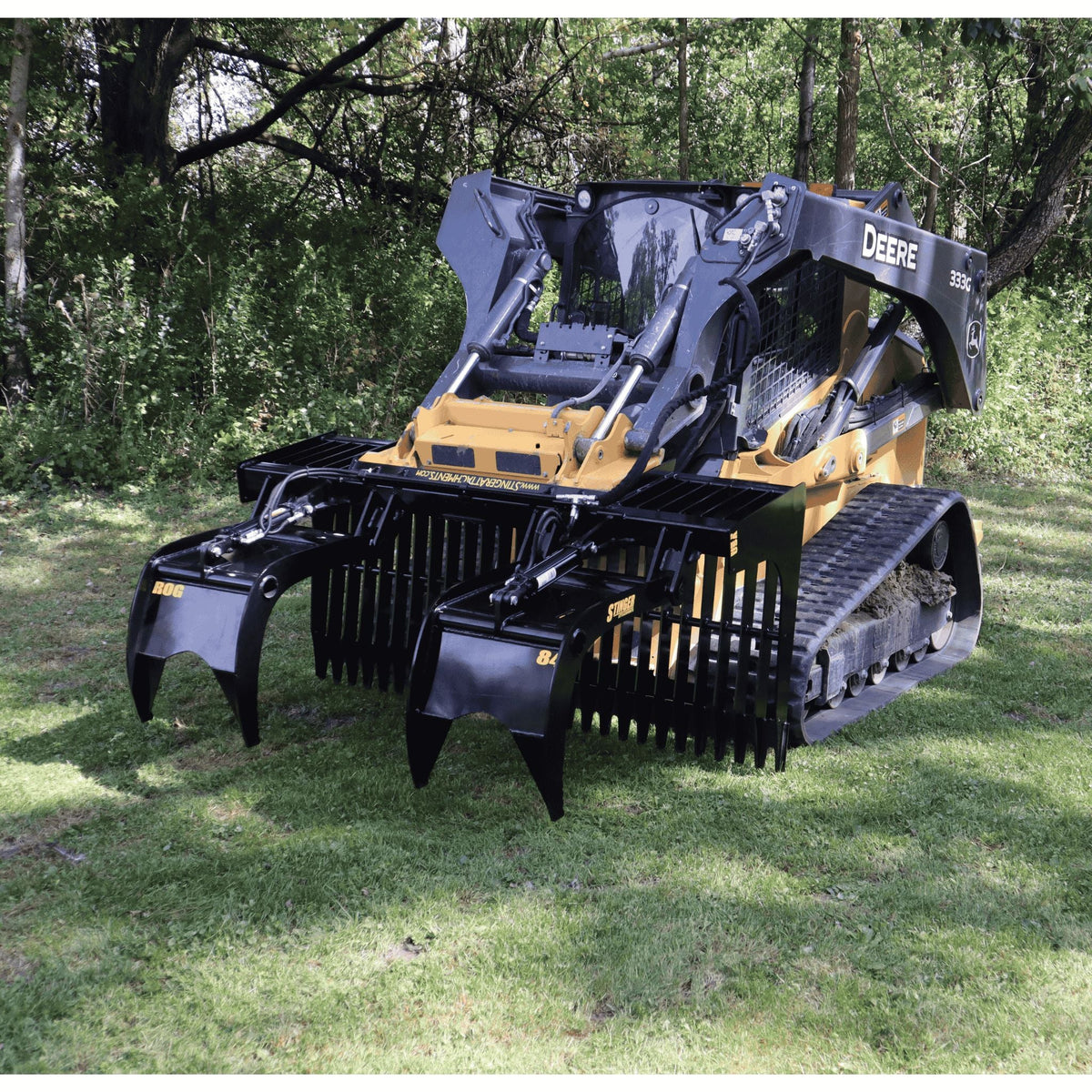

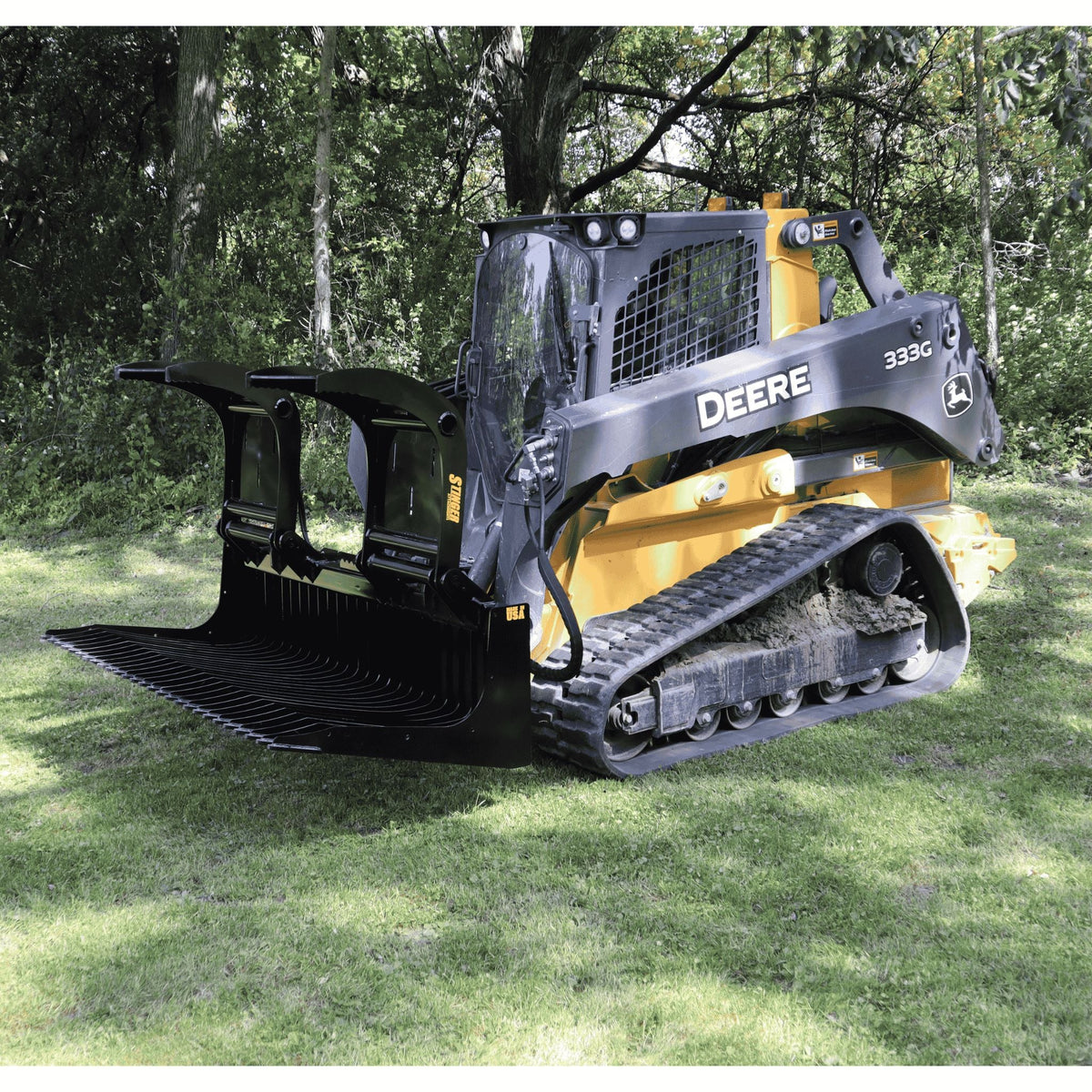

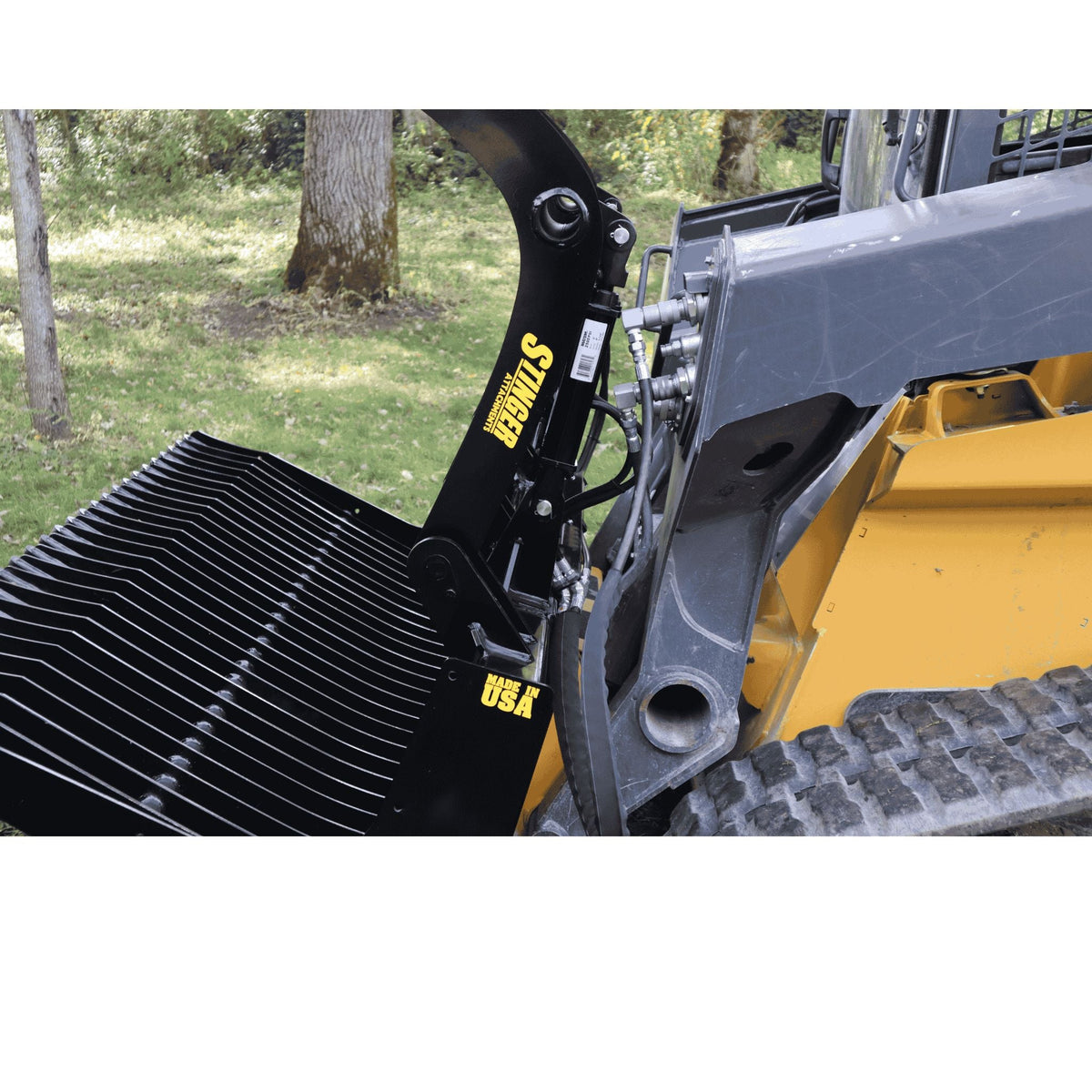

1. Mount Type:
Universal Quick Attach (SSQA). Fits all standard skid steers and track loaders.
2. Size Recommendation:
48" Single: Narrow/Compact Loaders (e.g., Bobcat S70, S100).
60" - 88" Dual: Mid-to-Large Frame Loaders (e.g., Bobcat S590+, Kubota SVL75/97).
3. Confirmed Fitment:
- Kubota: SSV65, SSV75, SVL75-2, SVL95-2, SVL97-2.
- Bobcat: S450 through S850, T590 through T870.
- CAT: 236D through 299D3.
- John Deere: 317G through 333G.
- Case/New Holland: All Standard Models.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 2500 PSI |
| Grapple Opening | 45.0 in |
| Tine Spacing | 3.25 in |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 3/8" |
