Description
Stop Chasing Rocks

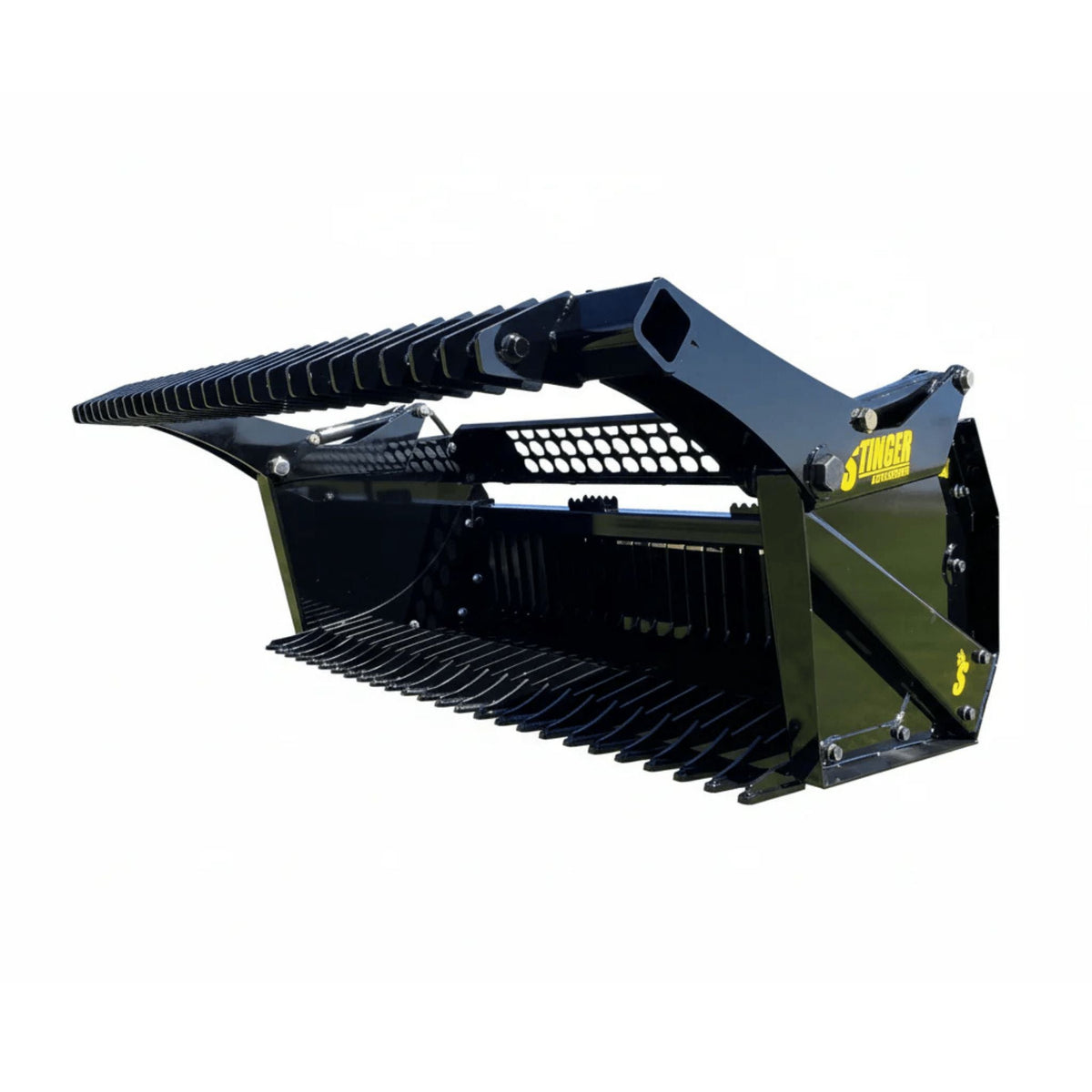

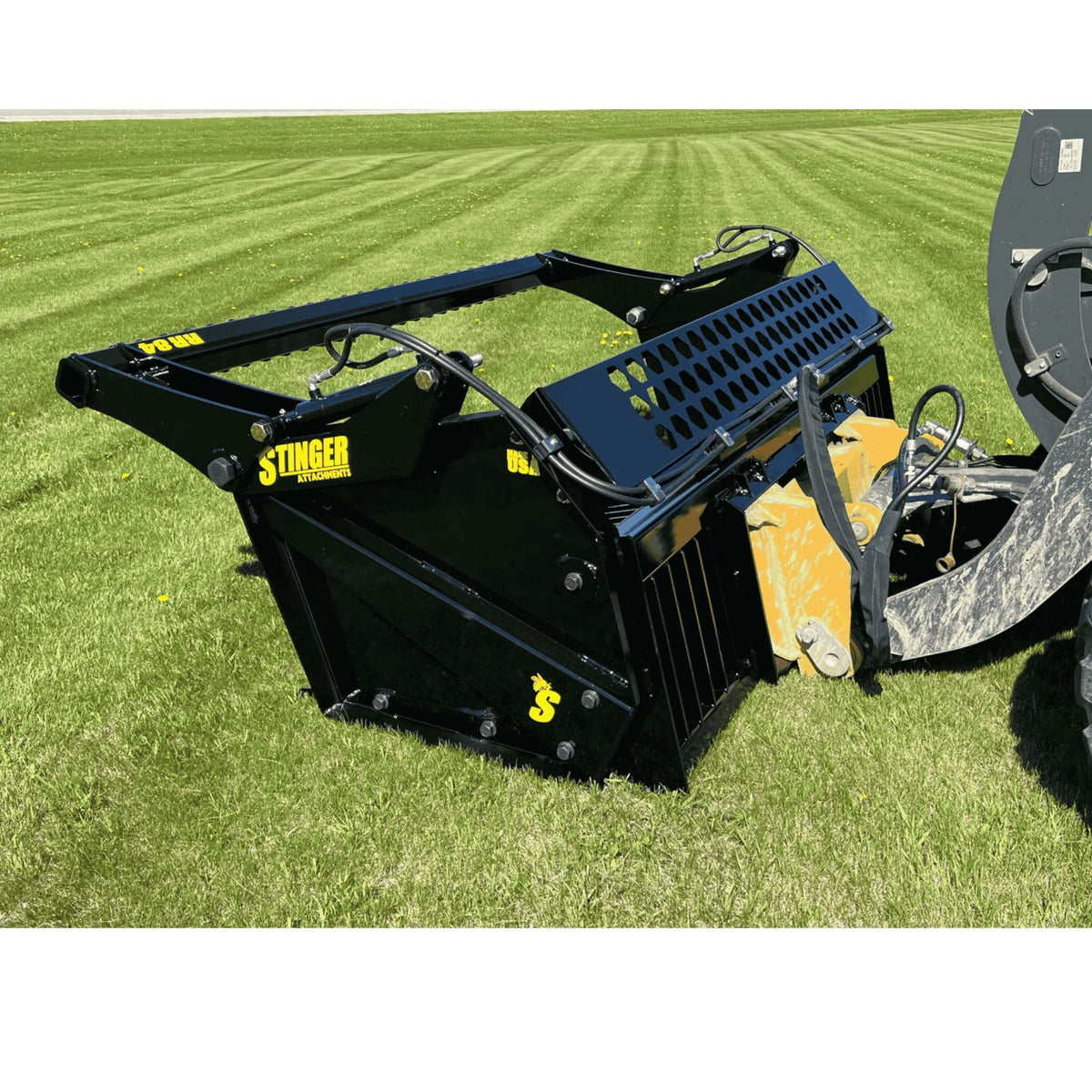

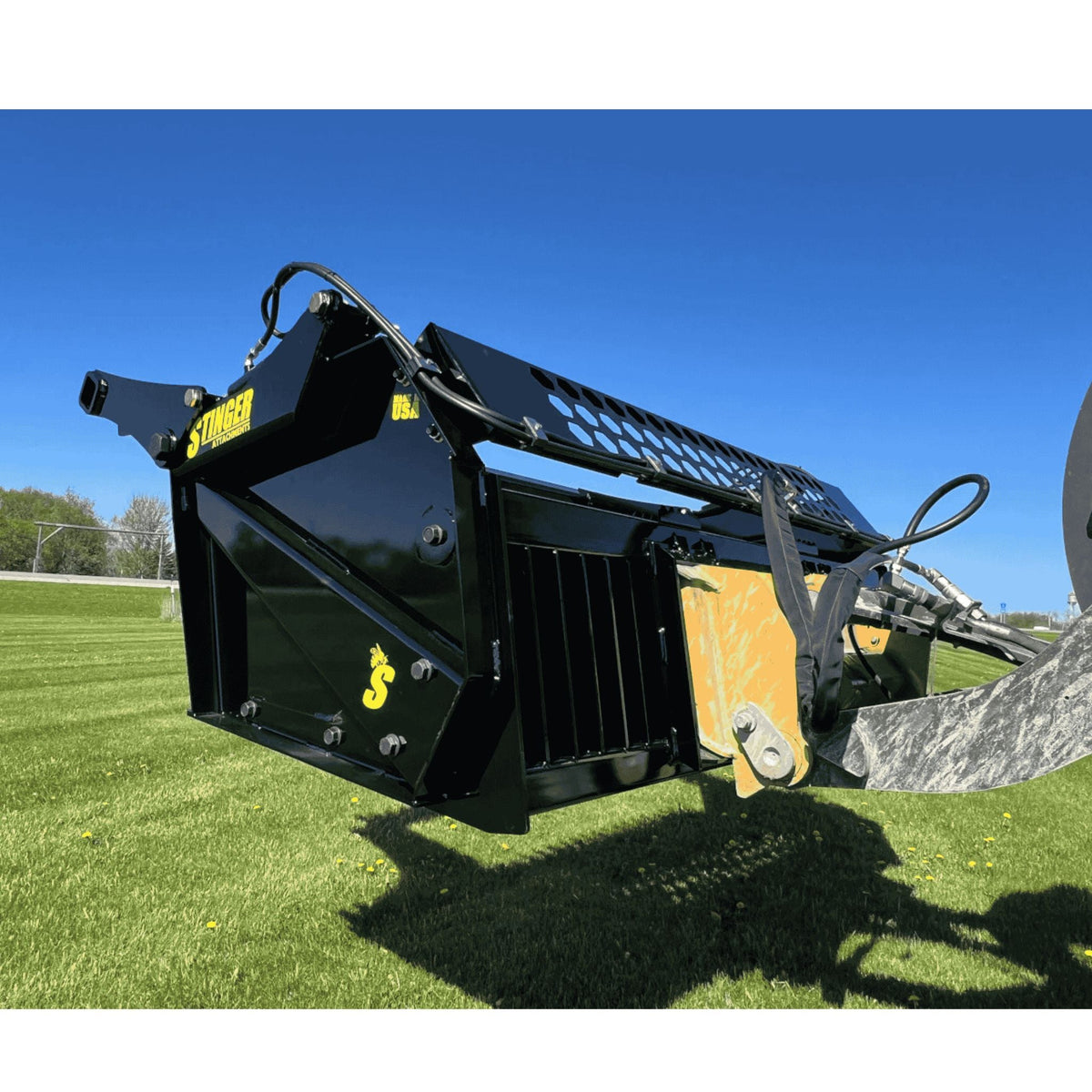

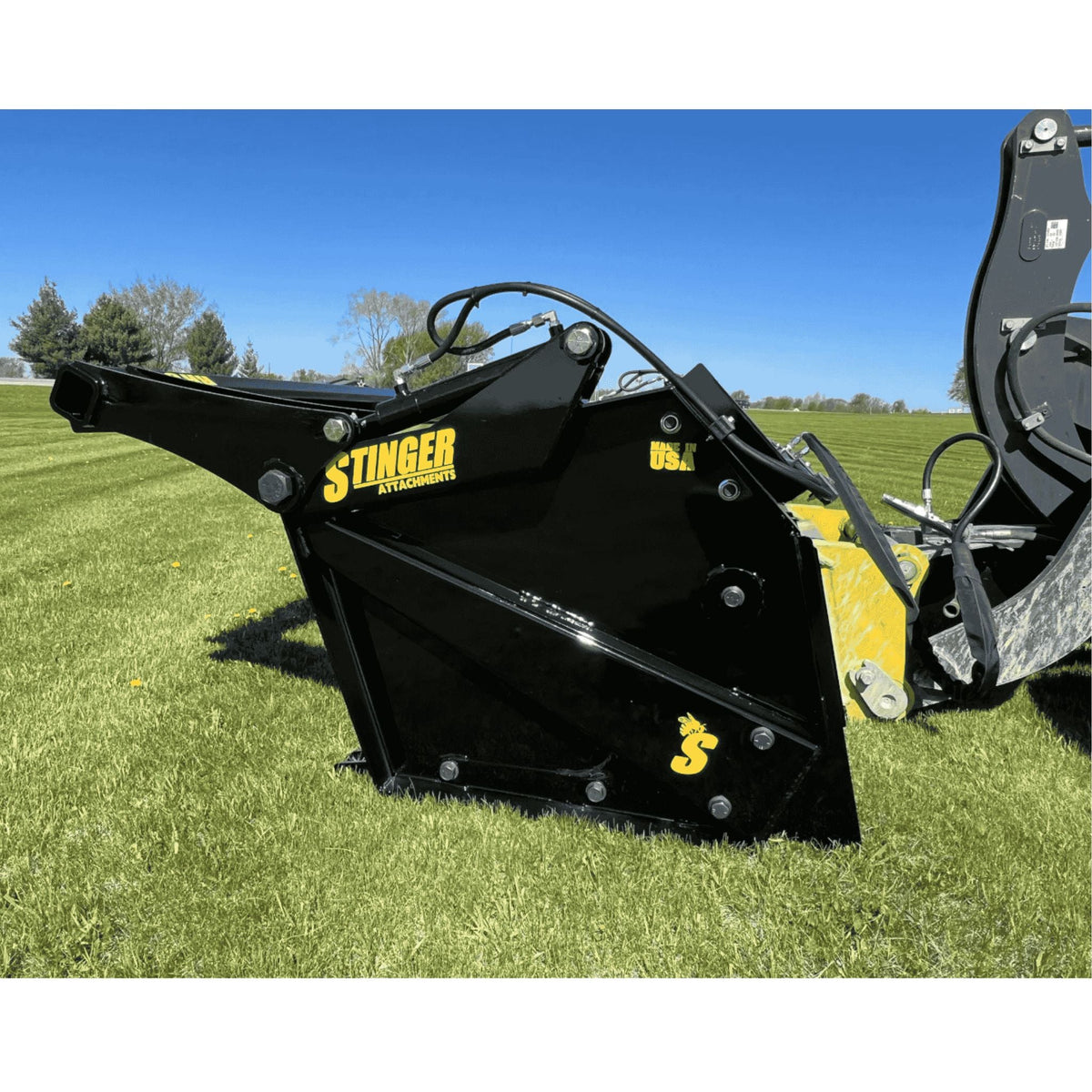

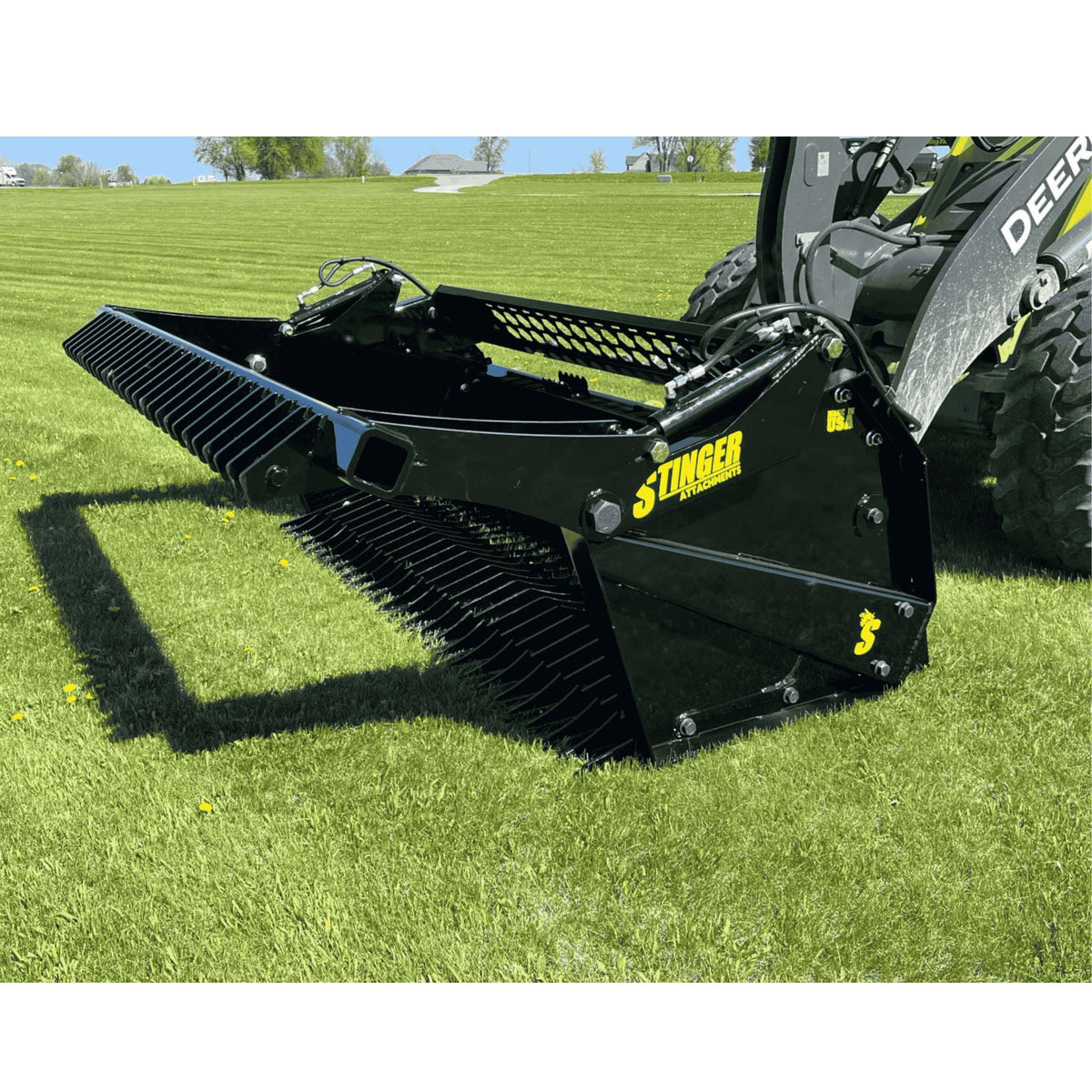

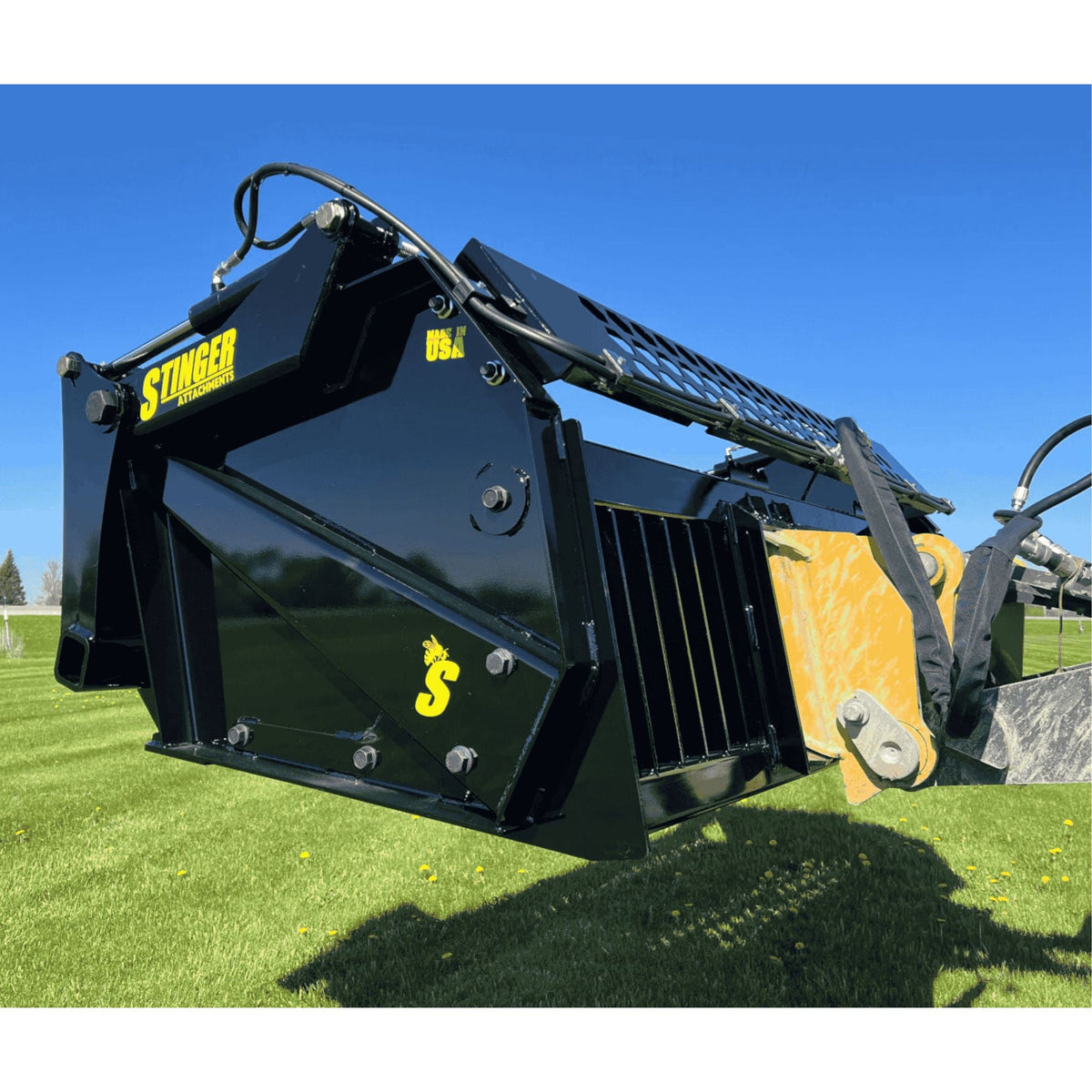

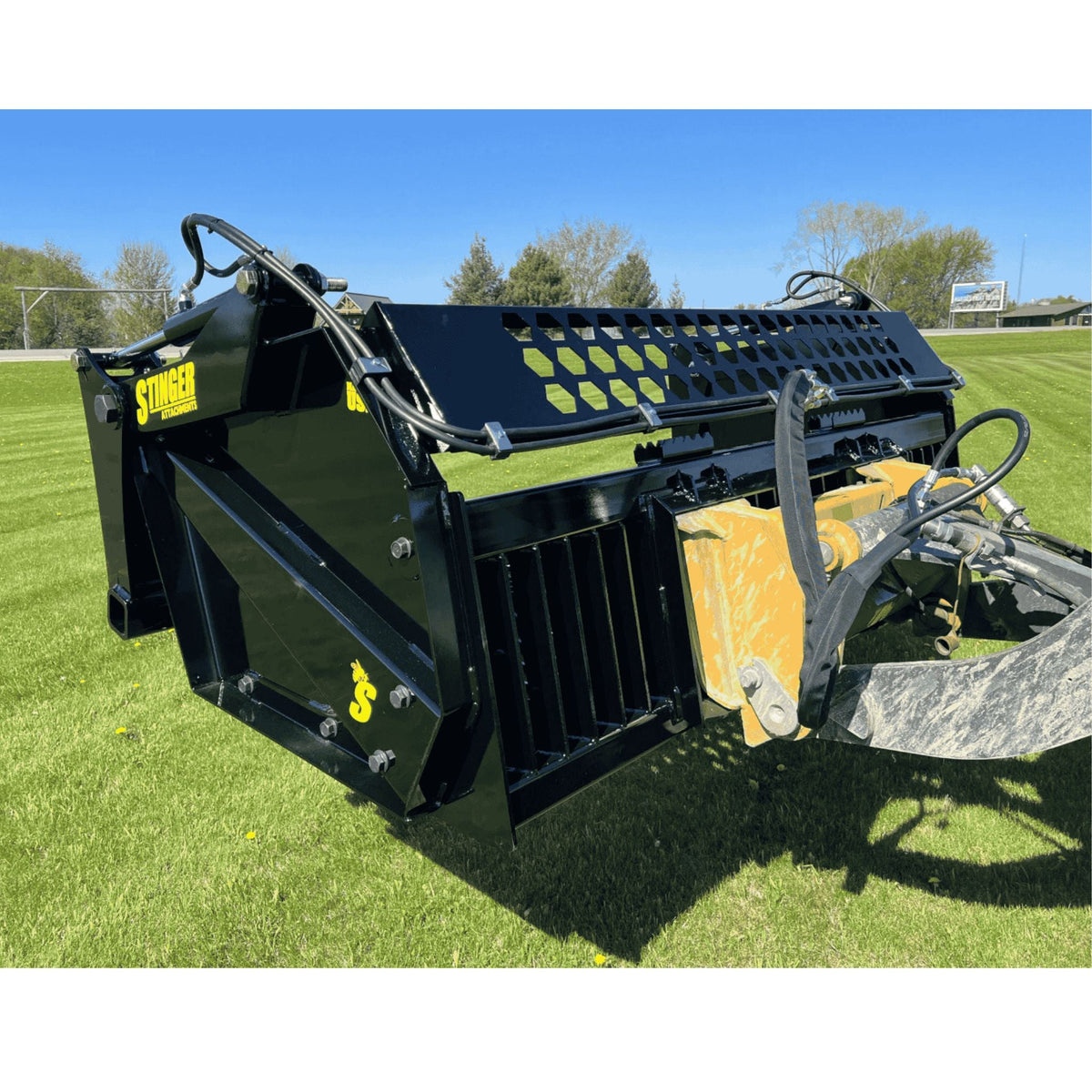

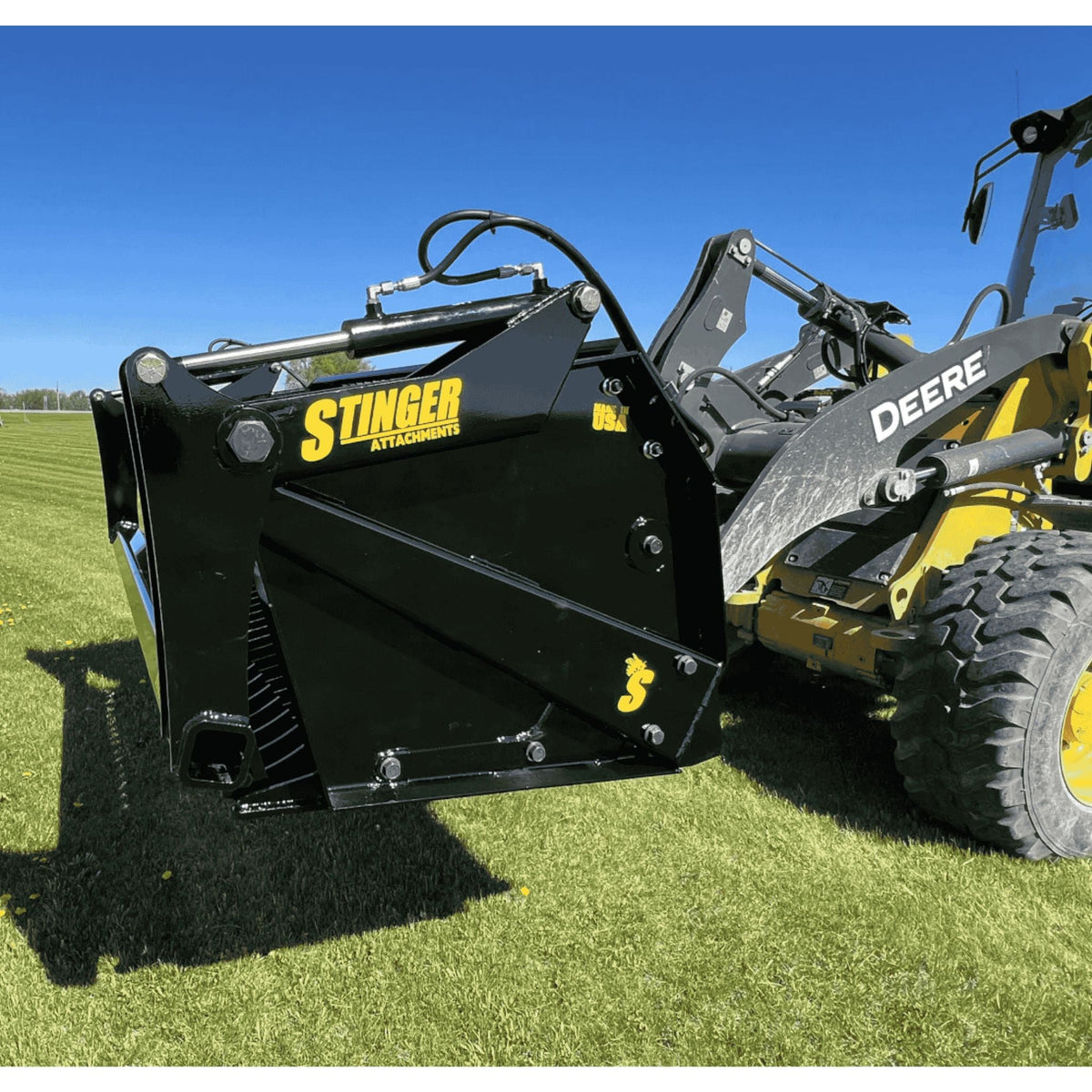

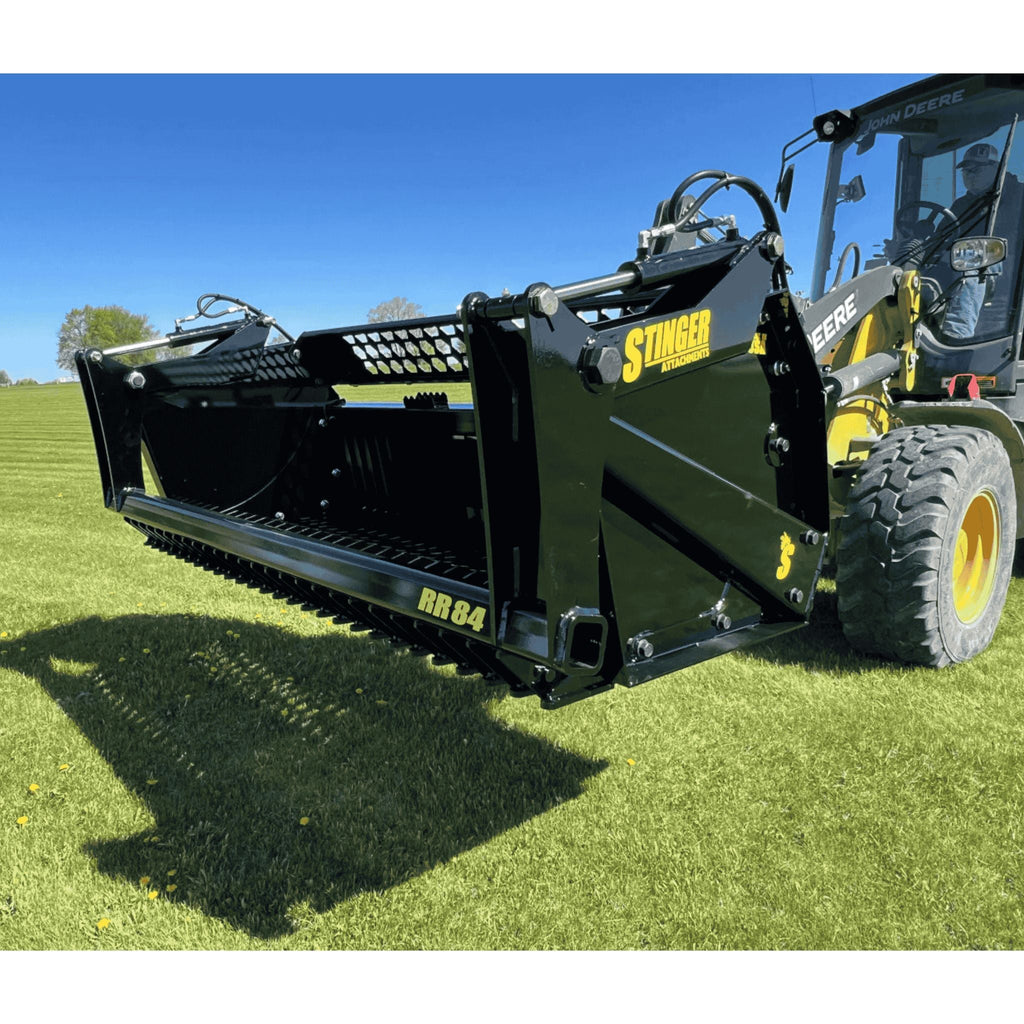

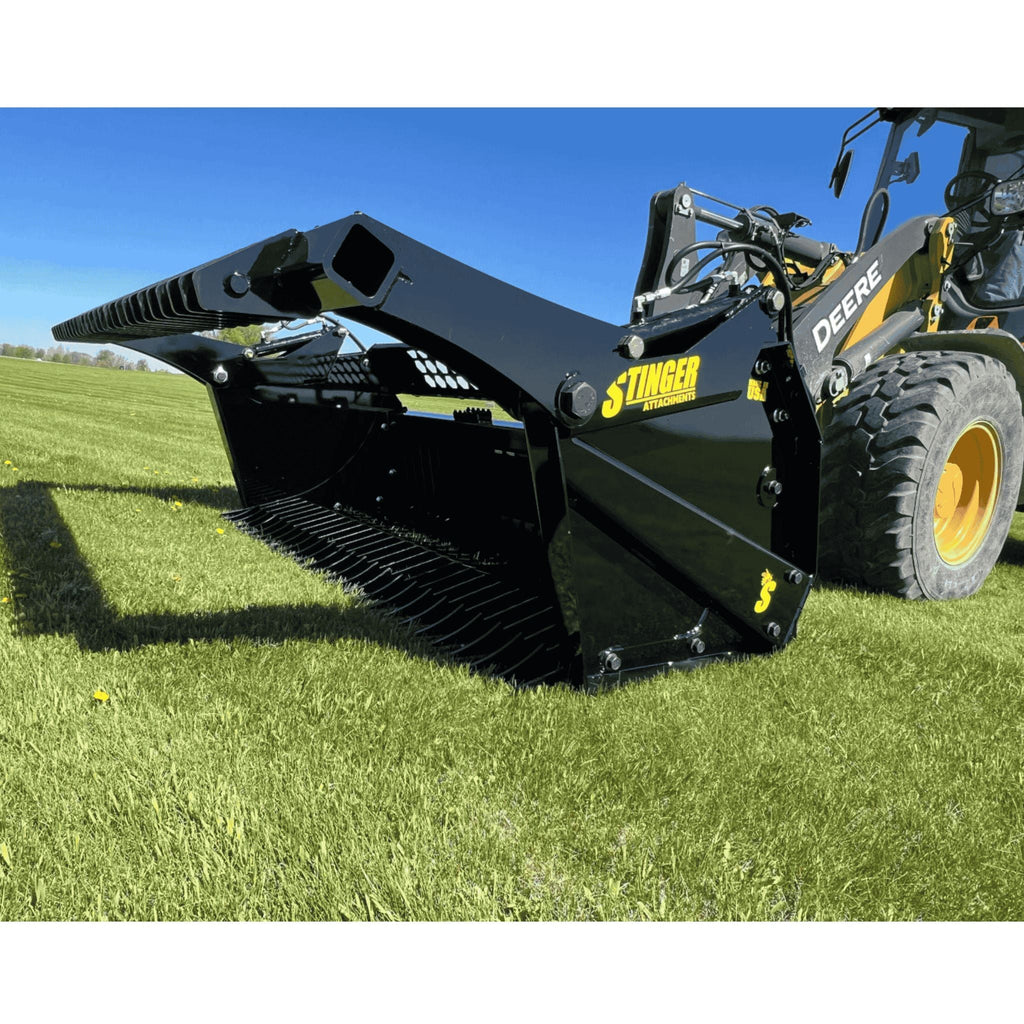

The Stinger Rock Bucket & Reel Combo (RKRR) transforms a tedious chore into a high-speed operation. Instead of ramming the bucket into the ground to force rocks to the back, the Hydraulic Rock Reel actively sweeps them into the pocket. This allows you to "paddle" rocks off the surface with minimal soil disturbance, protecting your pasture or seedbed.
Maximize Every Load
Standard rock buckets often only fill halfway because rocks roll out the front. The Reel acts as a keeper, packing rocks tight against the back of the bucket. The result? You carry a full load every time, cutting your trips to the dump pile in half.
Feature Note: The Reel assembly is fully detachable, allowing you to use the bucket as a standard Rock Bucket (RK Series) when needed.
⚙️ Technical Specifications
Bucket Base: Stinger RK Series (1-Piece Tine)
Reel Tines: 3/8" Grade 50 Steel
Actuation: Twin 2" x 10" Cylinders (Sweep Action)
Cross Member: 4" x 4" x 1/2" Square Tube
Side Plates: 1/4" Grade 50 Steel
Pivot Points: Greaseable & Removable
Warranty: 2-Year Structural
⚠️ Setup Requirement: Hydraulics
Standard Flow Required: The reel is powered by auxiliary hydraulics. Requires 1/2" Flat-Face Couplers (ISO 16028).
Ensure your machine has functional auxiliary hydraulics to operate the sweep function.
✅ Machine Compatibility
1. Mount Type:
Universal Quick Attach (SSQA). Fits all standard skid steers and track loaders.
2. Size Recommendation:
60" - 66": Mid-Frame Skid Steers.
72" - 84": Large-Frame Track Loaders & Utility Tractors.
96": Large Hub Machines & Payloaders.
3. Confirmed Fitment:
- Kubota: SSV65/75, SVL75-2, SVL95-2, SVL97-2.
- Bobcat: S590, S650, T650, T770, T870.
- John Deere: 317G, 320G, 331G, 333G.
- CAT: 259D, 279D, 289D, 299D.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 2-Year Structural |
| Max Operating Pressure | 3000 PSI |
