Description
The Ultimate Grading Tool

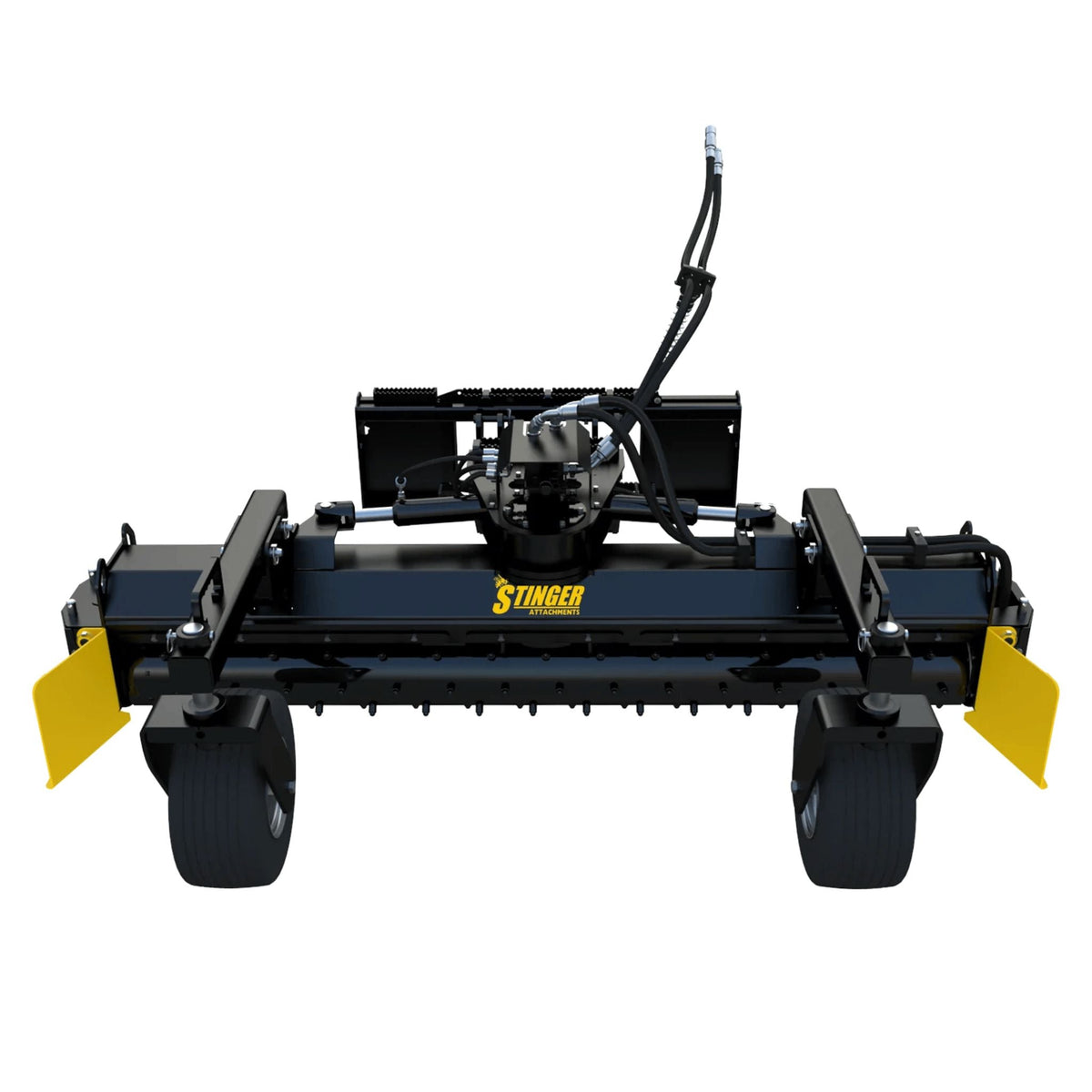

The Stinger Soil Conditioner (Power Rake) is a dual-purpose powerhouse for landscapers and contractors. It doesn't just rake debris; it conditions the soil. The high-speed drum pulverizes hard-packed clods, rips out sod/roots, and separates rocks, leaving a perfect, fluffy seedbed behind.
Carbide Tooth Performance
Unlike rubber-flail rakes that bounce off hard ground, Stinger utilizes Tungsten Carbide Teeth arranged in a spiral pattern on a hydraulic drum. This design cuts into the earth aggressively while providing long wear life.
Two Modes of Operation:
• Grading Mode (Plates On): Keep the side spoil plates attached to carry dirt, fill low spots, and level the surface like a box blade.
• Windrow Mode (Plates Off): Remove the plates and angle the drum (up to 25°) to sweep rocks and debris into neat windrows for easy cleanup.
⚙️ Technical Specifications
Teeth: Tungsten Carbide (Replaceable)

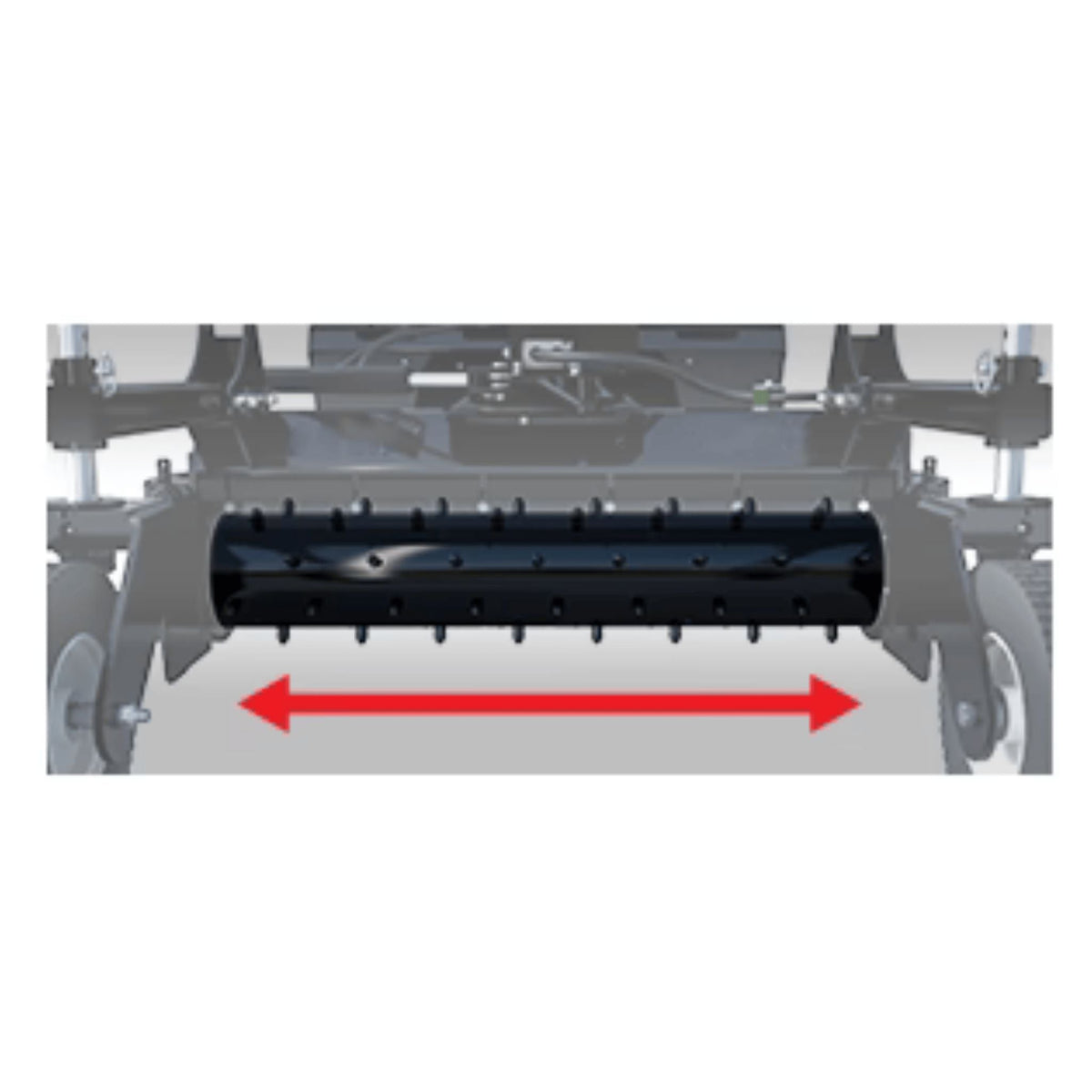

Drum: Bi-Directional Hydraulic Drive

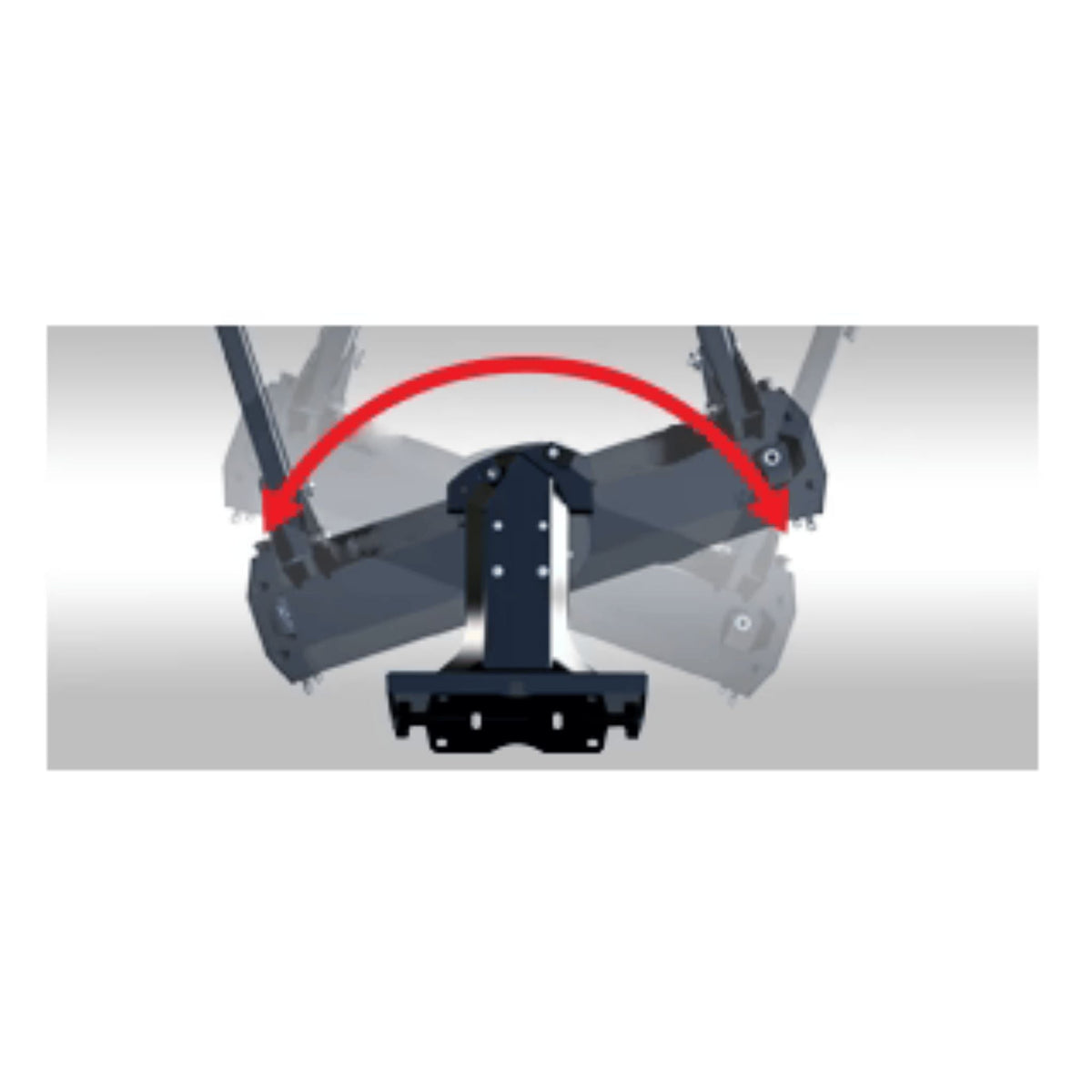

Angle Range: +/- 25 Degrees

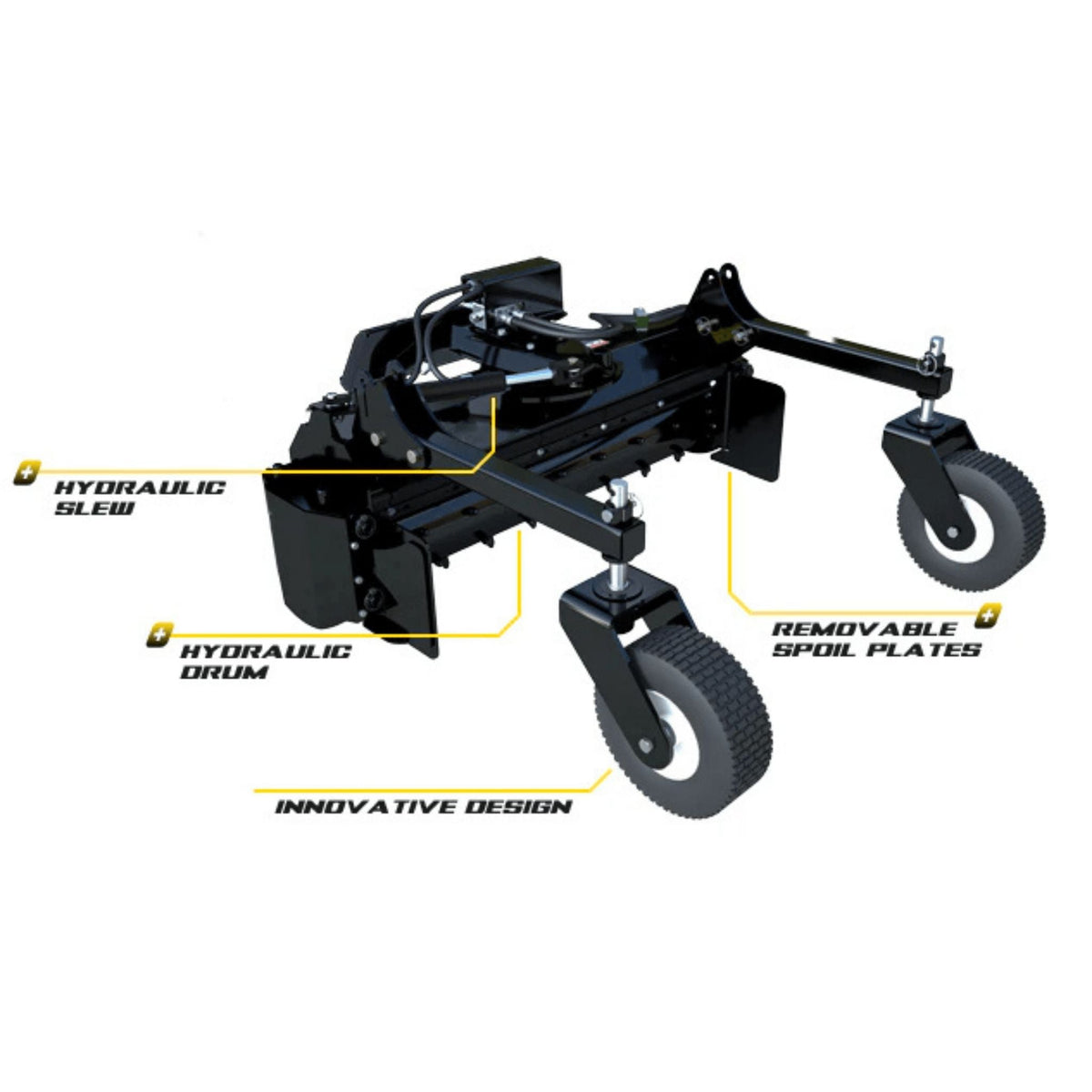

Spoil Plates: Removable & Reversible
Tires: Solid Foam-Filled (No Flats)
Mini Range (48"-60"): Compact/Mini Mounts Available
Standard Range (72"-90"): Floating QA Mount
Warranty: 1-Year Structural
⚠️ Setup Requirement: Angling Control
Manual Angle Models: "Set and Forget." You manually pin the angle outside the cab. No electrics required.
Hydraulic Angle / Slew Pro: Requires an electrical connection to switch between "Spin Drum" and "Angle Rake." You must select the correct Wire Harness (7, 8, or 14 Pin) to match your machine.
✅ Machine Compatibility
Mini Loaders (Dingo/MT):
Select 48" or 60" width. Choose "Mini Universal" or "Bobcat MT" mount.
Requires: 10-18 GPM.
Skid Steers & Track Loaders:
Select 72" or 90" width. Standard Universal QA mount.
Requires: 15-25 GPM (Standard Flow).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Required Flow Rate | 15 - 25 GPM |
| Max Operating Pressure | 3000 PSI |
