Stinger Pickup Broom | Sweeper Bucket | Poly/Wire Hybrid

Stinger Attachments

Width: 60"

Configuration: Standard (Broom Only)

Price:

$12,920 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

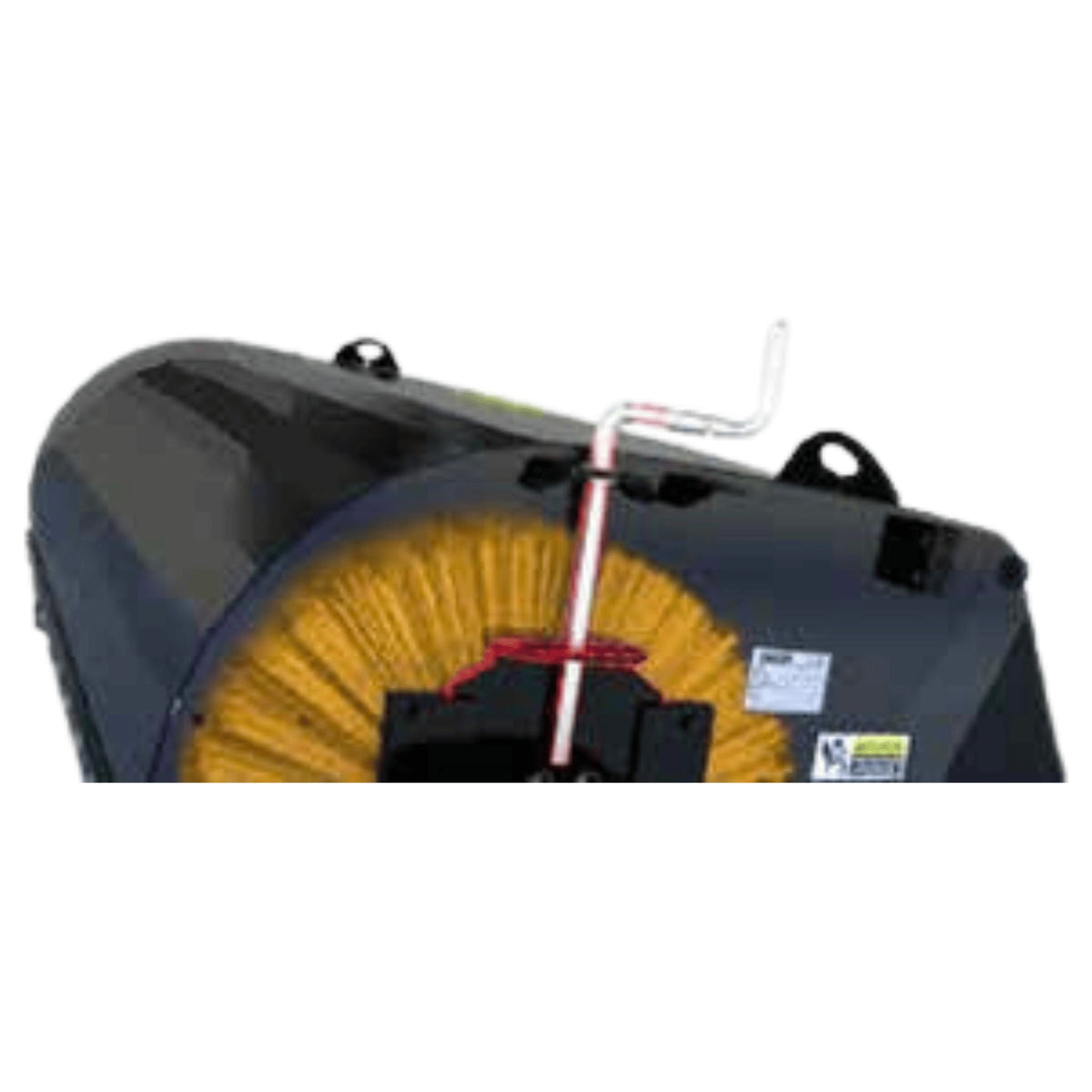

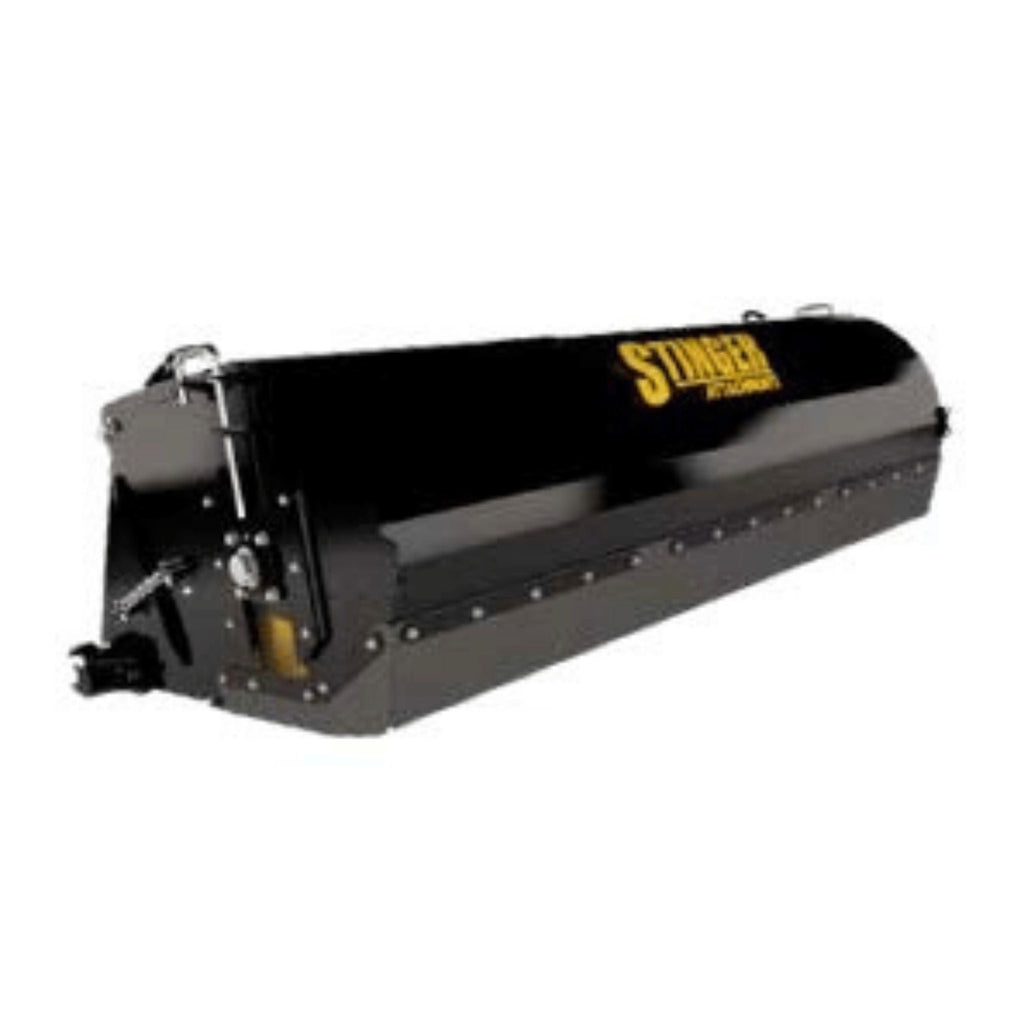

The Clean-Up Specialist: The Stinger Attachments Pickup Broom is the ultimate tool for site cleanup. Unlike angle brooms that windrow debris to the side, this attachment sweeps dirt, trash, and rocks directly into its integrated hopper. When the bucket is full, simply lift and dump it like a standard loader bucket. It is essential for maintaining warehouses, machine sheds, and paved parking lots.

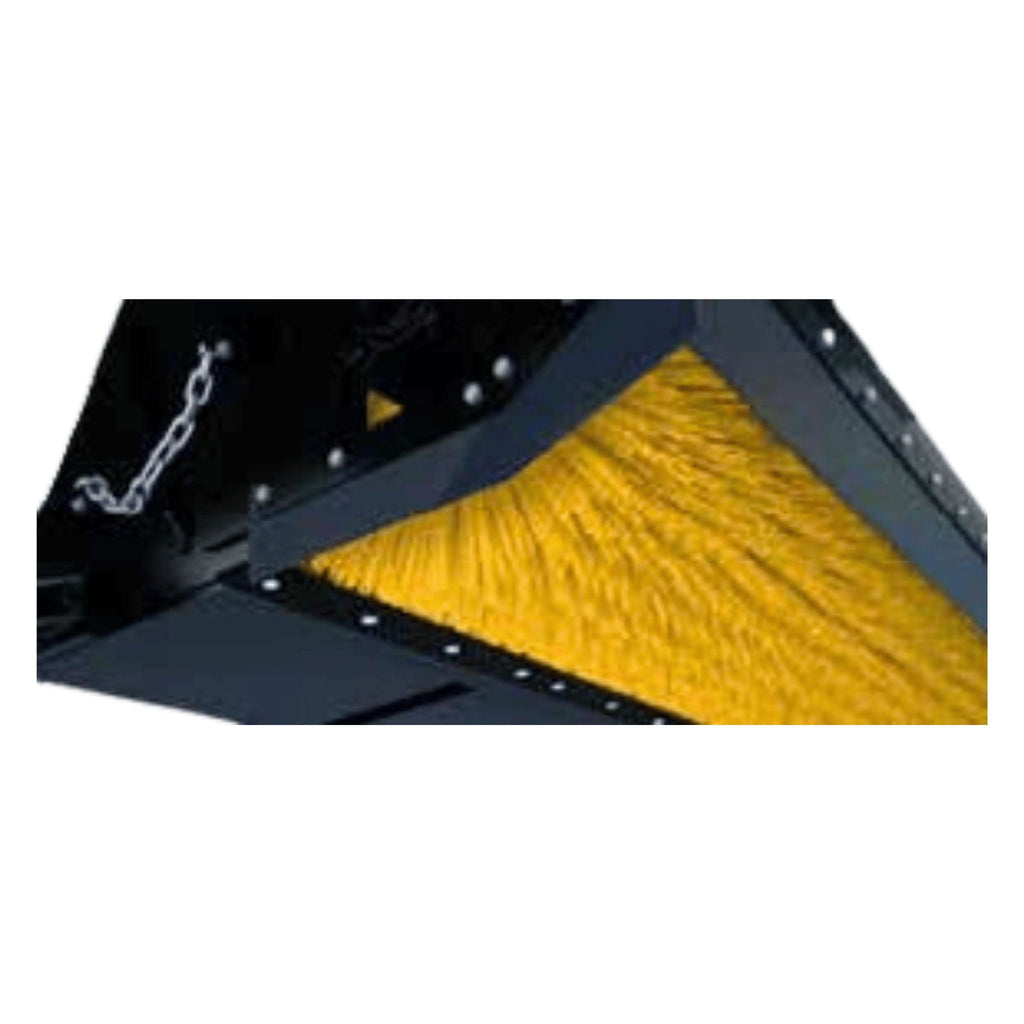

Cut, Sweep, Contain: Stinger engineers this unit for heavy use. It features a Bolt-On Cutting Edge to scrape up packed mud and Poly/Wire Hybrid Bristles to scour the surface.
Available Upgrades:

Gutter Brush

A side-mounted rotary brush that pulls debris away from curbs and walls into the main sweeper path.

Water Tank Kit

A dust suppression system that sprays water ahead of the broom, keeping silica dust and dirt out of the air (ideal for indoor use).

✅ Machine Compatibility & Carrier Fitment

Carrier Class

45–120+ HP Skid Steer / CTL

Hydraulic Flow

12 – 25 GPM (Std Flow)

Bristle Wafer

50/50 Poly-Wire Hybrid

Mount Interface

Universal SSQA

1. Select Sweeper Width & Optional Gutter Brush / Dust Water Kit:

60" (950–1,100 lbs) & 72" (1,060–1,210 lbs)Ideal for Mid-Frame Skid Steers & CTLs (Kubota SSV65/SSV75/SVL75-3, Bobcat S590/S650/S66/T66, Deere 317G–325G, CAT 236D3–259D3/255)

84" Commercial Sweeper (1,165–1,315 lbs)Ideal for Large-Frame Track Loaders & Compact Wheel Loaders (SVL97-2, Bobcat T76/T770/T86/T870, Deere 331P/333P, CAT 265/275/285)

2. Confirmed Compatible Skid Steer & CTL Models:

KubotaSSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2

BobcatS550, S570, S590, S650, S64, S66, S76, S770, S86, T550, T590, T64, T66, T76, T770, T86, T870

John Deere & CATDeere 317G, 318G, 320G, 324G, 325G, 331G, 331P, 333G, 333P, 335P; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 299D3, Next-Gen 250, 255, 265, 275, 285

Case, New Holland, Takeuchi & ASVCase SR210B, SV280B, TR270B, TR310B, TR340B, TV370B, TV450B; New Holland L320–L328, C327–C345; Takeuchi TL8R2, TL10V2, TL12V2; ASV RT-65, RT-75, RT-120

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Setup Requirement: Hydraulics

Standard Flow: Requires standard auxiliary flow. Includes 1/2" Flat-Face Couplers (ISO 16028).
Electrical: If selecting the Water Kit option, a 12V connection may be required for the water pump.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Bristle Type	50/50 Poly & Wire Mix (Replaceable Wafers)
Hydraulic Motor	Eaton (Bi-Directional / Reverse Flow)
Height Adjustment	Heavy Duty Casters
Cutting Edge	Reversible Bolt-On Edge
Optional Gutter Brush	Curb/Edge Cleaning
Optional Water Kit	Dust Suppression Tank & Sprayers
Warranty	1-Year Commercial

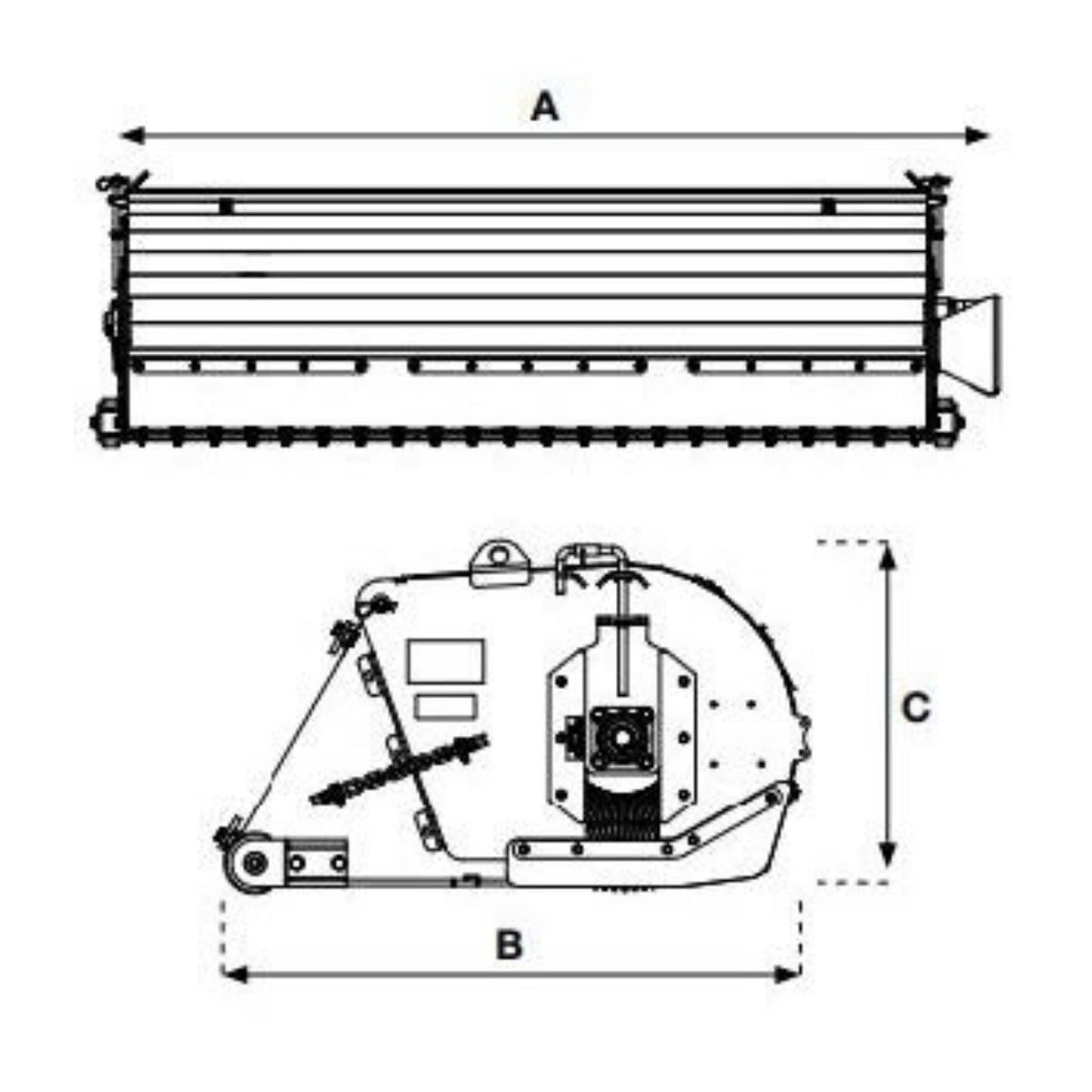

Operating Weight	60": 950–1,100 lbs (431–499 kg) \| 72": 1,060–1,210 lbs (481–549 kg) \| 84": 1,165–1,315 lbs (528–596 kg)
Included Standard	Pickup Broom & Collector Hopper, Bi-Directional Eaton Motor, 50/50 Poly-Wire Bristles, Heavy-Duty Casters, Bolt-On Edge, Hoses, Couplers & SSQA Mount

🇺🇸Made in the United States

✔

Honest Timelines

Card pre-authorized at checkout. Payment captured after timeline approval.

⛟

Flat Freight

Predictable, transparent shipping to commercial hubs across Canada.

🍁

Canadian

100% owned and operated in Canada. We handle the customs, brokerage, and border friction.

⚙

Commercial Grade

US Grade 50, AR200/AR400 & Swedish SSAB Hardox® 450 wear steel built for frozen ground and daily abuse.
