Description

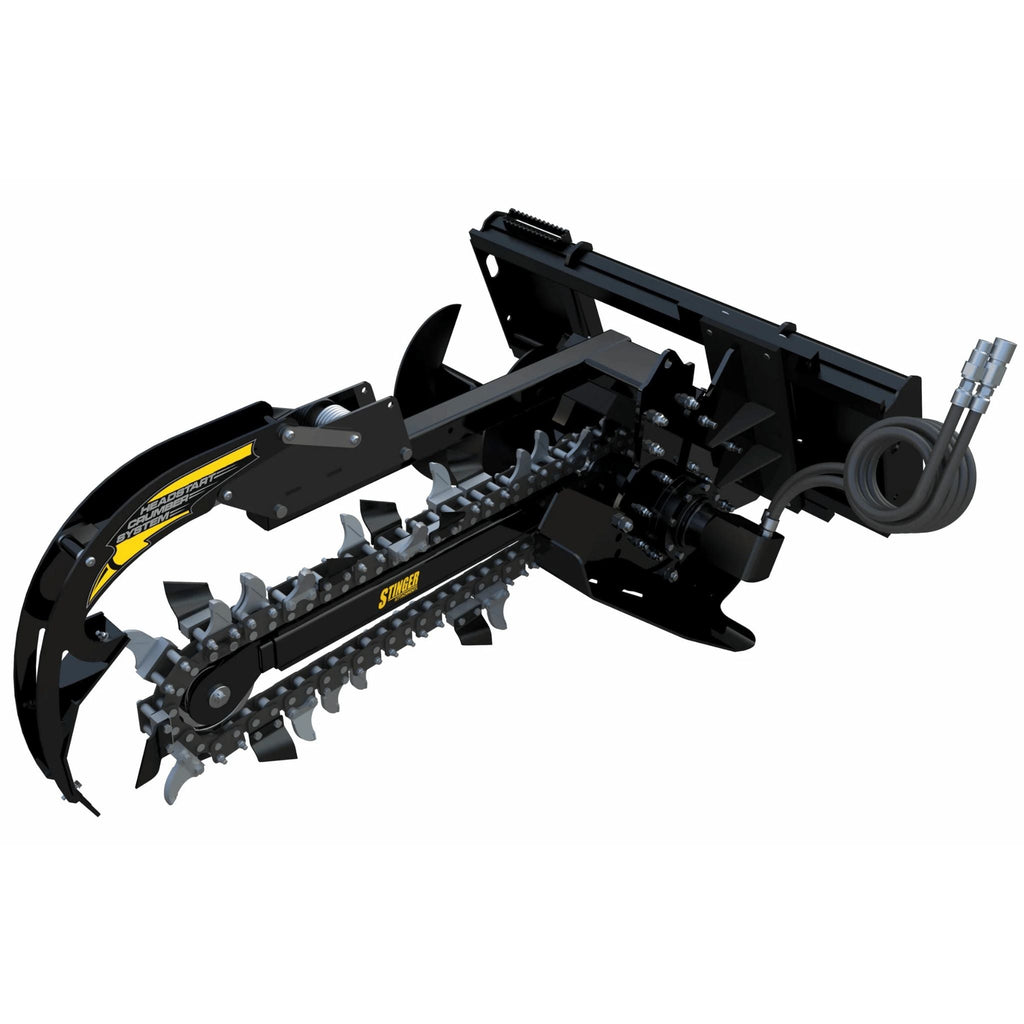

Big Performance, Compact Package: The Stinger Mini Bigfoot Trencher brings commercial-grade trenching power to your Mini Skid Steer. Designed specifically for compact loaders like the Toro Dingo, Bobcat MT, and Vermeer, this unit digs up to 36 inches deep while maintaining a lightweight footprint (320 lbs) to preserve your machine's tipping load.
The "Headstart" Advantage: Stop getting off the platform. Unlike other mini trenchers that require manual adjustments, the Stinger features the Headstart Crumber System. This allows the crumber bar (trench cleaner) to engage inside the trench, so you can reposition and start cutting immediately. Combined with a Visible Skid Foot, you can monitor your depth from the operator's station with ease.
⚙️ Technical Specifications
Dig Depth: Up to 36 Inches (3 ft)
Chain Widths: 4", 6", or 8"
Flow Range: 10 - 25 GPM
Motor: Eaton 2K Bell Series
Weight: 320 lbs
Crumber: Headstart System (Automatic Start)
Warranty: 5-Year Gearbox / 3-Year Motor
⚠️ Mount Selection Guide
Mini Universal (CII): Fits Toro Dingo, Boxer, Vermeer, Ditch Witch, Thomas, Ramrod.
Bobcat MT Mount: Fits Bobcat MT50, MT52, MT55, MT85, MT100.
Please select the correct mount for your machine from the dropdown menu.
✅ Chain Type Guide
1. Earth Chain (Cup Teeth):
Best for clean dirt, loam, and soft clay. Not for rocks.
2. Combo Chain (Cup + Tungsten):
The "All-Rounder." A mix of cup teeth to move dirt and tungsten teeth to chip rocks/roots. (Most Popular)
3. Diggatac Chain (Full Tungsten):
Aggressive rock teeth for hard-packed ground, shale, asphalt, and frozen soil.
Additional Specifications
| Mount Interface | Mini Universal (Dingo) / Bobcat MT |
| Warranty | 5-Year Gearbox / 3-Year Motor |
| Required Flow Rate | 10 - 25 GPM |
| Max Operating Pressure | 3500 PSI |
| Machine Size Class | ["Mini Loader, Walk Behind"] |
| Operating Weight | 320 lbs |
