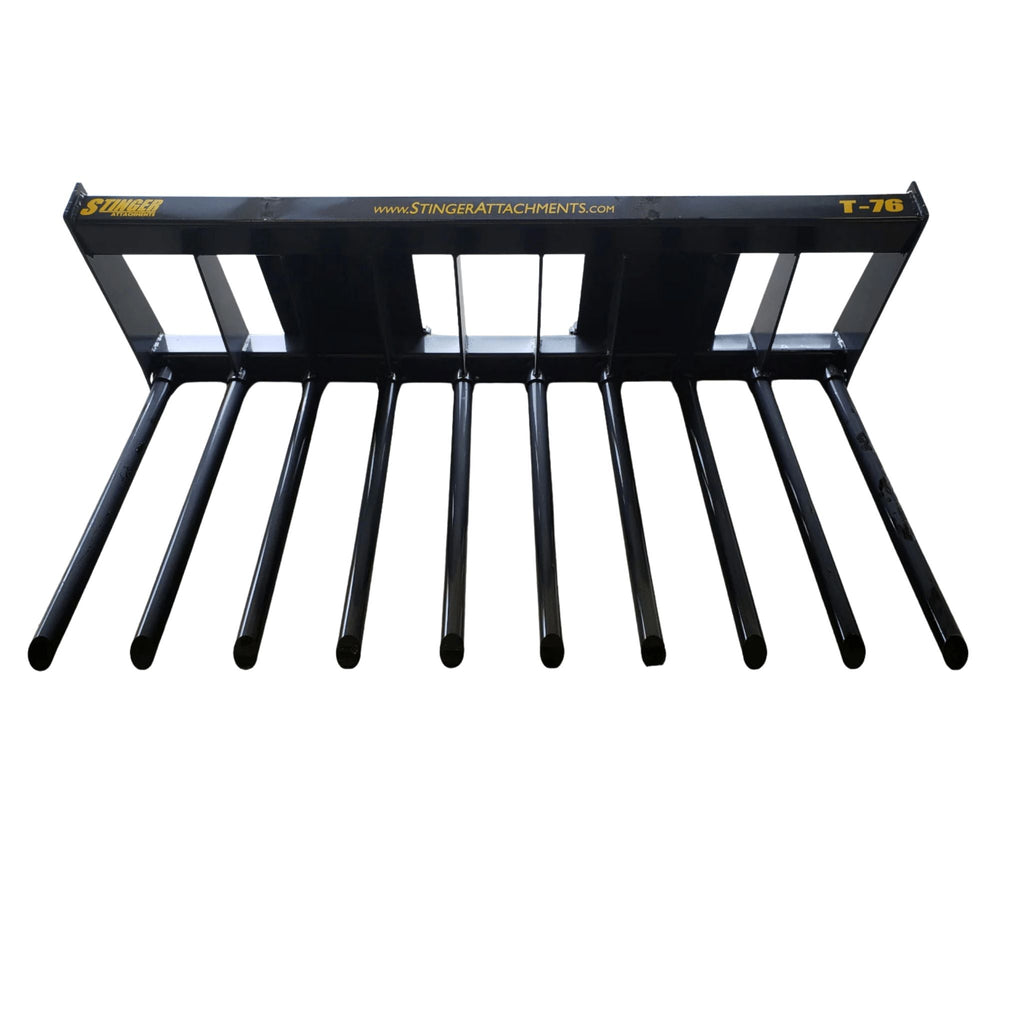

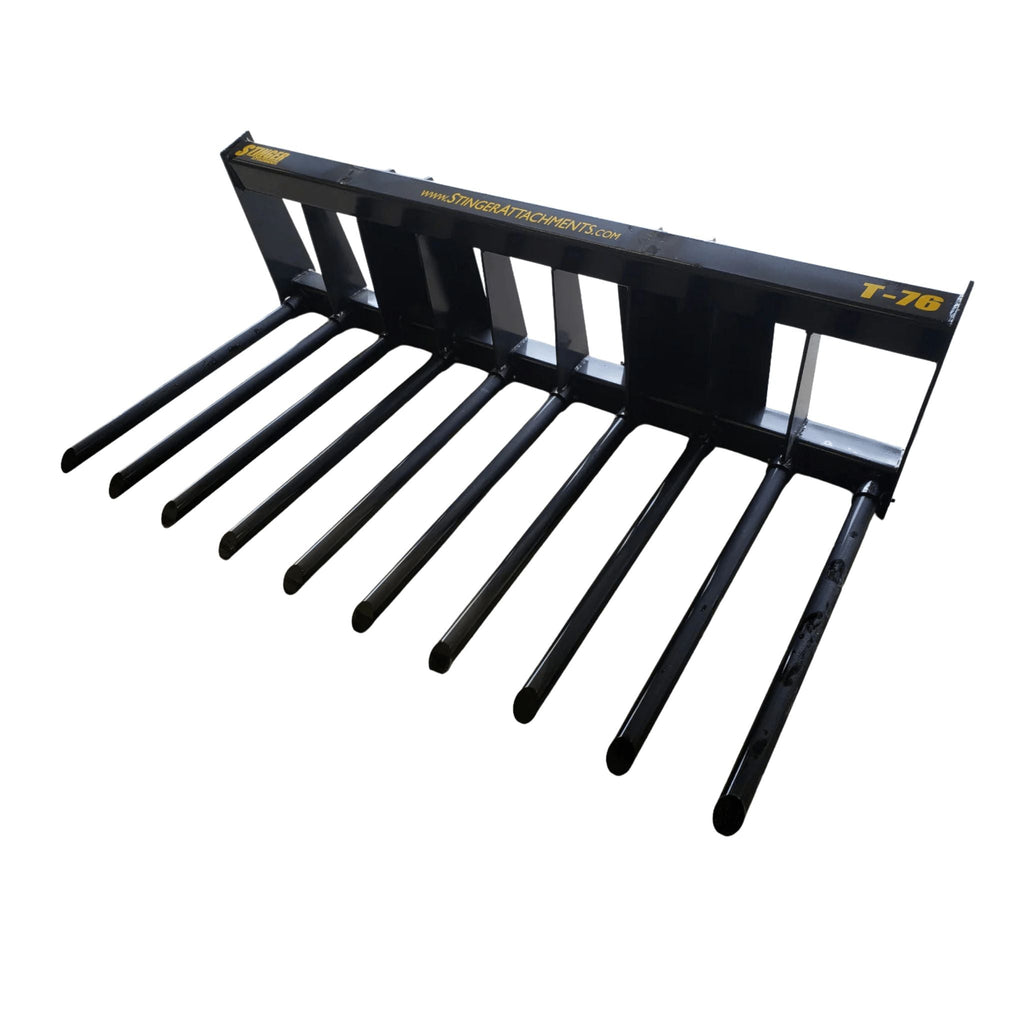

Stinger Manure Tine Bucket | Replaceable 2" Tines | 60" - 84"

Stinger Manure Tine Bucket | Replaceable 2" Tines | 60" - 84" - View 2

Stinger Manure Tine Bucket | Replaceable 2" Tines | 60" - 84" - View 3

Stinger Manure Tine Bucket | Replaceable 2" Tines | 60" - 84" - View 4

Stinger Manure Tine Bucket | Replaceable 2" Tines | 60" - 84" - View 5

Roll over image to zoom in Click on image to zoom

🇺🇸 Made in USA | Authorized Dealer | Guaranteed Fitment | Direct-to-Site Delivery

Stinger Manure Tine Bucket | Replaceable 2" Tines | 60" - 84"

Stinger Attachments

Width: 60"

Back Style: Open Back (Standard)

Price:

$3,830 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

Commercial Livestock Bedding, Silage & Manure Fork Bucket with Bolt-On Replaceable 2" Cold-Rolled Steel Tines. Manufactured in the USA by Stinger Attachments in 60" to 84" widths, the MT Manure Tine Bucket penetrates compacted barn packs effortlessly and lets you unbolt and swap a bent tine in minutes without welding.

The Livestock Producer's Essential

The Stinger Attachments Manure Tine Bucket is engineered to penetrate loose or matted material effortlessly. Whether you are breaking up compacted bedding, moving silage, or clearing brush, the pointed tine design allows for easy entry and separation.

Built to Last, Easy to Repair

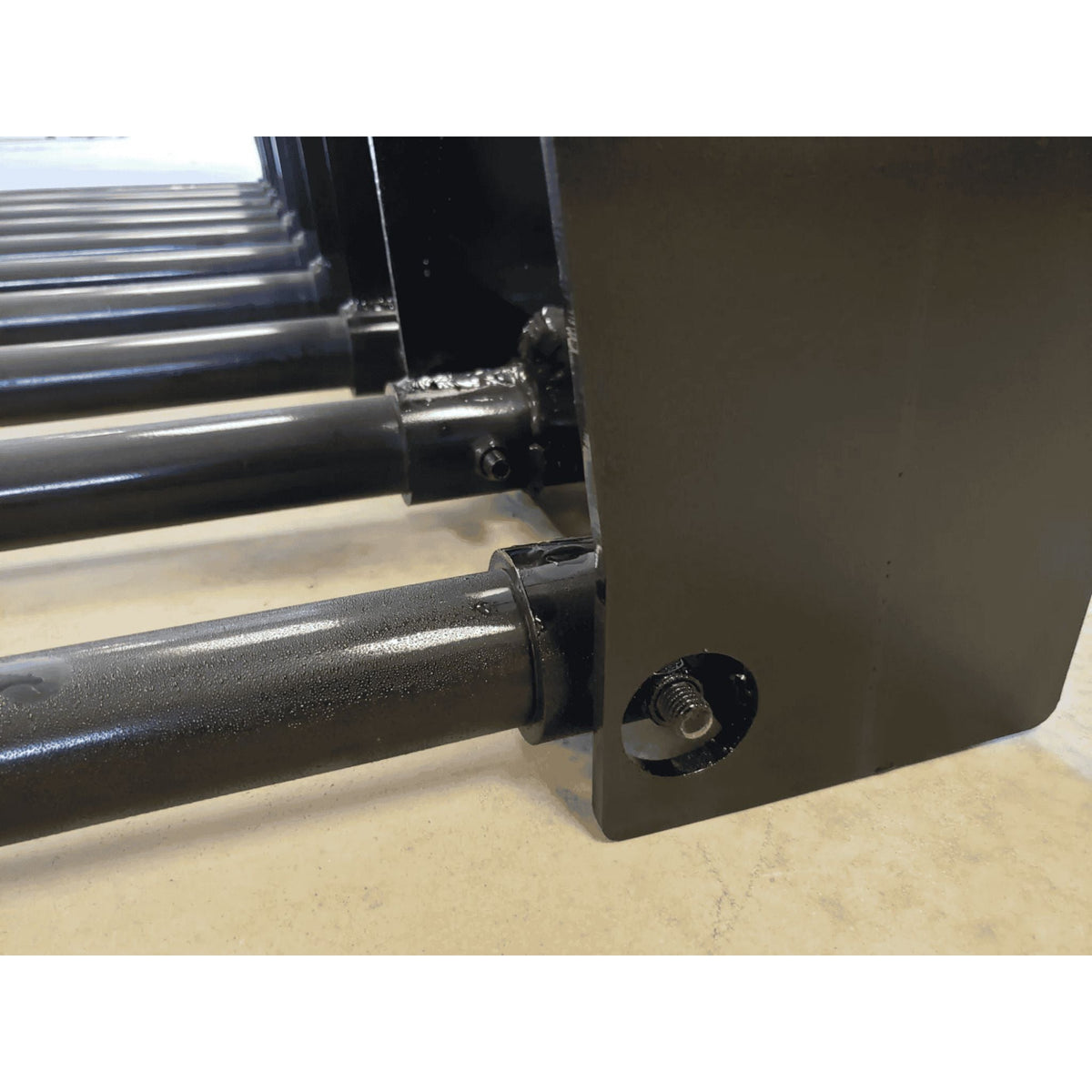

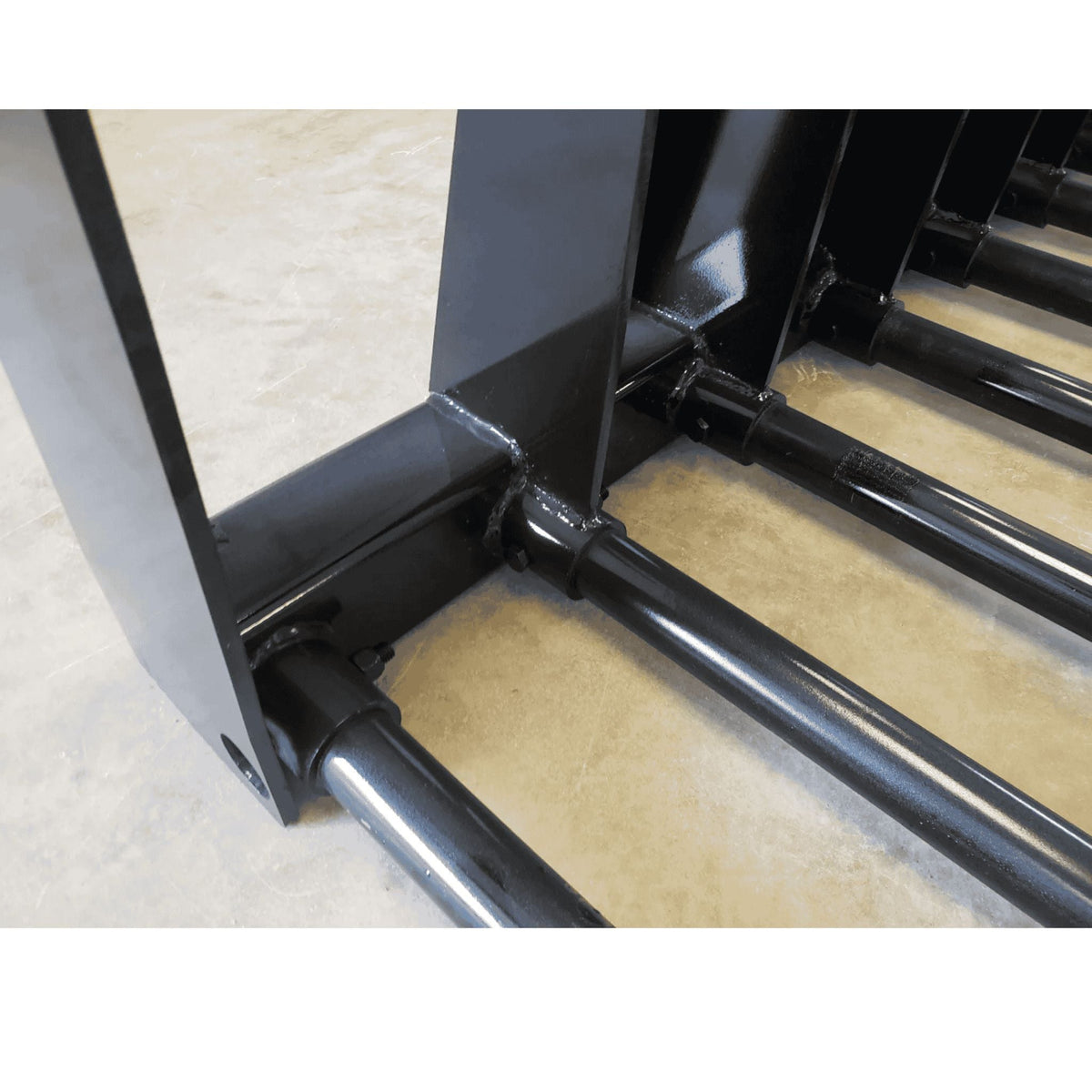

Unlike cheap forks with welded pipes, Stinger uses solid 2" Diameter Cold Rolled Steel Tines. These are tough enough to handle prying forces, but in the rare event of damage, every tine is Fully Replaceable. You don't need a welder to fix this bucket—just a wrench.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

40–100+ HP Loader / Tractor

Hydraulics

None (Mechanical)

Tine Type

2" Dia. Cold-Rolled Steel (Bolt-On)

Mount Interface

Universal SSQA

1. Select Width by Carrier Tire/Track Stance:

60" (375–410 lbs) & 68" (425–460 lbs)Ideal for 35–55 HP Compact/Utility Tractors and Small-to-Mid Frame Skid Steers

76" (475–510 lbs) & 84" (600–635 lbs)Ideal for 60–100+ HP Utility Tractors and Mid-to-Large Skid Steers & CTLs

2. Confirmed Compatible Skid Steers, CTLs & Farm Tractors:

Kubota (Loaders & Tractors)L3301, L3901, L4701, MX5400, MX6000, M4D, M5, M6060, M7060, SSV65, SSV75, SVL65-2, SVL75-3, SVL97-2

John Deere (Loaders & Tractors)3038E, 3039R, 4044M, 4052M, 4066R, 5055E, 5065E, 5075E, 5090E, 317G, 320G, 324G, 325G, 331P, 333G, 333P

Bobcat & CATBobcat S570, S590, S650, S64, S66, S76, T590, T64, T66, T76, T770, T86; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 250, 255, 265, 275

Case IH, New Holland, Kioti & MFCase IH Farmall / SV280B–TV450B; New Holland Workmaster / PowerStar / L328 / C337; Kioti DK/NS/RX Series; Massey Ferguson 1835M–4700 Series

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Back Style Selection

Open Back (Standard): Offers superior visibility to the tines for precision work.
Closed Back : Features a solid steel plate at the back to prevent loose manure, silage, or debris from falling back onto the attachment coupler.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Tine Material	2" Cold Rolled Steel (Solid)
Tine Length	40" Usable Length
Spacing	8" On Center (6" Opening)
Frame	4" x 4" x 1/4" Main Tubing
Steel Grade	Grade 50 Structural Steel
Maintenance	Fully Replaceable Tines
Warranty	2-Year Structural
Operating Weight	60": 375–410 lbs (170–186 kg) \| 68": 425–460 lbs (193–209 kg) \| 76": 475–510 lbs (215–231 kg) \| 84": 600–635 lbs (272–288 kg)
Included Standard	Manure Tine Frame (Open or Closed Back), Replaceable 2" Cold-Rolled Steel Tines & Universal SSQA Mount
