🇺🇸 Made in USA | Authorized Dealer | Guaranteed Fitment | Direct-to-Site Delivery

Stinger Manure Spear Bucket | Conus 2 Tines | 60" - 84"

Stinger Attachments

Width: 60"

Back Style: Open Back (Standard)

Price:

$3,830 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

The Ultimate Bedding Buster: The Stinger Attachments Manure Spear takes the utility of a manure fork and upgrades it with Forged Conus 2 Bale Spears. Unlike straight round tines, the tapered design of the Conus 2 spear allows for superior penetration into compacted livestock bedding, frozen silage, and hay piles.

Commercial Strength:

Forged Spears

Equipped with 43" German Conus 2 spears, rated for high-stress loads.

Replaceable

If you bend a spear, you can simply unbolt it and replace it—no cutting or welding required.

Heavy Frame

Built with a 4" x 4" top tube and 3" x 3" bottom tube to withstand the prying force of breaking up a manure pack.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

40–100+ HP Loader / Tractor

Hydraulics

None (Mechanical)

Tine Type

43" Forged Conus 2 Spears

Mount Interface

Universal SSQA

1. Select Width by Carrier Tire/Track Stance:

60" (375–410 lbs) & 68" (425–460 lbs)Ideal for Compact Utility Tractors (35–55 HP) and Small-to-Mid Frame Skid Steers

76" (475–510 lbs) & 84" (600–635 lbs)Ideal for 60–100+ HP Utility Tractors and Mid-to-Large Skid Steers & CTLs

2. Confirmed Compatible Skid Steers, CTLs & Tractors:

Kubota (Loaders & Tractors)L3301, L3901, L4701, MX5400, MX6000, M4D, M5, M6060, M7060, SSV65, SSV75, SVL65-2, SVL75-3, SVL97-2

John Deere (Loaders & Tractors)3038E, 3039R, 4044M, 4052M, 4066R, 5055E, 5065E, 5075E, 5090E, 317G, 320G, 324G, 325G, 331P, 333G, 333P

Bobcat & CATBobcat S570, S590, S650, S64, S66, S76, T590, T64, T66, T76, T770, T86; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 250, 255, 265, 275

Case IH, New Holland, Kioti & MFCase IH Farmall / SV280B–TV450B; New Holland Workmaster / PowerStar / L328 / C337; Kioti DK/NS/RX Series; Massey Ferguson 1835M–4700 Series

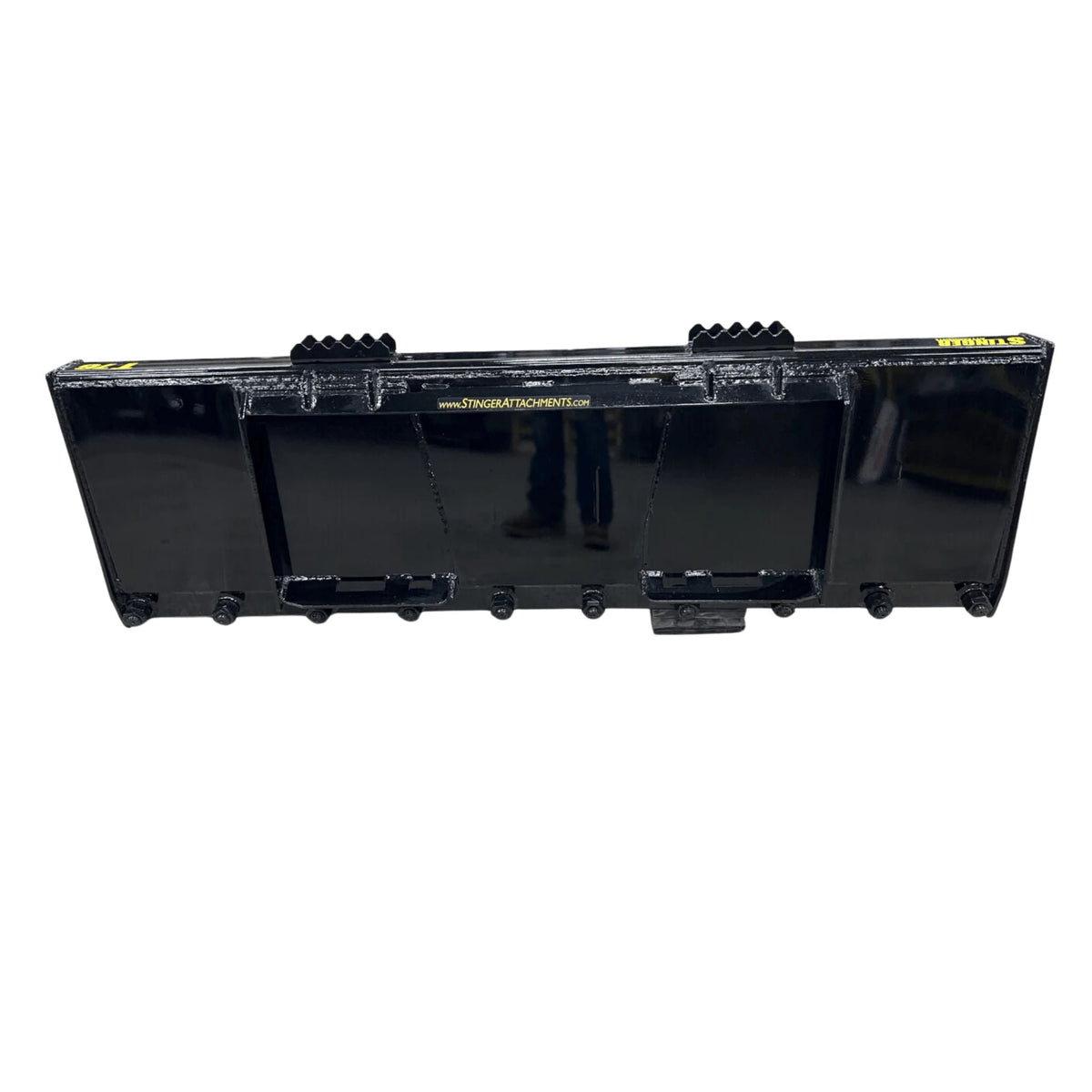

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Back Style Selection

Open Back (Standard): Offers superior visibility to the spear tips for precision work.
Closed Back : Features a solid steel plate at the back to prevent loose manure, silage, or debris from falling back onto the attachment coupler.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Spear Type	43" Conus 2 (Forged/Tapered)
Usable Length	~42"
Spacing	8" On Center (6" Opening)
Top Frame	4" x 4" x 1/4" Tubing
Bottom Frame	3" x 3" x 1/4" Tubing
Steel Grade	Grade 50
Warranty	2-Year Structural
Operating Weight	60": 375–410 lbs (170–186 kg) \| 68": 425–460 lbs (193–209 kg) \| 76": 475–510 lbs (215–231 kg) \| 84": 600–635 lbs (272–288 kg)
Included Standard	Manure Spear Frame (Open or Closed Back), Replaceable 43" Forged Conus 2 Tines (Double-Nut Secured) & Universal SSQA Mount

🇺🇸Made in the United States

✔

Honest Timelines

Card pre-authorized at checkout. Payment captured after timeline approval.

⛟

Flat Freight

Predictable, transparent shipping to commercial hubs across Canada.

🍁

Canadian

100% owned and operated in Canada. We handle the customs, brokerage, and border friction.

⚙

Commercial Grade

US Grade 50, AR200/AR400 & Swedish SSAB Hardox® 450 wear steel built for frozen ground and daily abuse.

The Griffin Guarantee: No Gambles, No Surprises.

1

Place Your Order (Risk-Free)

Complete checkout normally. Your credit card is securely pre-authorized only. We do not capture your funds.

2

Fitment & Timeline Check

A Griffin expert reviews your order, verifies your specific machine mount, and confirms the exact freight timeline to your province.

3

Final Approval & Dispatch

Once you approve the timeline and details, we capture the payment and dispatch your industrial-grade equipment.
