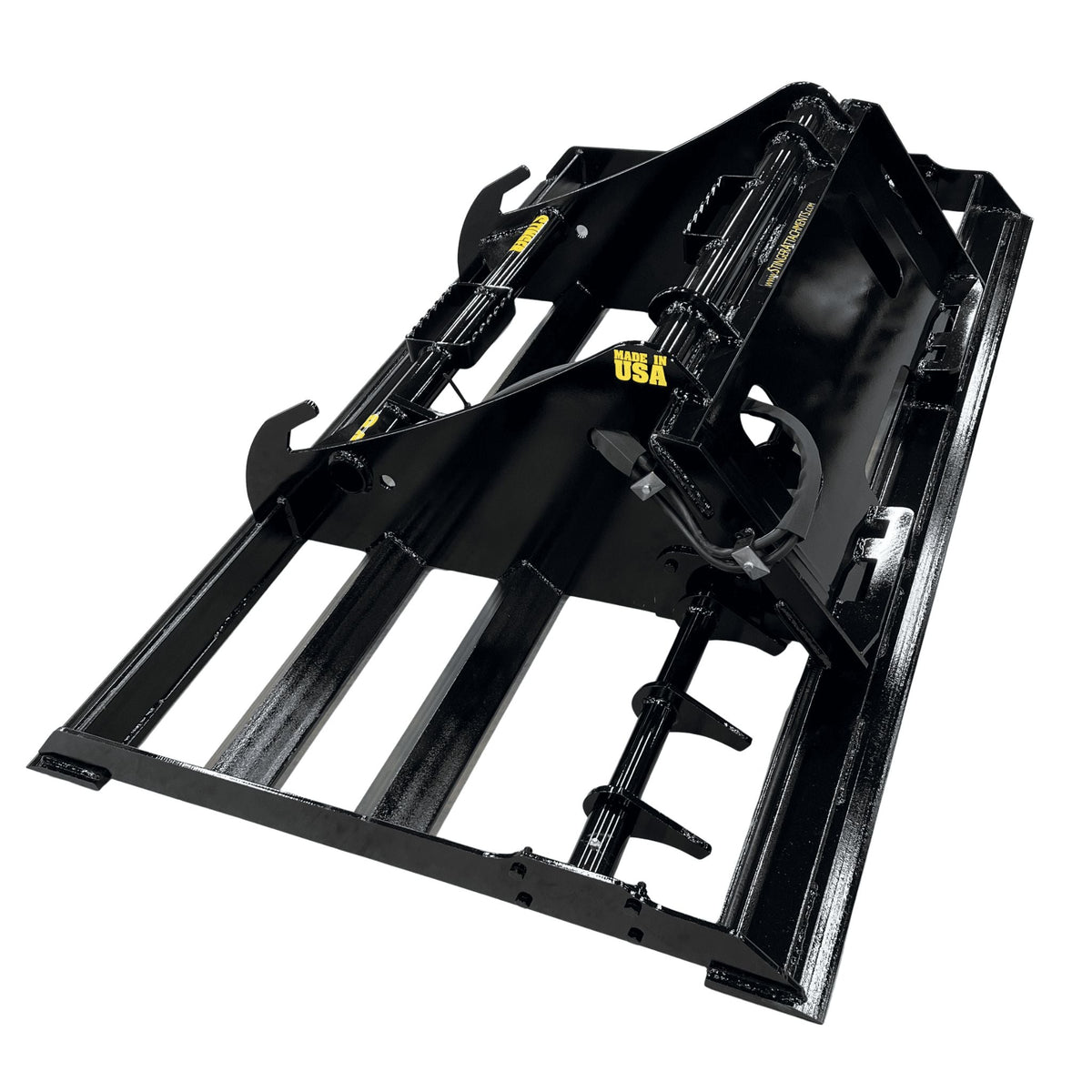

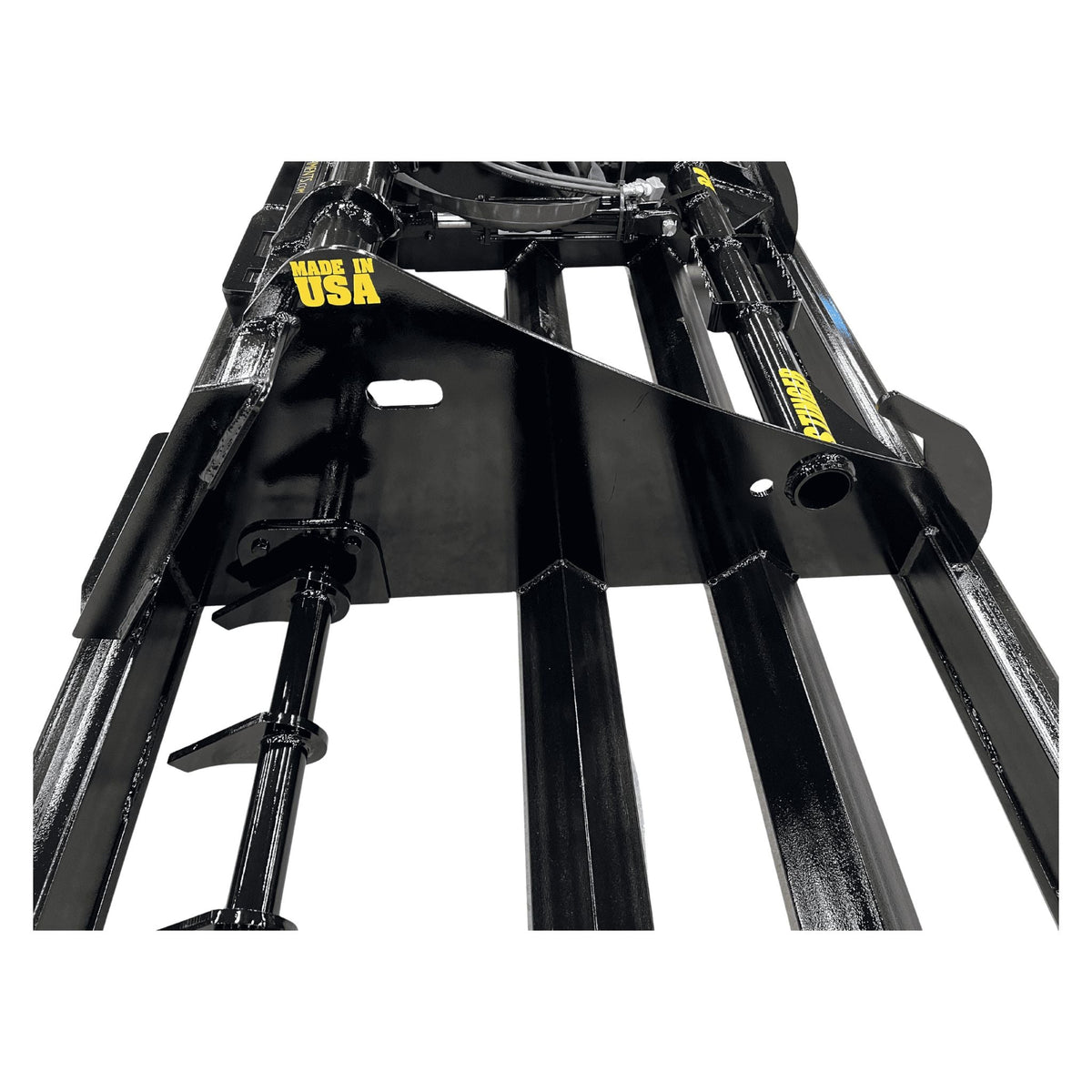

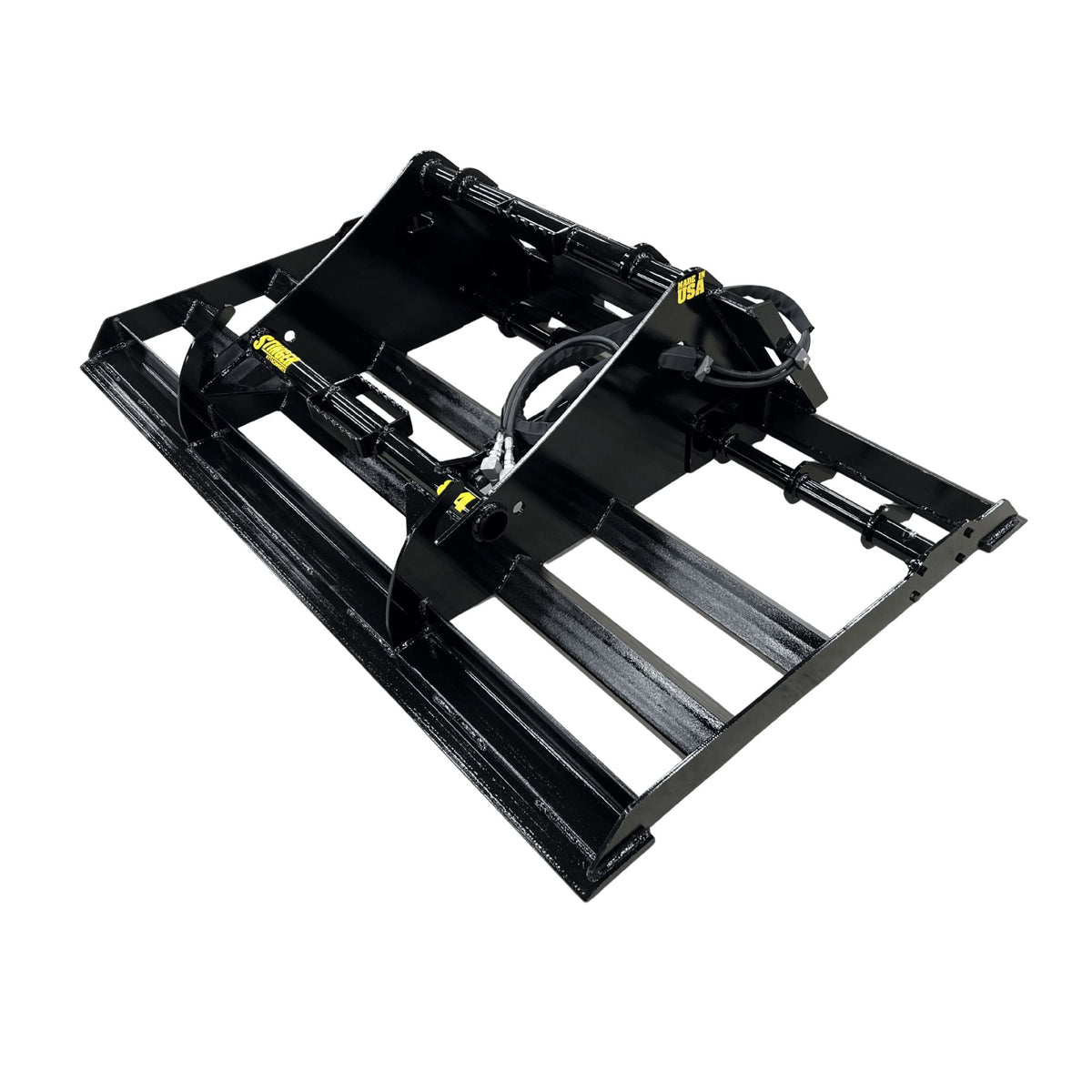

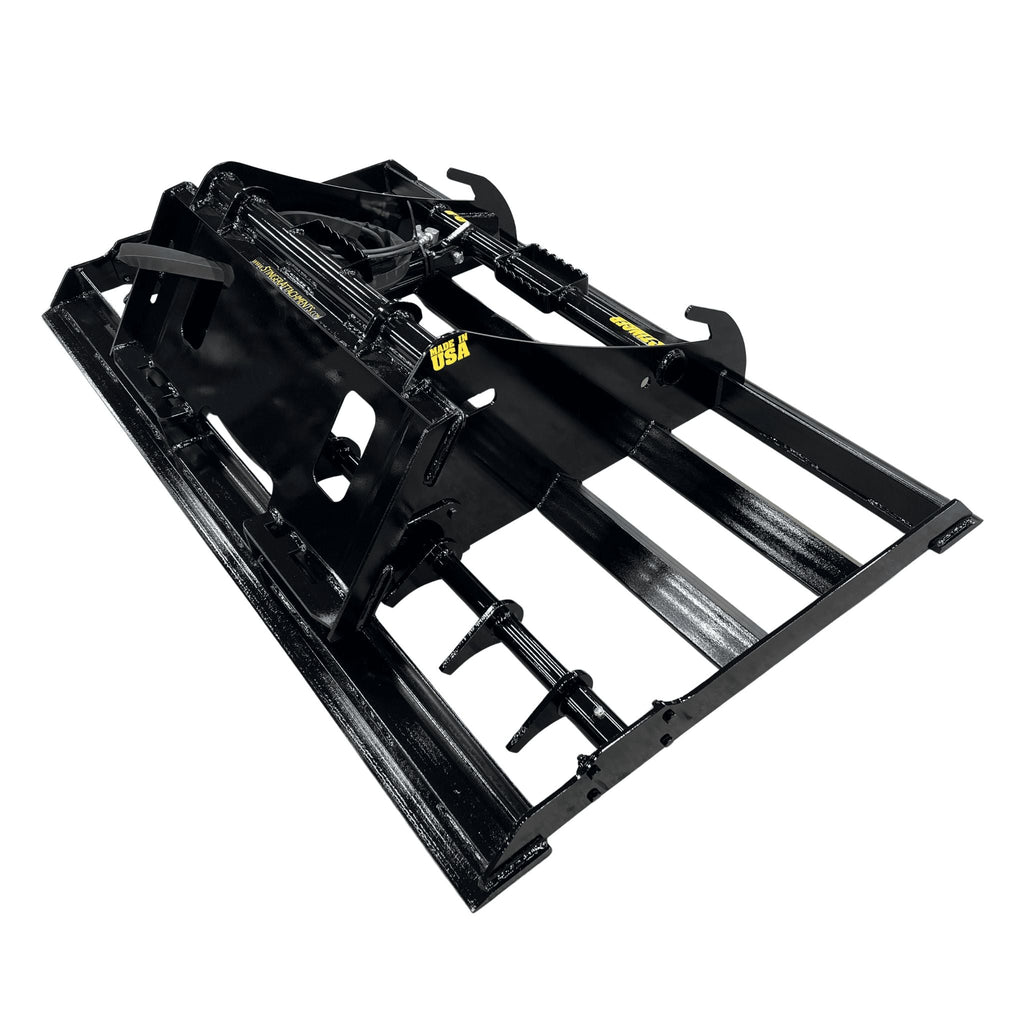

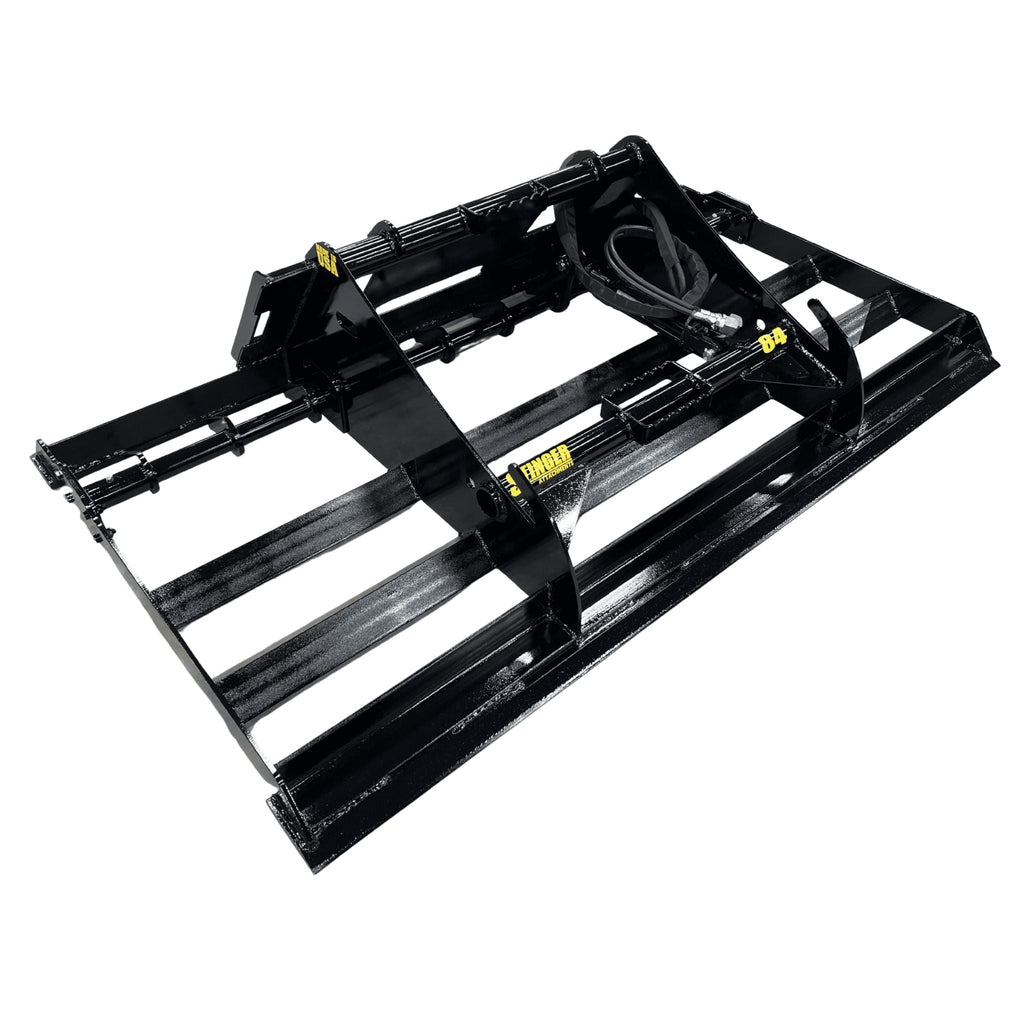

Stinger Land Plane & Grader | Hydraulic Scarifier Option | 60" - 84"

🇨🇦 Gravel Road Essential

Stinger Attachments

Width: 60"

Configuration: Standard Grader (LP)

Edge Style: Weld-On Edge

Price:

$3,250 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

Eliminate Driveway Potholes, Washboarding & High Spots in a Single Pass—Available with Cab-Controlled Hydraulic Scarifiers. Built in the USA by Stinger Attachments in 60" to 84" widths, the LP/LPS Land Plane uses dual angled 3/4"x6" cutting edges and optional hydraulic ripping teeth to restore gravel roads, pads, and arenas.

The Driveway Restorer

The Stinger Attachments Land Plane is the secret weapon for landscapers and property owners. It works on a simple principle: the dual angled blades cut down high spots and carry that material to fill in low spots (potholes). The result is a perfectly level, graded surface with zero "washboarding." It is ideal for gravel driveways, arena grooming, and seedbed preparation.

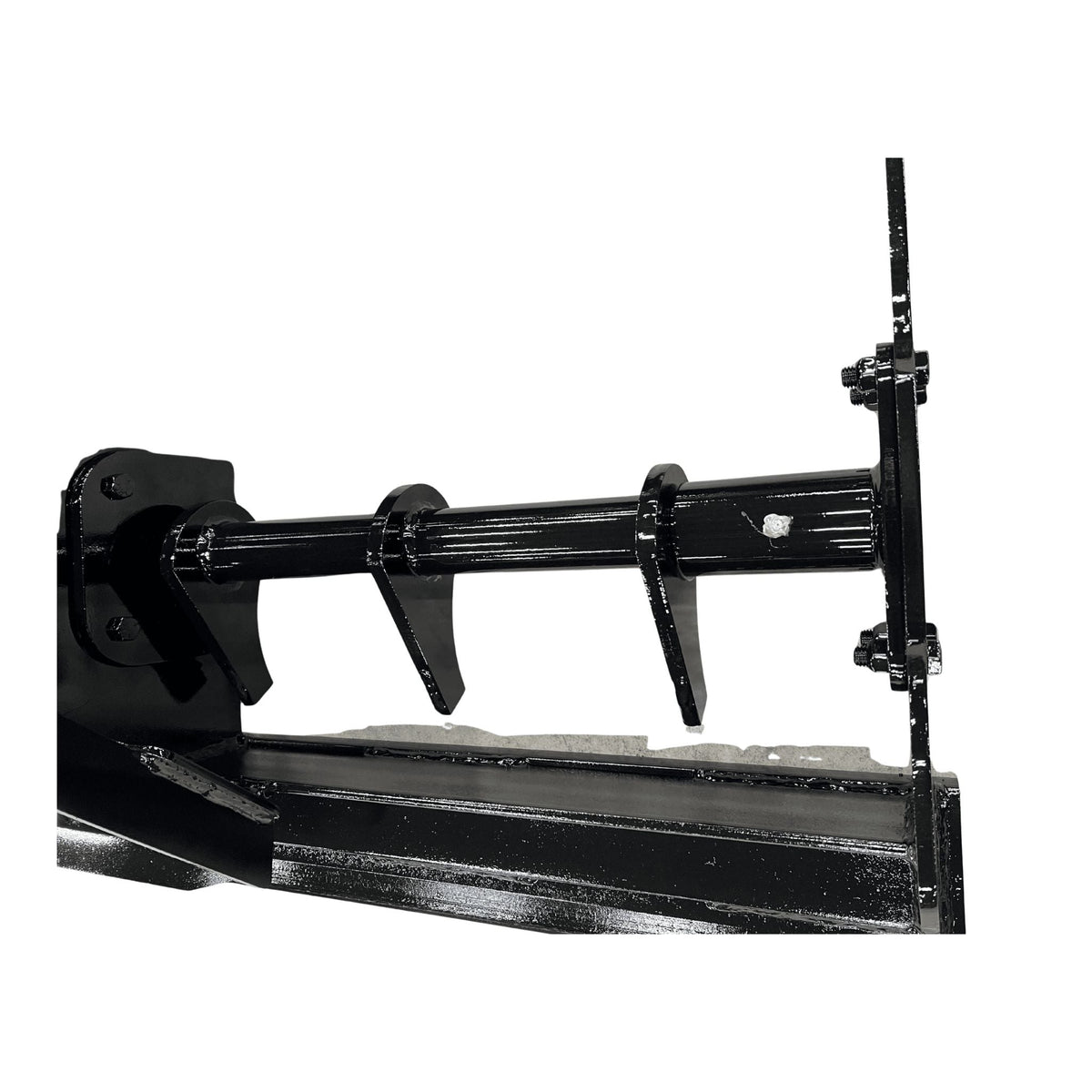

Hydraulic Scarifier Upgrade (LPS)

Hard-packed gravel is tough to grade. The optional Hydraulic Scarifier utilizes a 2" x 8" cylinder to drive ripping teeth up to 2 inches into the ground. Control the depth from your cab to break up stubborn potholes, roots, and hardpan, then retract the teeth to finish-grade the loose material smooth.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

35–110+ HP Loader / Tractor

Hydraulics

Mechanical (LP) or Std Flow (LPS)

Cutting Edges

Dual 3/4" x 6" Angled Blades

Mount Interface

Universal SSQA

1. Select Width & Scarifier Option by Machine Stance:

60" (400–585 lbs) & 66" (450–635 lbs)Ideal for 35–55 HP Compact/Utility Tractors & Small-to-Mid Frame Skid Steers

72" (500–685 lbs), 78" (550–735 lbs) & 84" (600–785 lbs)Ideal for 60–115+ HP Mid-to-Large Skid Steers, CTLs & Utility Tractors (Optional Hydraulic Scarifier rips 2" deep)

2. Confirmed Compatible Skid Steers, CTLs & Tractors:

Kubota (Loaders & Tractors)L3301, L3901, L4701, MX5400, MX6000, M4D, M5, M6060, M7060, SSV65, SSV75, SVL65-2, SVL75-3, SVL97-2

John Deere (Loaders & Tractors)3038E, 3039R, 4044M, 4052M, 4066R, 5055E, 5065E, 5075E, 5090E, 317G, 320G, 324G, 325G, 331P, 333G, 333P

Bobcat & CATBobcat S570, S590, S650, S64, S66, S76, T590, T64, T66, T76, T770, T86; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 250, 255, 265, 275

Case IH, New Holland, Kioti & MFCase IH Farmall / SV280B–TV450B; New Holland Workmaster / PowerStar / L328 / C337; Kioti DK/NS/RX Series; Massey Ferguson 1835M–4700 Series

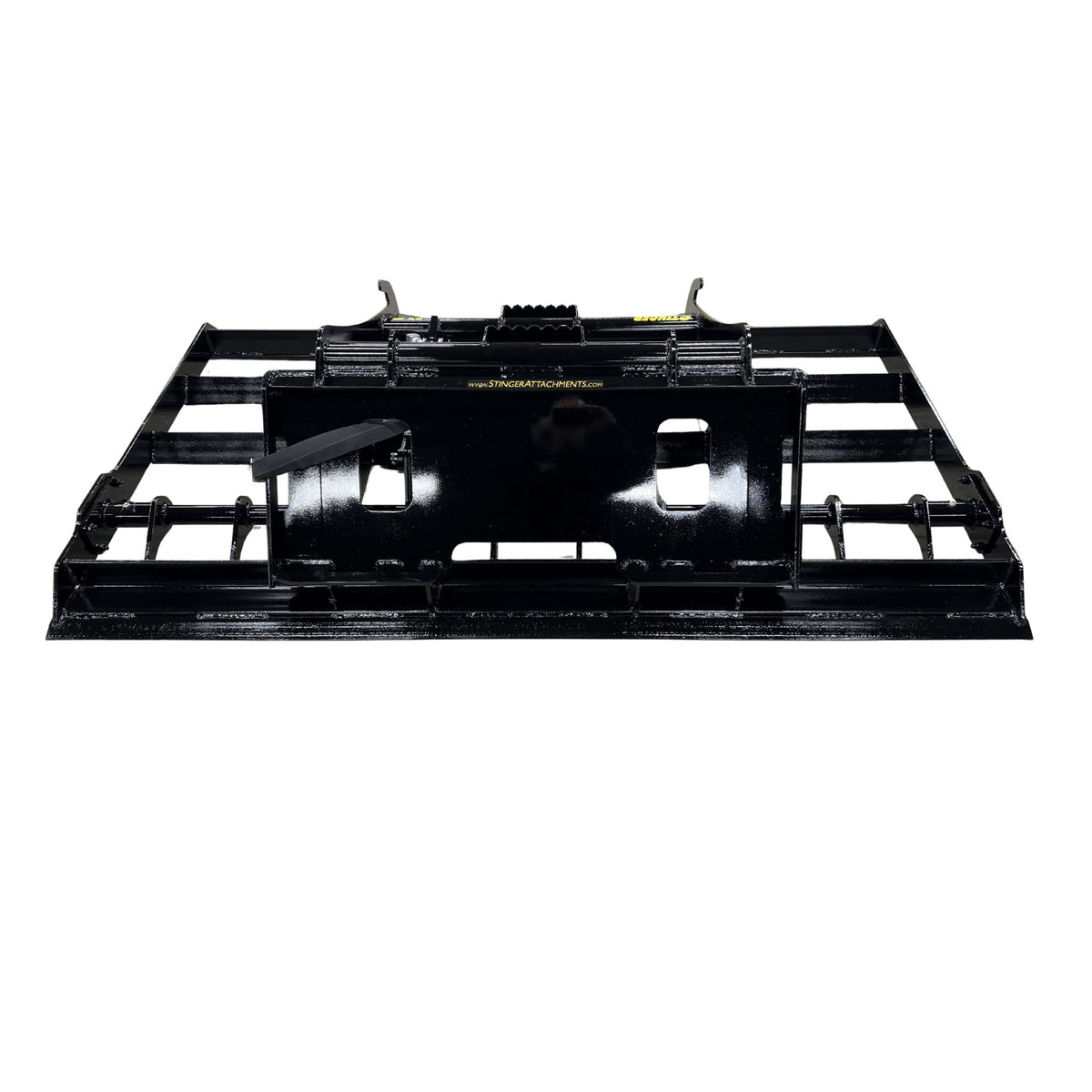

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Setup Requirement

Standard Model (LP): Plug & Play (Mechanical).

Scarifier Model (LPS): Requires Standard Flow auxiliary hydraulics to operate the teeth. Includes 1/2" Flat-Face Couplers.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Frame Material	3/8" x 3.5" Grade 50 Angle Iron
Cutting Edges	3/4" x 6" (Front & Back)
Edge Type	Standard Weld-On (Bolt-On Optional)
Scarifier (Optional)	Hydraulic Actuation (2"x8" Cylinder)
Scarifier Depth	Adjustable up to 2"
Warranty	2-Year Structural
Operating Weight	60": 400–585 lbs (181–265 kg) \| 66": 450–635 lbs (204–288 kg) \| 72": 500–685 lbs (227–311 kg) \| 78": 550–735 lbs (249–333 kg) \| 84": 600–785 lbs (272–356 kg)
Included Standard	LP / LPS Land Plane Frame, Dual 3/4"x6" Cutting Edges (+ Hydraulic Scarifier Cylinder, Shanks, Hoses & Couplers on LPS Models)

🇺🇸Made in the United States

✔

Honest Timelines

Card pre-authorized at checkout. Payment captured after timeline approval.

⛟

Flat Freight

Predictable, transparent shipping to commercial hubs across Canada.

🍁

Canadian

100% owned and operated in Canada. We handle the customs, brokerage, and border friction.

⚙

Commercial Grade

US Grade 50, AR200/AR400 & Swedish SSAB Hardox® 450 wear steel built for frozen ground and daily abuse.
