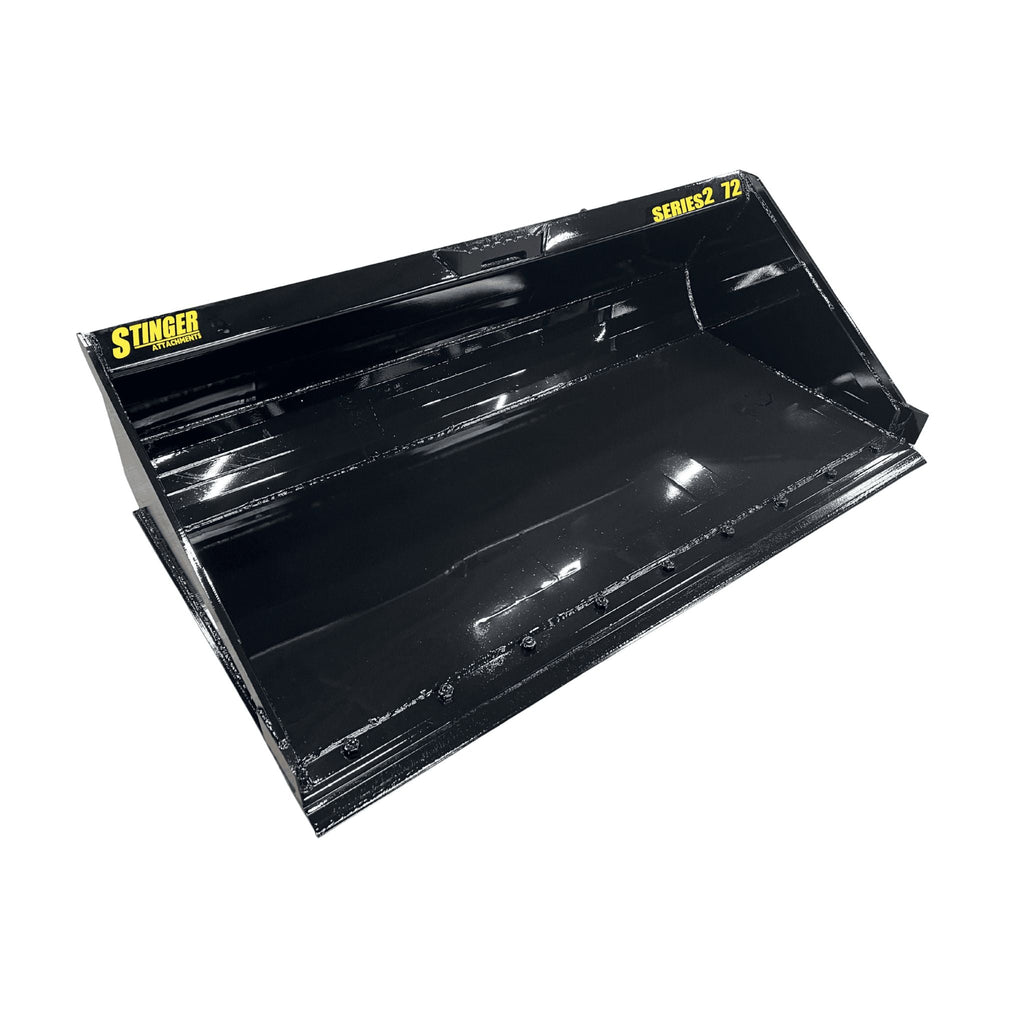

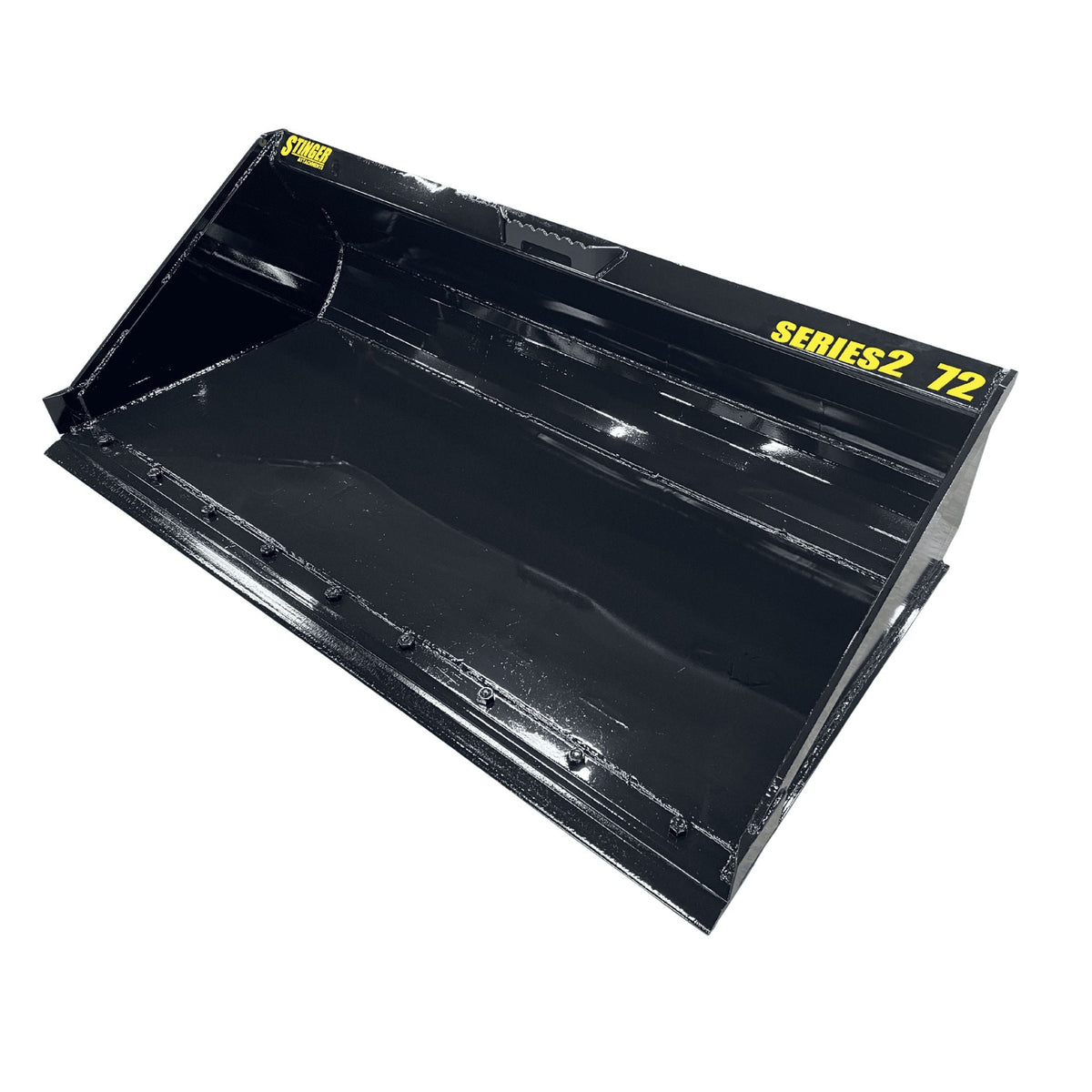

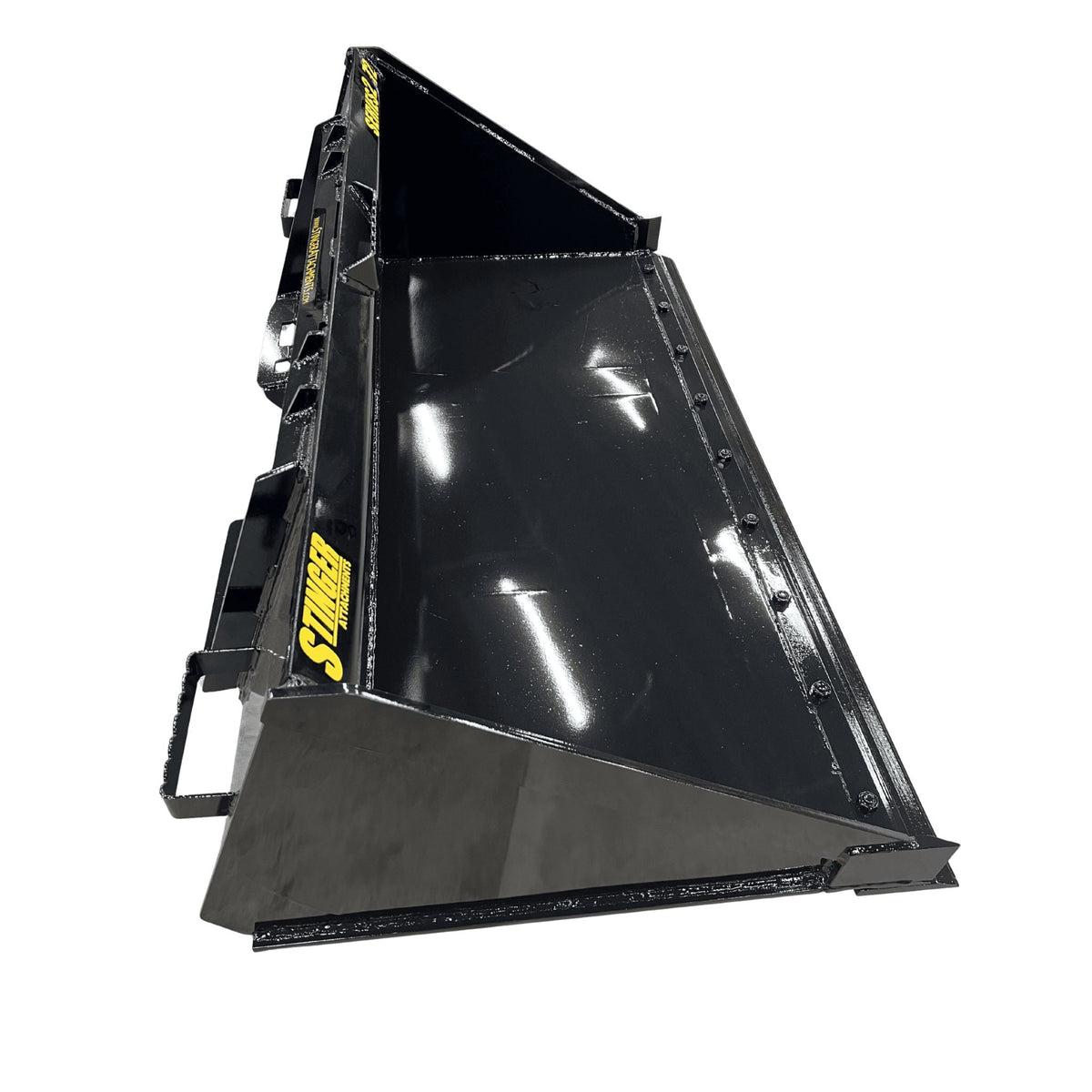

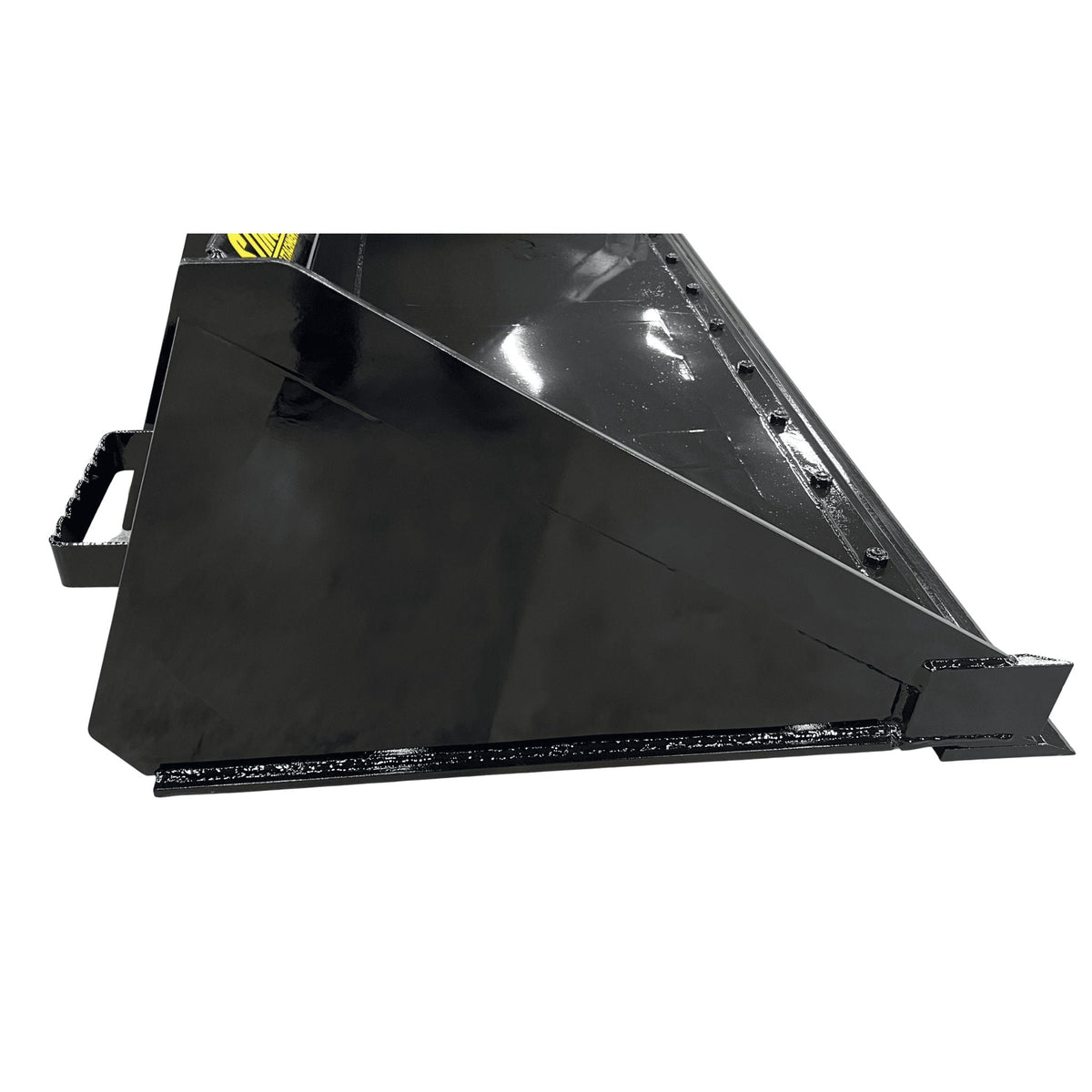

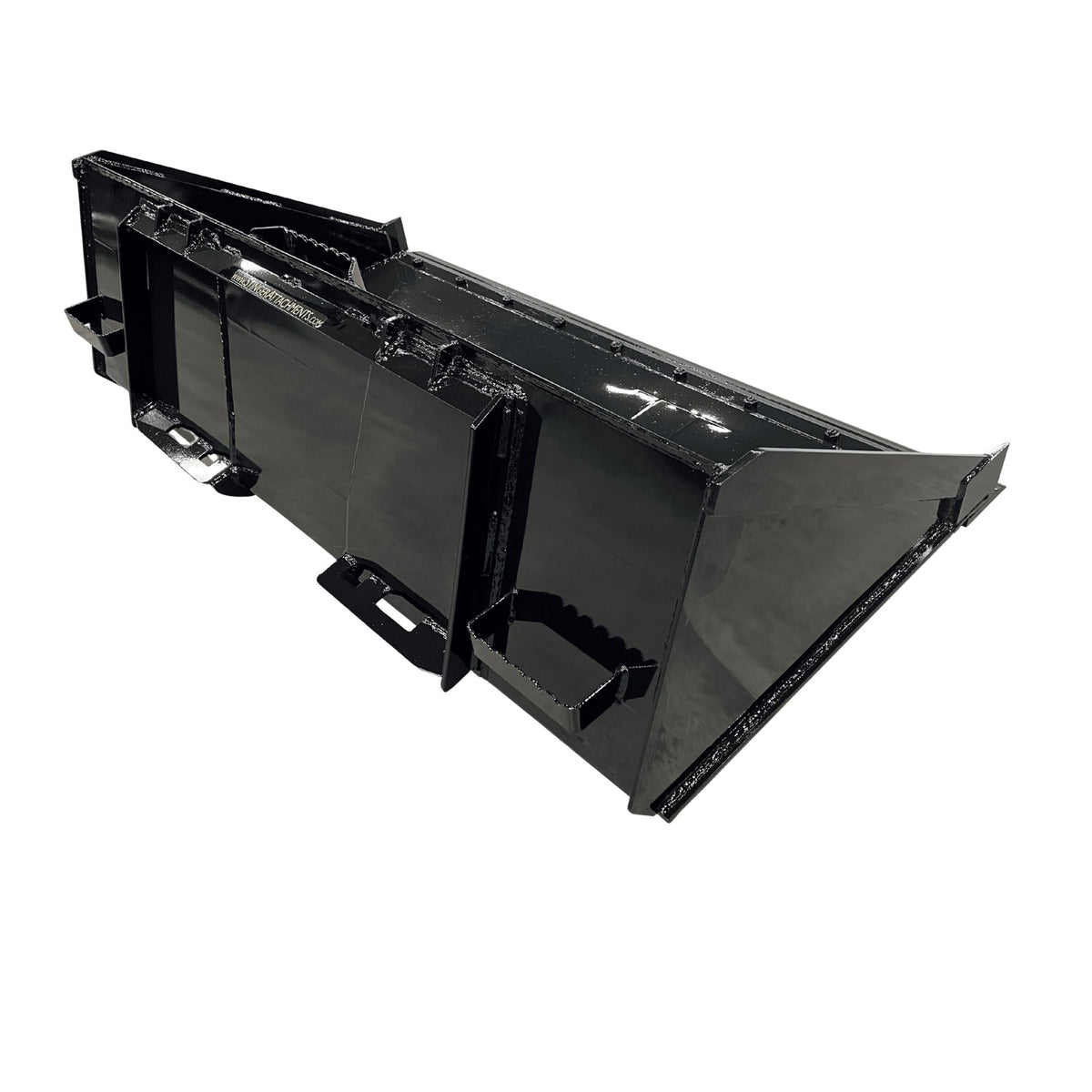

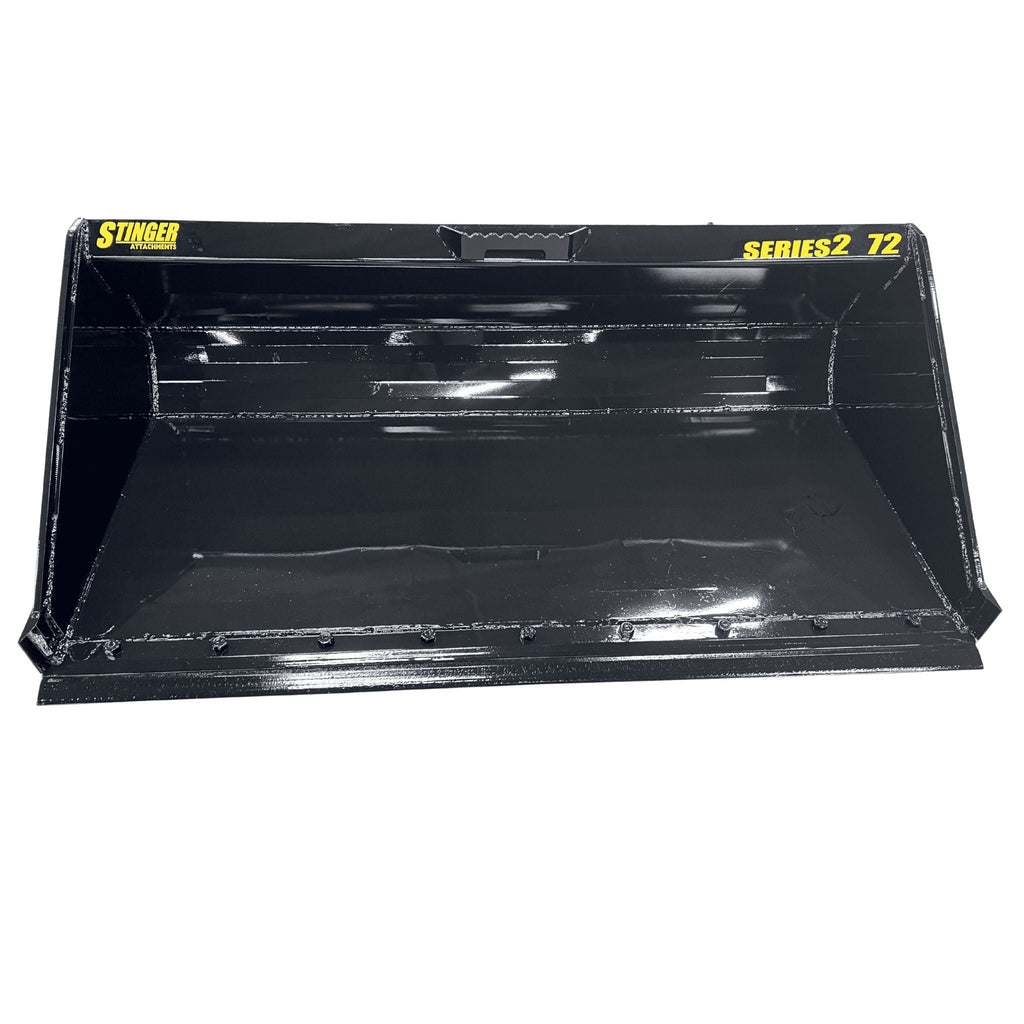

Stinger Deep-Bottom Bucket (MB2) | High Capacity | 40" Depth

Stinger Attachments

Model: 60"

Edge Configuration: Standard Weld-On Edge

Price:

$3,040 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

Move More Dirt, Gravel & Bulk Material Per Pass Without Sacrificing Cutting-Edge Visibility. Manufactured in the USA by Stinger Attachments, the MB2 Deep-Bottom Bucket extends floor depth to 40 inches inside a rigid Grade 50 steel shell—boosting heaped cubic-foot capacity while maintaining a low rear profile for clear cab sightlines.

The Volume Specialist

The Stinger Series 2 (MB2) is engineered for operators who need to move maximum material per cycle. Unlike standard dirt buckets, the MB2 features an elongated 40.6-inch Deep Bottom. This design drastically increases the struck and heaped capacity, allowing you to carry more loose dirt, mulch, or gravel with every scoop.

Visibility First

High-capacity snow buckets usually have tall backs that block your view. The Stinger MB2 keeps a Standard Back Height (23"), giving you the volume of a larger bucket while maintaining excellent visibility of the cutting edge. Reinforced with 1/2" x 4" wear bars on the underside, it is built to slide along abrasive surfaces all day long.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

50–100+ HP Loader / Tractor

Hydraulics

None (Mechanical)

Floor Depth

40" Deep Profile (Grade 50)

Mount Interface

Universal SSQA

1. Select Width by Carrier Tire/Track Stance:

60" (555 lbs) & 66" (590 lbs)Ideal for Medium Utility Tractors & Mid-Frame Skid Steers

72" (623 lbs), 78" (671 lbs) & 84" (705 lbs)Ideal for 65–100+ HP Mid-to-Large Skid Steers & Compact Track Loaders

2. Confirmed Compatible Skid Steers, CTLs & Utility Tractors:

KubotaSSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2

BobcatS550, S570, S590, S650, S64, S66, S76, S770, S86, T550, T590, T64, T66, T76, T770, T86, T870

John Deere & CATDeere 317G, 318G, 320G, 324G, 325G, 331G, 331P, 333G, 333P, 335P; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 299D3, Next-Gen 250, 255, 265, 275, 285

Case, New Holland, Takeuchi & ASVCase SR210B, SV280B, TR270B, TR310B, TR340B, TV370B, TV450B; New Holland L320–L328, C327–C345; Takeuchi TL8R2, TL10V2, TL12V2; ASV RT-65, RT-75, RT-120

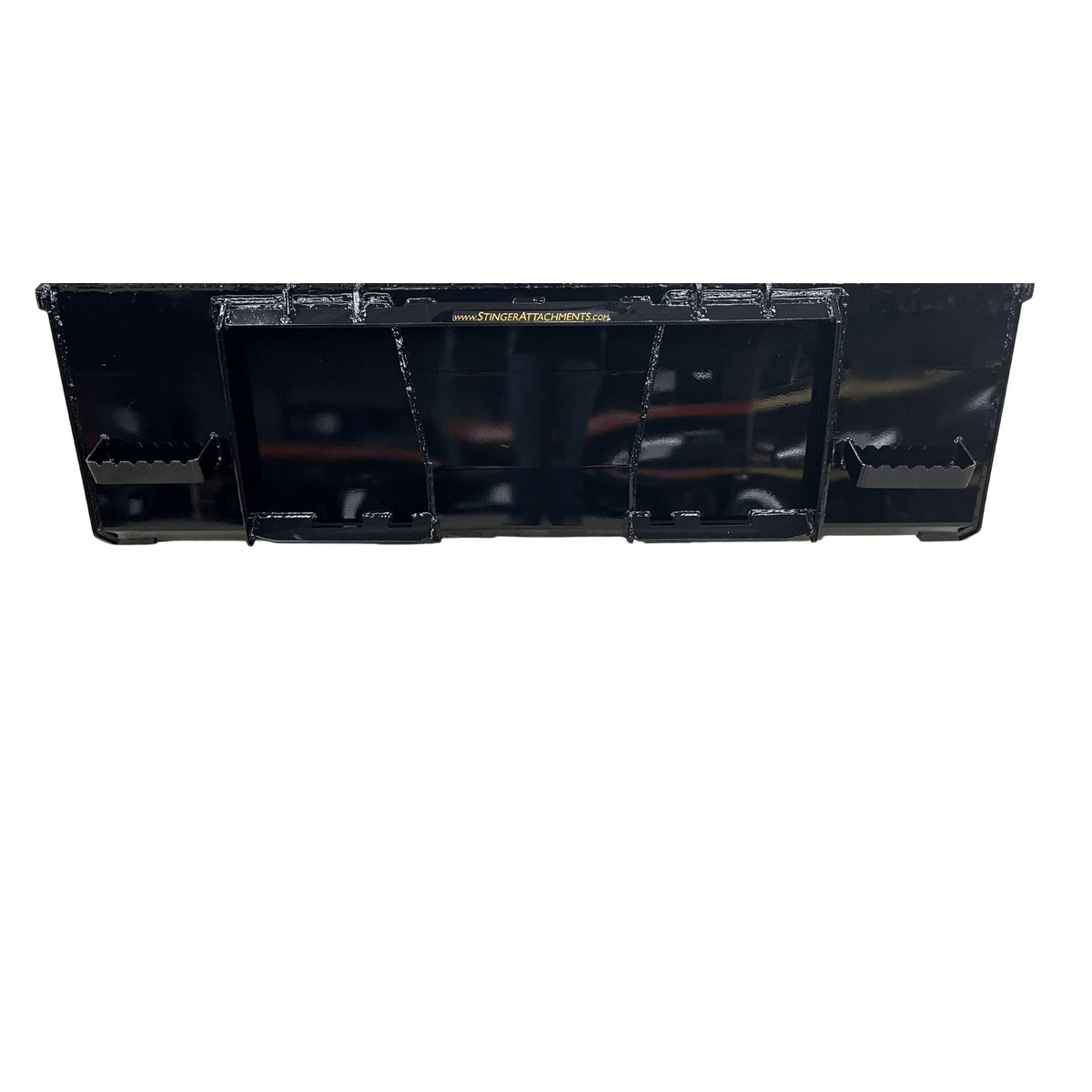

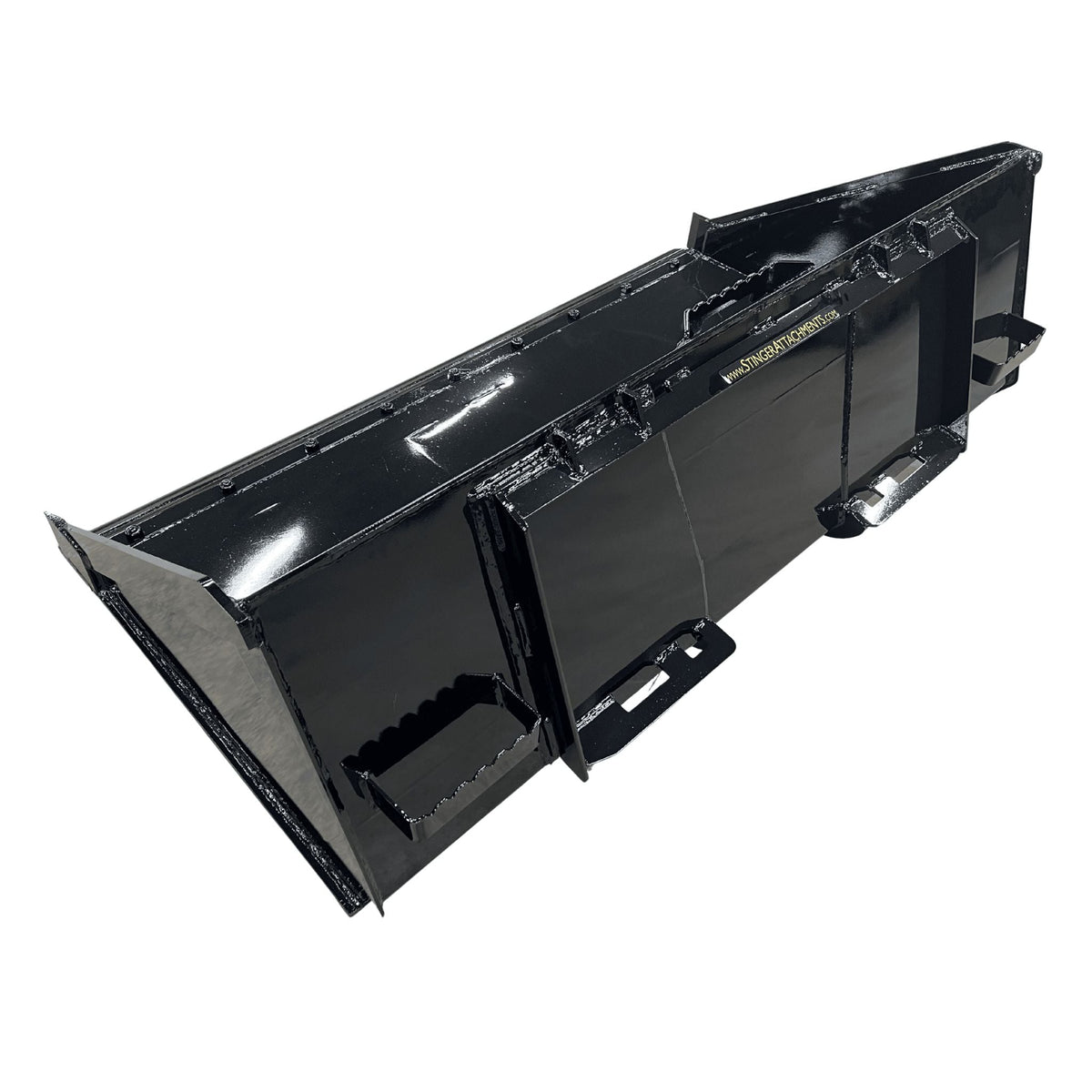

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Setup Requirement: Plug & Play

Hydraulics: None required (Mechanical Attachment).

Note: Due to the deep bottom and higher capacity, ensure your machine has adequate tipping load to handle a full bucket of heavy material (wet dirt/gravel).

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Bottom Depth	40.60 Inches (High Capacity)
Back Height	23.03 Inches (High Visibility)
Rollback Angle	68 Degrees
Wear Protection	1/2" x 4" Underside Wear Bars (4-5 count)
Cutting Edge	3/4" x 8" (Weld-On or Bolt-On)
Warranty	2-Year Structural
Operating Weight	60": 555 lbs (252 kg) \| 66": 590 lbs (268 kg) \| 72": 623 lbs (283 kg) \| 78": 671 lbs (304 kg) \| 84": 705 lbs (320 kg)
Included Standard	MB2 Deep-Bottom Bucket (40" Floor Depth), 3/4"x8" Cutting Edge (Weld-On or Bolt-On), Safety Step & Universal SSQA Mount
