Description
The Hard Ground Specialist

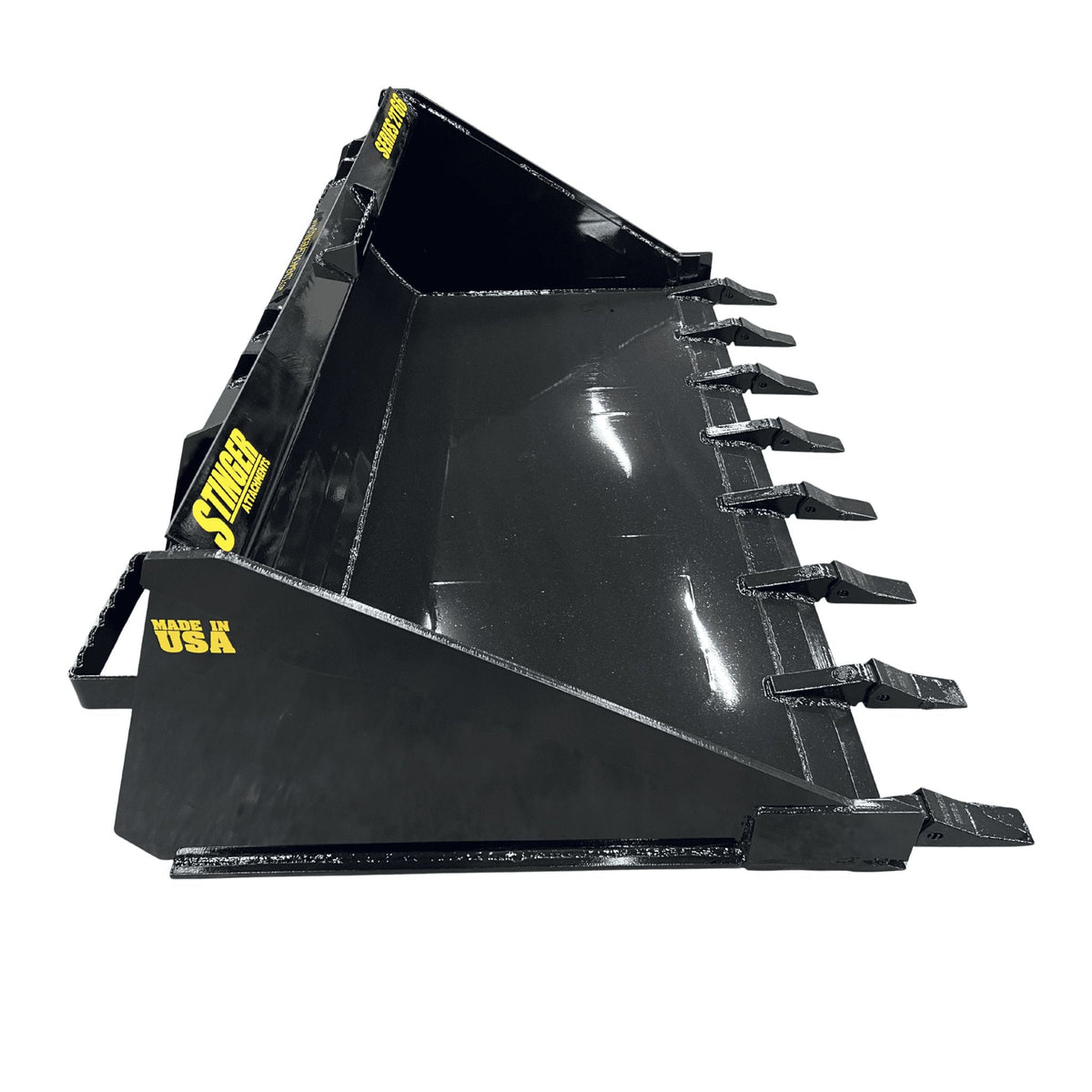

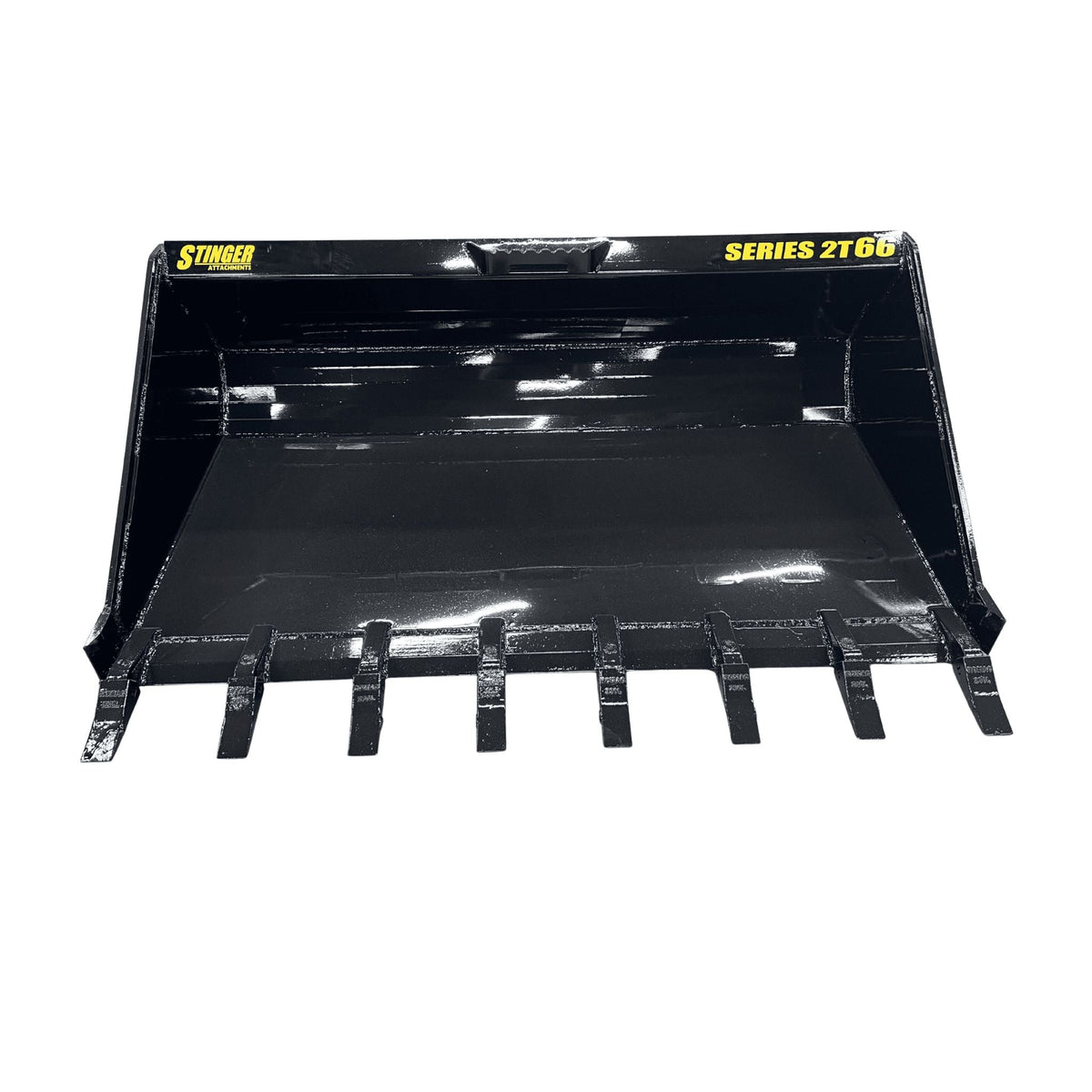

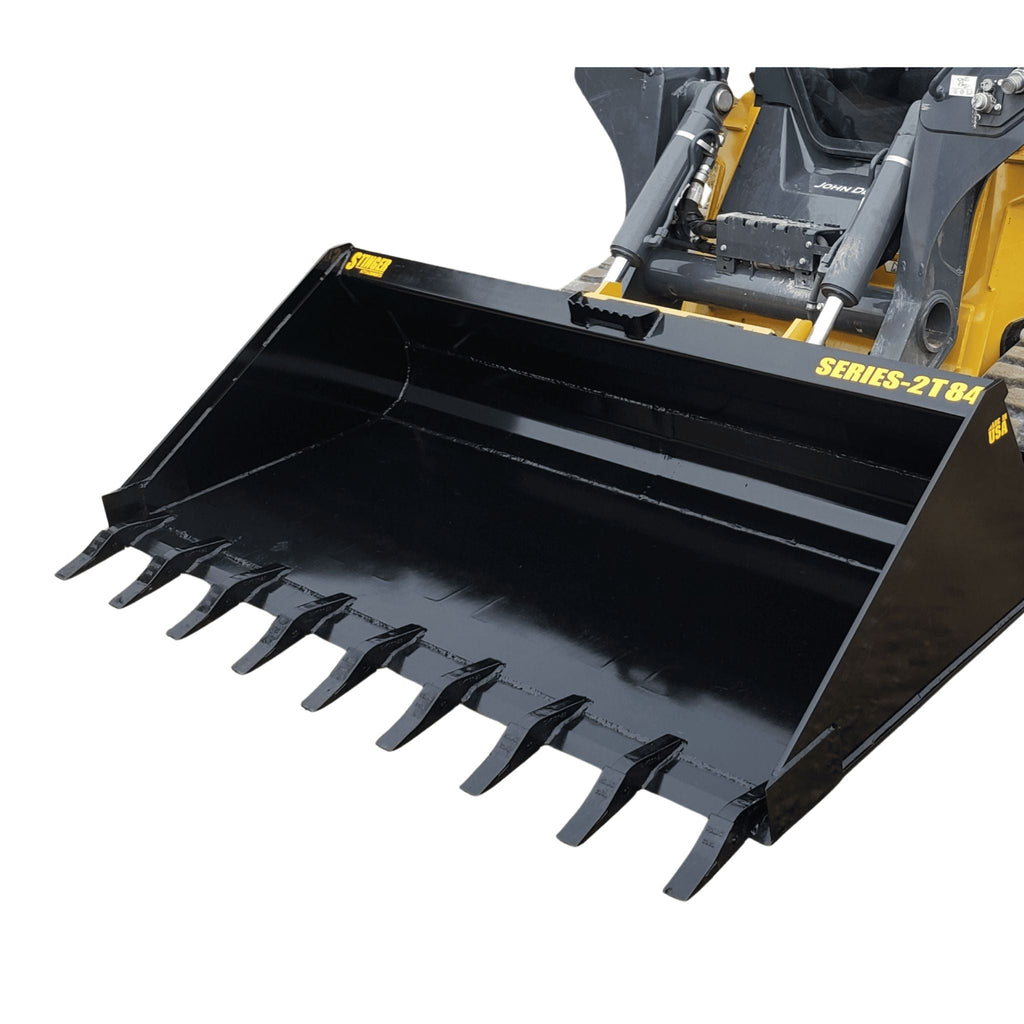

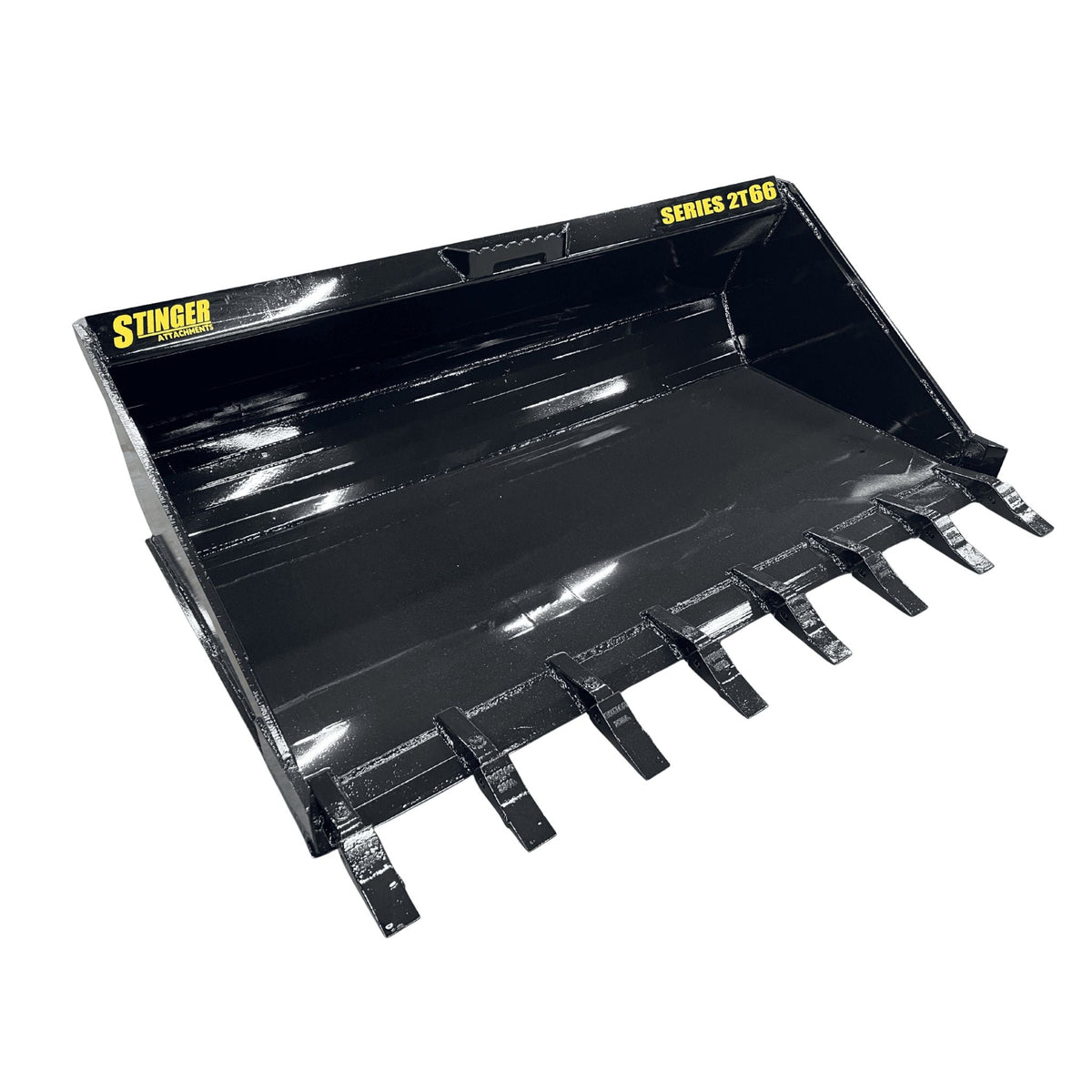

When standard buckets bounce off compacted soil or clay, the Stinger Tooth Bucket (TB) digs in. Equipped with aggressive Romac Pin-On Teeth, it concentrates breakout force to fracture hard ground, pry out rocks, and rip through roots.
Dig & Carry
Unlike low-profile dirt buckets that spill material, the TB Series is built on Stinger's Deep-Bottom Chassis (Series 2 dimensions). With a 40-inch bottom depth and a heavy-duty 1/4" Grade 50 Steel Shell, it allows you to break ground and carry a full high-volume load without switching attachments.
⚙️ Technical Specifications
Shell Material: 1/4" Grade 50 Steel (Heavy Duty)

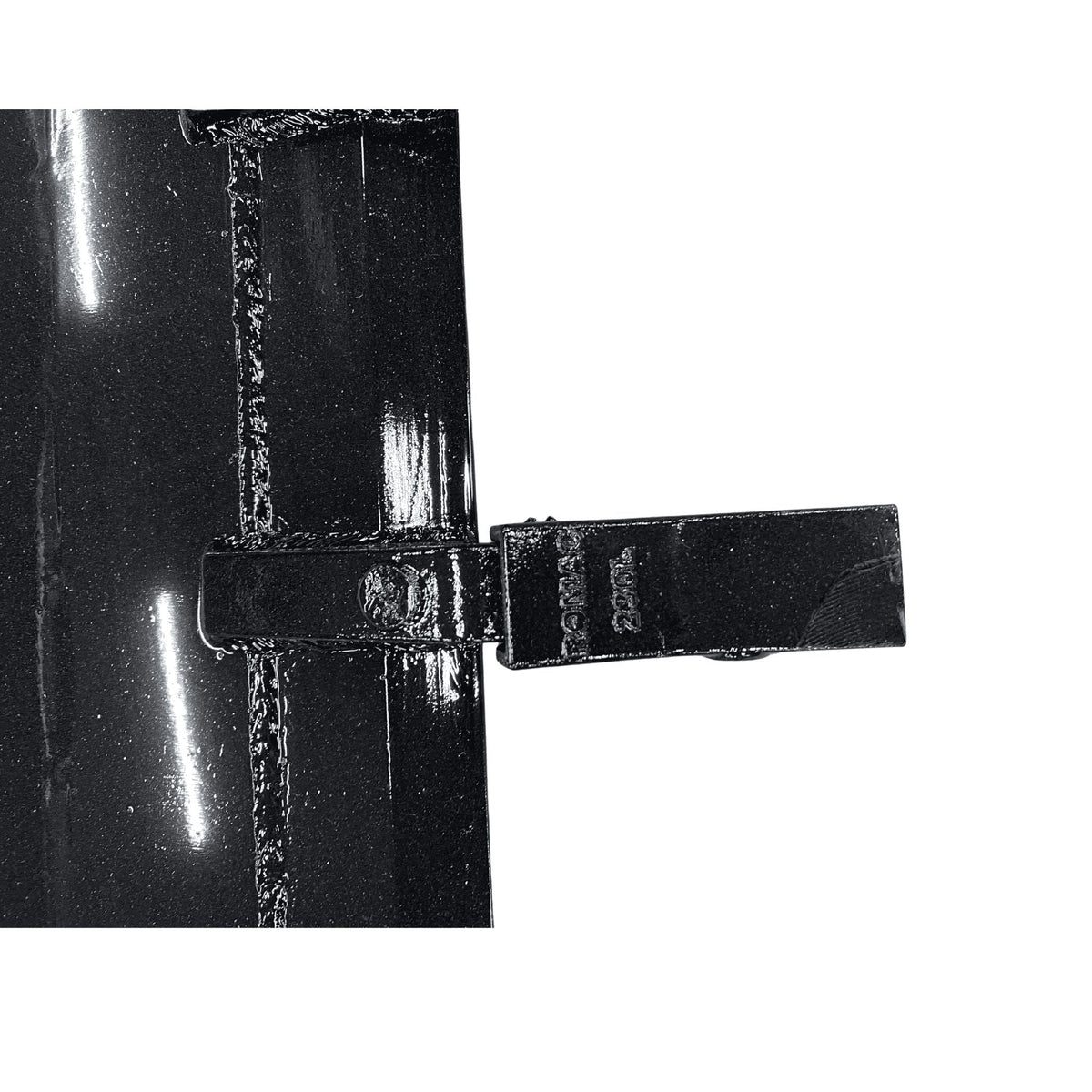

Tooth System: Romac Pin-On (Replaceable)
Bottom Depth: ~40 Inches (High Capacity)

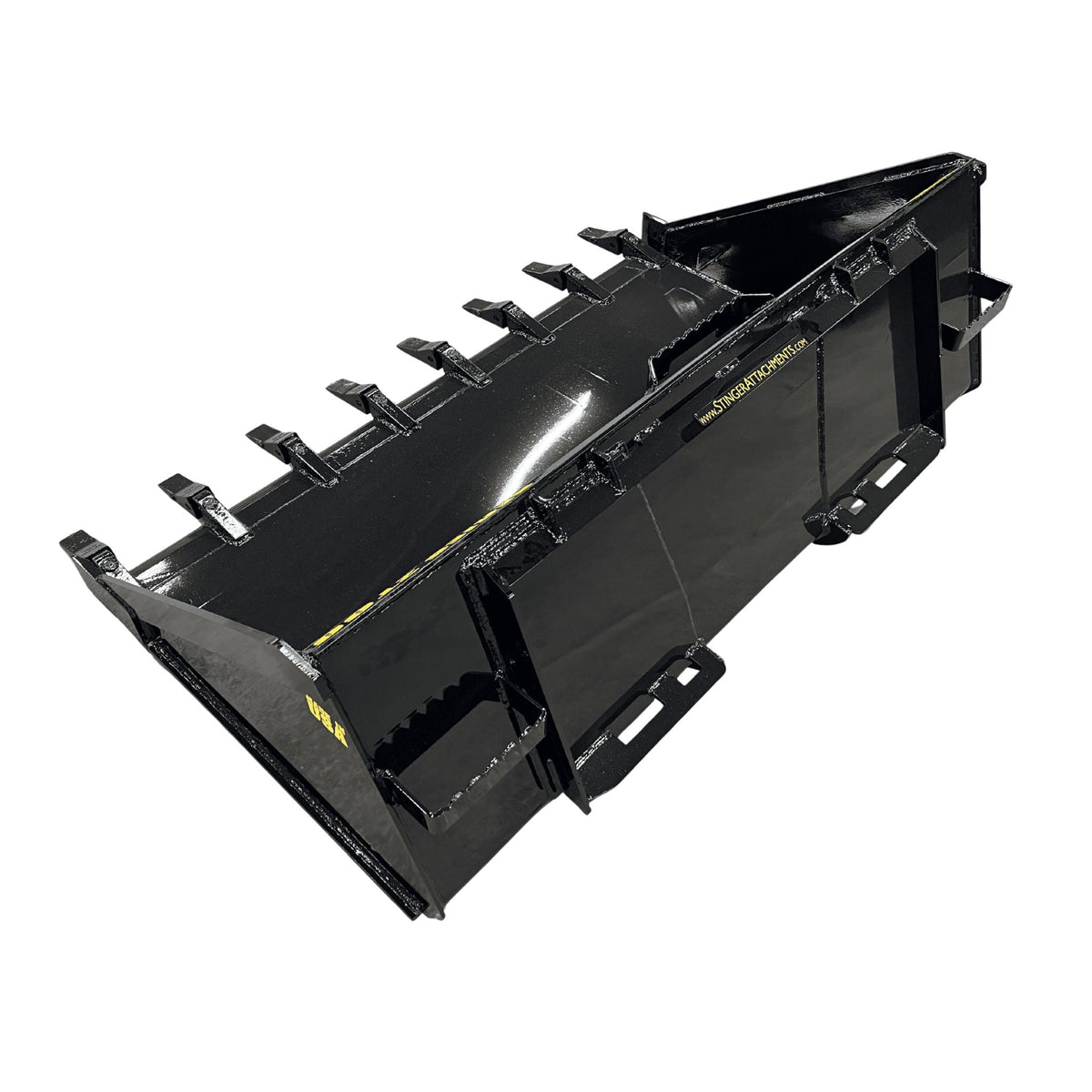

Structural Tech: Top Reinforcement Tube & Rolled Insert
Wear Protection: 1/2" x 4" Underside Wear Bars
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play
Hydraulics: None required (Mechanical Attachment).
Note: The teeth are designed for digging soil and clay. Avoid prolonged prying on solid concrete or bedrock to prevent shank damage.
✅ Machine Compatibility
1. Mount Type:

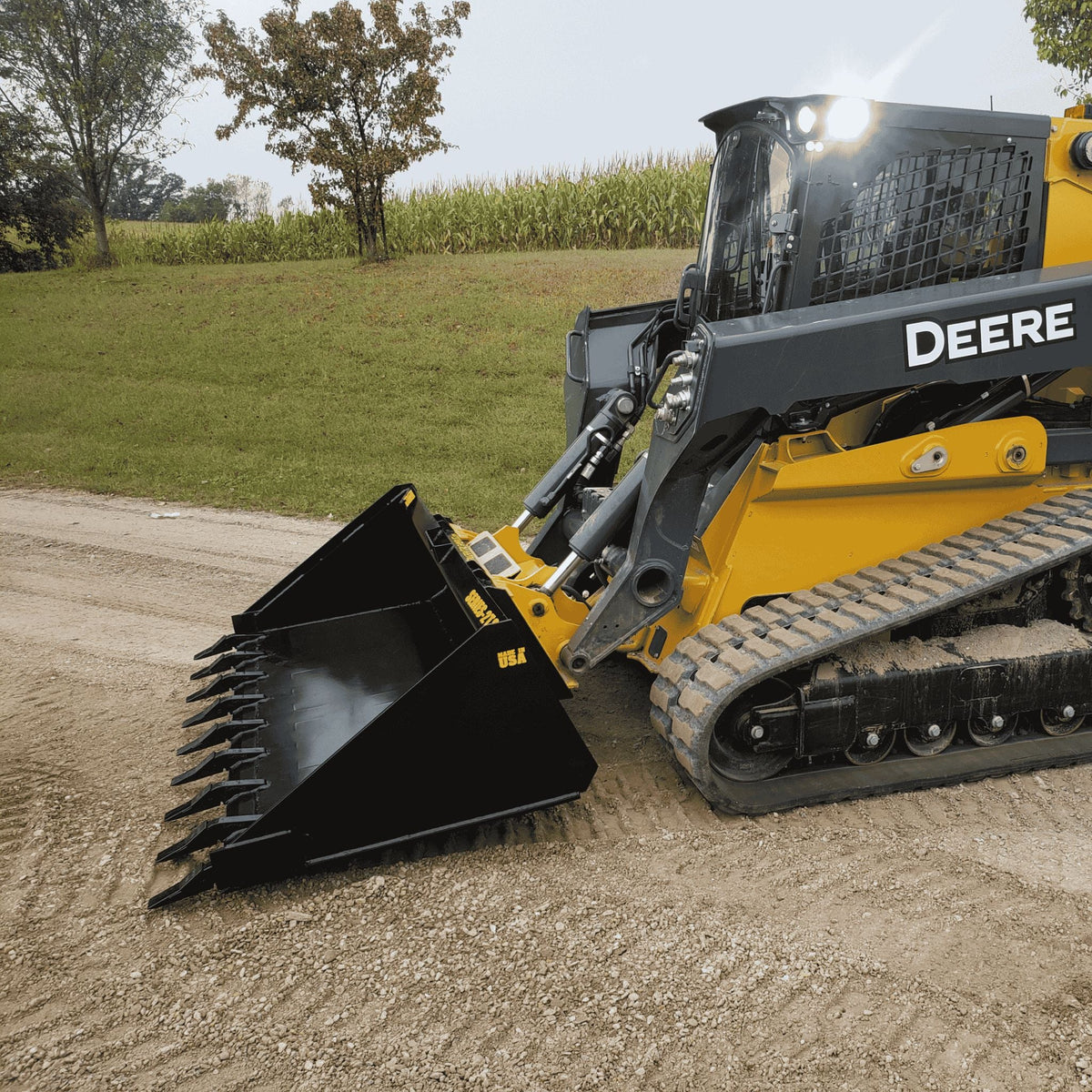

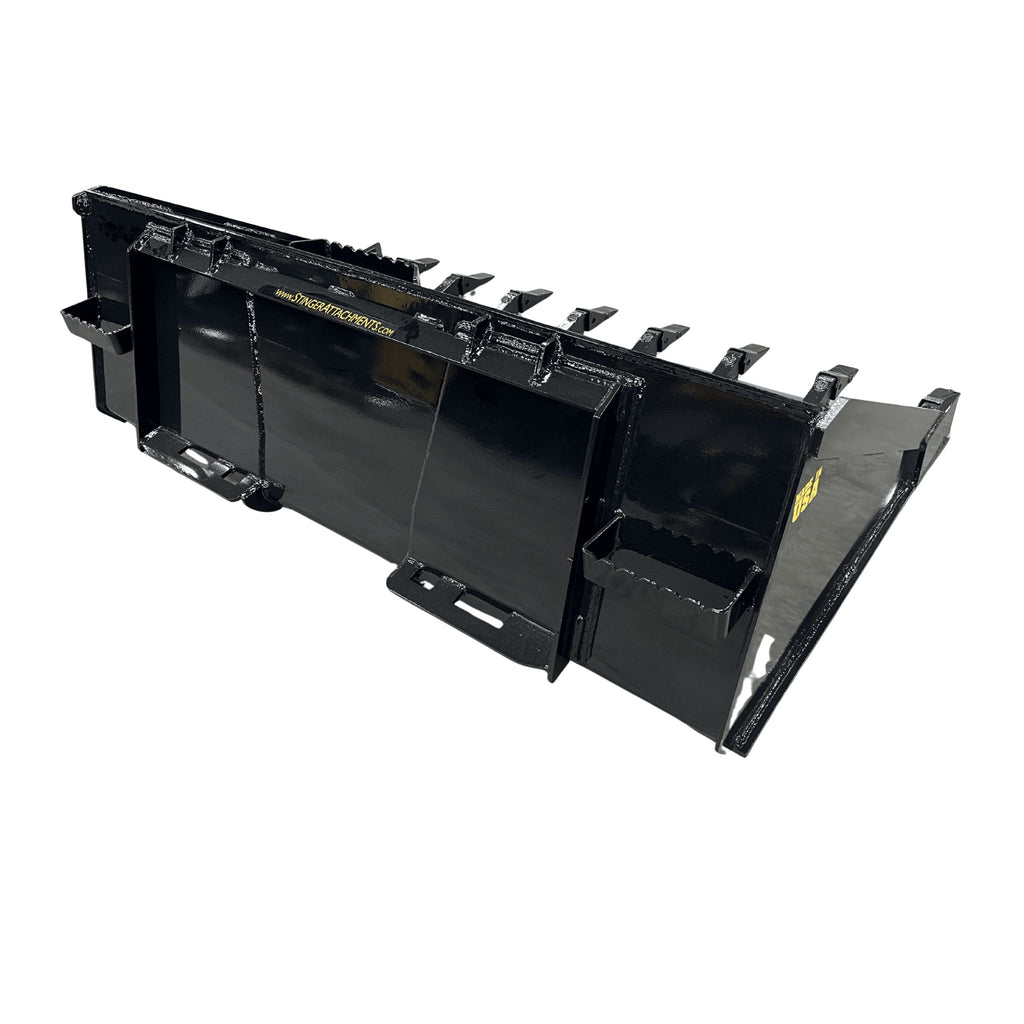

Universal Quick Attach (SSQA). Fits all standard skid steers and track loaders.
2. Size Recommendation:
60" - 66": Utility Tractors & Mid-Frame Skid Steers.
72" - 84": Large Frame Skid Steers & Track Loaders.
3. Confirmed Fitment:
- Kubota: SSV65, SSV75, SVL75-2, SVL95-2.
- Bobcat: S590, S650, T650, T770.

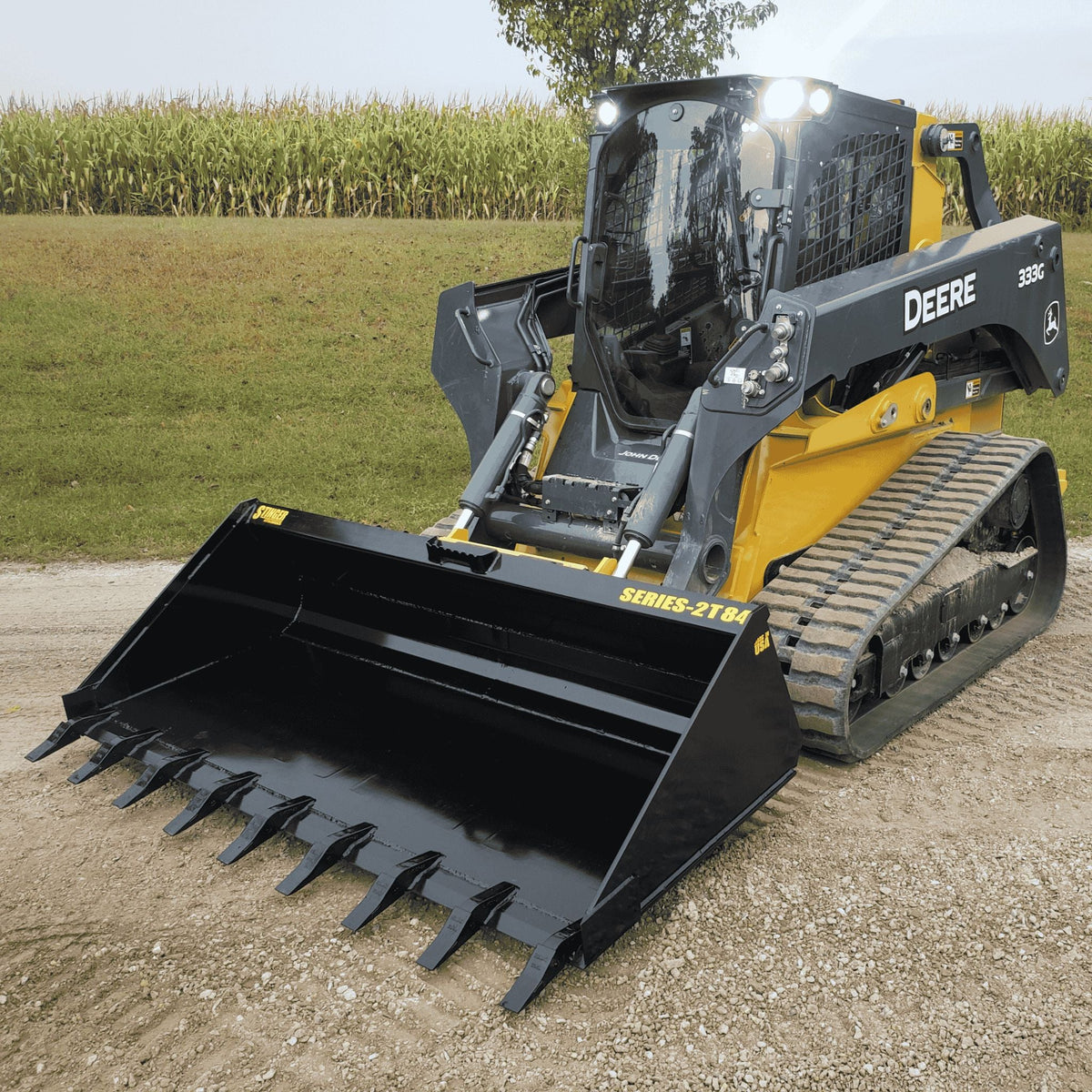

- John Deere: 317G, 320G, 331G, 333G.
- CAT: 259D, 279D, 289D, 299D.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Operating Weight | 775 lbs |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 1/4" |
