Description

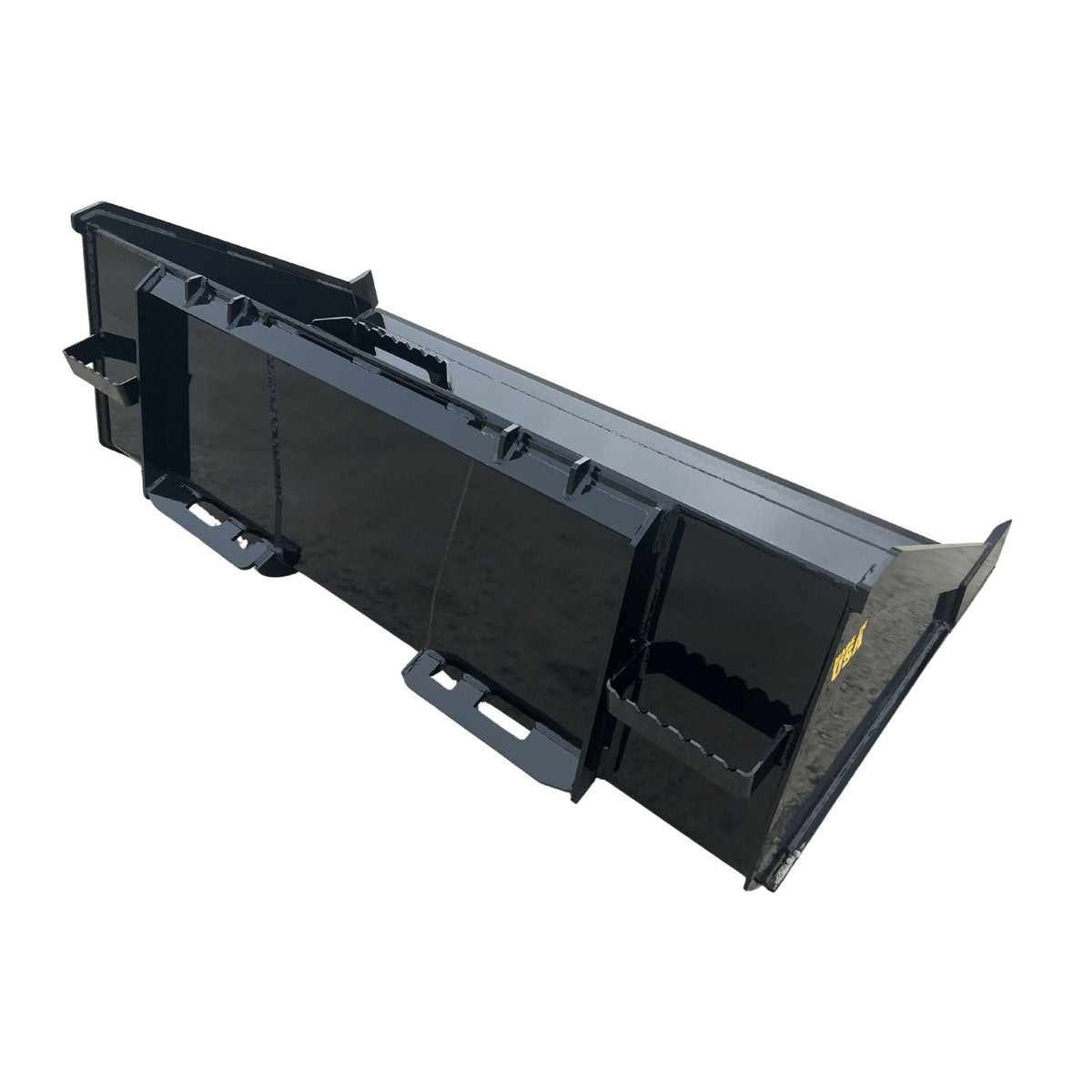

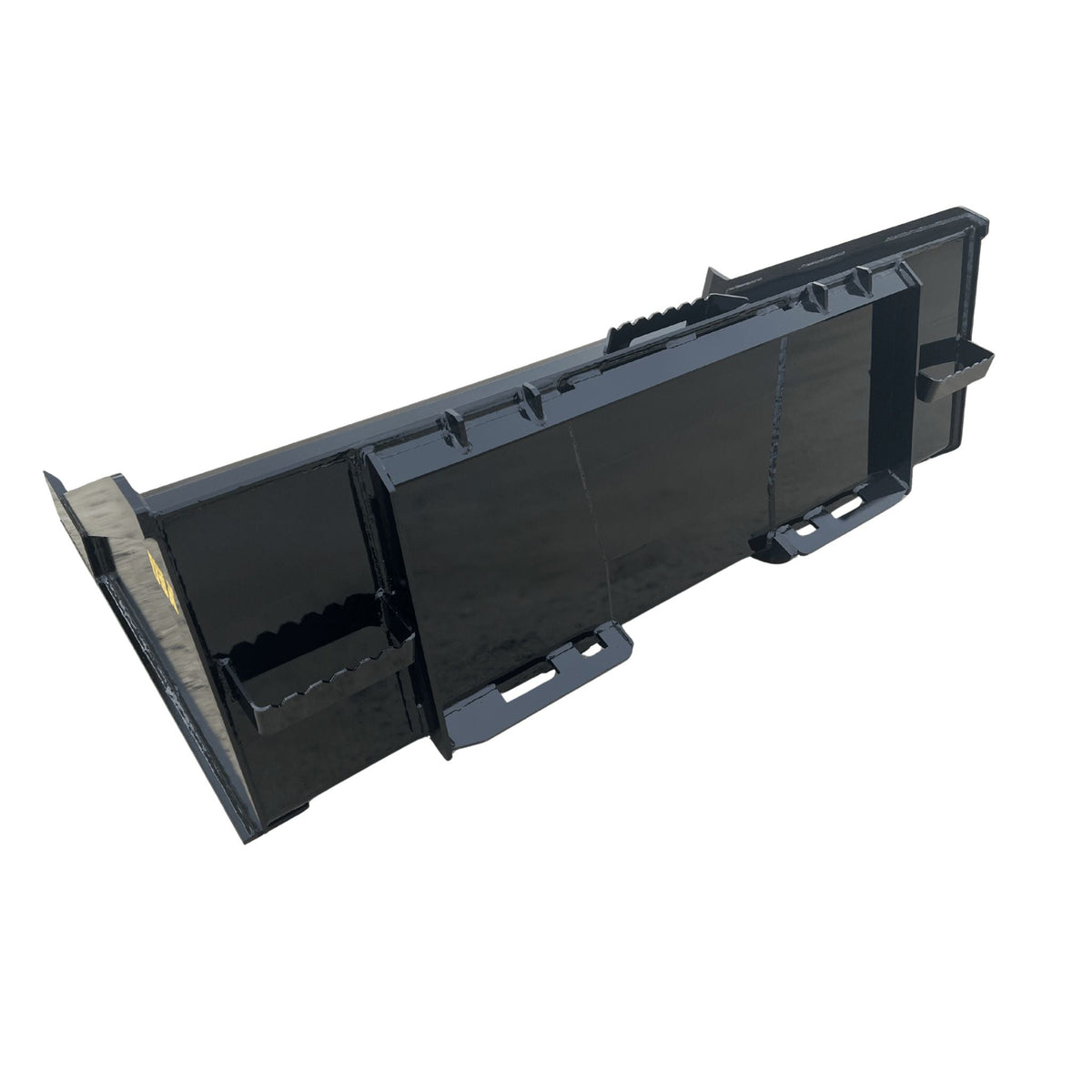

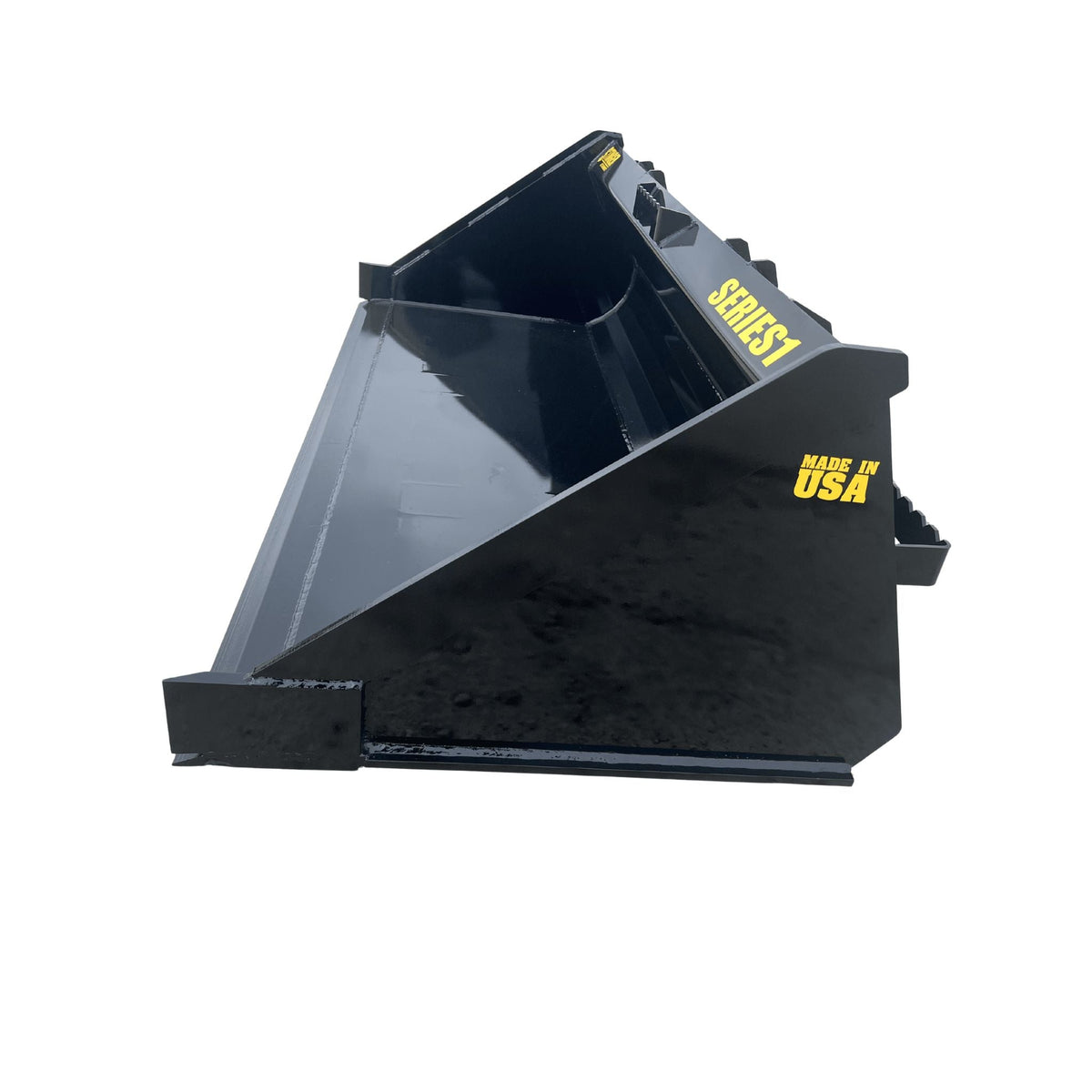

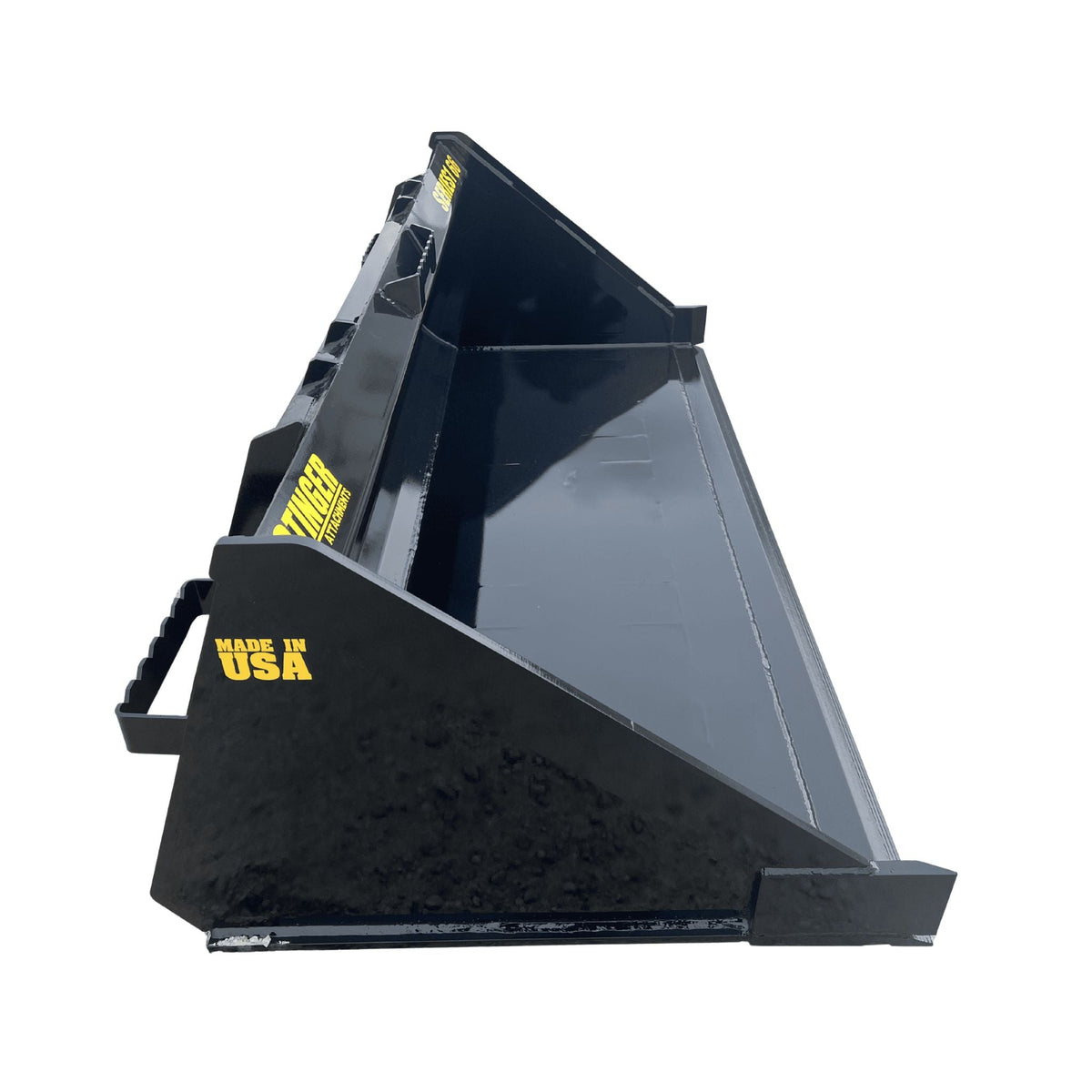

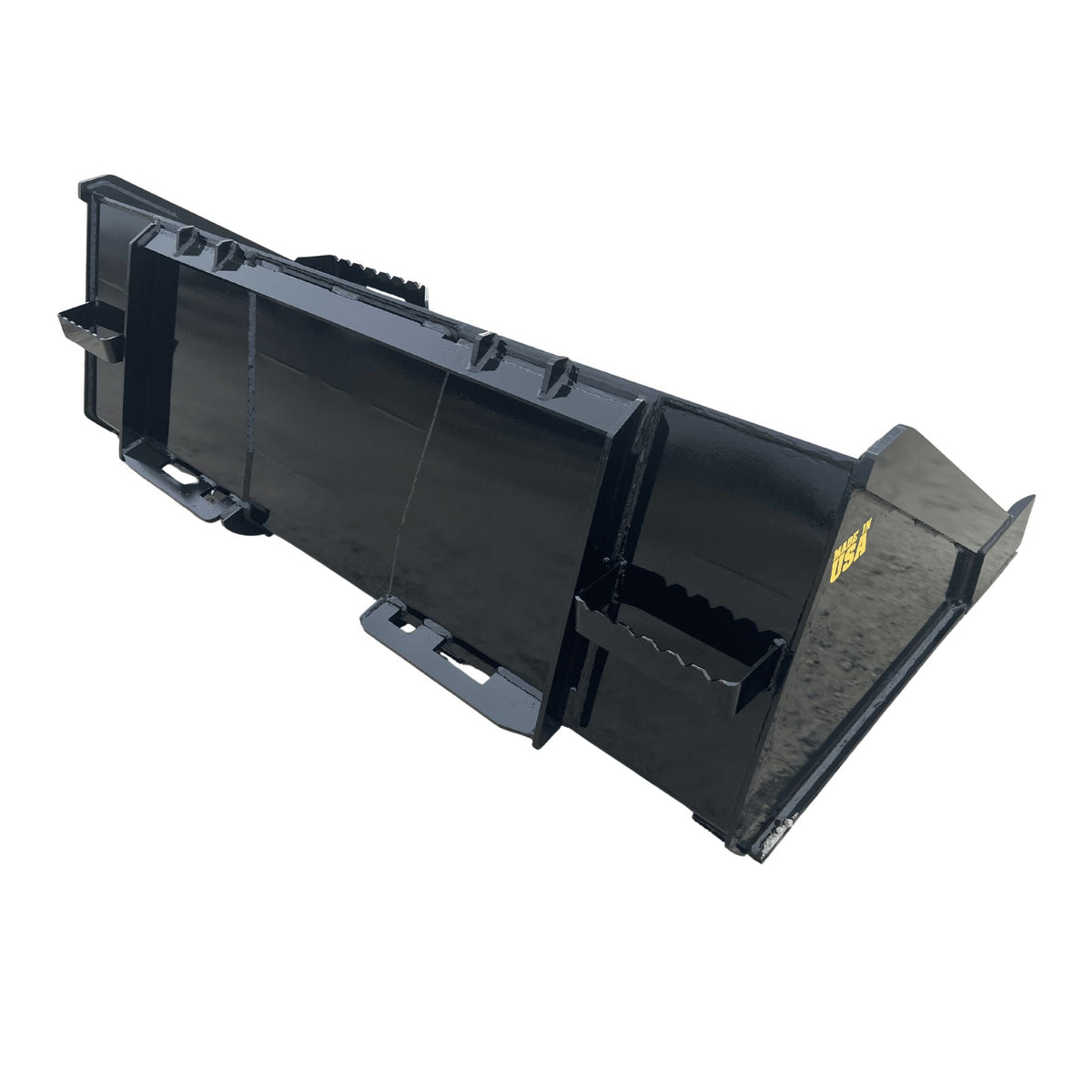

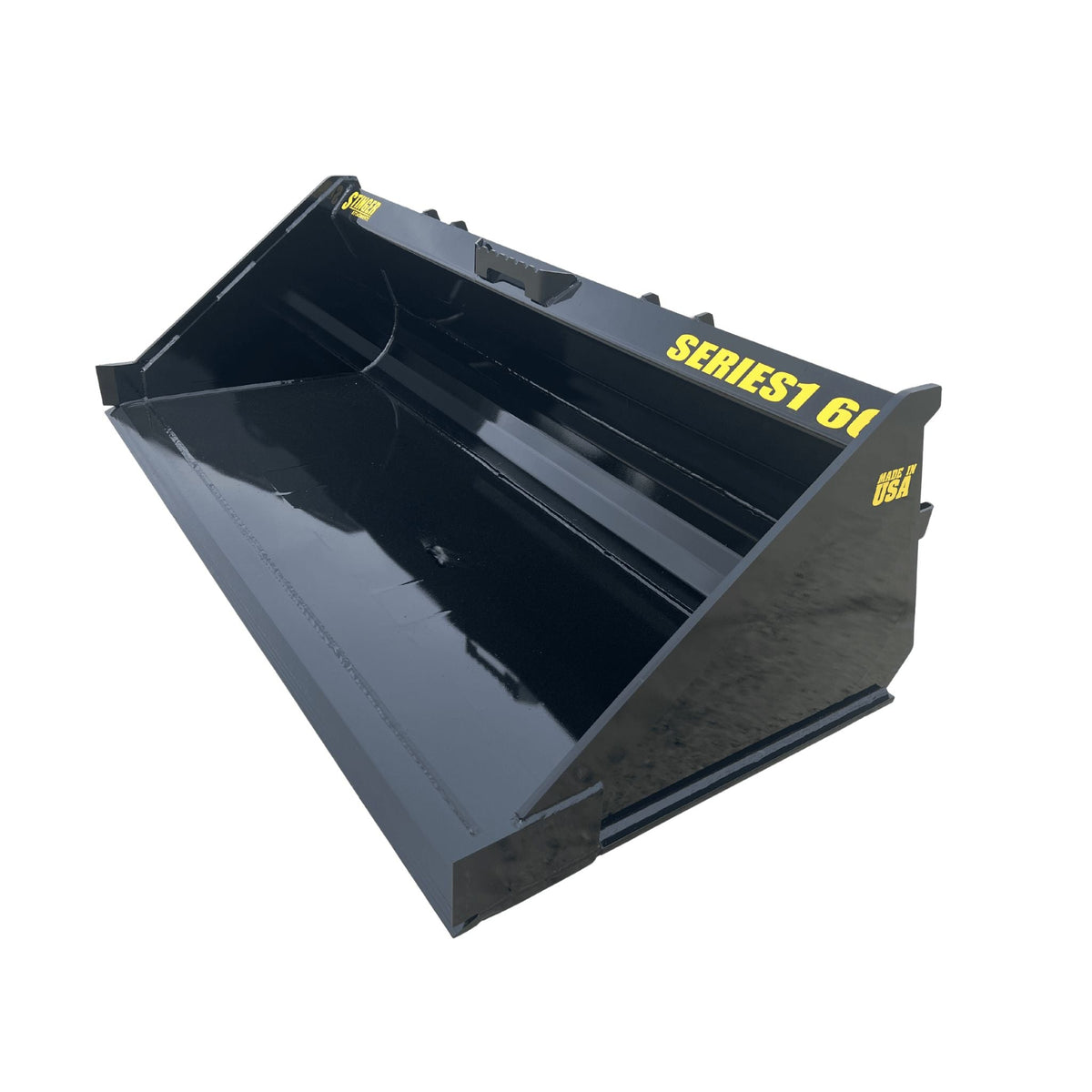

The "Goldilocks" Utility Bucket: The Stinger General Purpose (MB1) is the perfect balance of weight and strength. Designed for Compact Tractors and Mid-Frame Skid Steers, it utilizes a 3/16" Grade 50 shell to cut dead weight without sacrificing durability. This ensures your machine spends its power lifting the payload, not the bucket.

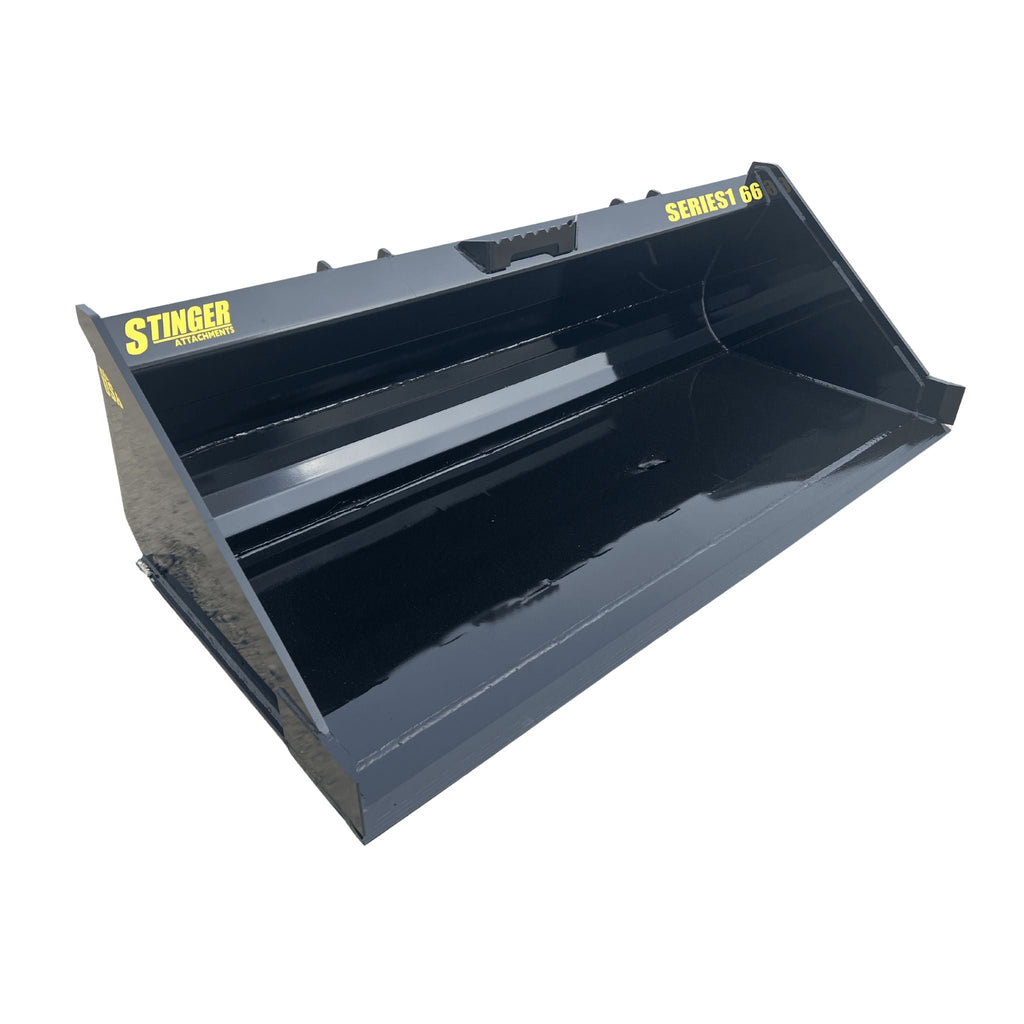

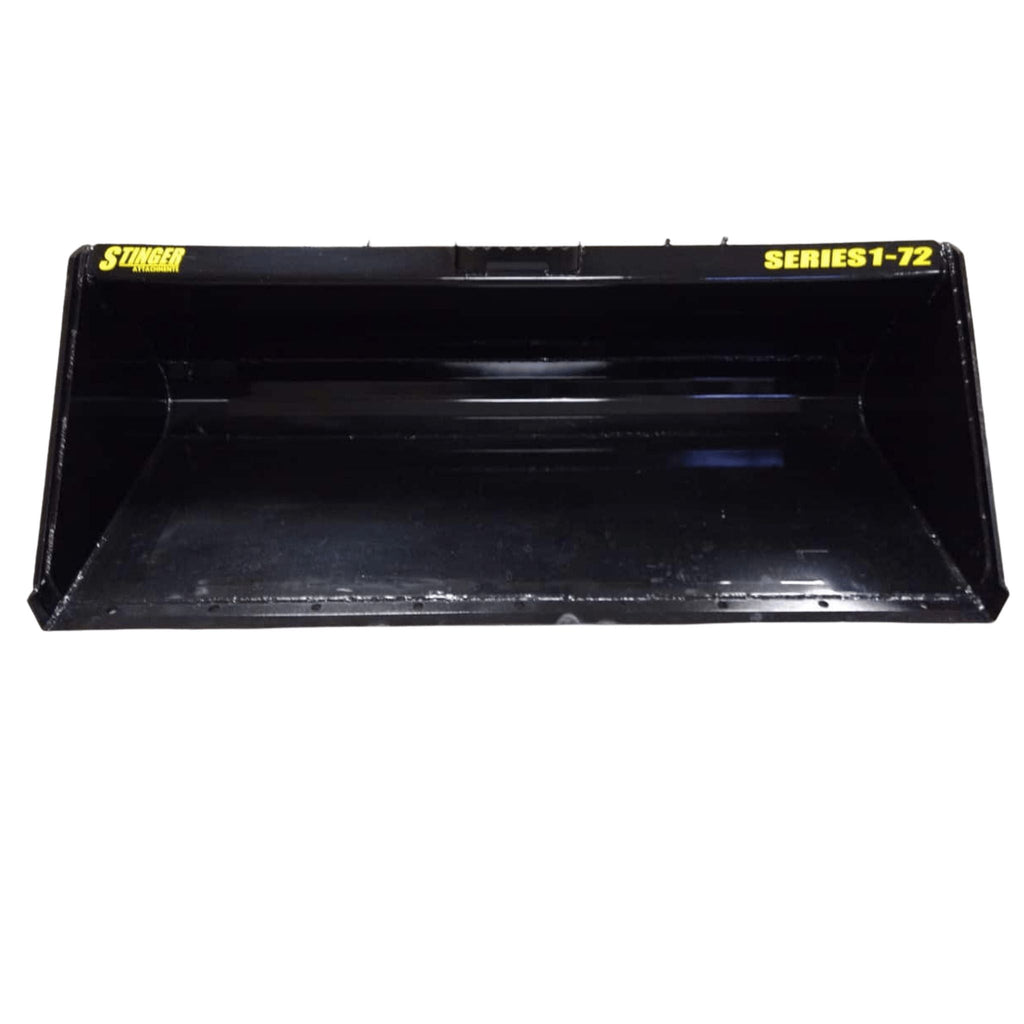

The Rolled Insert Advantage: Standard buckets often fail at the square weld in the back corner—a trap for wet mud and a stress point for cracking. Stinger uses a Rolled Radius Insert to curve the back of the bucket. This adds significant structural rigidity and allows sticky material to slide out effortlessly during dumping. Includes a Safety Step for easy machine entry.
⚙️ Technical Specifications
Shell Material: 3/16" Grade 50 Steel
Side Plates: 1/4" Reinforced
Structural Tech: Rolled Radius Insert (Easy Cleanout)
Wear Protection: 1/2" x 4" Underside Wear Bars (4-5 per bucket)
Cutting Edge: 3/4" x 8" (Weld-On or Bolt-On)
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play
Hydraulics: None required (Mechanical Attachment).
Note: This is a General Purpose bucket. For prying concrete or severe digging, consider an Extreme Duty model.
✅ Machine Compatibility

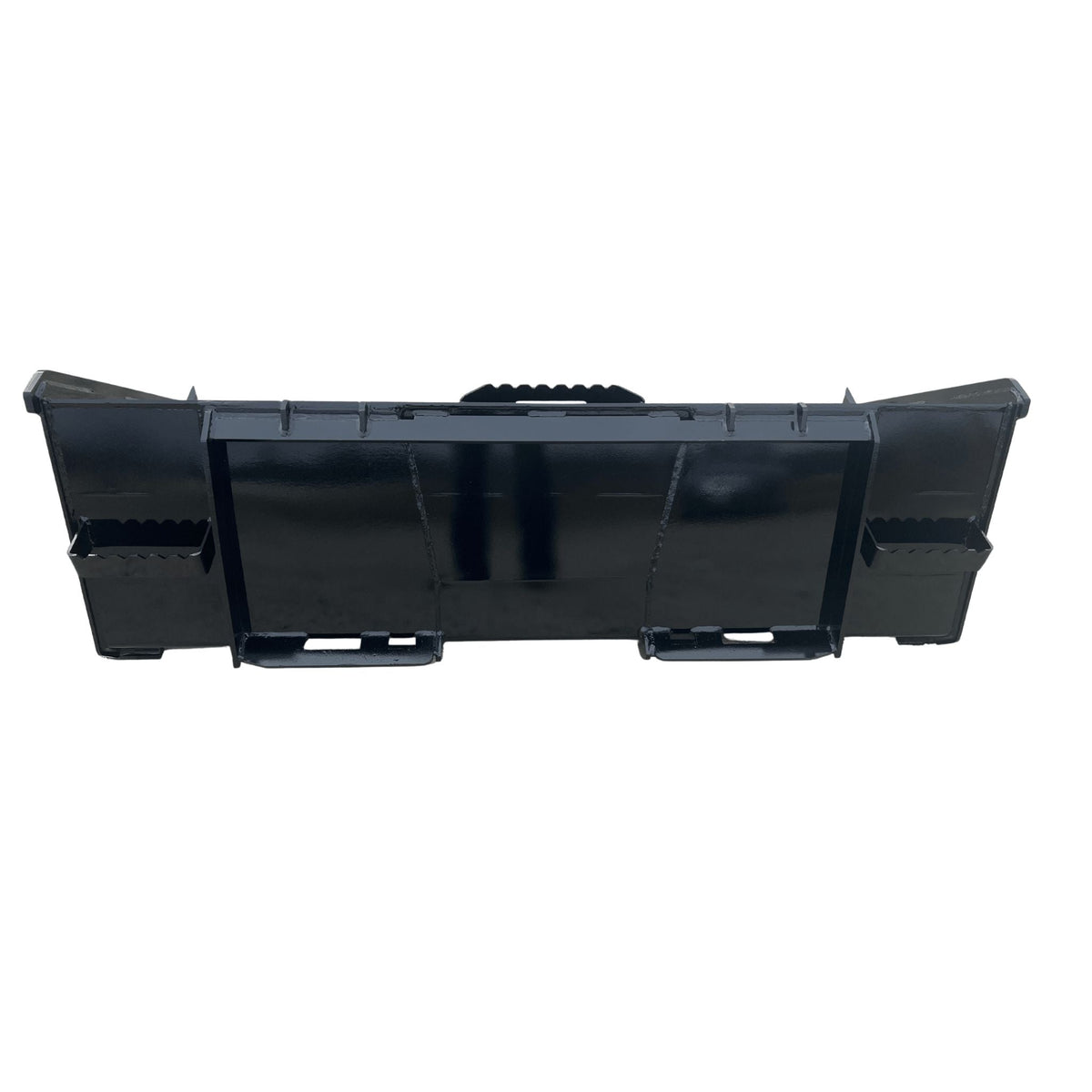

1. Mount Type:
Universal Quick Attach (SSQA). Fits all standard skid steers and utility tractors.
2. Size Recommendation (Width):
60" - 66": Ideal for Compact Tractors (35-50 HP) & Small Skid Steers.
72" - 84": Ideal for Utility Tractors (50-75 HP) & Mid-Frame Skid Steers.
3. Confirmed Fitment:
- Kubota: L-Series, MX-Series, SSV65/75, SVL75.
- Bobcat: S450, S510, S590, T590.
- John Deere: 3033R, 3039R, 317G, 320G.
- New Holland/Case: Workmaster 50, L218, SR175.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Operating Weight | 511 lbs |
| Struck Capacity | 10.0 cu ft |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 3/16" |
