Description
Maximum Stability for Round & Square Bales.

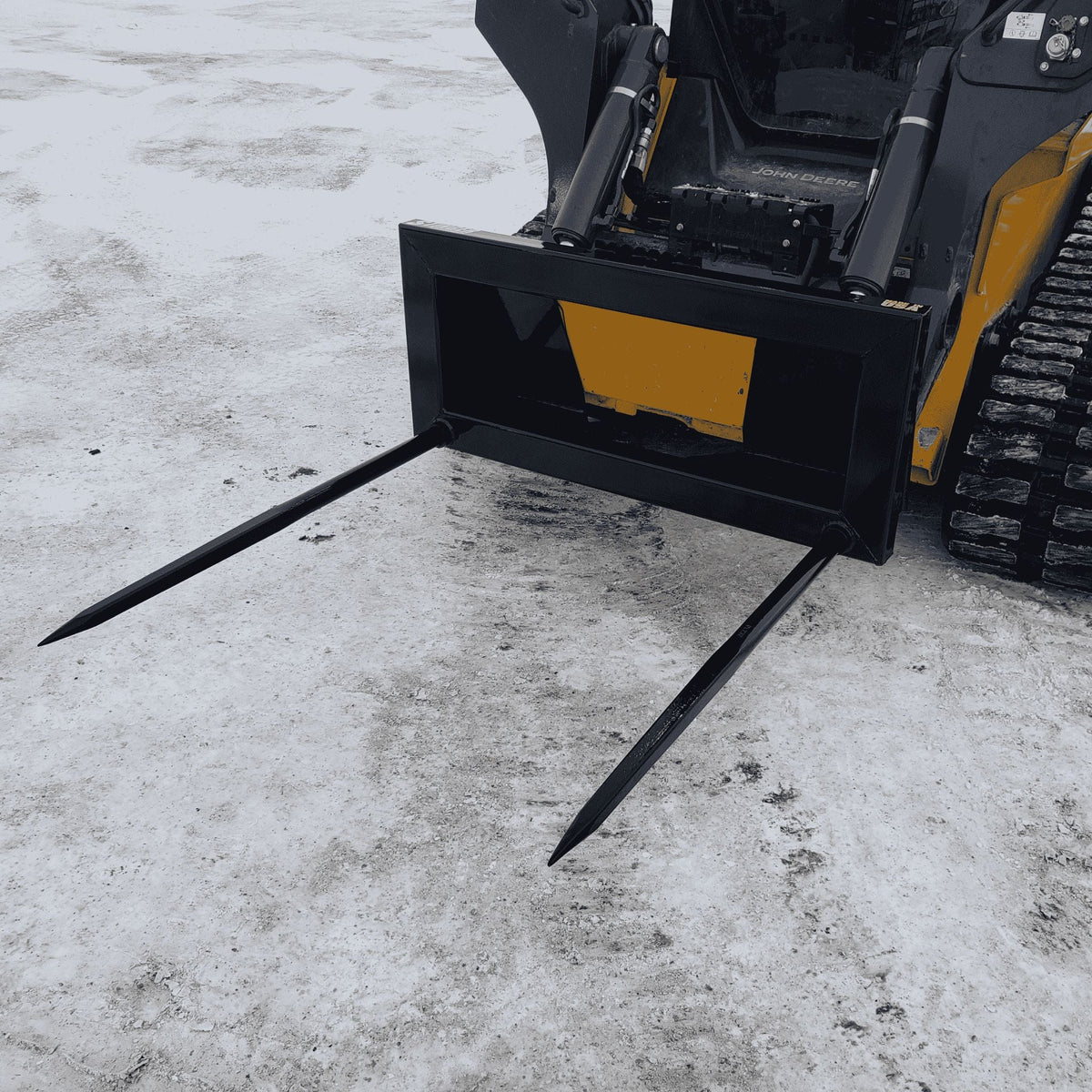

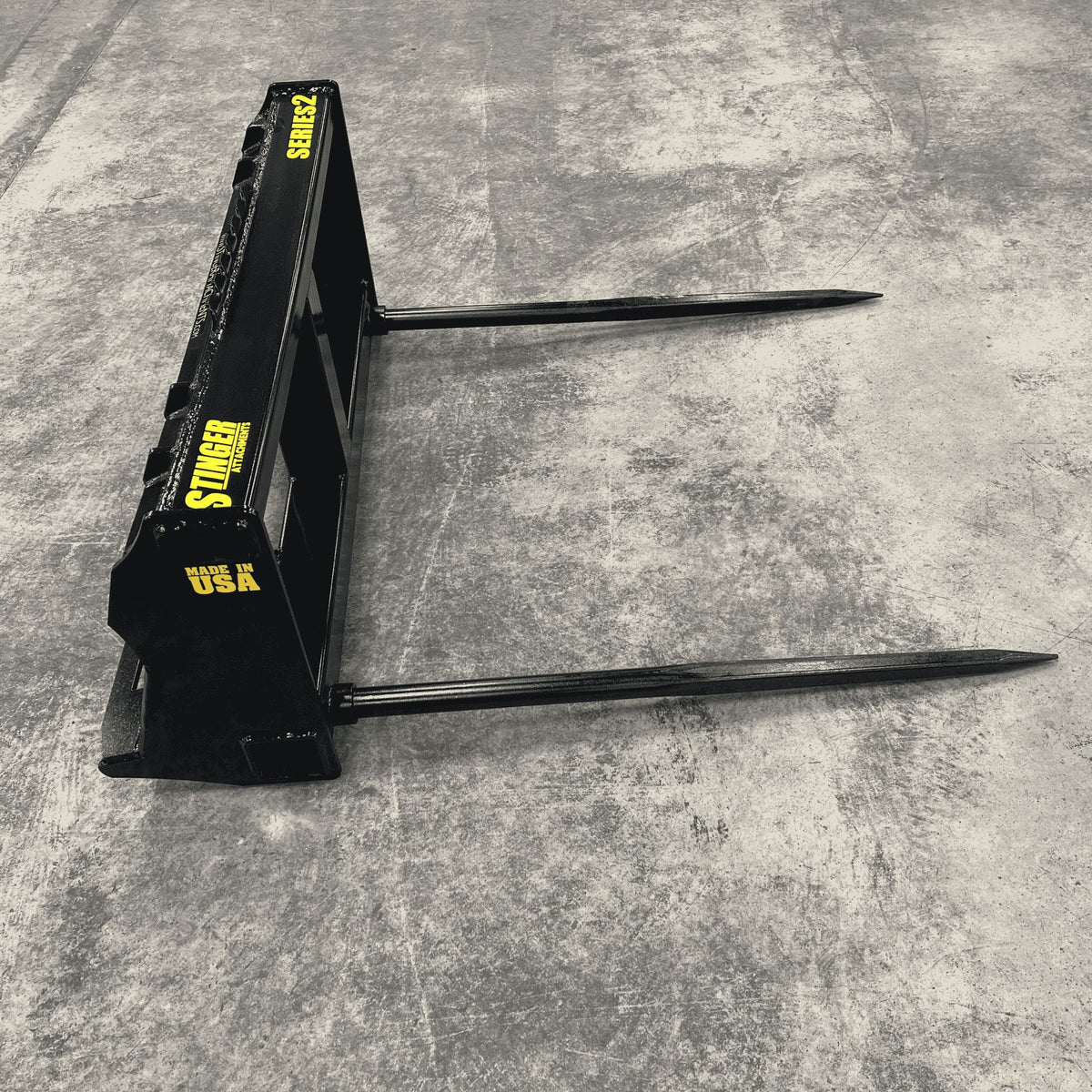

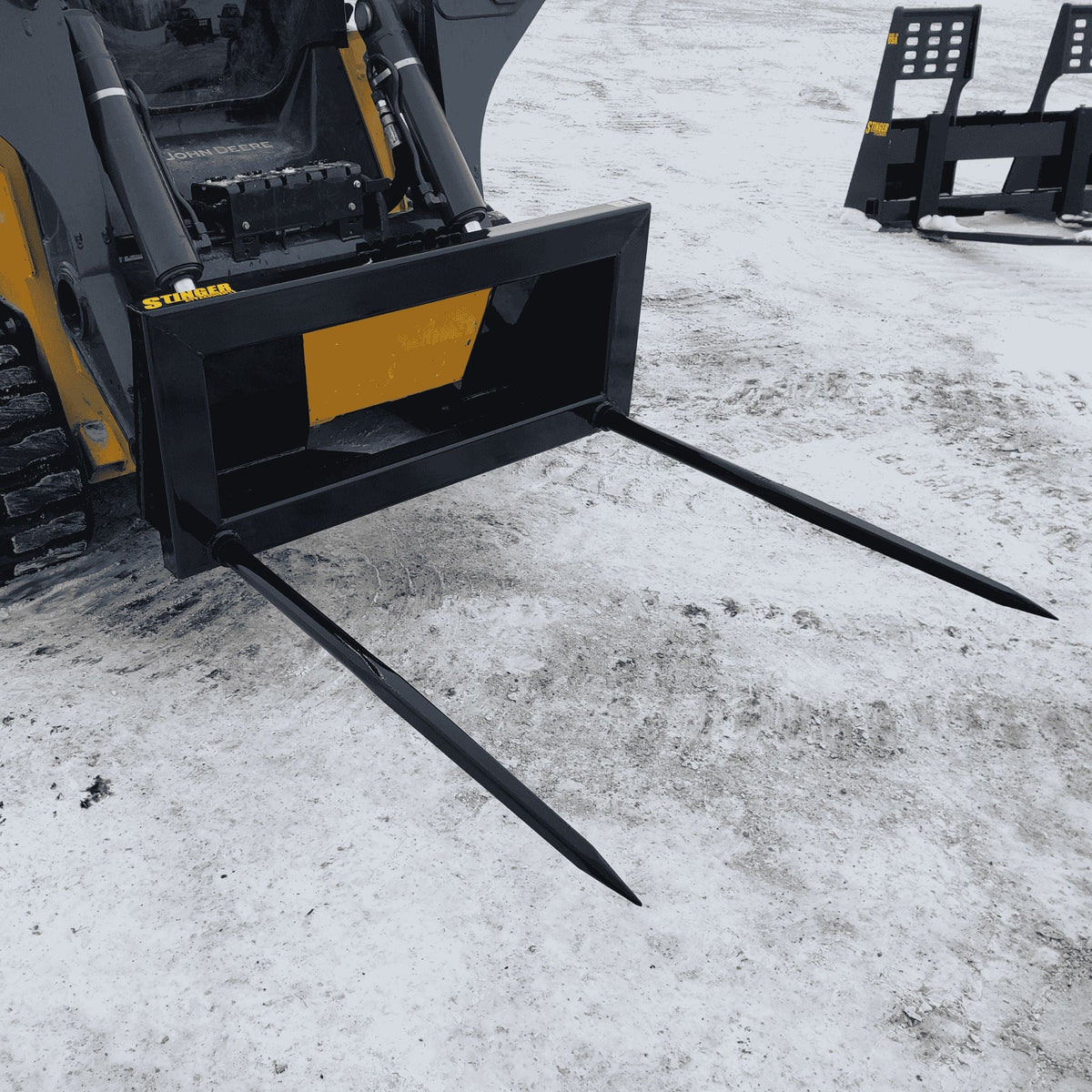

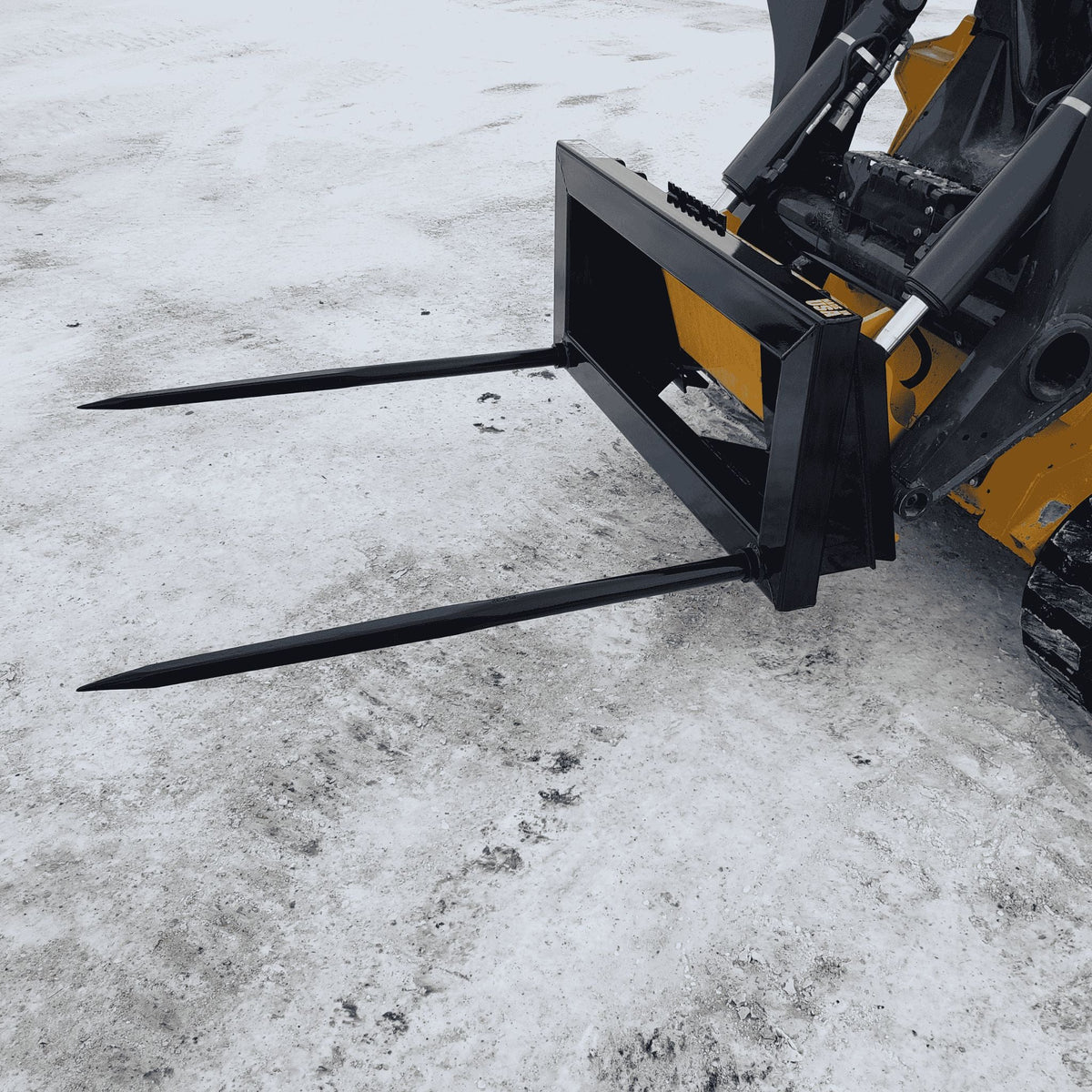

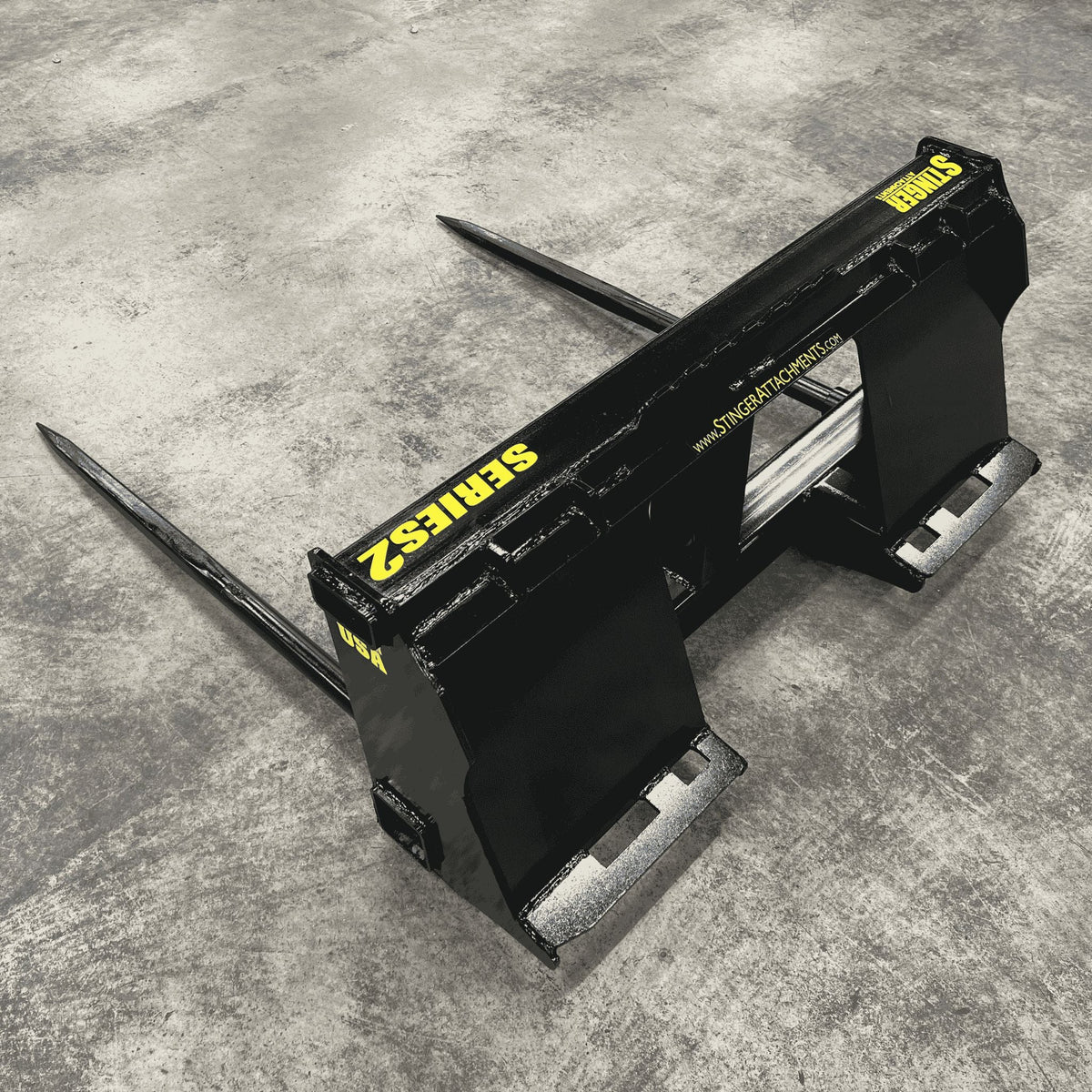

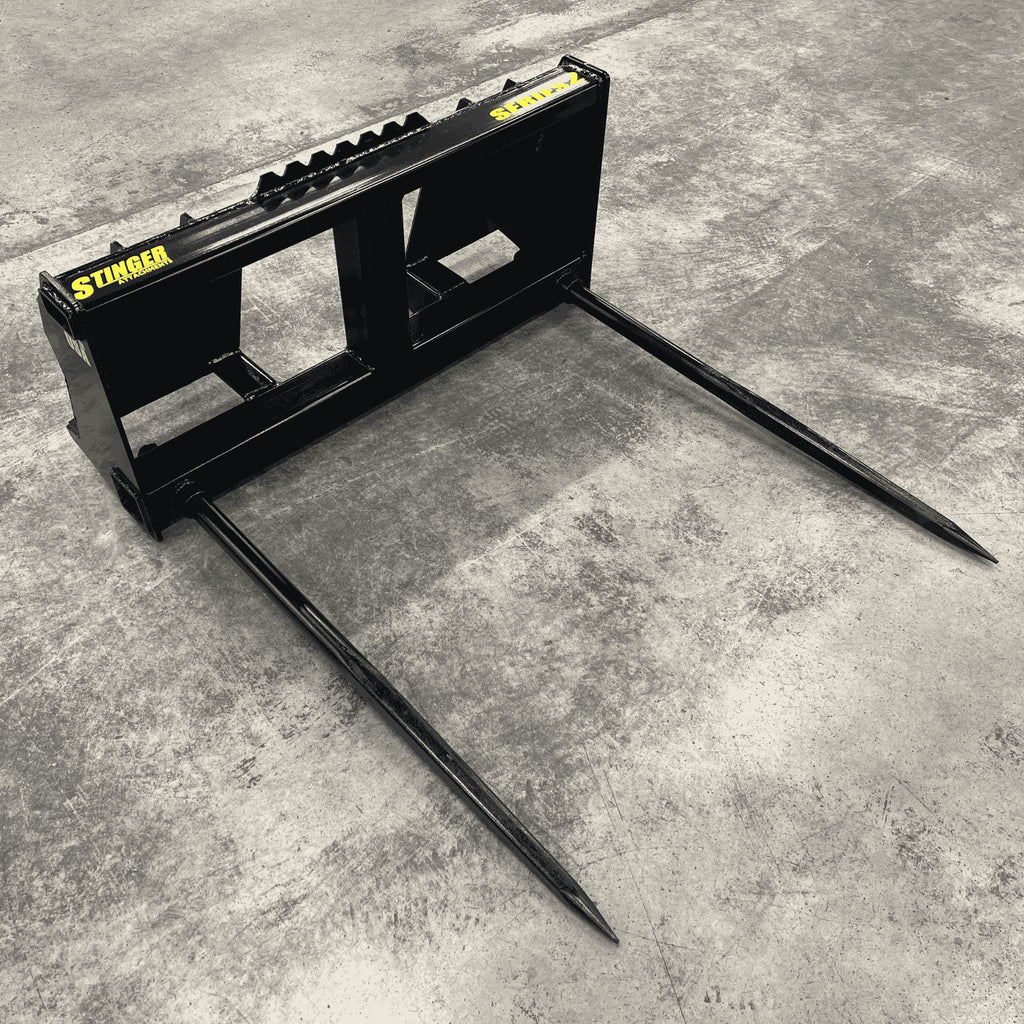

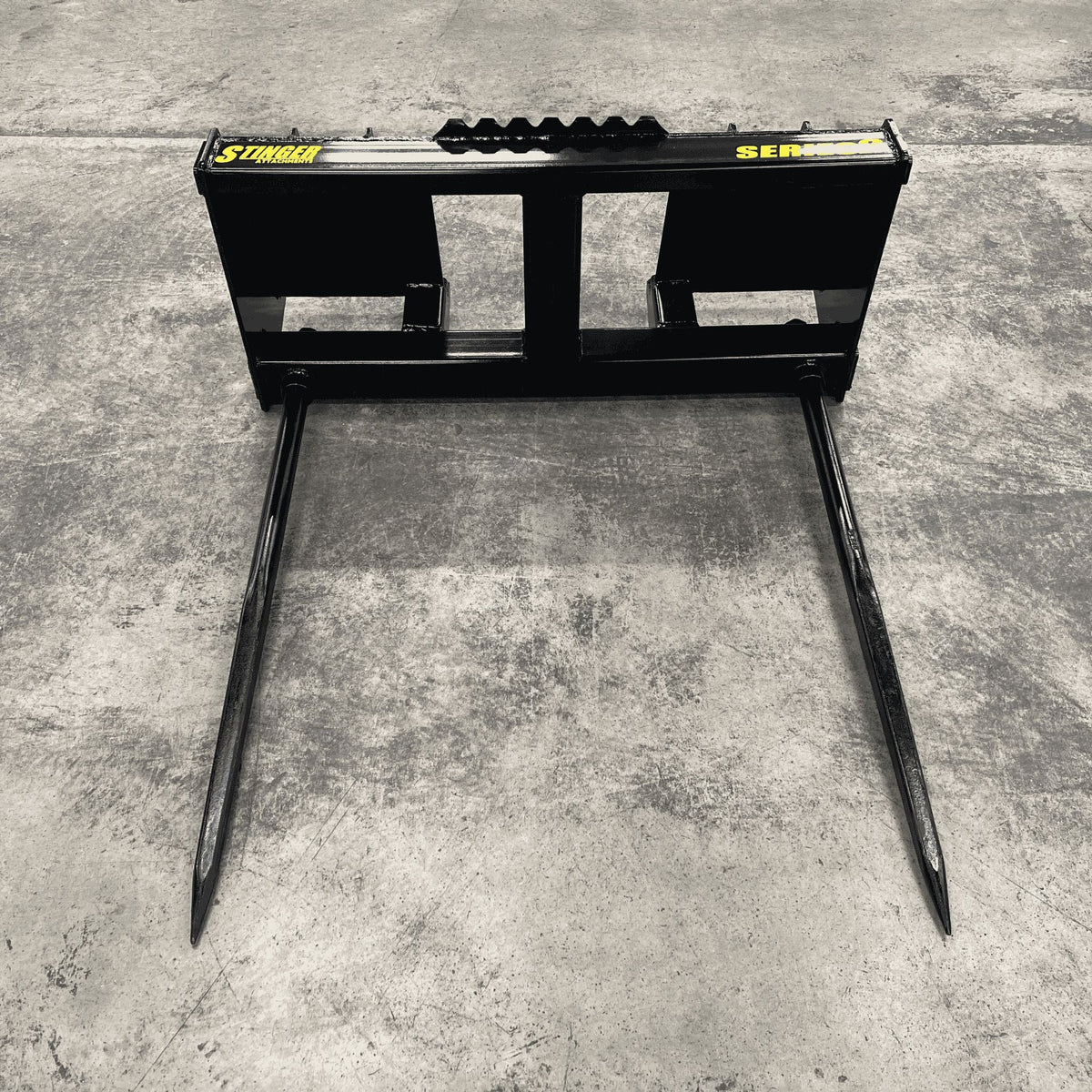

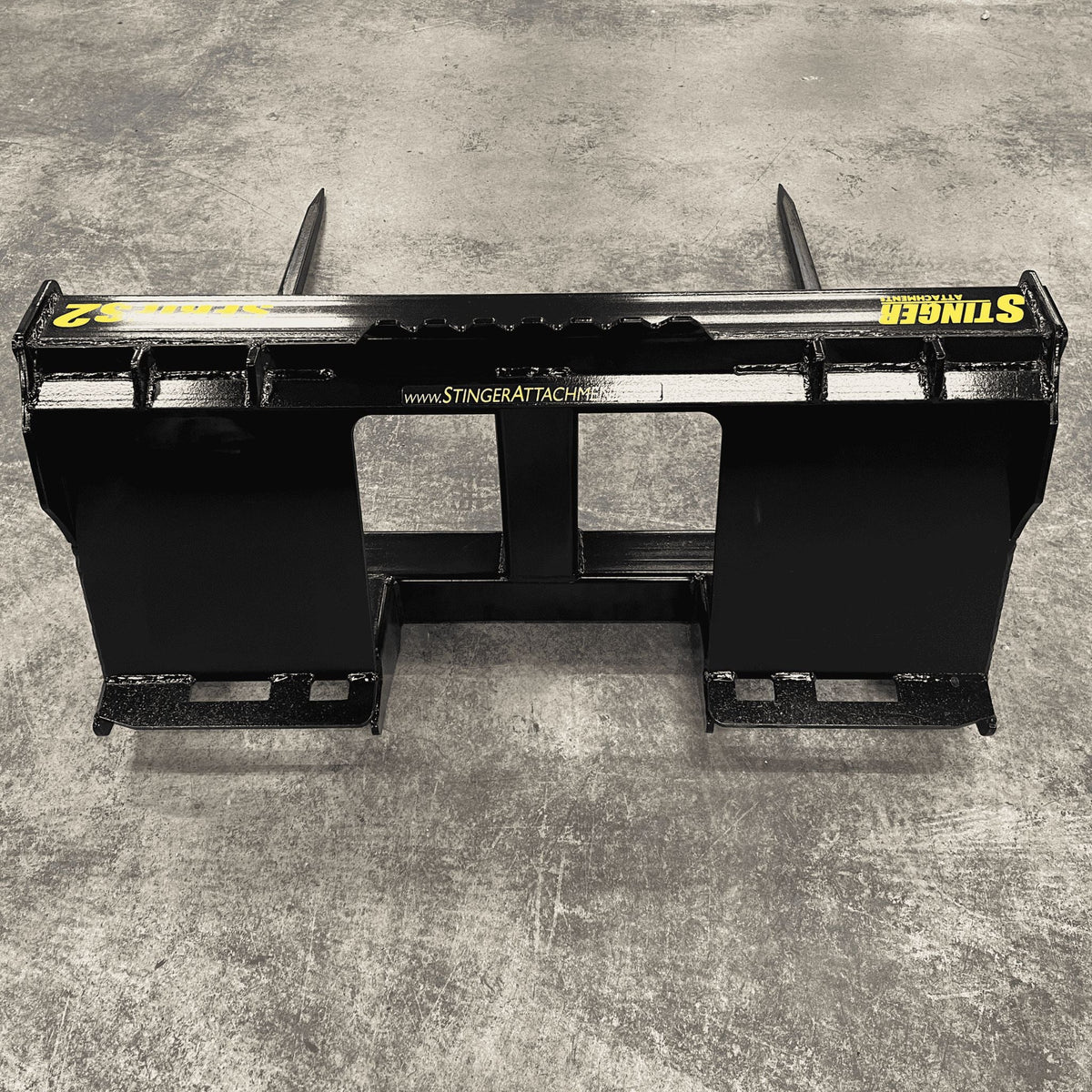

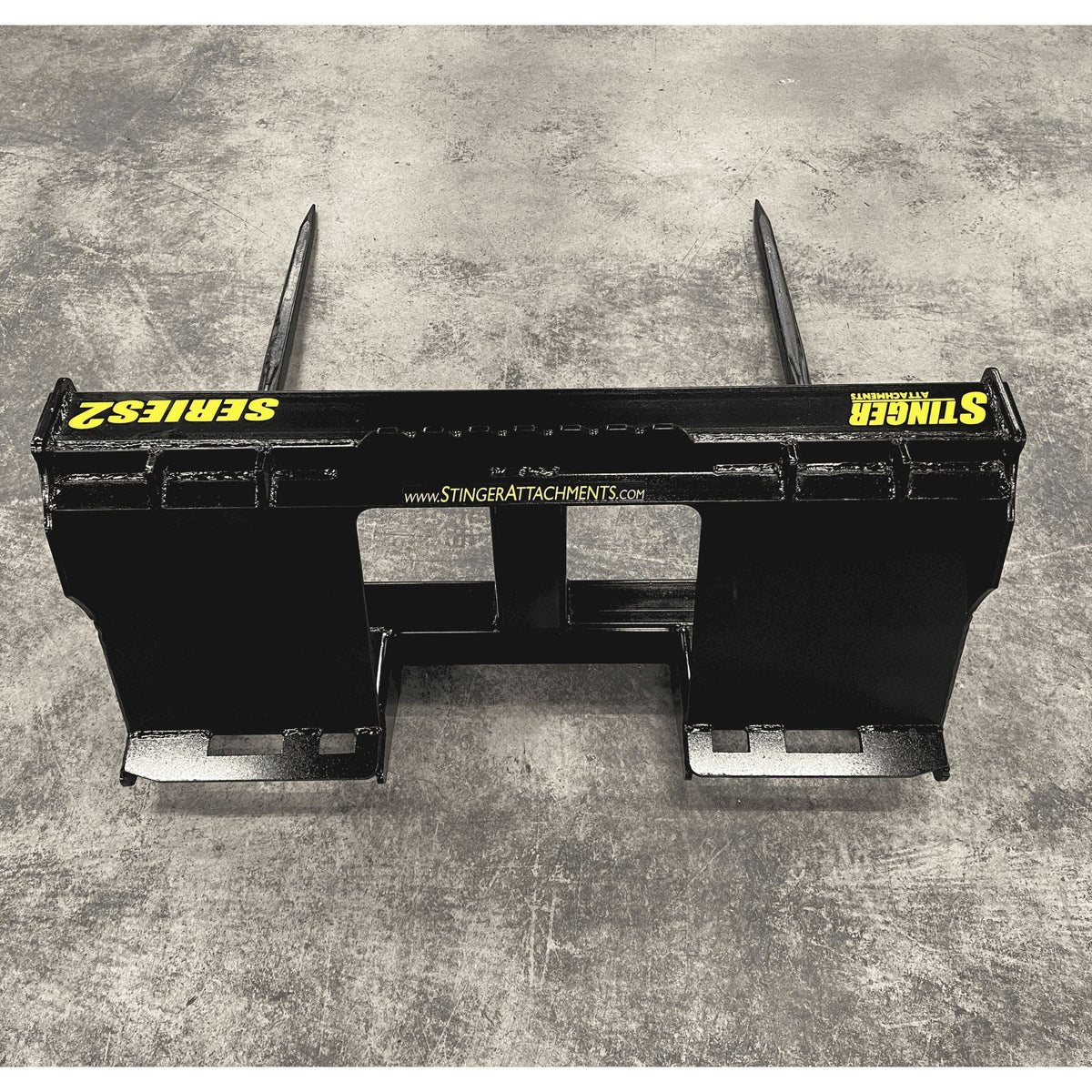

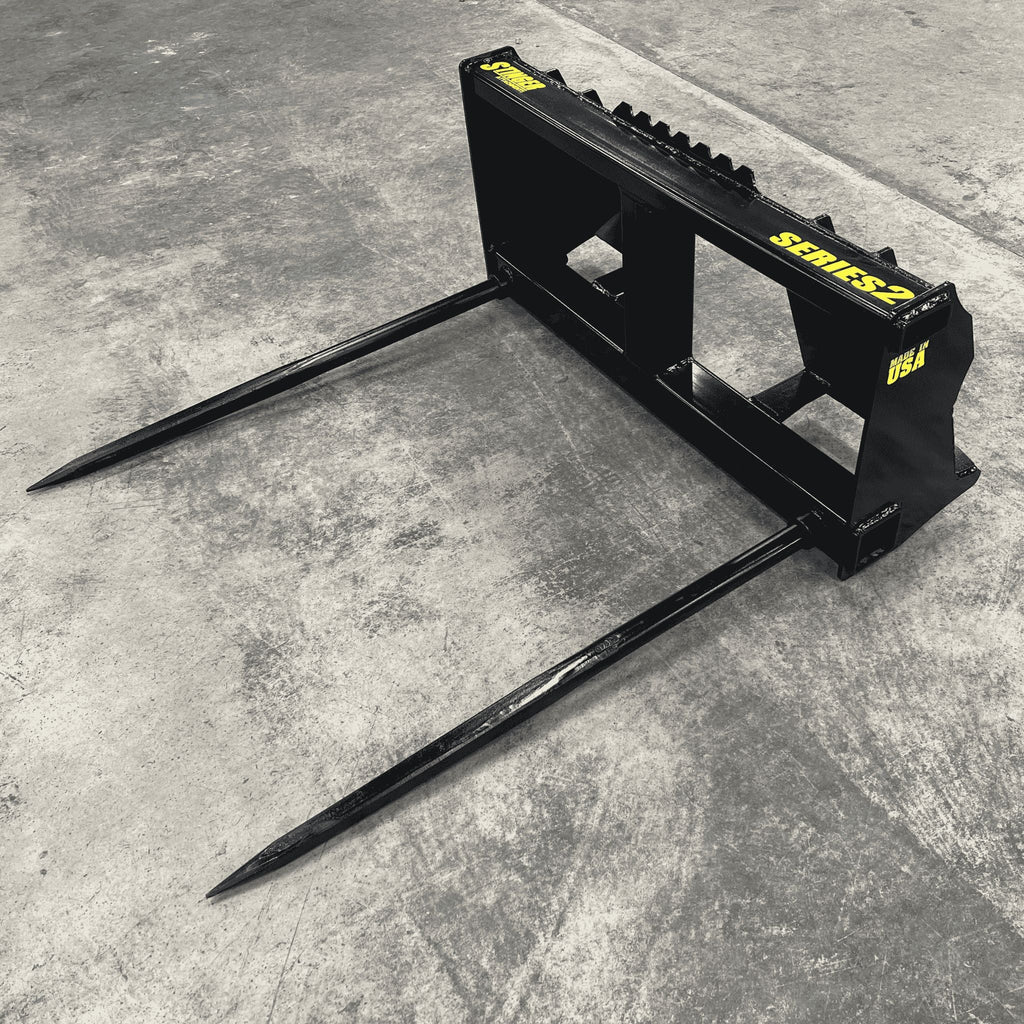

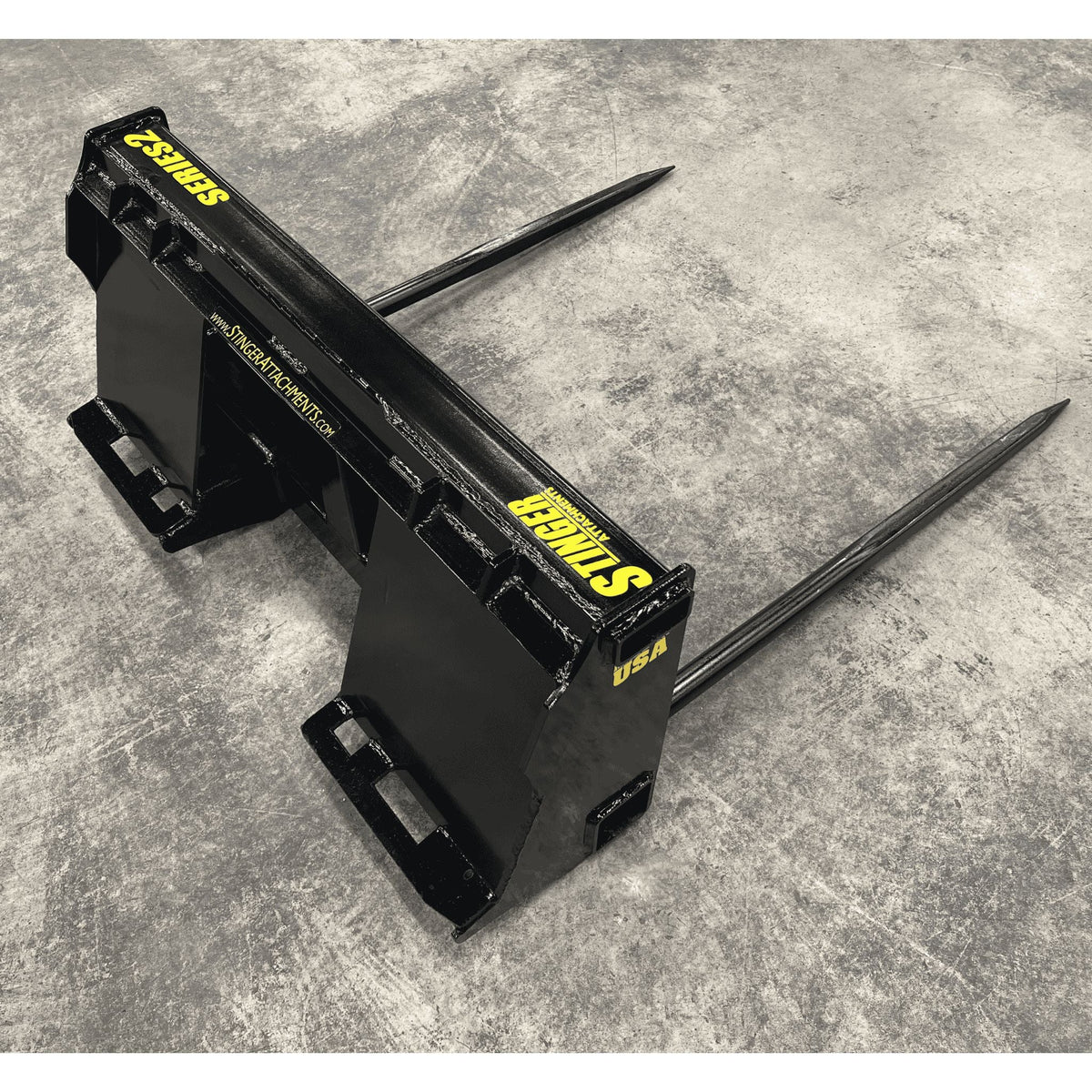

The Stinger Series 2 (Double Spear) is designed for operators who need speed and stability. Unlike single-spear designs where the bale can spin or shift during transport, the Series 2 utilizes two parallel Conus 2 spears spaced 39" apart. This locks the bale in place, allowing you to move faster across uneven terrain without losing your load.

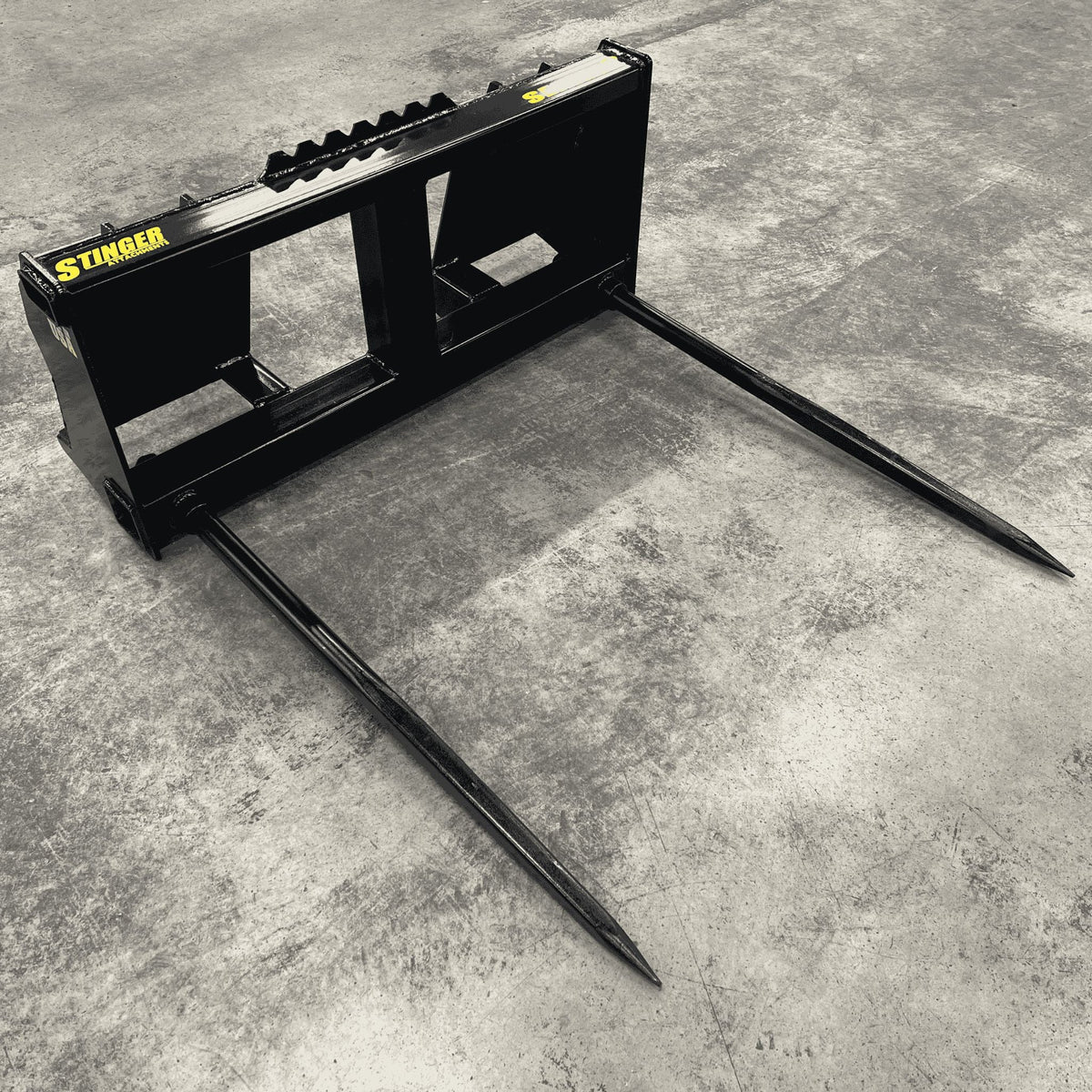

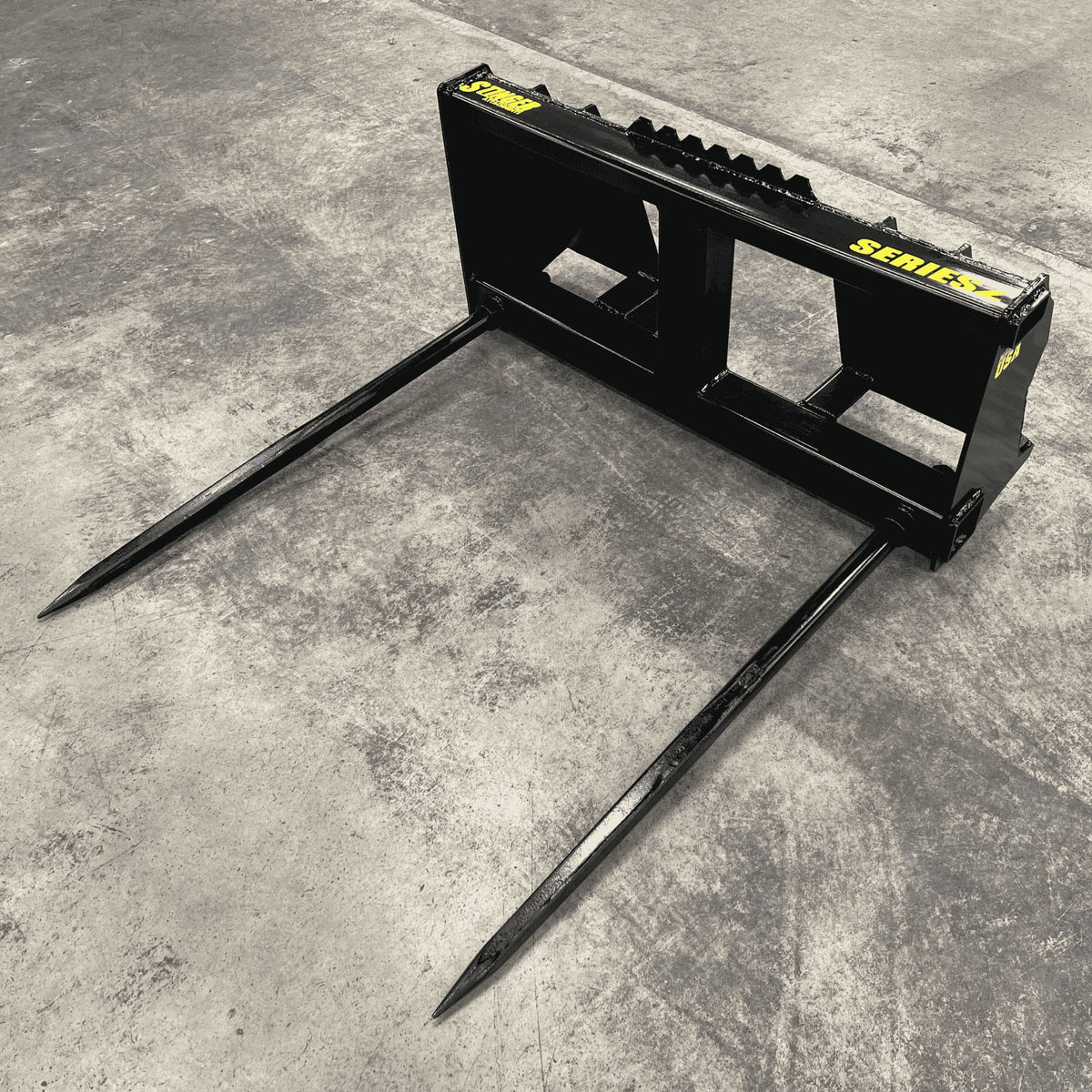

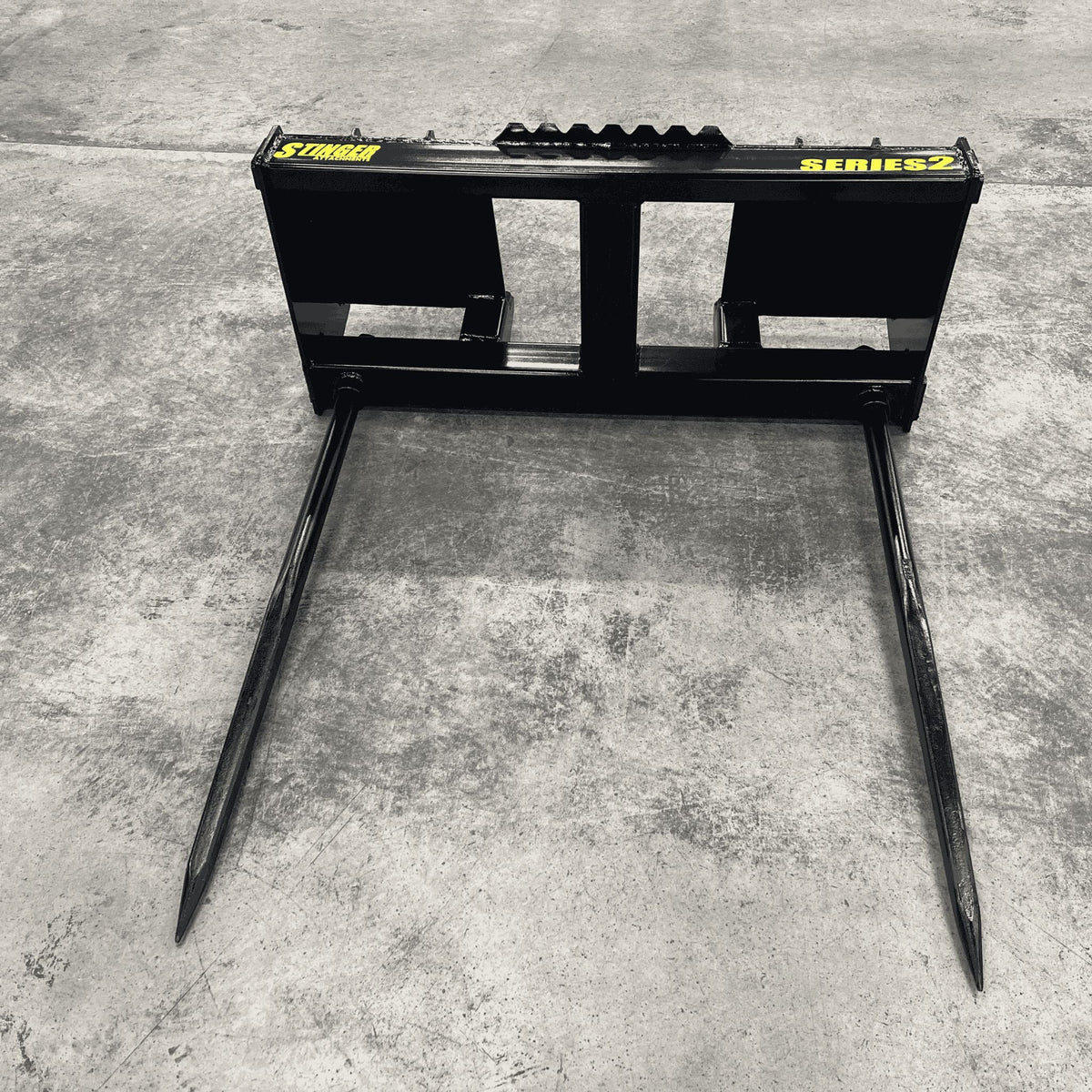

Built for the Daily Grind: We don't use light-duty tubing. This frame is constructed with a 4" x 4" x ¼" Bottom Support Tube and reinforced with Grade 50 Side Plates, giving it a massive 7,000 lb rating. Whether you are handling heavy silage round bales or large square bales, the Series 2 holds the line.
Select Your Configuration:
- Standard Series 2: The workhorse frame for everyday use.
- Series 2 XD (Extreme Duty): Reinforced frame design for high-cycle commercial operations.
⚙️ Technical Specifications
| Lift Capacity: | 7,000 lbs |
| Spear Spacing: | 39 Inches (Center to Center) |
| Spear Type: | Replaceable Conus 2 (Double Nut) |
| Frame Construction: | 4" x 4" x ¼" Bottom Tube | 4" x 2" x ¼" Top Tube |
| Side Plates: | Grade 50 High-Tensile Steel |
| Safety: | Integrated Safety Step |
| Warranty: | 1-Year Structural Warranty |
⚠️ Safety & Setup Note
Ballast Required: Handling two heavy bales or large square bales significantly changes your machine's center of gravity. Ensure proper rear ballast is installed.
Spear Length: Choose a spear length that penetrates at least 75% of your bale depth for safe transport.
✅ Machine Compatibility
1. Mount Type:

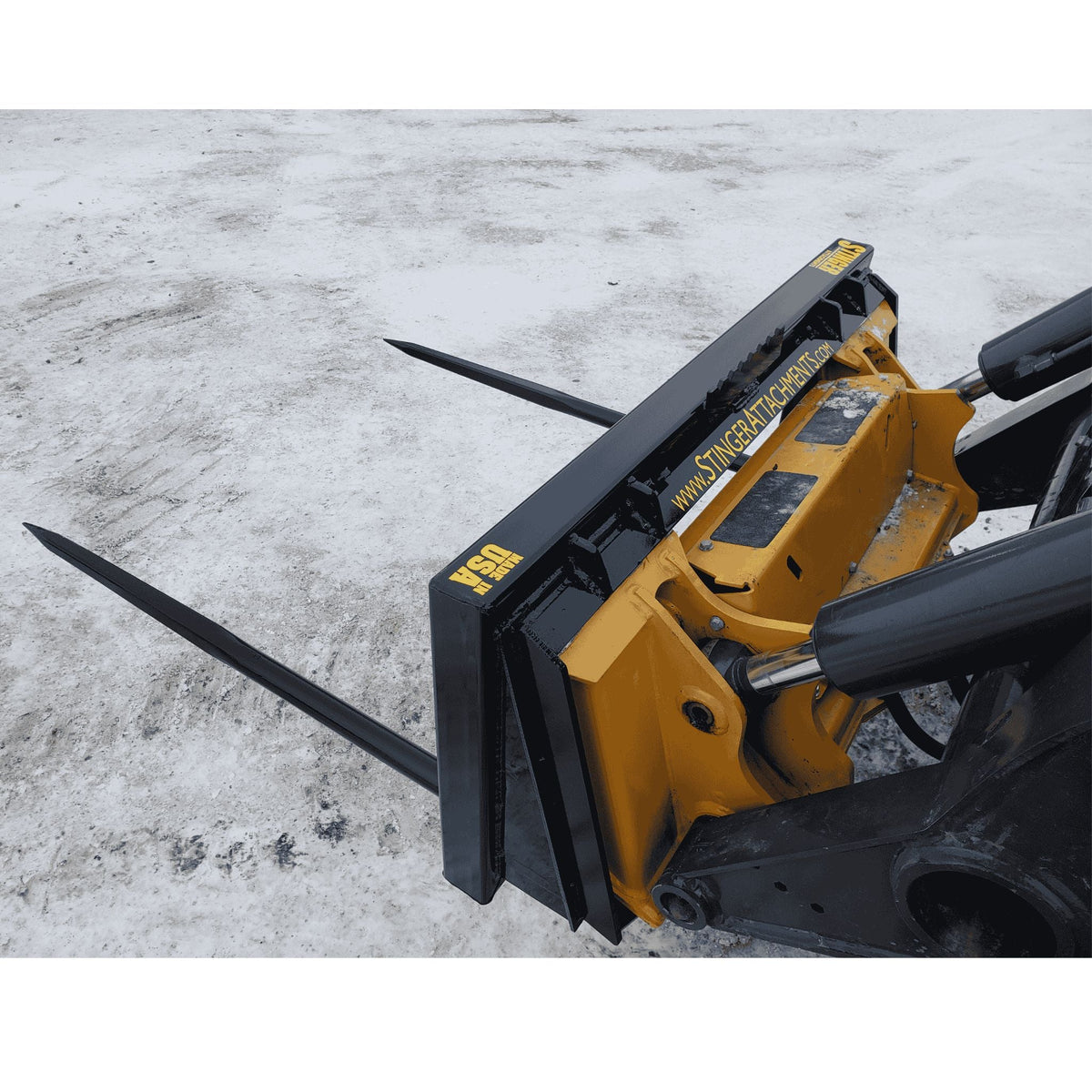

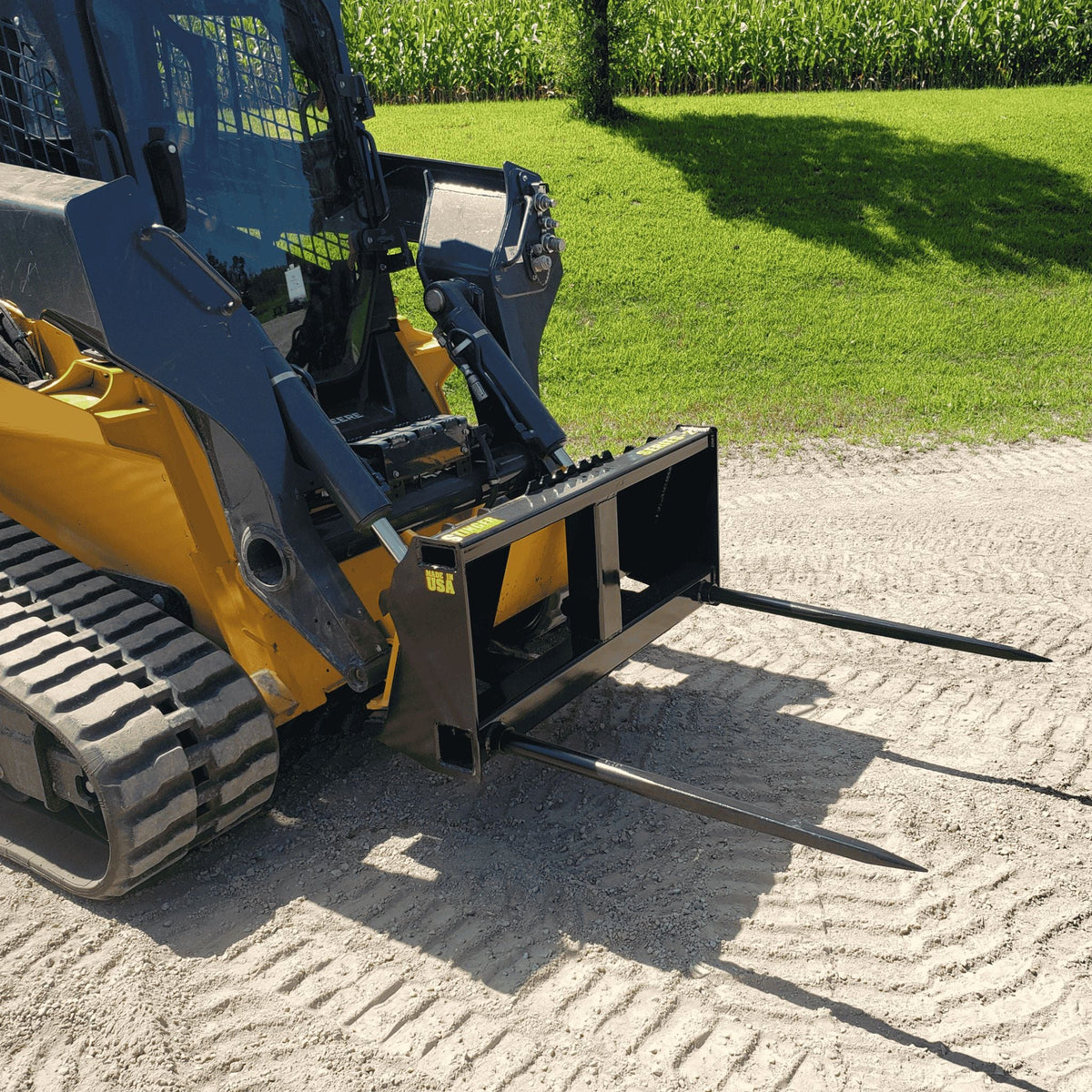

Universal Skid Steer Quick Attach (SSQA). Fits most modern skid steers, compact track loaders, and utility tractors.
2. Ideal For:
- Large Square Bales: 39" spacing provides ideal support for 3x3 and 3x4 squares.
- Round Bales: Prevents spinning during transport.
- Feed Lots: Fast cycle times for moving multiple bales.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Machine Size Class | ["Skid Steer"] |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 1/4" |
