Description
The Jobsite Cleanup Tool

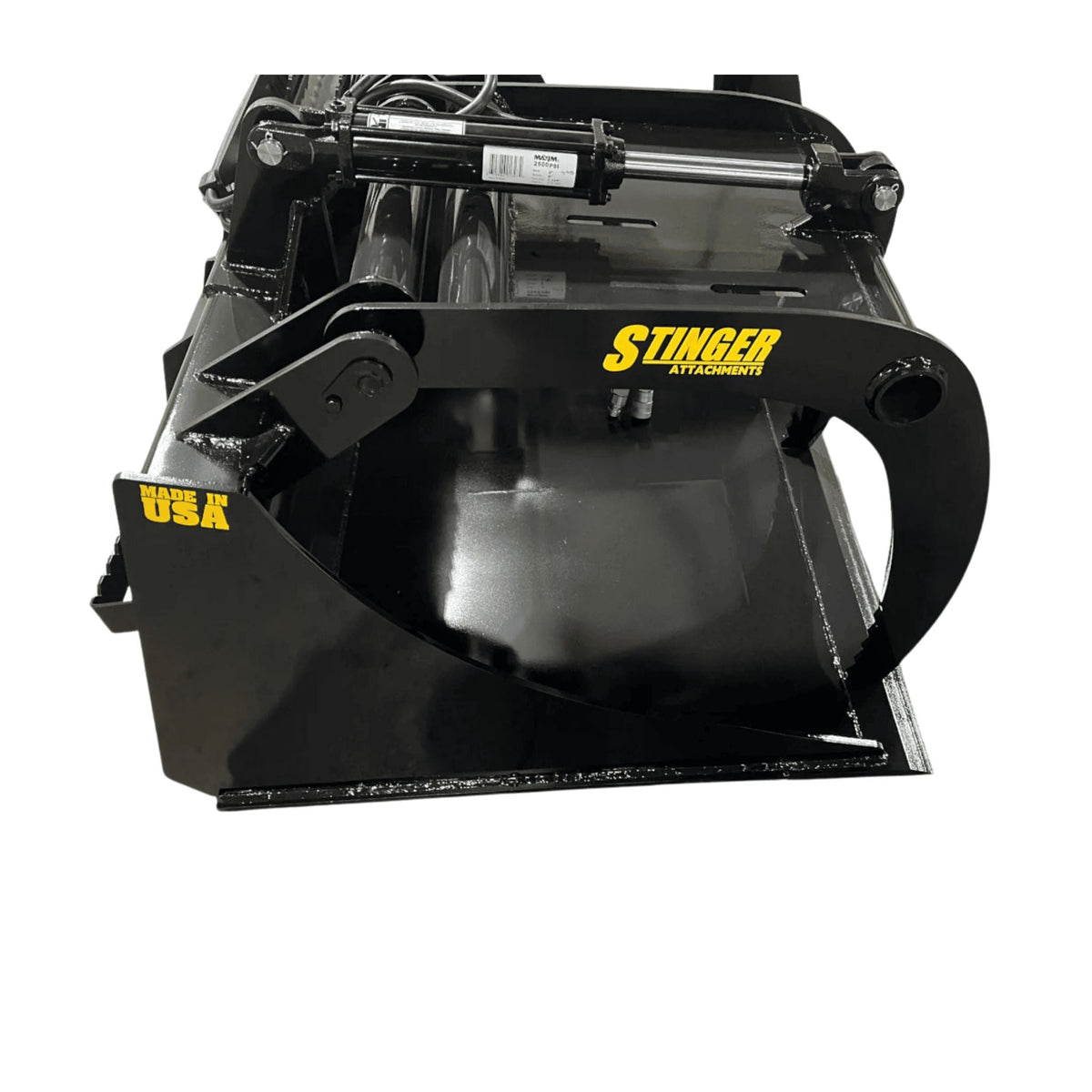

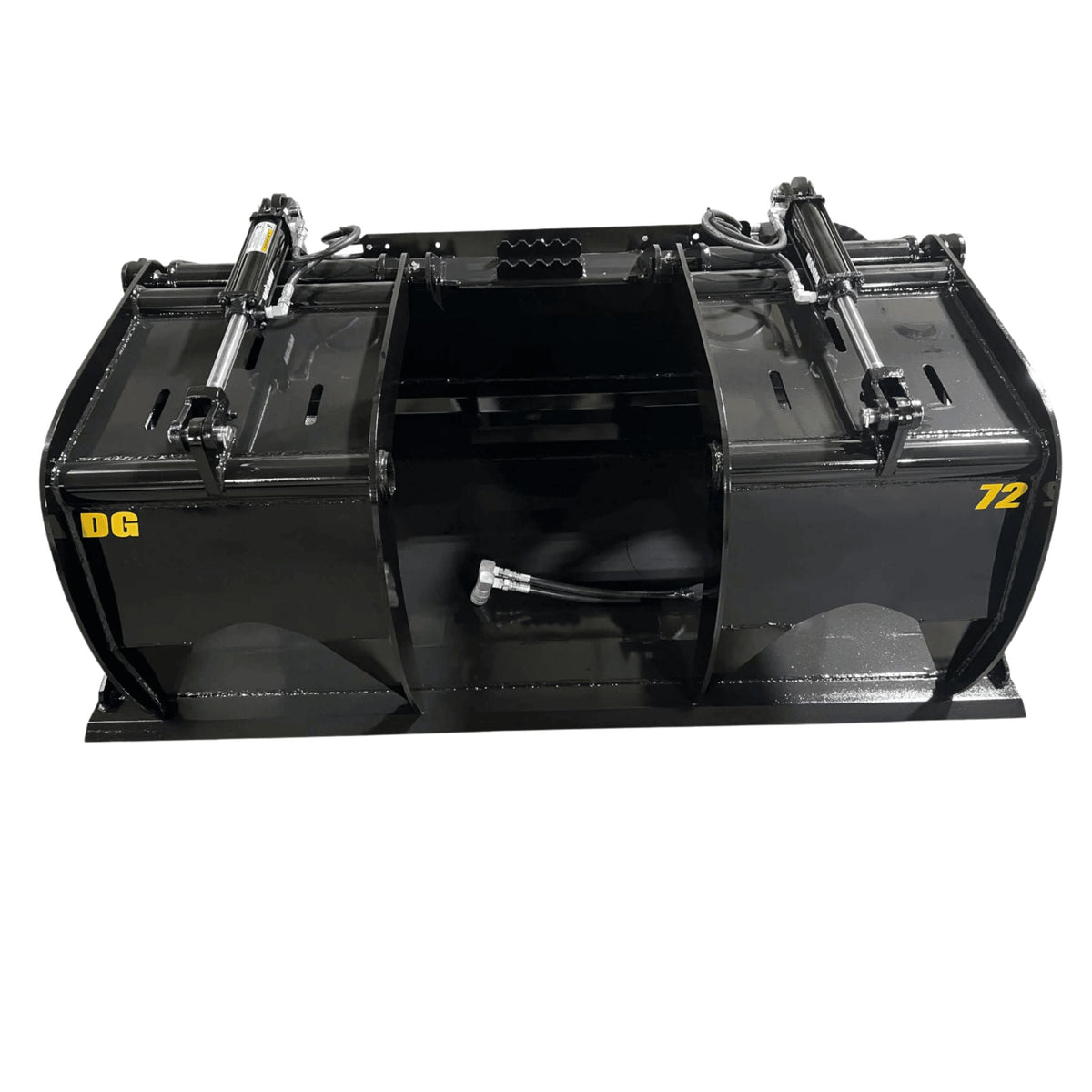

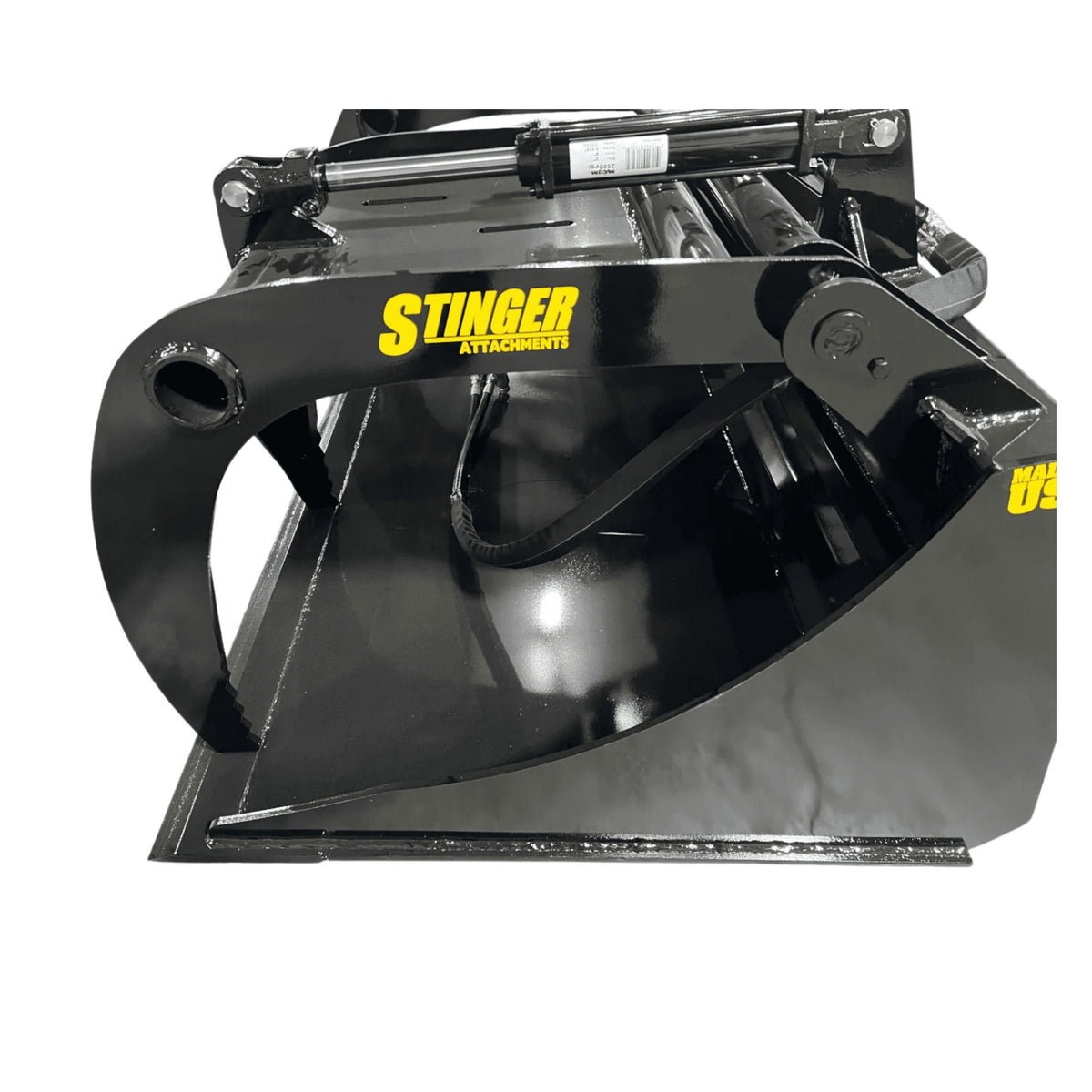

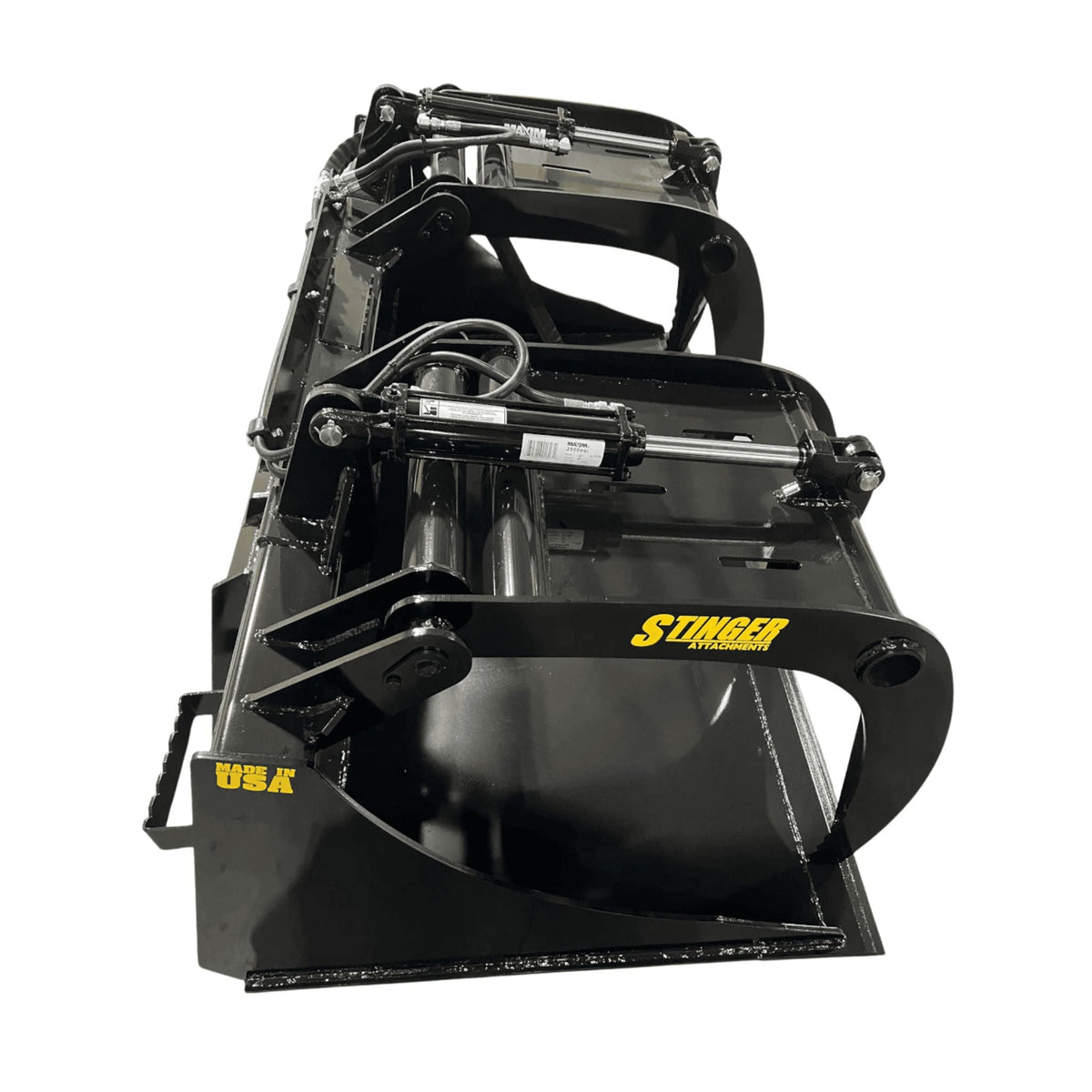

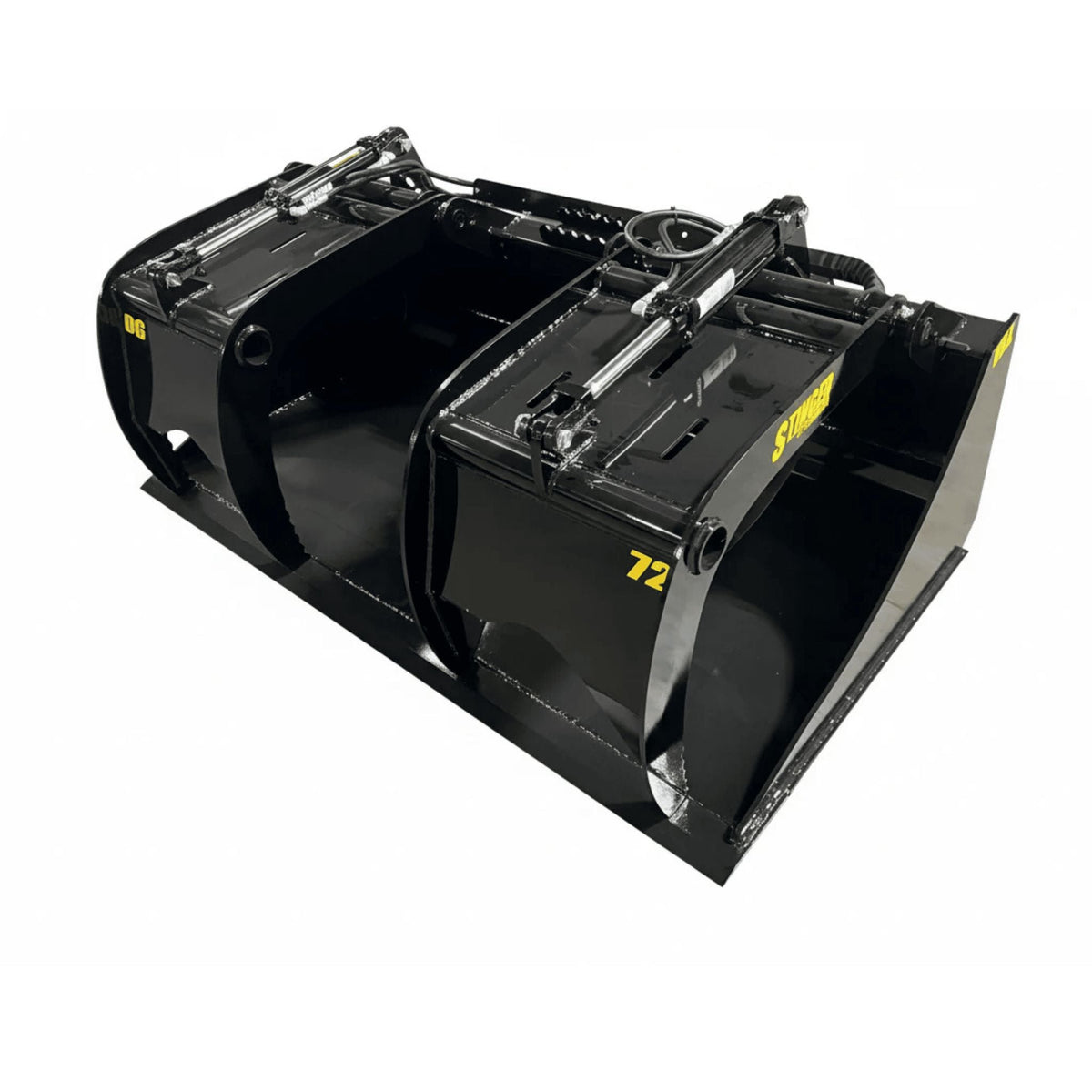

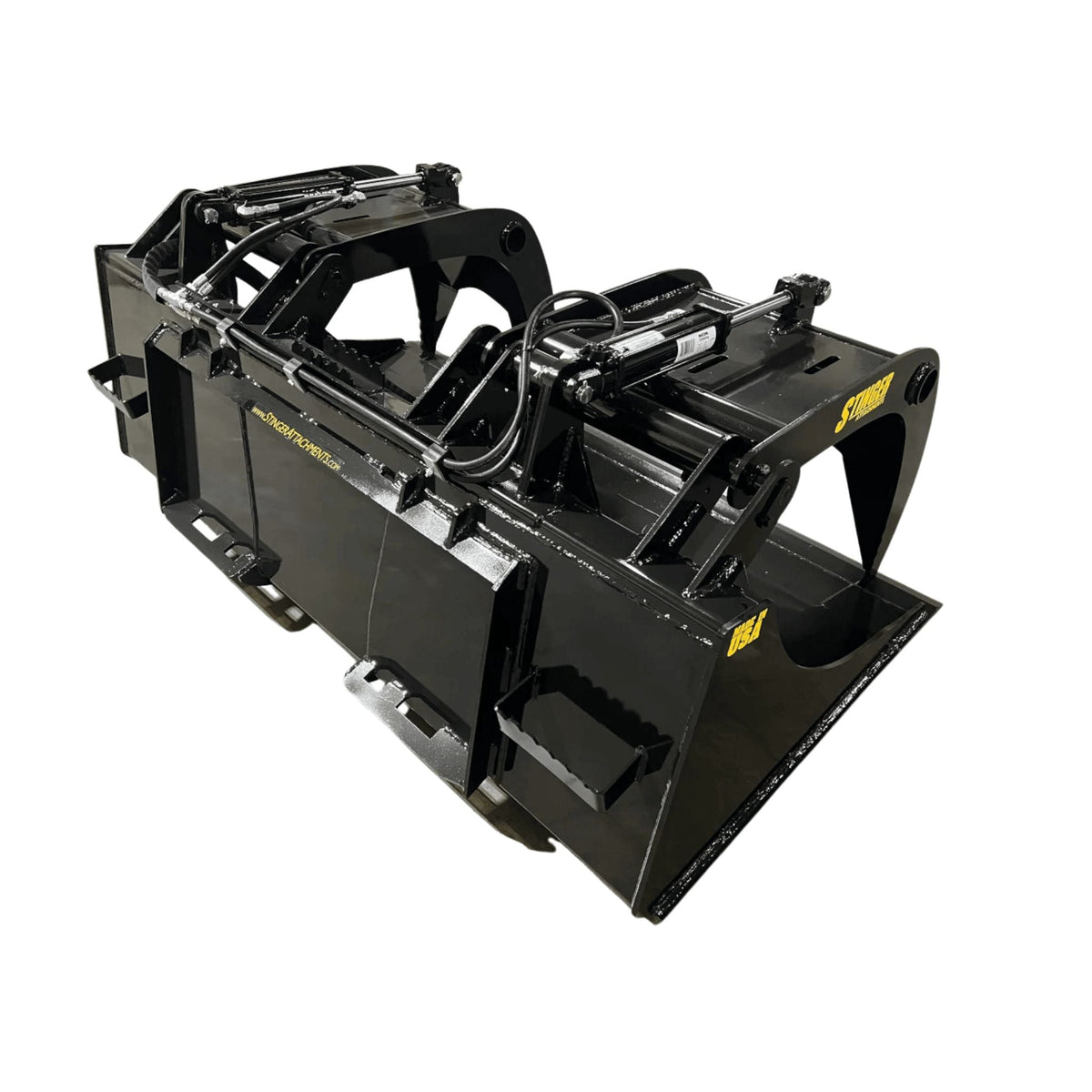

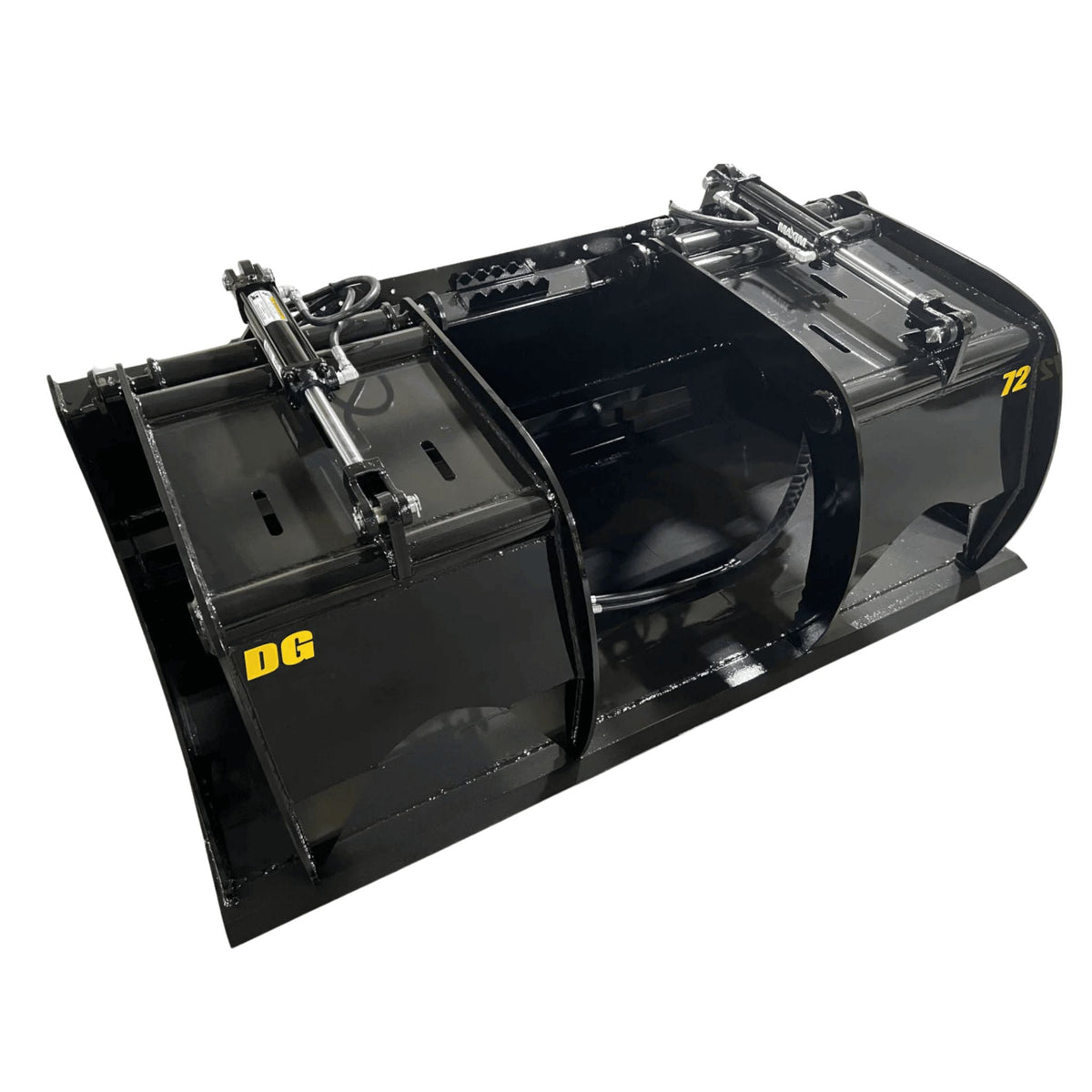

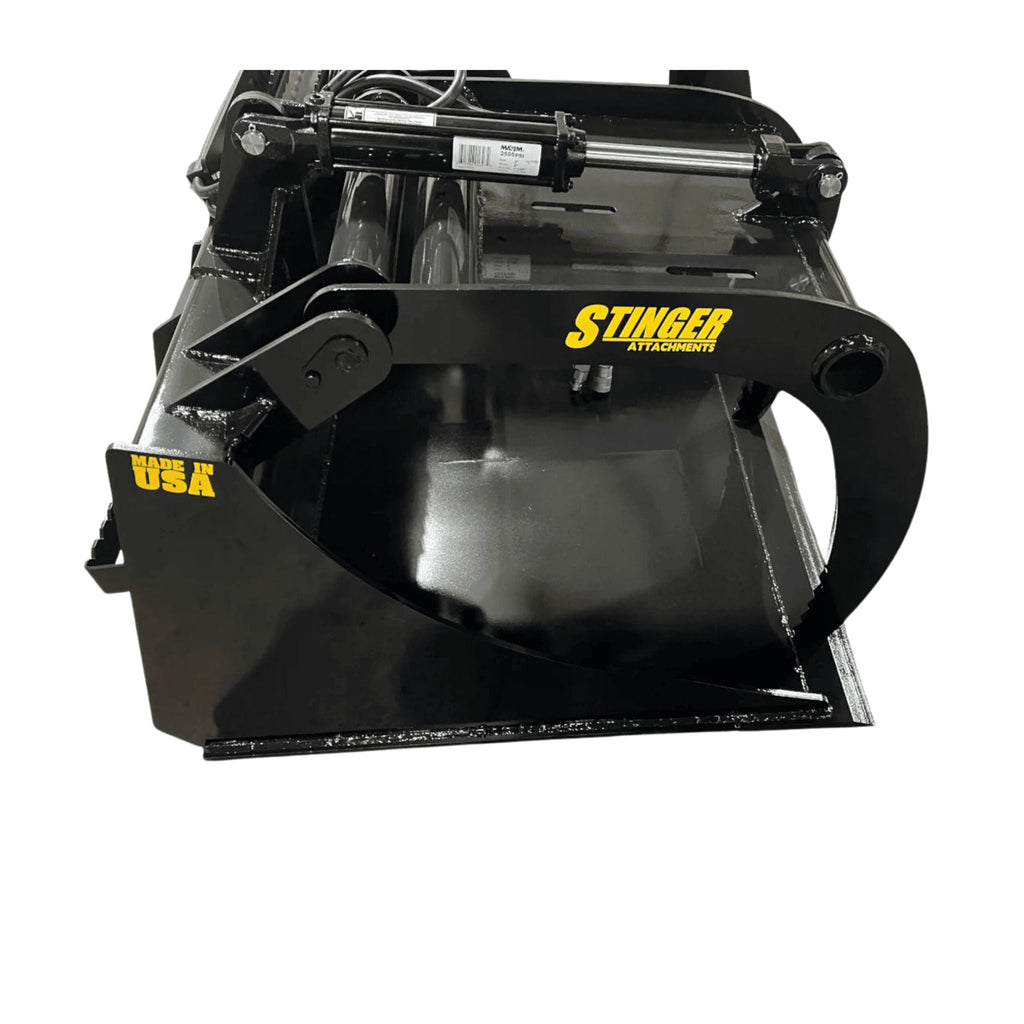

The Stinger DG Series Demolition Grapple is the ultimate hybrid between a dirt bucket and a grapple. Unlike skeleton grapples that let small material fall through, the DG features a **Solid Bottom Shell**. This allows you to scoop up fine debris, gravel, and trash while still using the powerful dual clamps to secure uneven loads like concrete slabs, logs, and scrap metal.
The "Rolled Insert" Advantage
Most scrap buckets fail at the back corner weld. Stinger eliminates this weak point by using a Rolled Radius Insert at the bottom of the shell. This curved design not only adds massive structural rigidity but also ensures sticky clay and wet debris slide out effortlessly—no more banging the bucket to shake loose mud.
⚙️ Technical Specifications
Steel Grade: Grade 50 Steel
Shell Thickness: 3/16" with Rolled Insert

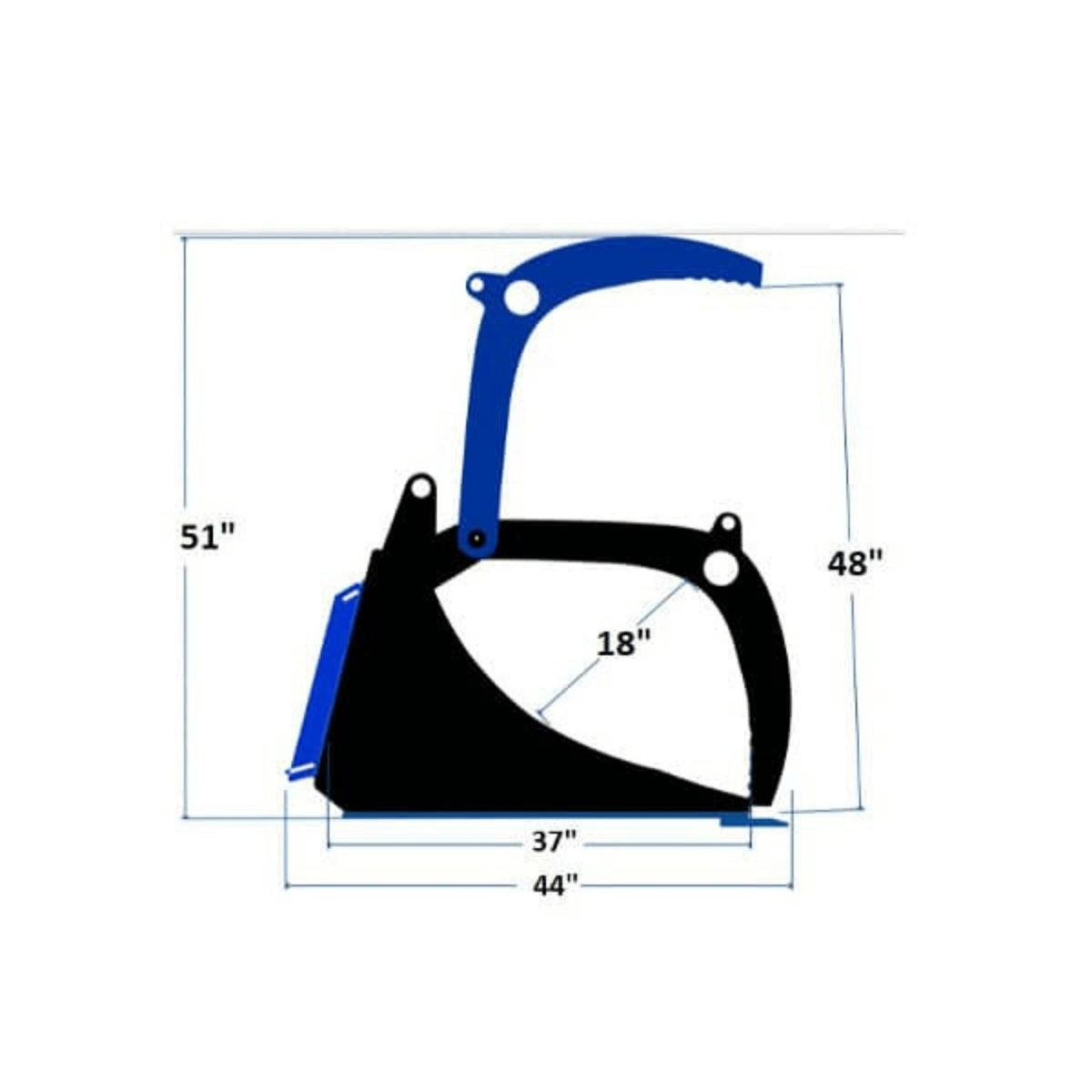

Grapple Opening: 45 Inches
Side Plates: 3/8" Curved (Log Clamping)
Cylinders: Twin 2" x 8" (2,500 PSI)
Standard Edge: 3/4" x 6" Weld-On
Optional Upgrade: Bolt-On Reversible Edge
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play
Hydraulics: Uses Standard Flow auxiliary hydraulics. Includes 1/2" Flat-Face Couplers (ISO 16028).
No Case Drain required.
Note: This bucket is designed for "Scrap & Demolition" use. While it can dig, it is optimized for scooping and clamping loose material.
✅ Machine Compatibility
1. Mount Type:

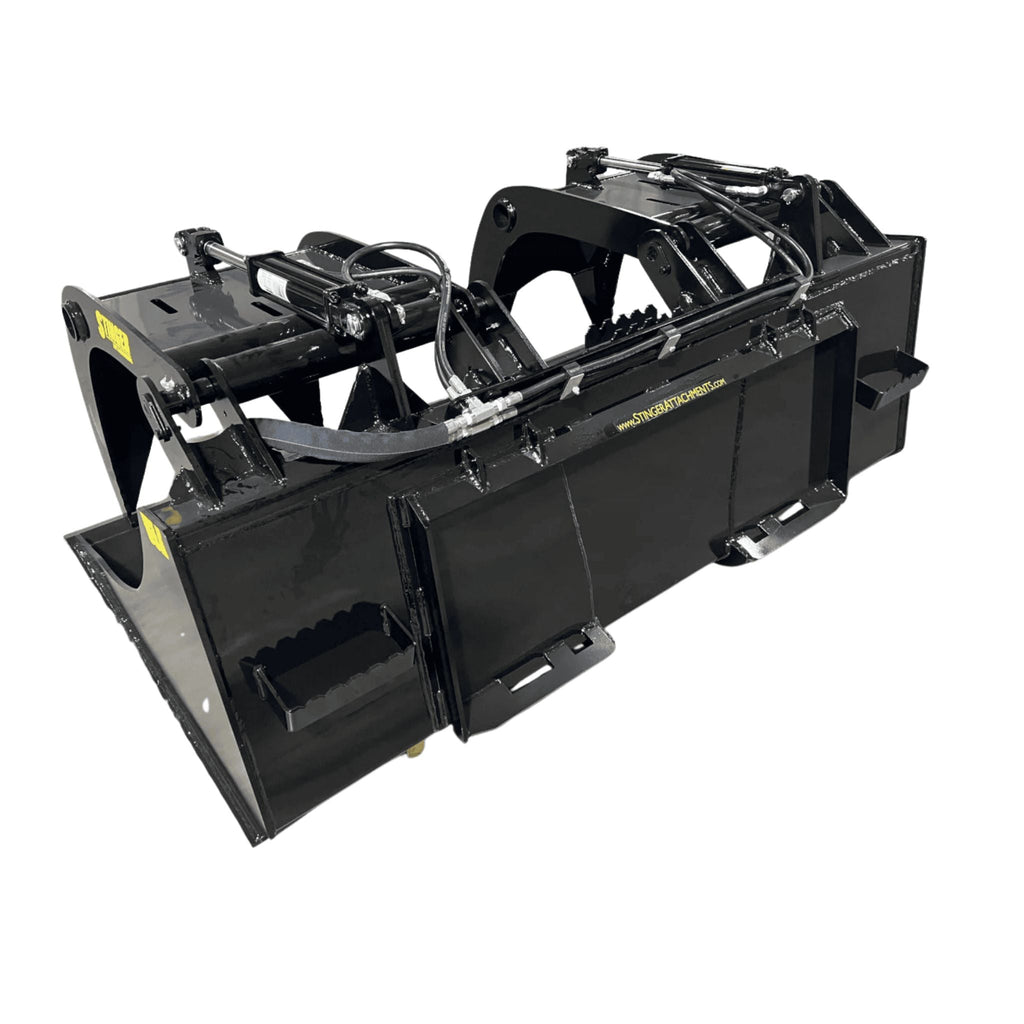

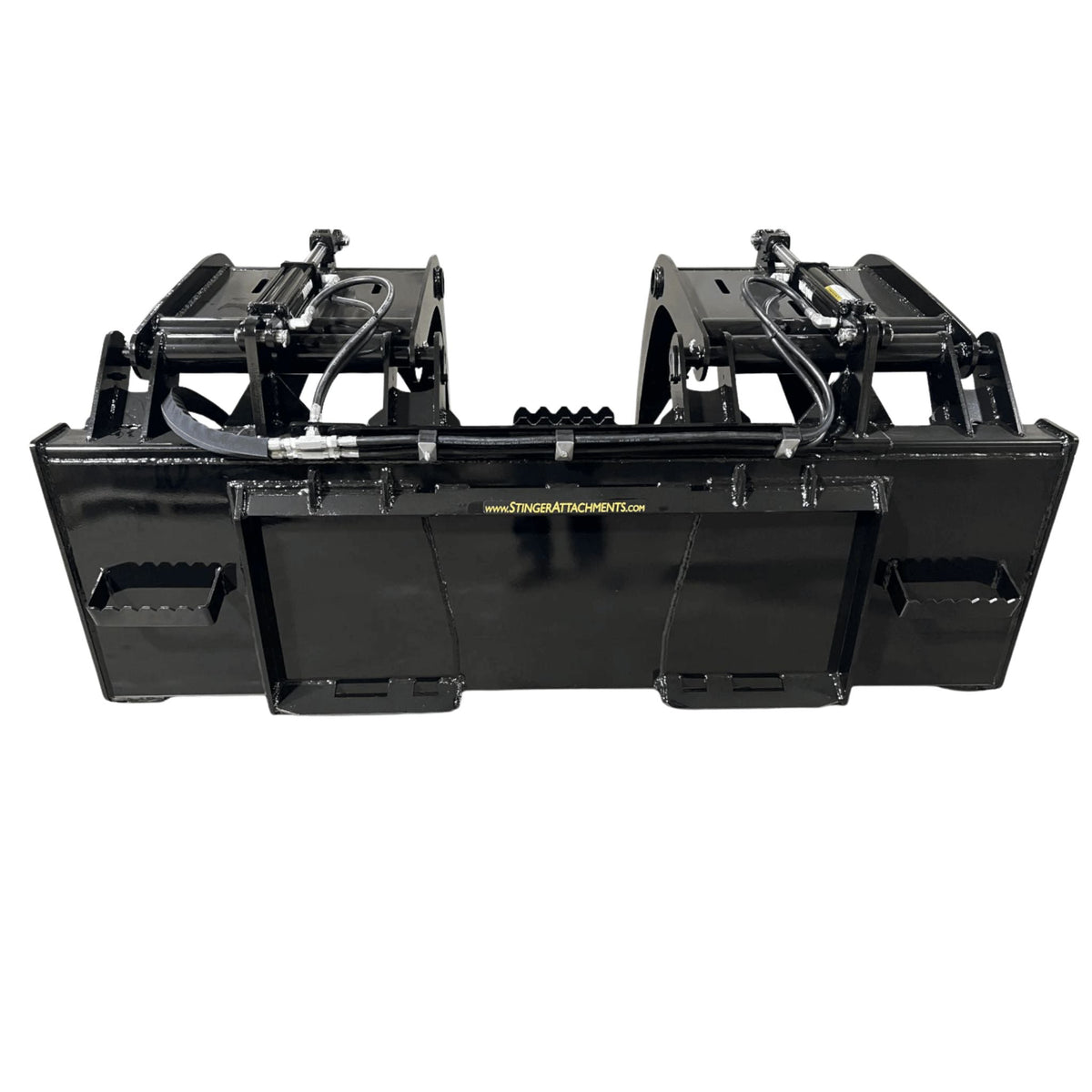

Universal Quick Attach (SSQA). Fits all standard skid steers and track loaders.
2. Size Recommendation:
60" - 66": Ideal for small-to-mid frame machines (e.g., Bobcat S570).
72" - 84": Ideal for large frame track loaders (e.g., Kubota SVL97).
3. Confirmed Fitment:
- Kubota: SSV65, SSV75, SVL75-2, SVL95-2.
- Bobcat: S590, S650, T650, T770.
- CAT: 259D, 279D, 289D, 299D3.
- John Deere: 317G, 320G, 331G, 333G.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 2500 PSI |
| Operating Weight | 905 lbs |
| Grapple Opening | 45.0 in |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 3/16" |
