The Commercial Beast

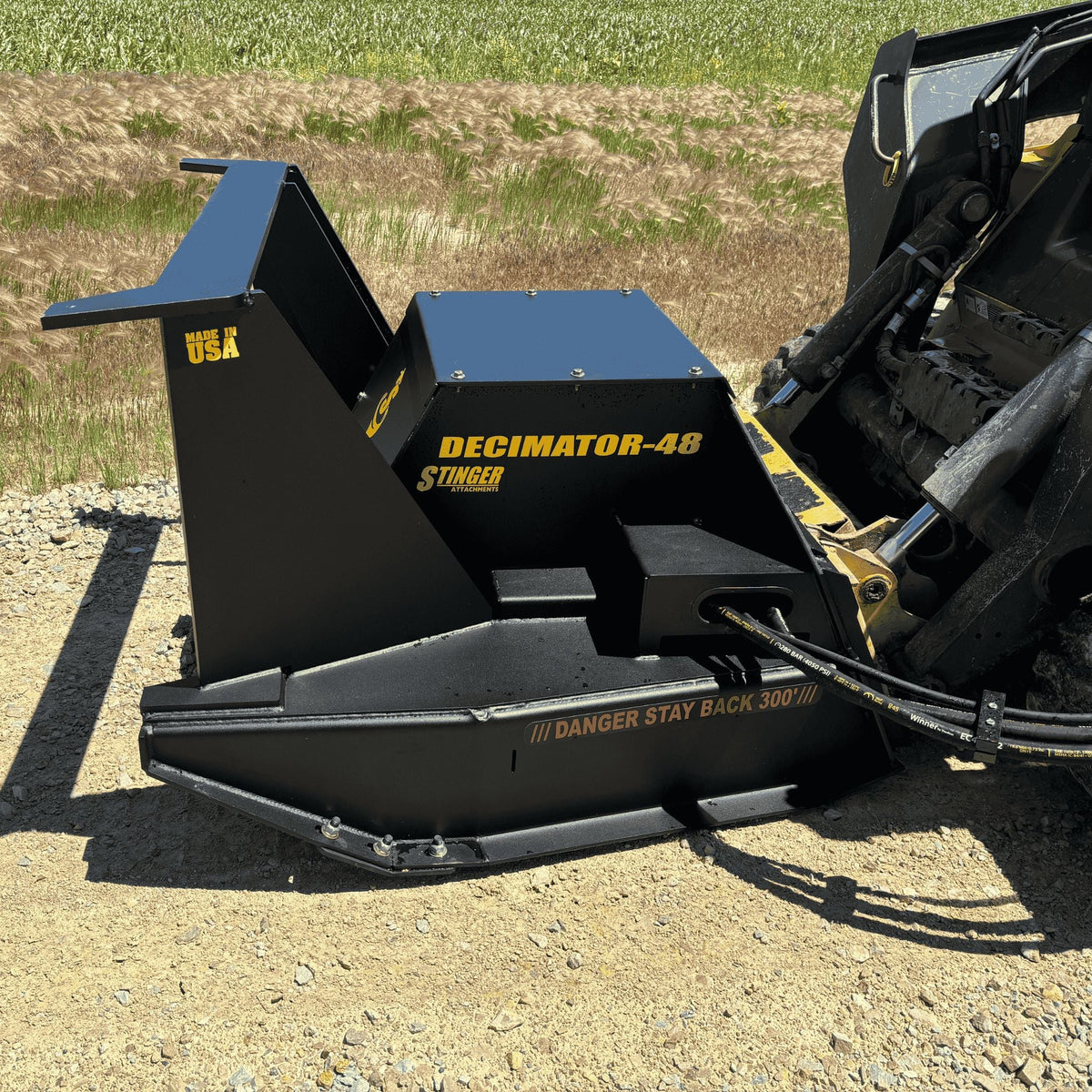

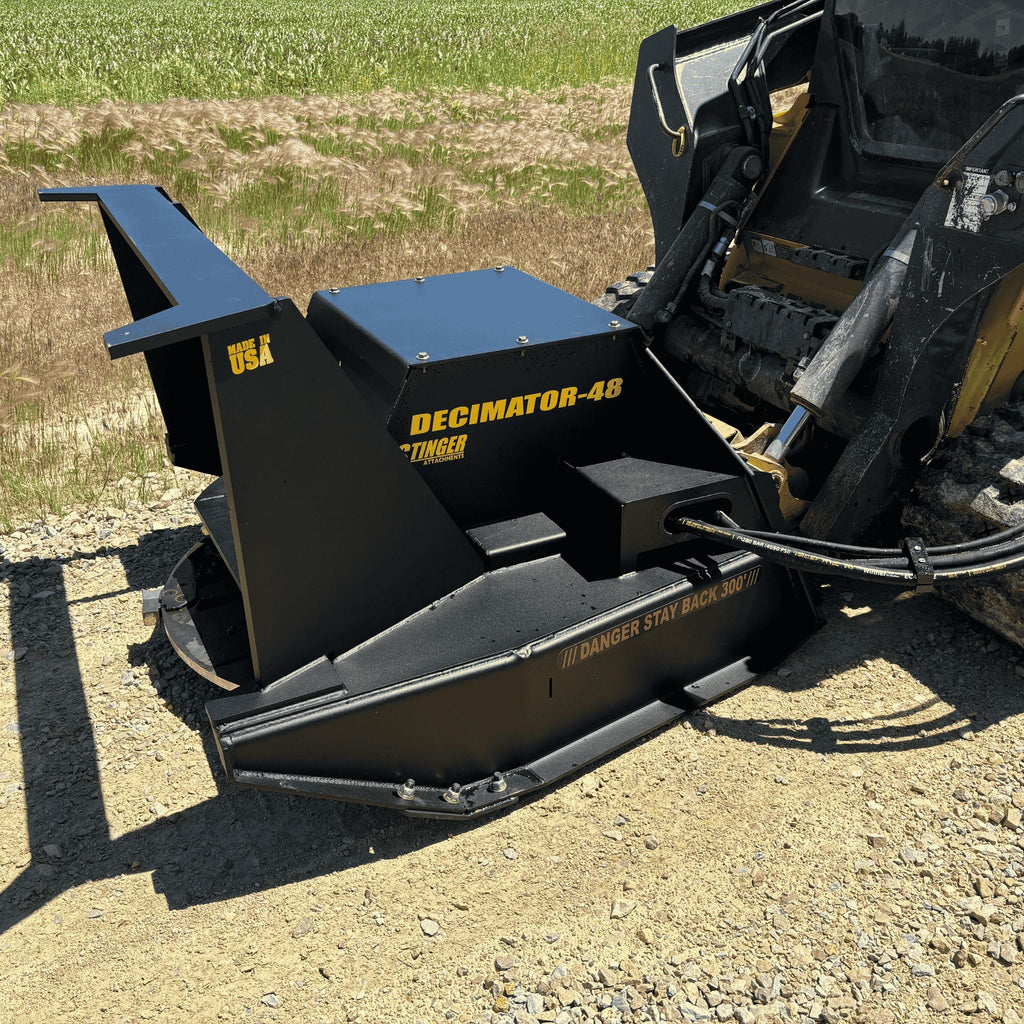

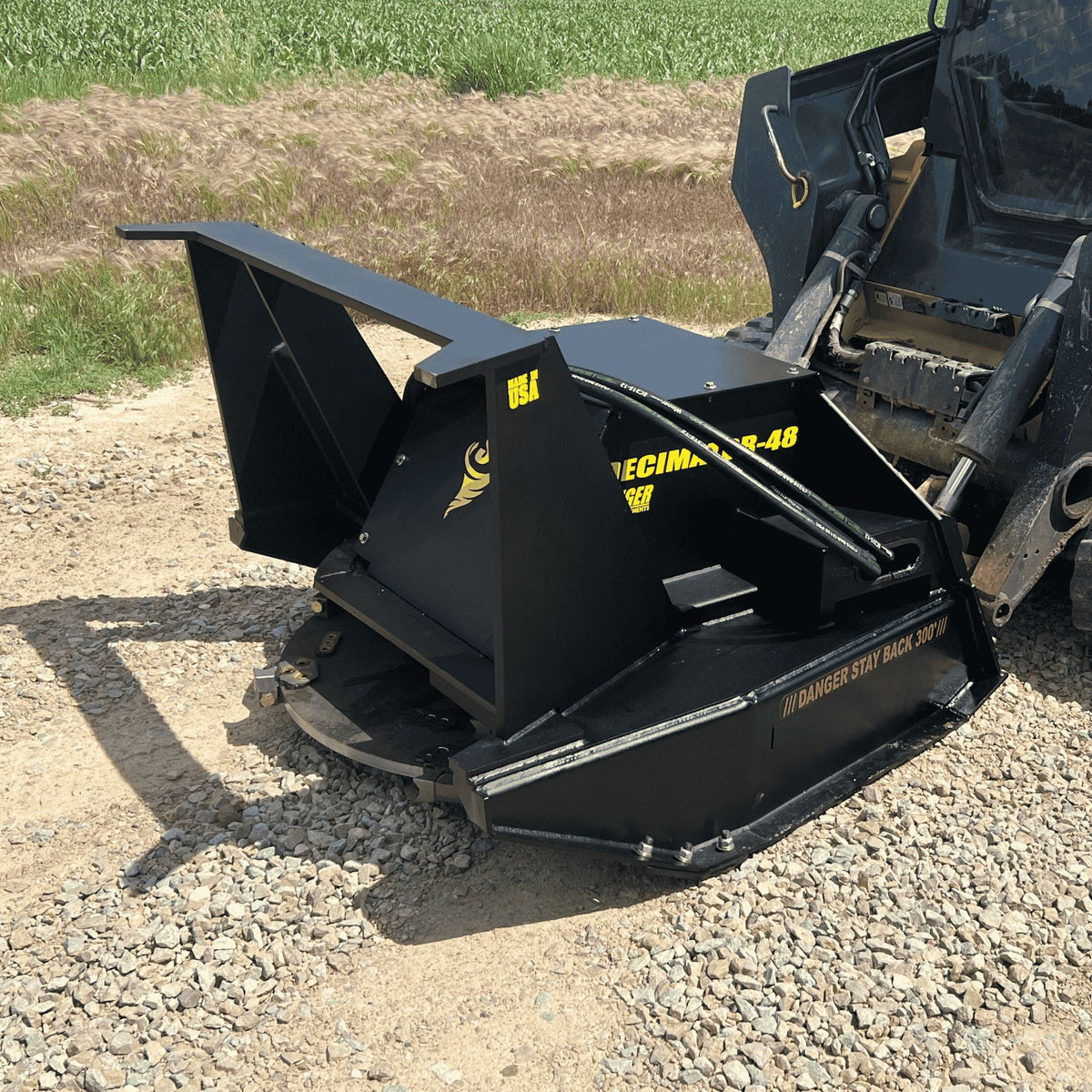

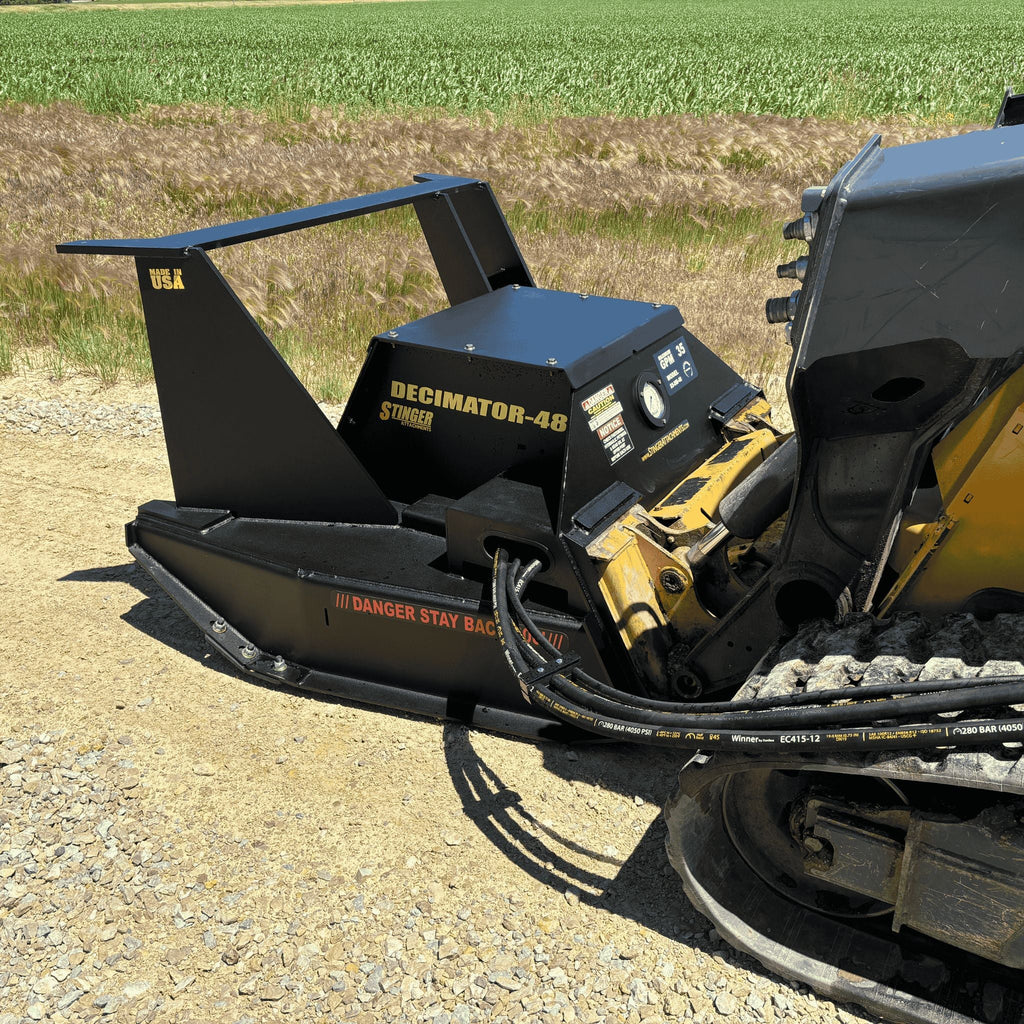

The Stinger Decimator is an extreme-duty forestry disc mulcher designed for professional land clearing operations. Rated to process 14-inch diameter material, this unit turns large trees into mulch in seconds, making it the ultimate tool for right-of-way clearing and fire prevention.
The Build
Weighing in at over 2,350 lbs, the Decimator is built for punishment. It features a 1-inch thick AR400 Blade Holder and a 3/8" thick steel deck. Power is delivered by a Direct Drive Piston Motor, ensuring maximum torque efficiency without the maintenance headaches of belt drives or gearboxes.
⚙️ Technical Specifications
Cut Capacity: 14" Diameter Trees

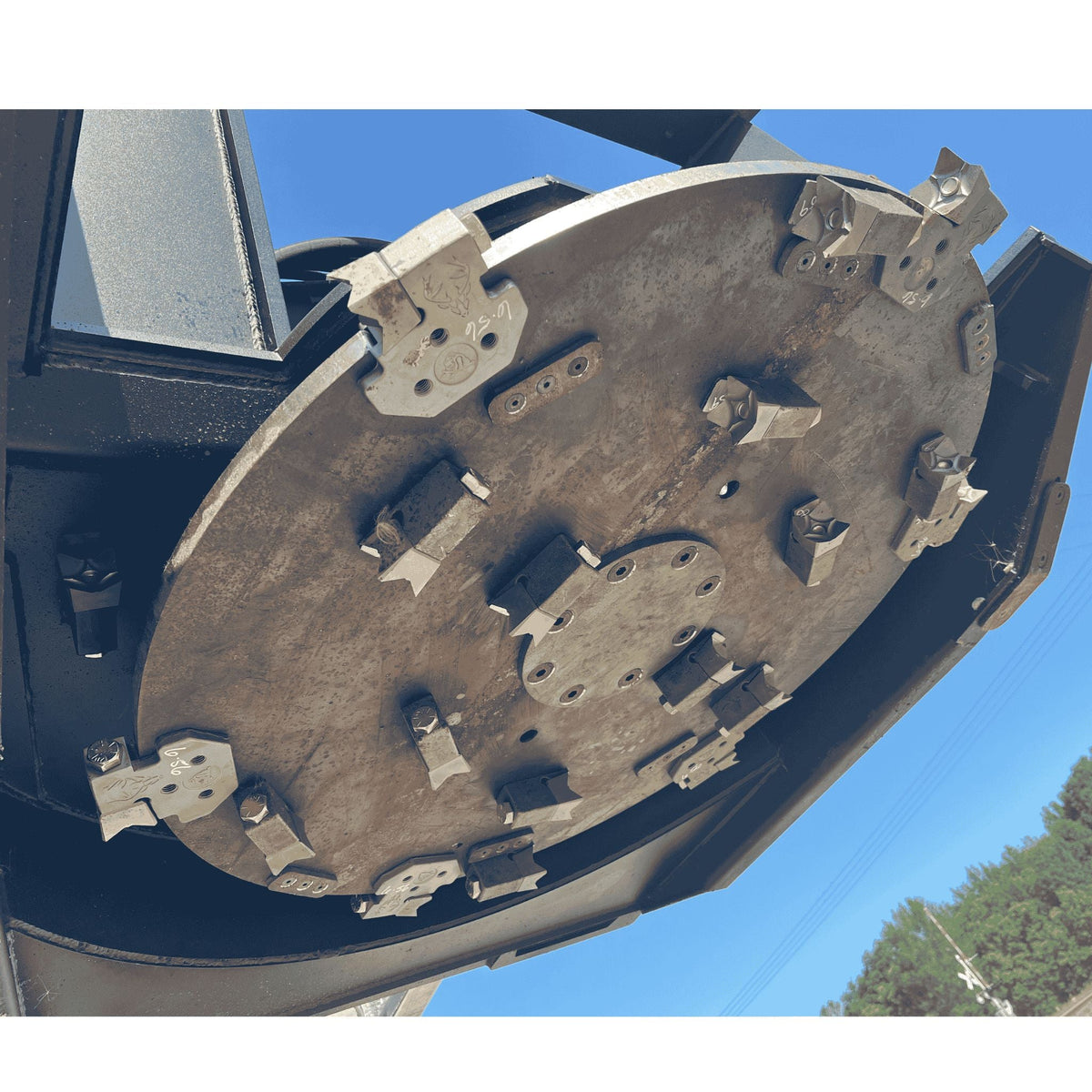

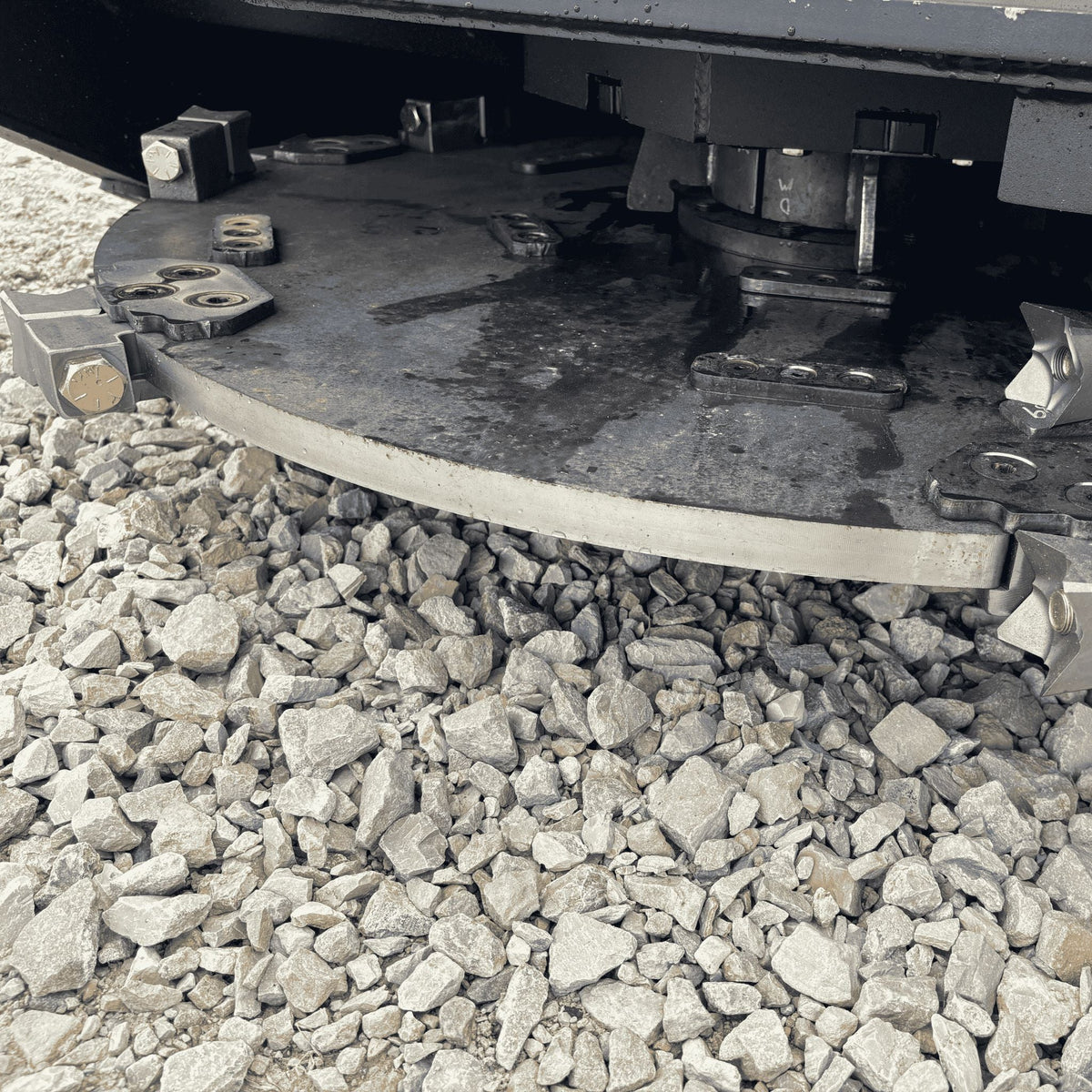

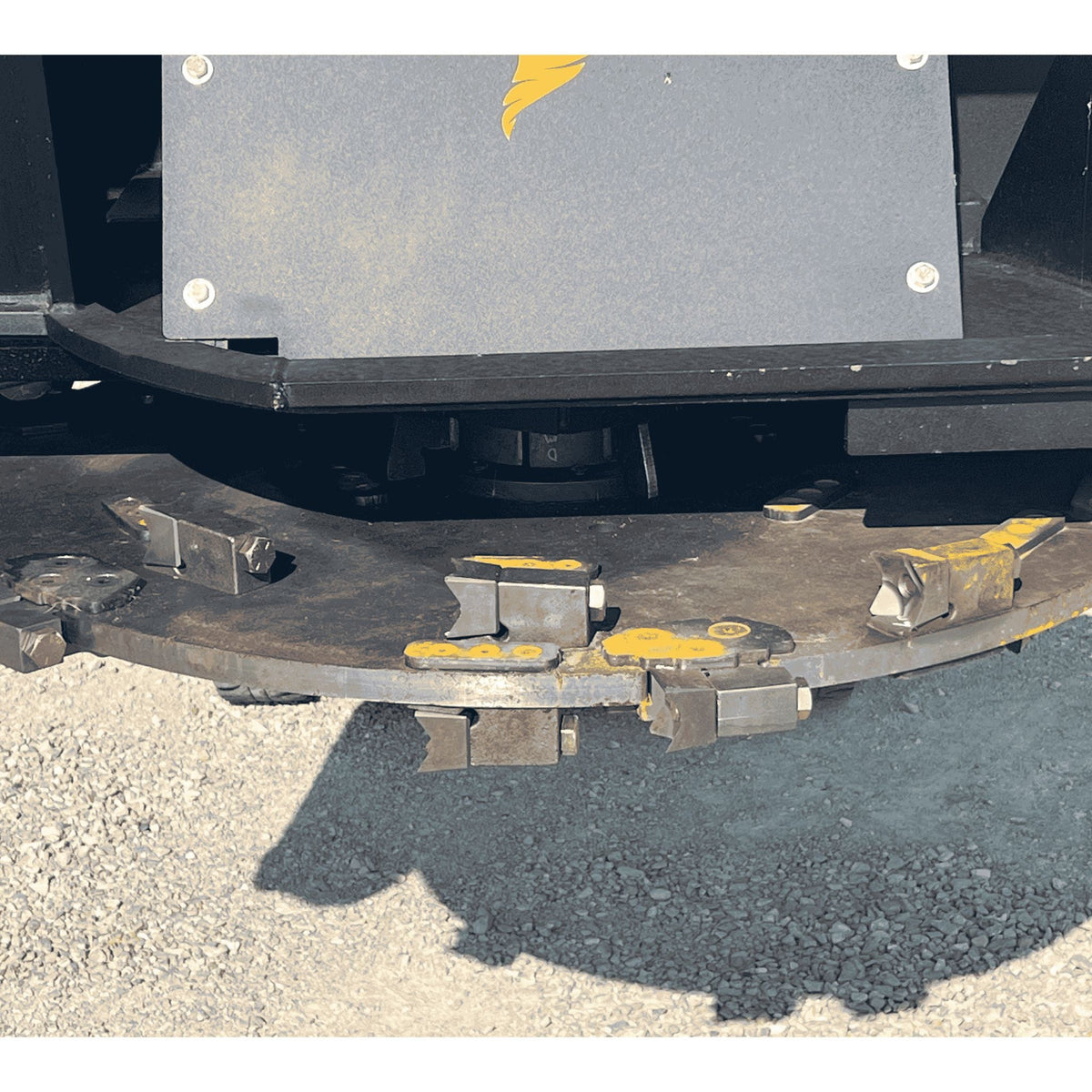

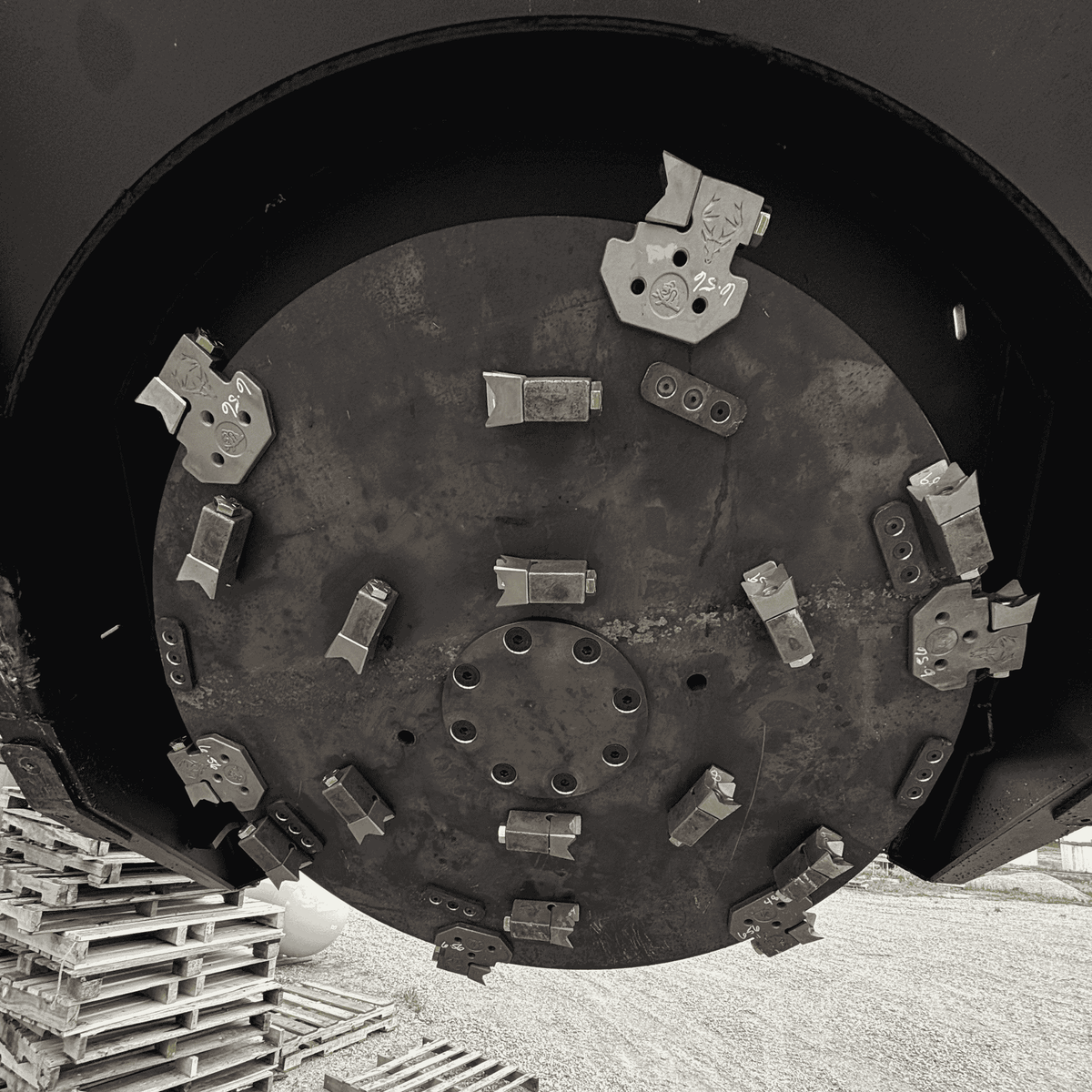

Blade Holder: 1" Thick AR400 (Round Design)

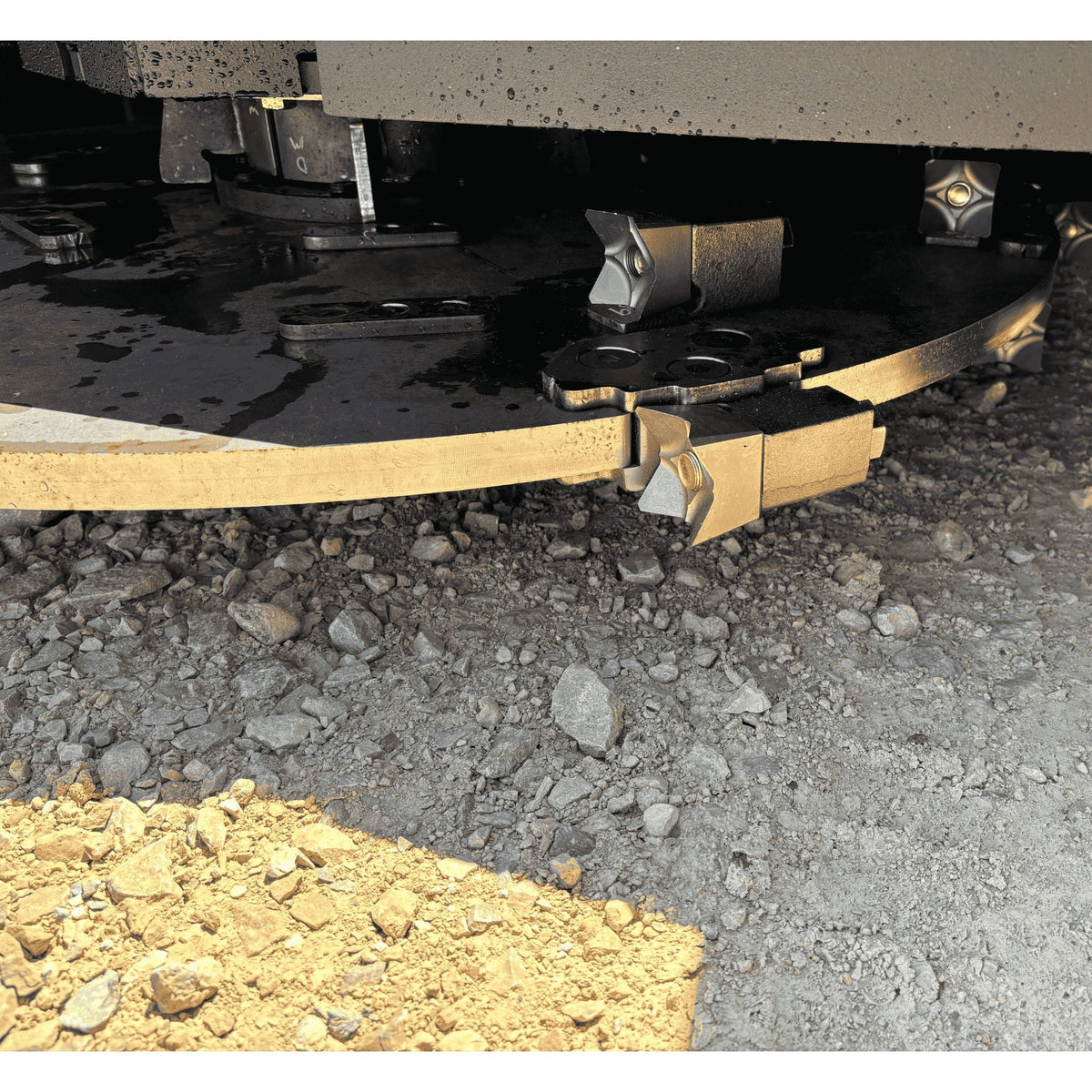

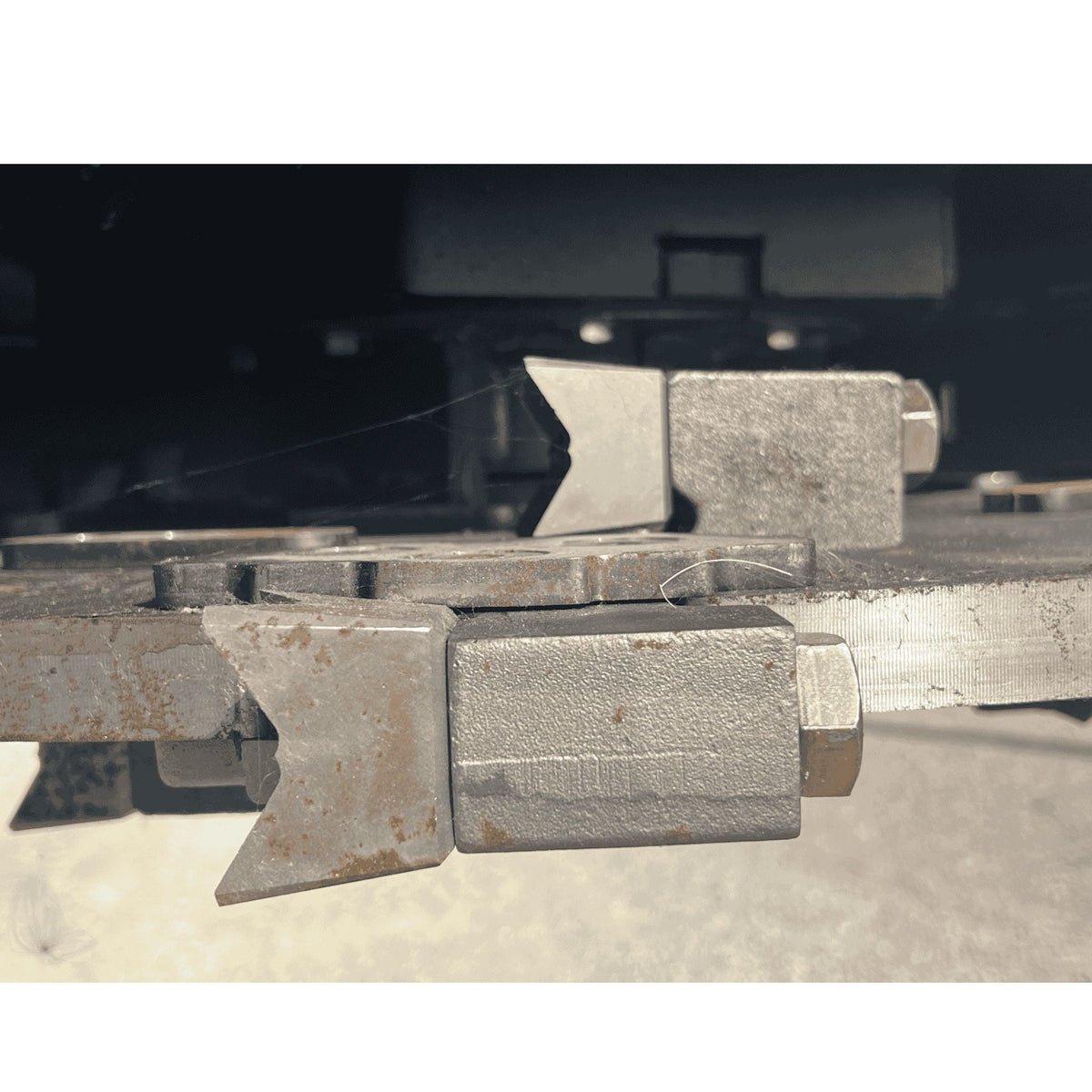

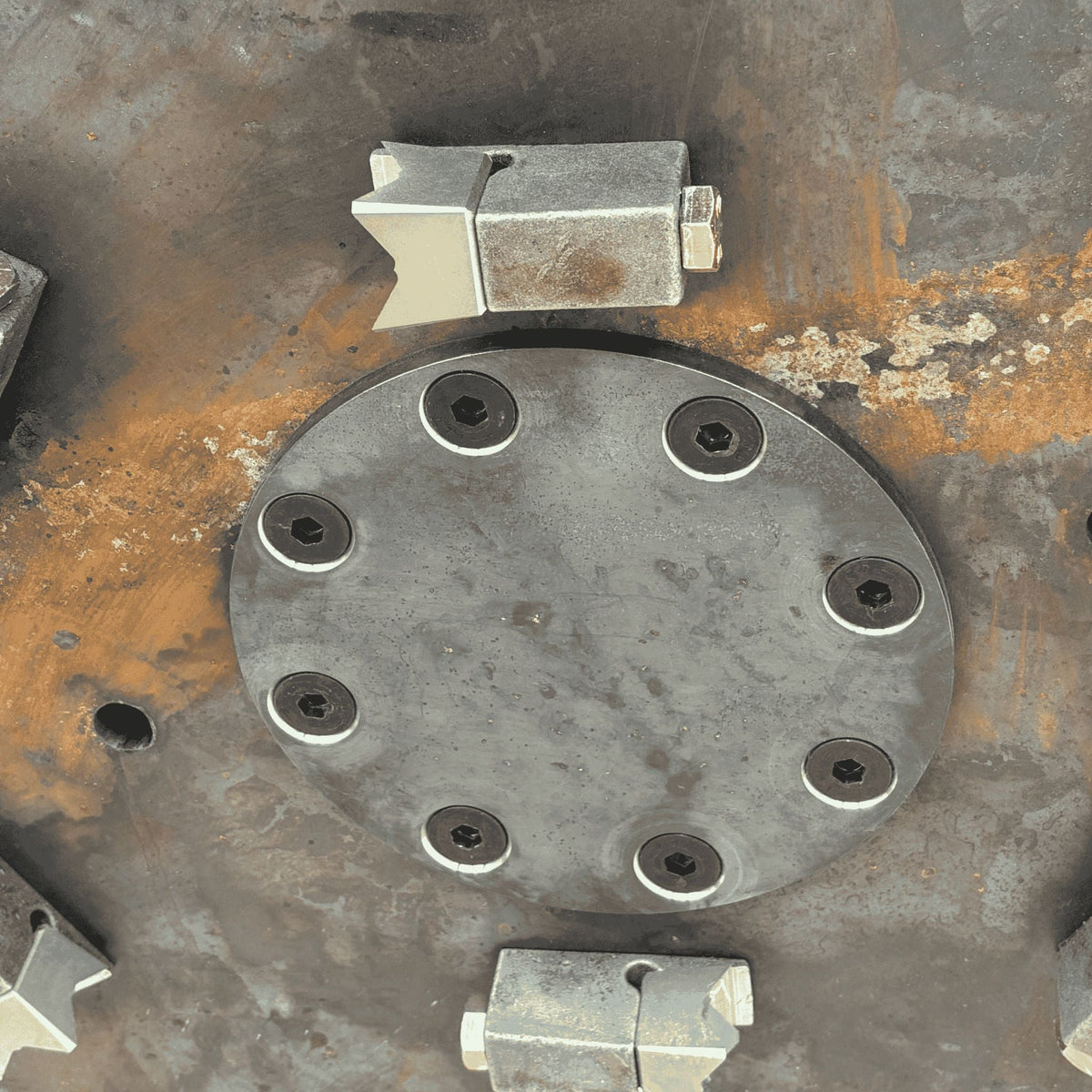

Teeth: Steel/Carbide Mining Teeth (Replaceable)
Motor Tech: Direct Drive Piston Motor
Deck Thickness: 3/8" Steel
Warranty: 1-Year Commercial
⚠️ Setup Requirement: Case Drain
This Piston Motor uses a Case Drain (3rd line) to relieve internal pressure.
To protect the motor seals, this line must be connected to your machine's Case Drain coupler (Direct-to-Tank).
Note: Failure to connect this line will instantly destroy the motor and is not covered by warranty.
✅ Machine Compatibility
1. Weight Requirement (Critical):
Machine must have a Rated Operating Capacity (ROC) of 2,500 lbs or greater.
(Warning: This unit weighs 2,350+ lbs. Counterweights or rear ballast are highly recommended).
2. Hydraulic Check:

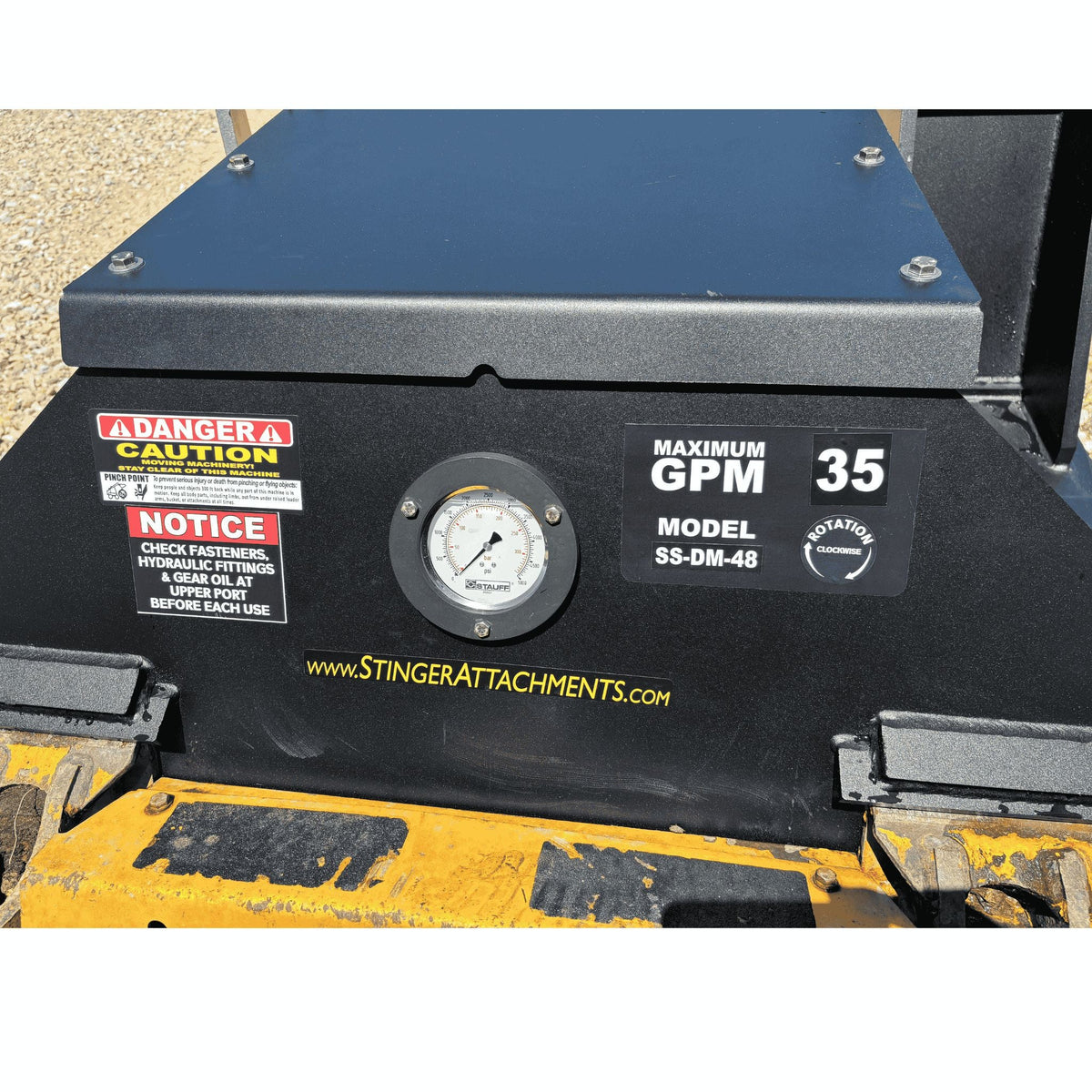

48" Model: 17 - 35 GPM (Standard or High Flow).
60" Model: 35 - 45 GPM (High Flow Only).
3. Confirmed Series Fitment (Large Frame Only):
- Kubota: SVL95-2, SVL97-2. (Not recommended for SVL75).
- Bobcat: T770, T870, S850.
- CAT: 279D3, 289D3, 299D3 (XE Recommended).
- John Deere: 331G, 333G.
- Case: TV450B, TV620B.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year |
| Required Flow Rate | 17 - 45 GPM |
| Max Operating Pressure | 4000 PSI |
| Operating Weight | 2350 lbs |
| Cut Capacity | 14.0 in |
| Material Thickness | 3/8" |
