Description
The Payloader Powerhouse

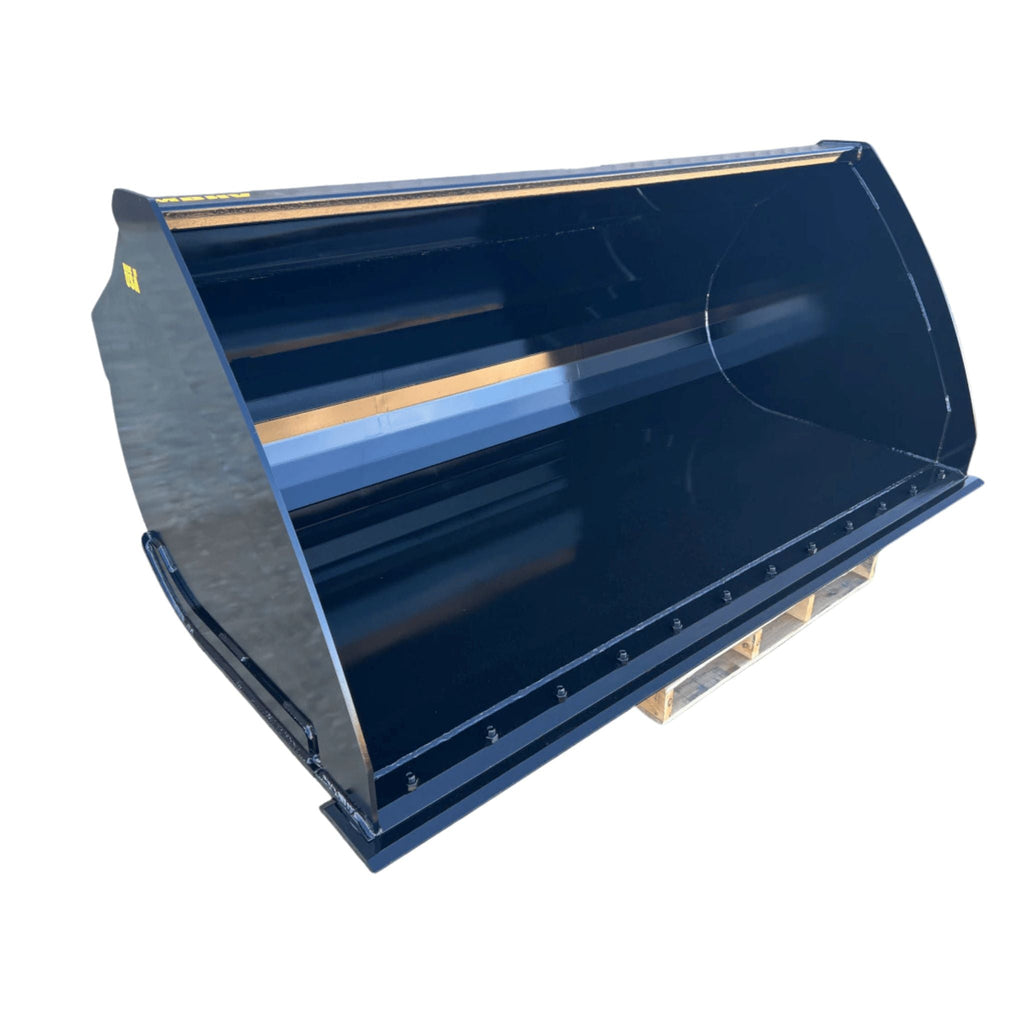

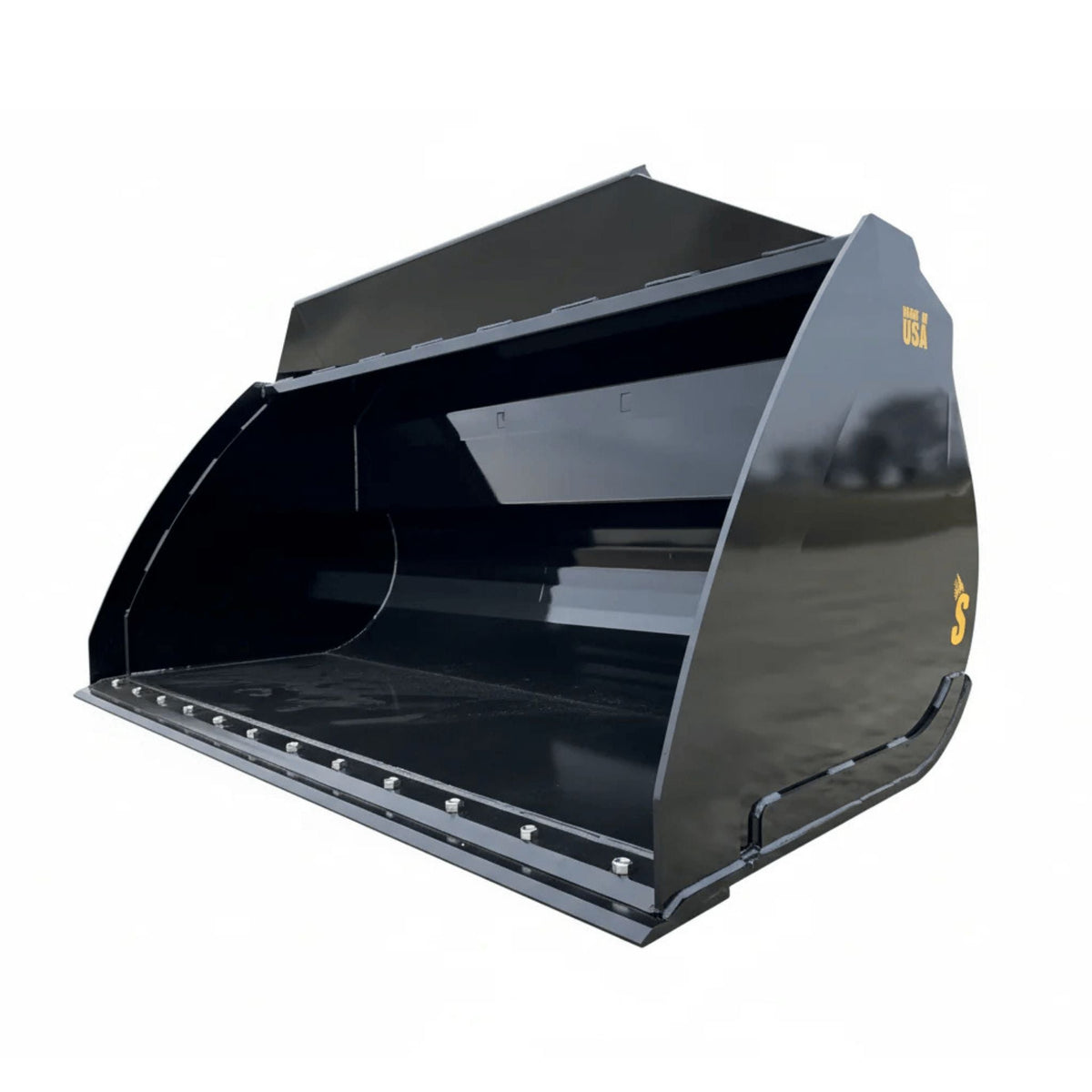

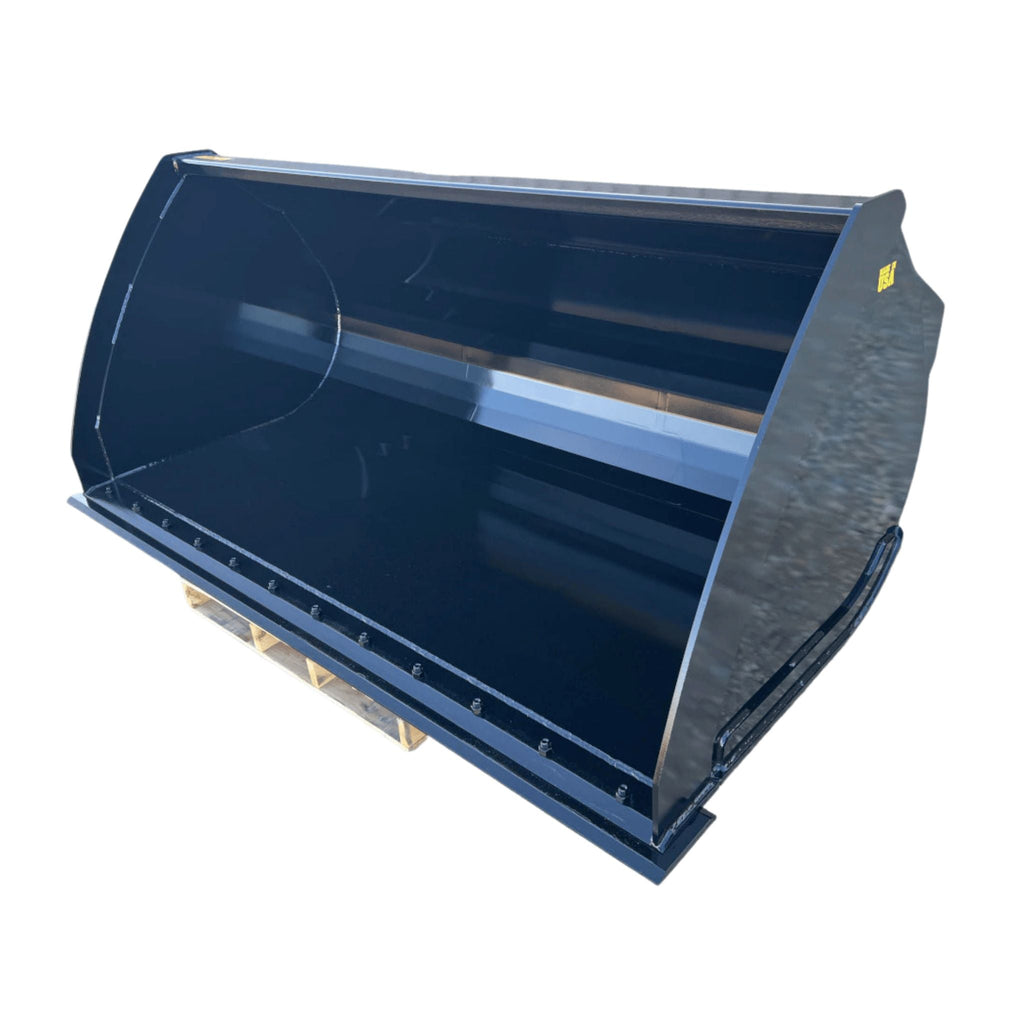

The Stinger MBC Series is built for the "Big Iron." Designed specifically for Medium-to-Large Wheel Loaders, this bucket moves massive amounts of material efficiently. Whether you are loading trucks in a quarry, managing a feedlot, or clearing municipal snow, the MBC delivers the capacity and durability required for 24/7 commercial use.

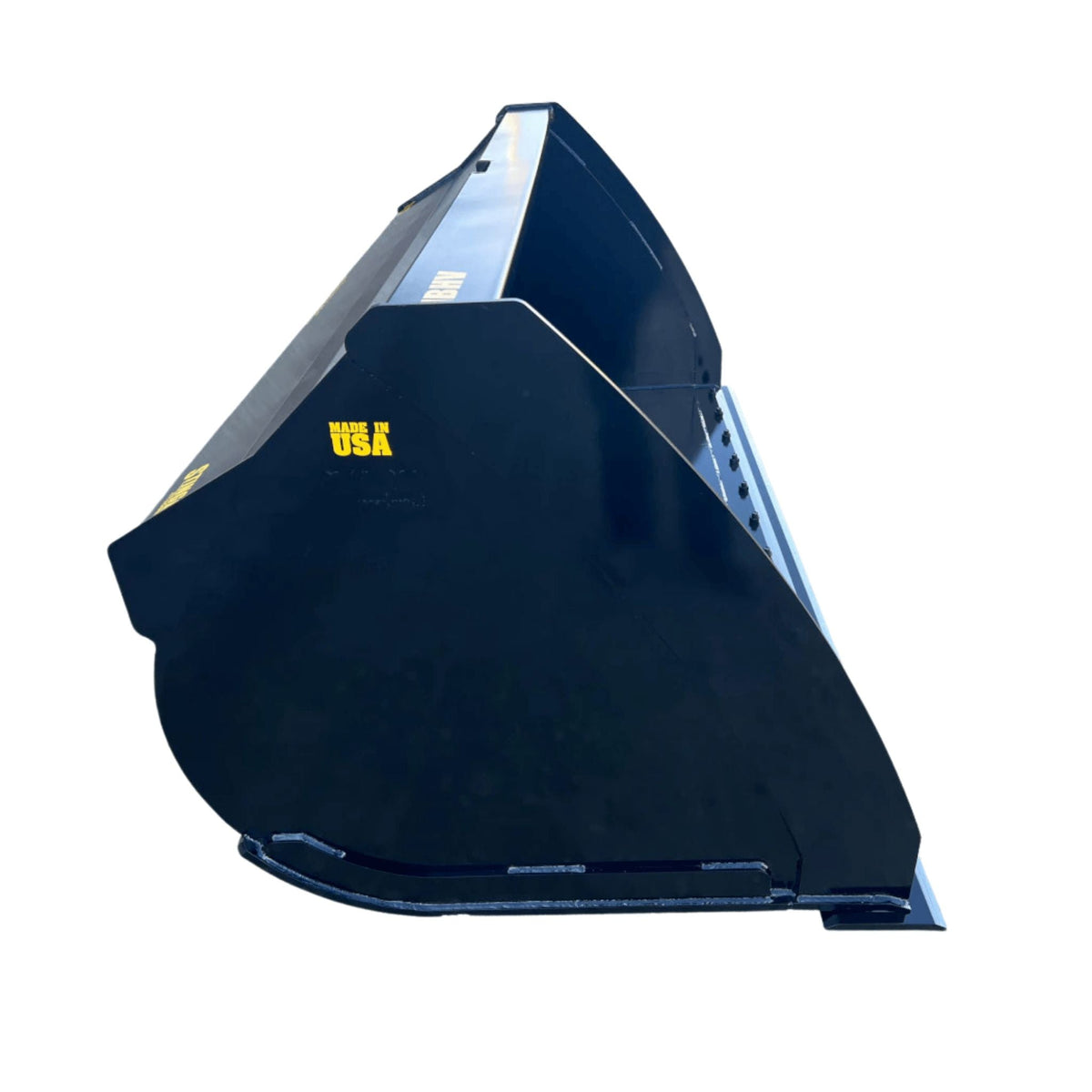

Construction-Grade Reinforcement

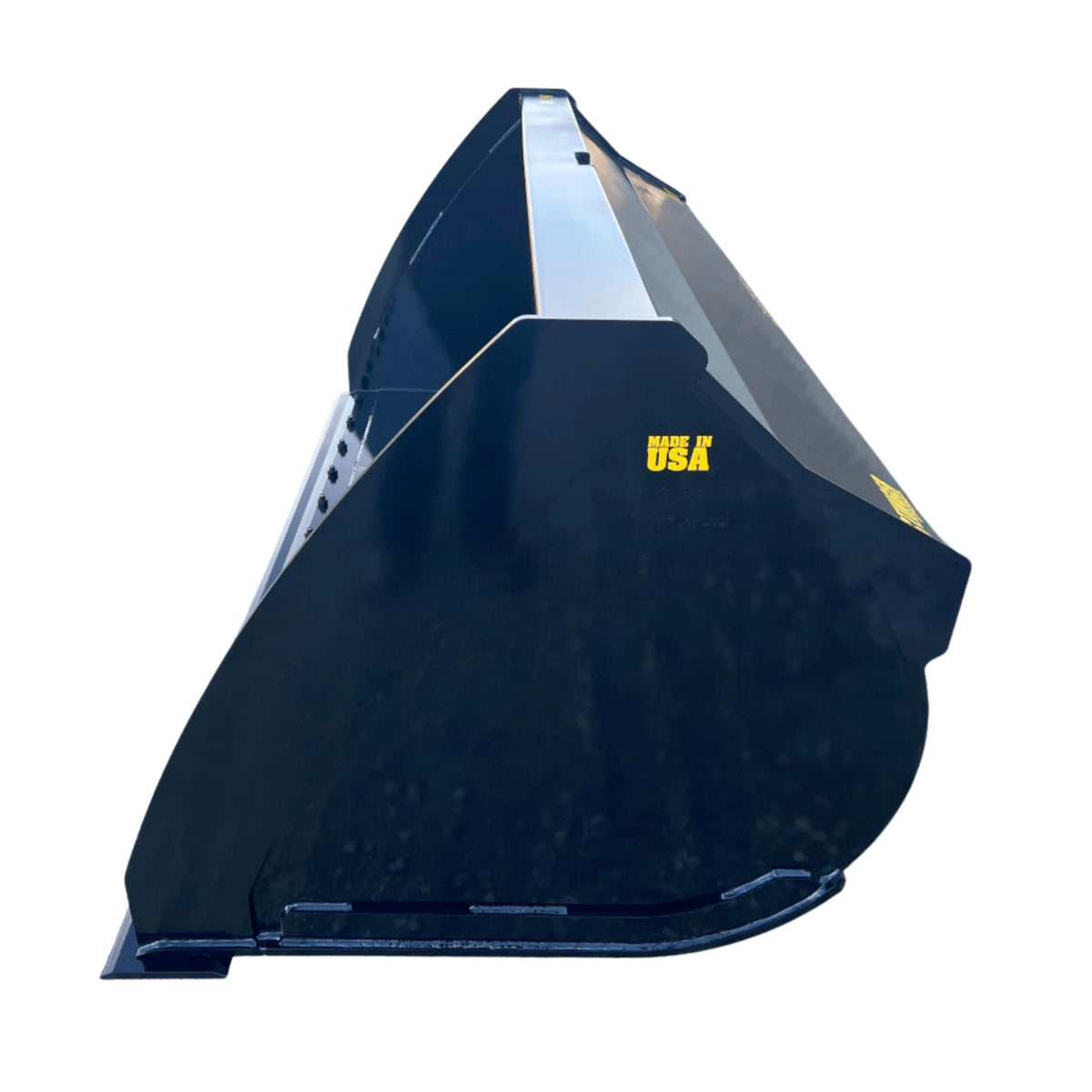

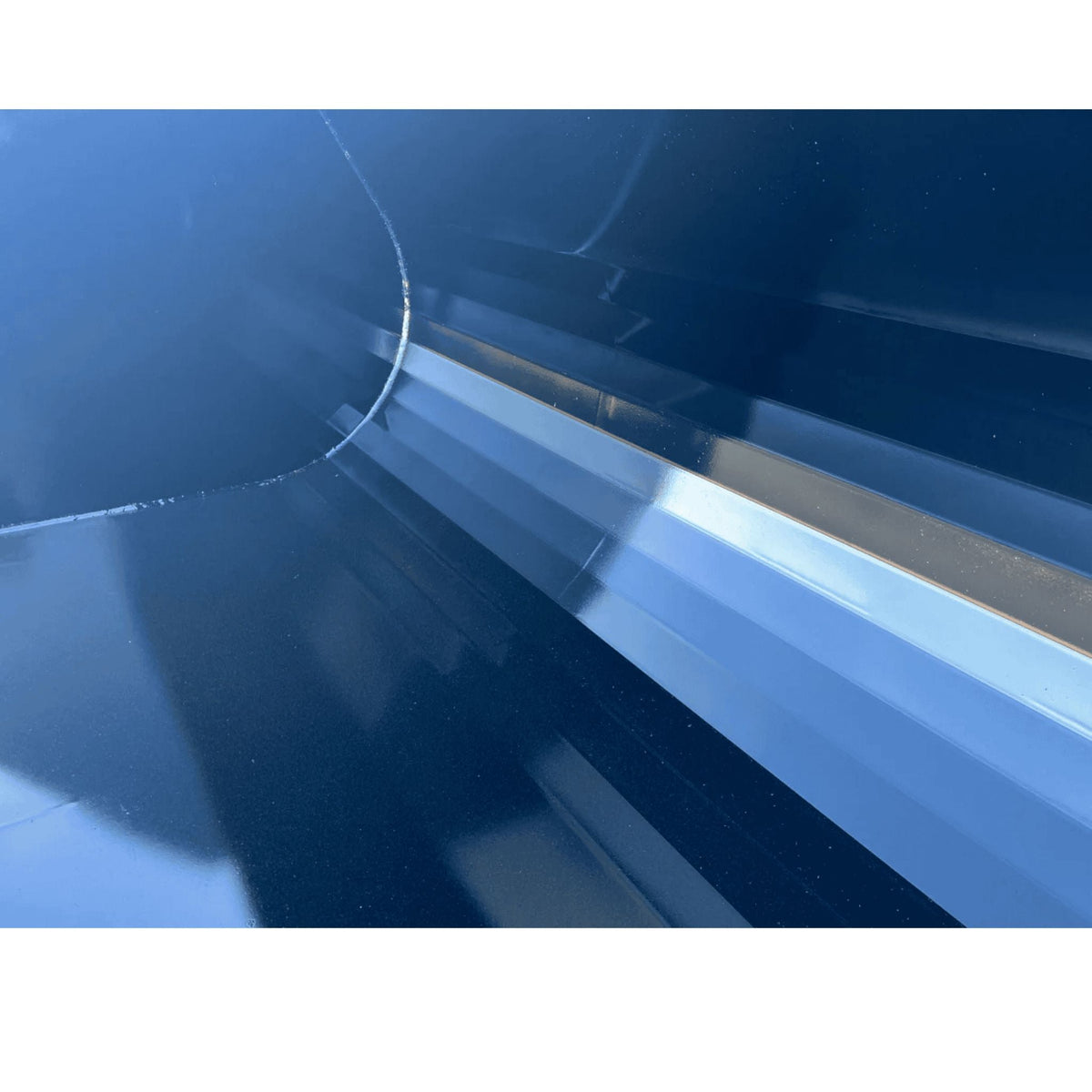

This is significantly heavier than a skid steer bucket. The MBC features a 1/4" Grade 50 Shell reinforced with 1/2" Thick Side Plates and a 2"x6" top tube. The underside is armored with massive 3/4" Thick Wear Bars (Standard buckets use 1/2"), ensuring long life even on abrasive concrete or asphalt surfaces.
⚙️ Technical Specifications
Machine Class: Wheel Loader / Payloader
Capacity Range: 2.0 cu yd – 3.5 cu yd
Wear Bars: 3/4" Thick Hardened Steel
Side Plates: 1/2" Thick Plate

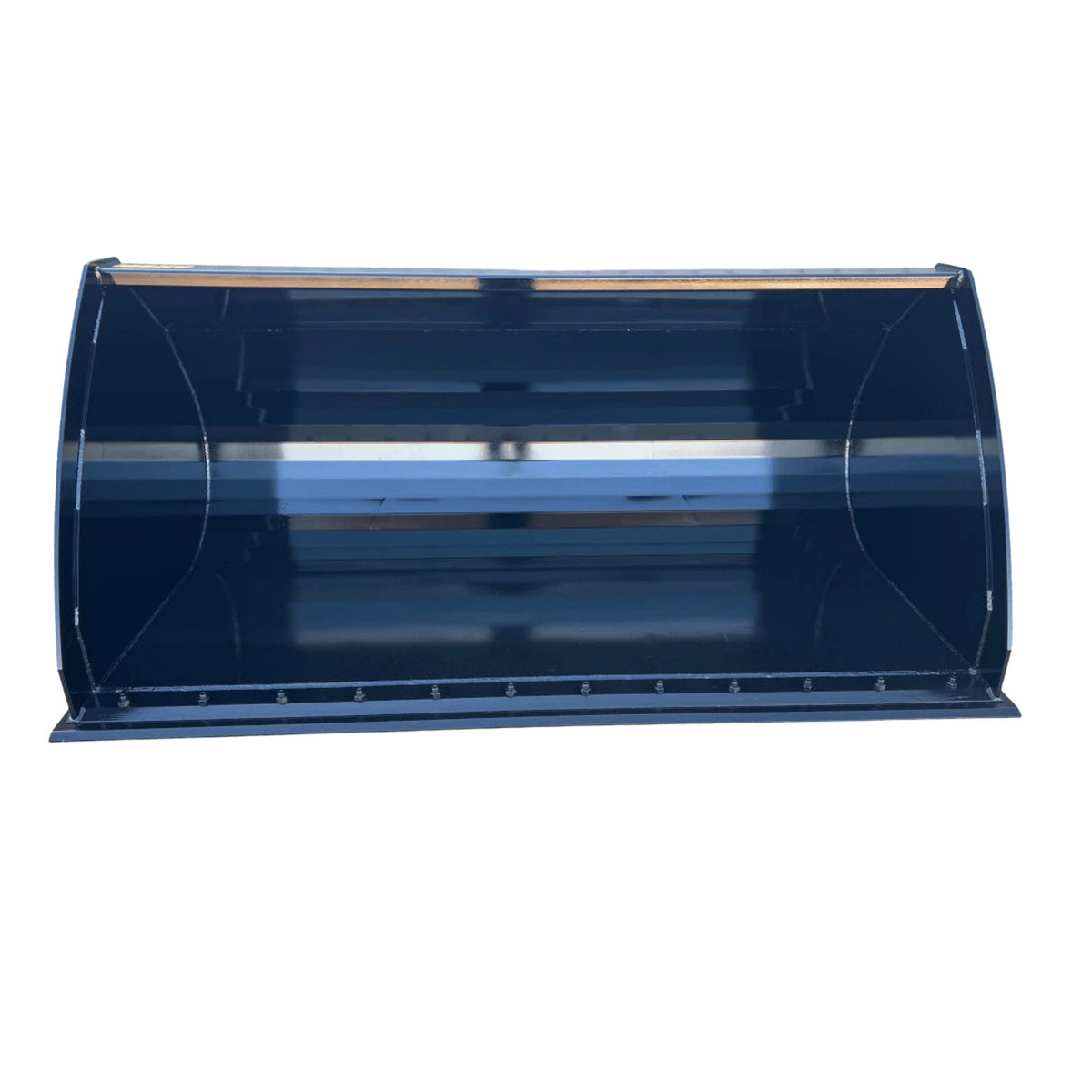

Cutting Edge: 3/4" x 8" Double Bevel Bolt-On (Reversible)

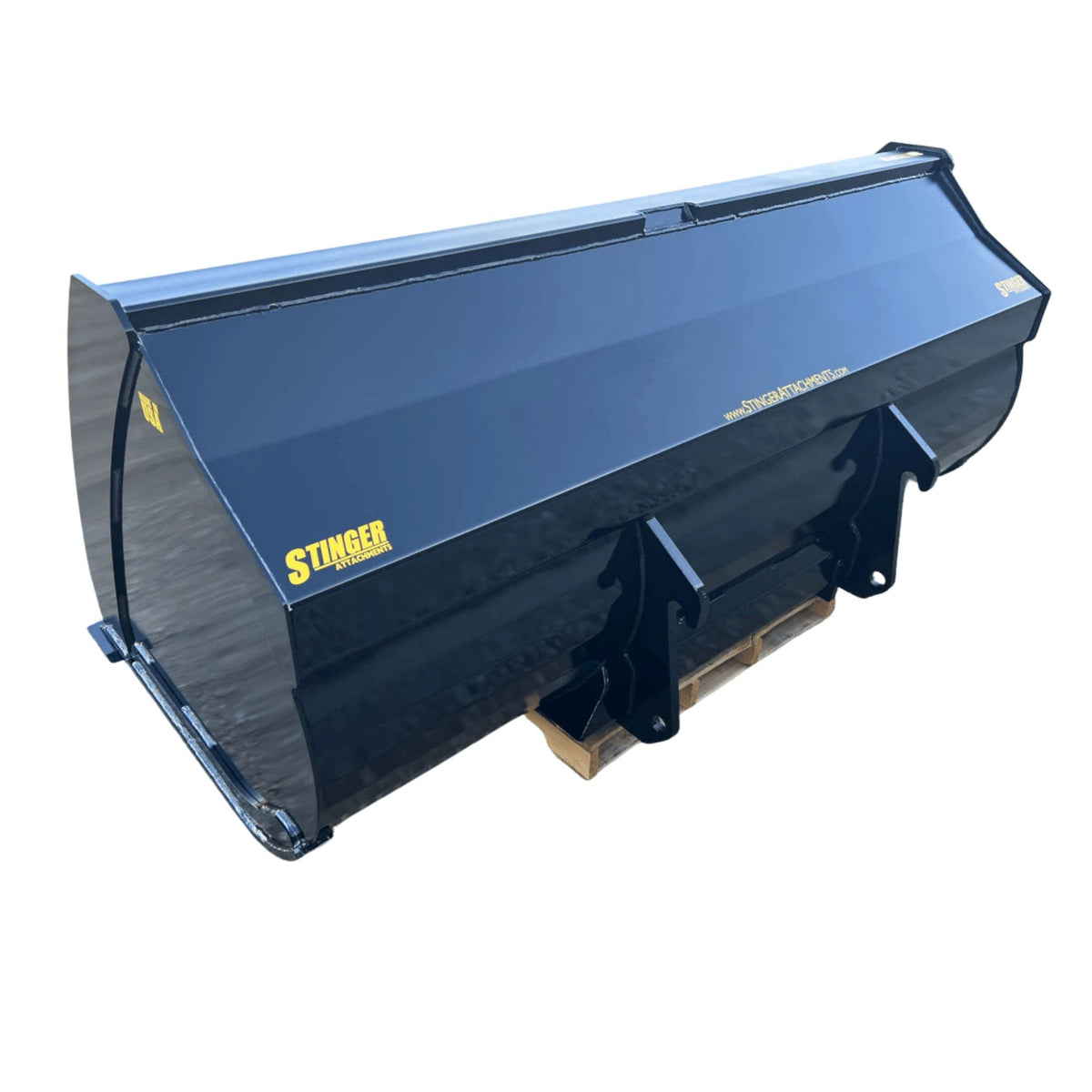

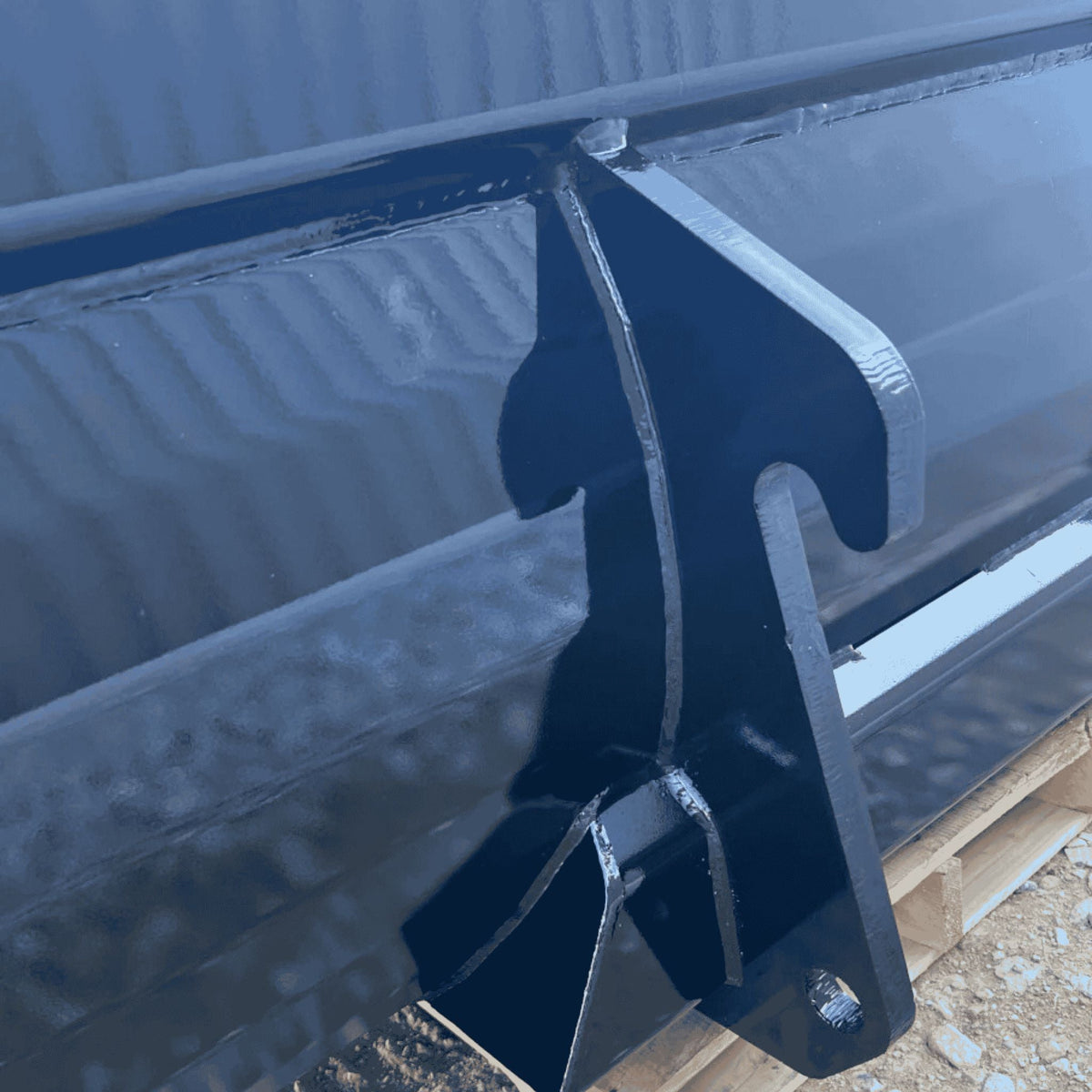

Mounting: Heavy Duty (Up to 1" Thick Ears)
Warranty: 1-Year Structural
⚠️ Critical Warning: Machine Capability
Not for Skid Steers: These buckets are designed for machines with significantly higher breakout forces and tipping loads than a track loader.
Payload Weight: A 3.5 yd bucket of wet sand can weigh over 10,000 lbs. Ensure your machine is rated for this volume.
✅ Machine Compatibility

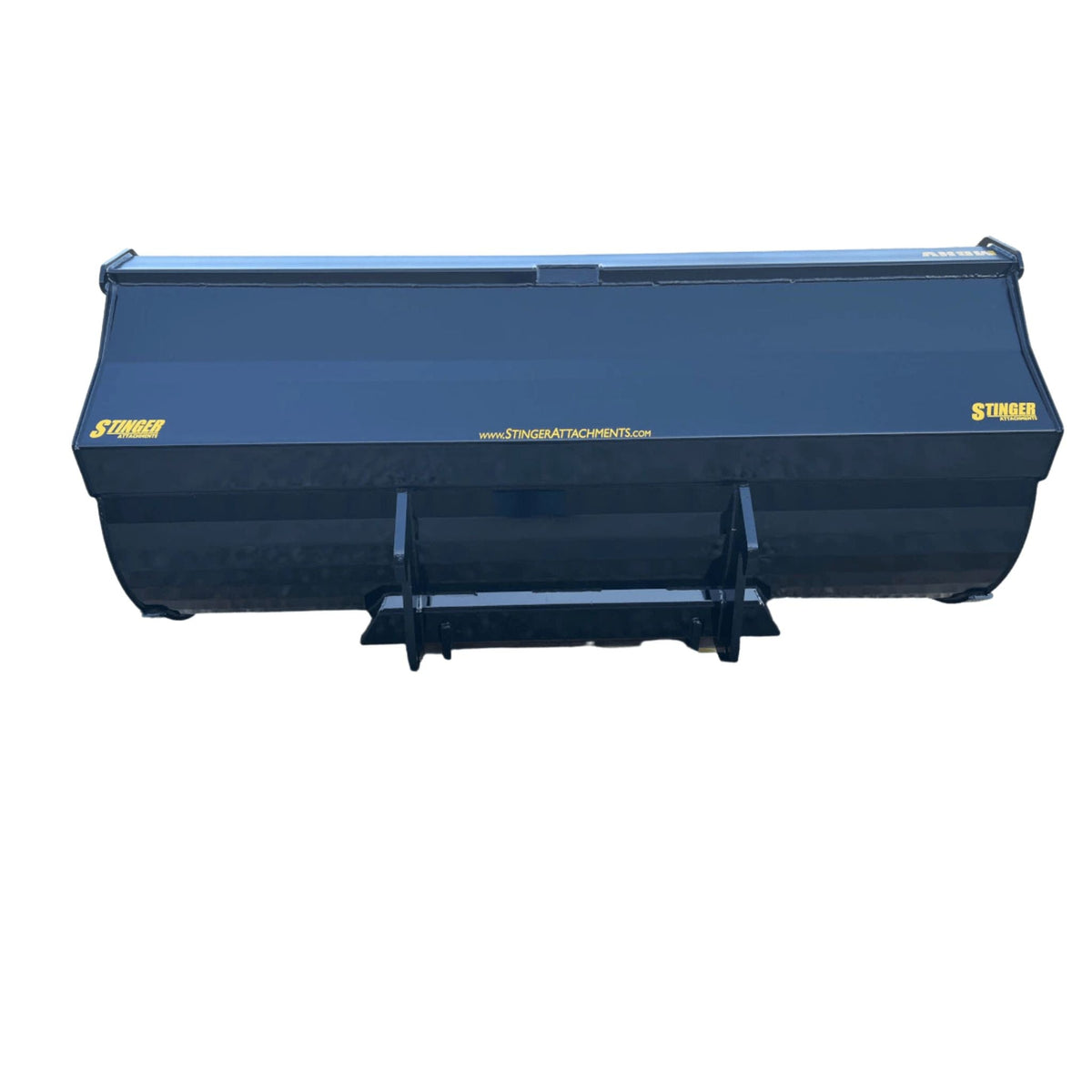

1. Mount Configuration:
These buckets are built-to-order with specific Wheel Loader couplers. Common fitments include:
• JRB 416 / 418
• CAT Fusion / IT28
• Euro / Global / Volvo ISO
• Pin-On (Requires specific pin dimensions)
2. Size Recommendation:
7' - 8' (2.0 - 2.4 yd): Compact Wheel Loaders (e.g., Deere 244/324, CAT 906).
8' - 9' (2.75 - 3.0 yd): Mid-Size Wheel Loaders (e.g., Deere 444, CAT 926).
10' (3.5 yd): Large Ag/Construction Loaders.
Additional Specifications
| Warranty | 1-Year Structural |
