Stinger Bigfoot 900 & 1200 Skid Steer Trencher (3'–4' Depth)

Heavy-Duty 3-Foot & 4-Foot Planetary Hydraulic Trencher for Standard-Flow Skid Steers (13–30 GPM). Built in the USA by Stinger Attachments and backed by a 5-year gearbox warranty, the Bigfoot 900/1200 Series pairs an Eaton motor, planetary drive, and automatic Headstart crumber bar to cut clean utility, water, and electrical trenches.

The Industry Standard

The Stinger Bigfoot Trencher is the go-to solution for Standard Flow skid steers. Whether you are running utilities at 3 feet or irrigation lines at 4 feet, the Bigfoot series delivers consistent power without requiring a High Flow machine.

No More Manual Resets

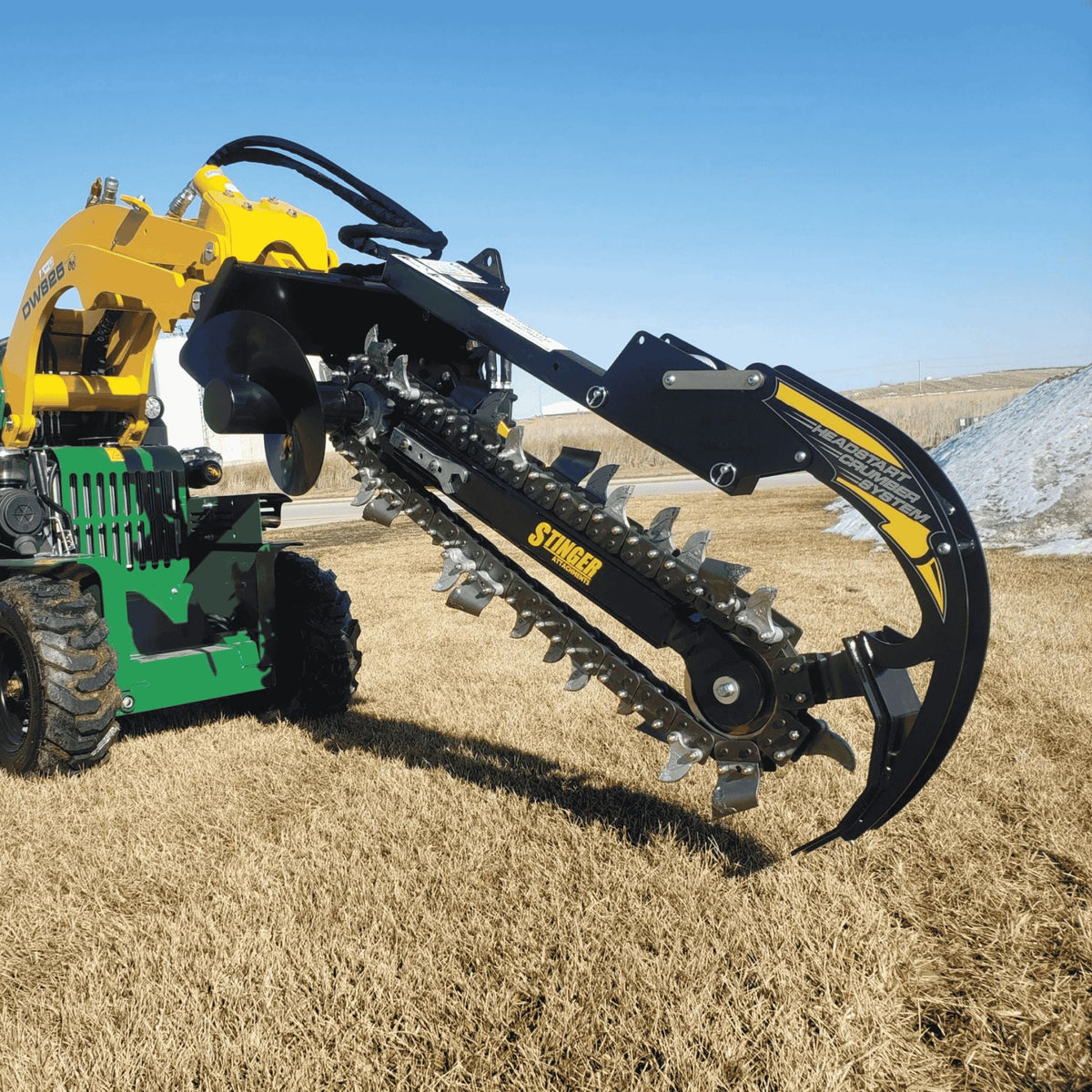

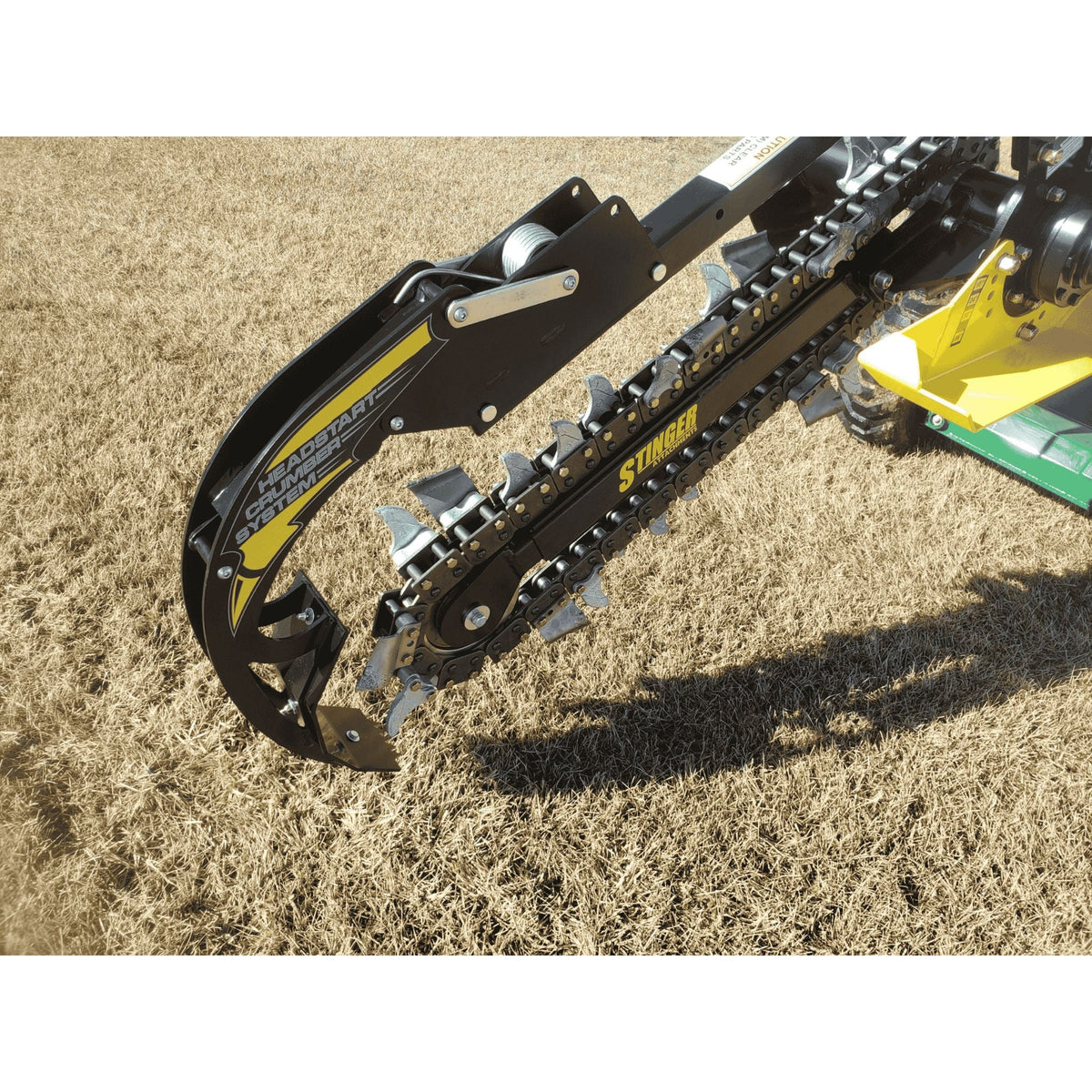

The Bigfoot eliminates the most annoying part of trenching. With the Headstart Crumber System, the trench cleaner engages inside the trench. You never have to leave the cab to reset the bar. Combined with an Adjustable Skid Foot visible from the operator's seat, you can dig with precision and speed.

✅ Machine Compatibility & Carrier Fitment

Carrier Class

45–100+ HP Standard-Flow Loader

Hydraulic Flow

13 – 30 GPM (Std Flow)

Digging Depth

36" (3 ft) or 48" (4 ft)

Mount Interface

Universal SSQA

1. Select Planetary Drive Model & Digging Depth:

Standard 900 (3 ft Depth | 575–625 lbs | 13–25 GPM)Standard-duty planetary trencher in 6", 8", 10", or 12" chain widths

XD 900 (3 ft Depth | 650–725 lbs | 16–30 GPM)Upgraded high-torque planetary drive for tough clay, rocky ground, and commercial utility contractors

XD 1200 (4 ft Depth | 750–855 lbs | 16–30 GPM)Deep 48-inch frost-line trenching with high-torque planetary gearing and Headstart crumber bar

2. Confirmed Compatible Standard-Flow Skid Steer & CTL Models:

KubotaSSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2

BobcatS550, S570, S590, S650, S64, S66, S76, S770, S86, T550, T590, T64, T66, T76, T770, T86, T870

John Deere & CATDeere 317G, 318G, 320G, 324G, 325G, 331G, 331P, 333G, 333P, 335P; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 299D3, Next-Gen 250, 255, 265, 275, 285

Case, New Holland, Takeuchi & ASVCase SR210B, SV280B, TR270B, TR310B, TR340B, TV370B, TV450B; New Holland L320–L328, C327–C345; Takeuchi TL8R2, TL10V2, TL12V2; ASV RT-65, RT-75, RT-120

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Flow Requirement

Standard Flow Only: These models are designed for 13-30 GPM.

If you have a High Flow machine (30+ GPM), do not use these models. Please view our "Bigfoot XD High Flow" listing to avoid damaging the motor.

⚙️ Technical Specifications & Model Selection (Tap to Expand Full Specs & Weights)

Standard 900	3ft Depth \| 13-25 GPM — Best for standard duty trenching.
XD 900	3ft Depth \| 16-30 GPM — High Torque motor for tough ground.
XD 1200	4ft Depth \| 16-30 GPM — Deep dig capability with High Torque power.
Warranty	5-Year Gearbox / 3-Year Motor
Mount	Universal Skid Steer Quick Attach (SSQA)
Operating Weight	Standard 900 (3ft / 13-25 GPM): 575 lbs (261 kg) \| XD 900 (3ft / 16-30 GPM): 750 lbs (340 kg) \| XD 1200 (4ft / 16-30 GPM): 855 lbs (388 kg)
Included Standard	Bigfoot Planetary Trencher, Eaton Motor, Headstart Crumber Bar, Spoil Auger, Whip Hoses, 1/2" Flat-Face Couplers & Universal SSQA Mount

🇺🇸Made in the United States
