Description
The Cornerstone of Livestock Production.
The Stinger Bale Spear Series is built for the daily grind of the farm. Unlike light-duty "economy" spears that bend under heavy wet hay, Stinger builds these frames with a 4" x 4" x ¼" Structural Steel Support Tube and Grade 50 Side Plates. Whether you are moving round bales, stacking square bales, or spreading bedding, these attachments are engineered to handle the load without flexing.
The "Double Nut" Advantage: We use high-quality Conus 2 Forged Spears secured with a double-nut system. This ensures your spears stay tight during operation but remain fully replaceable if you ever manage to damage one.
Select Your Configuration:

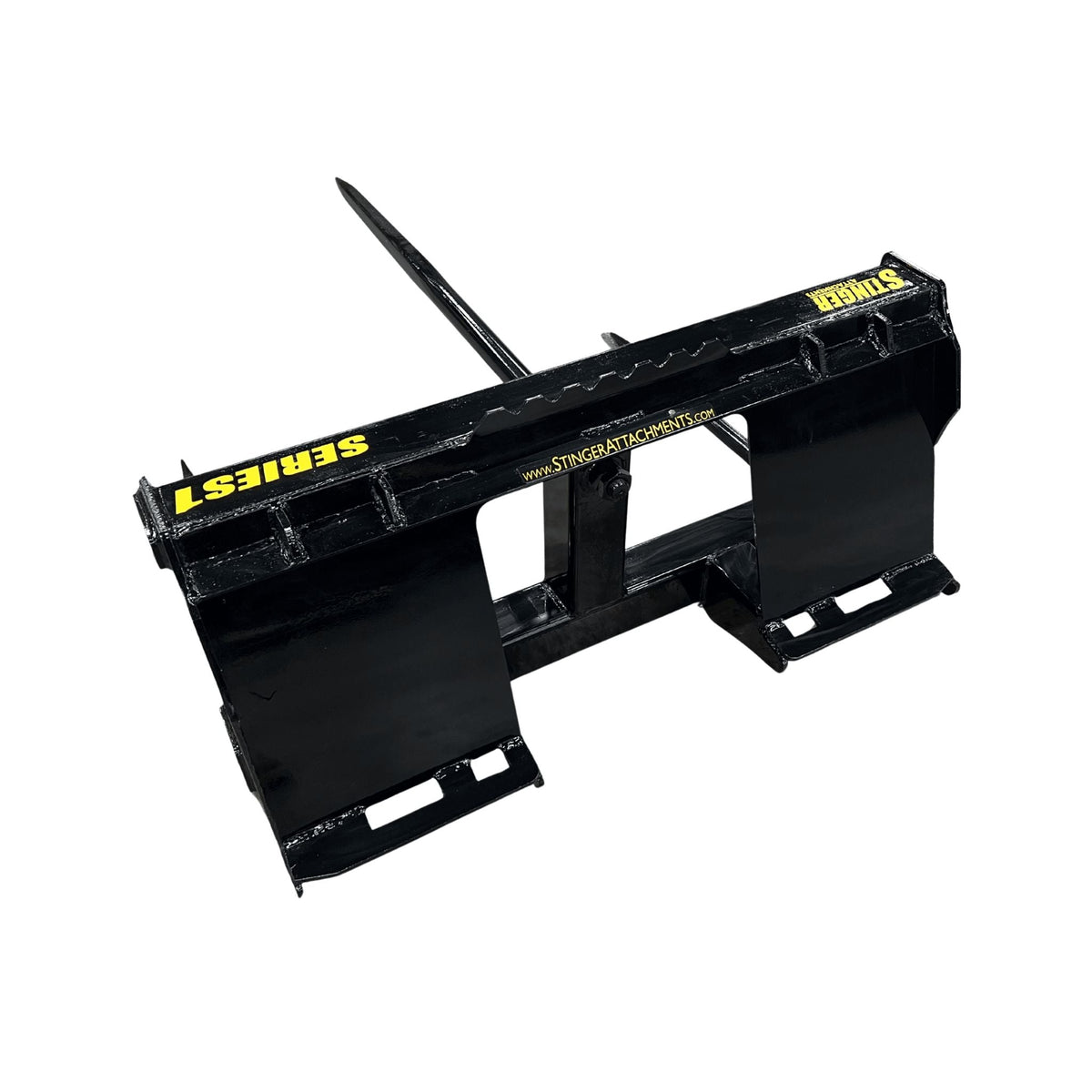

- Single-Spear (Round Bale): Features (1) 49" Main Spear and (2) Lower Stabilizers. Best for standard round bales.

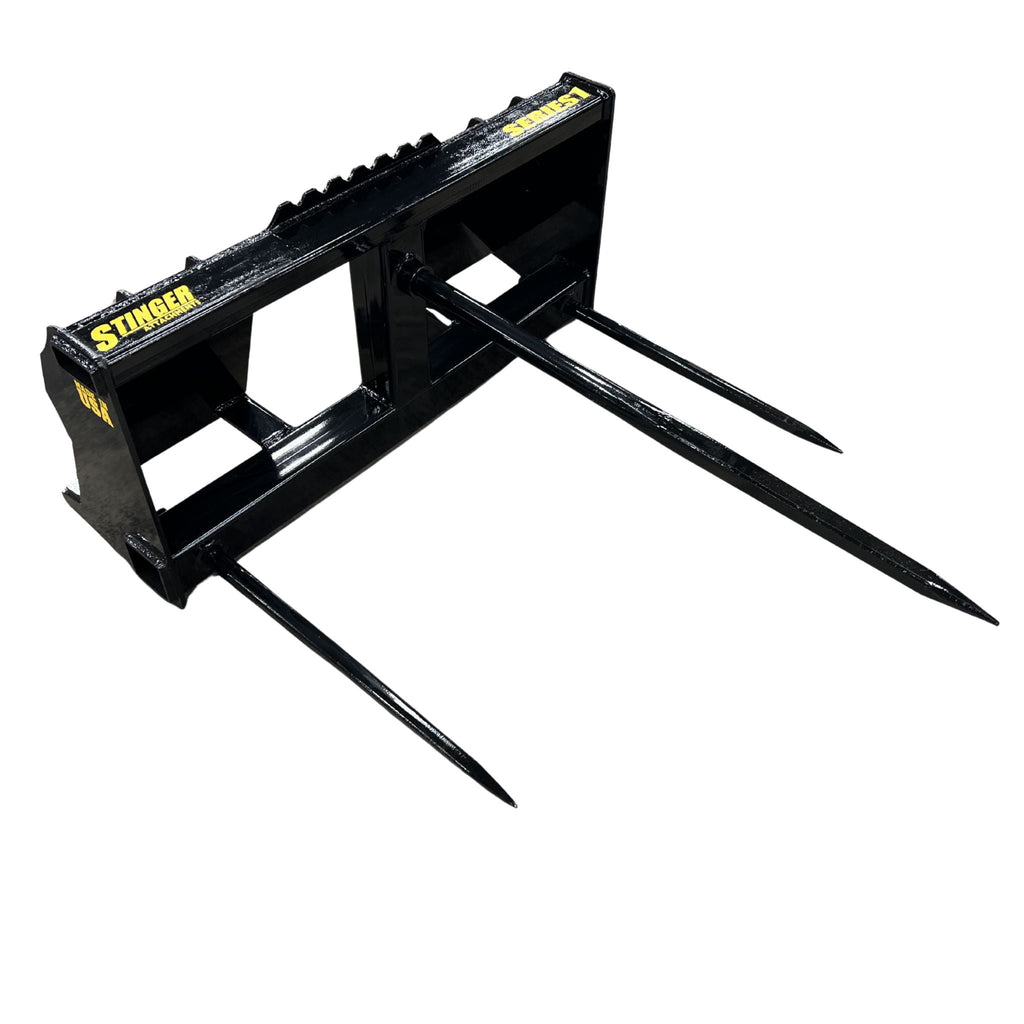

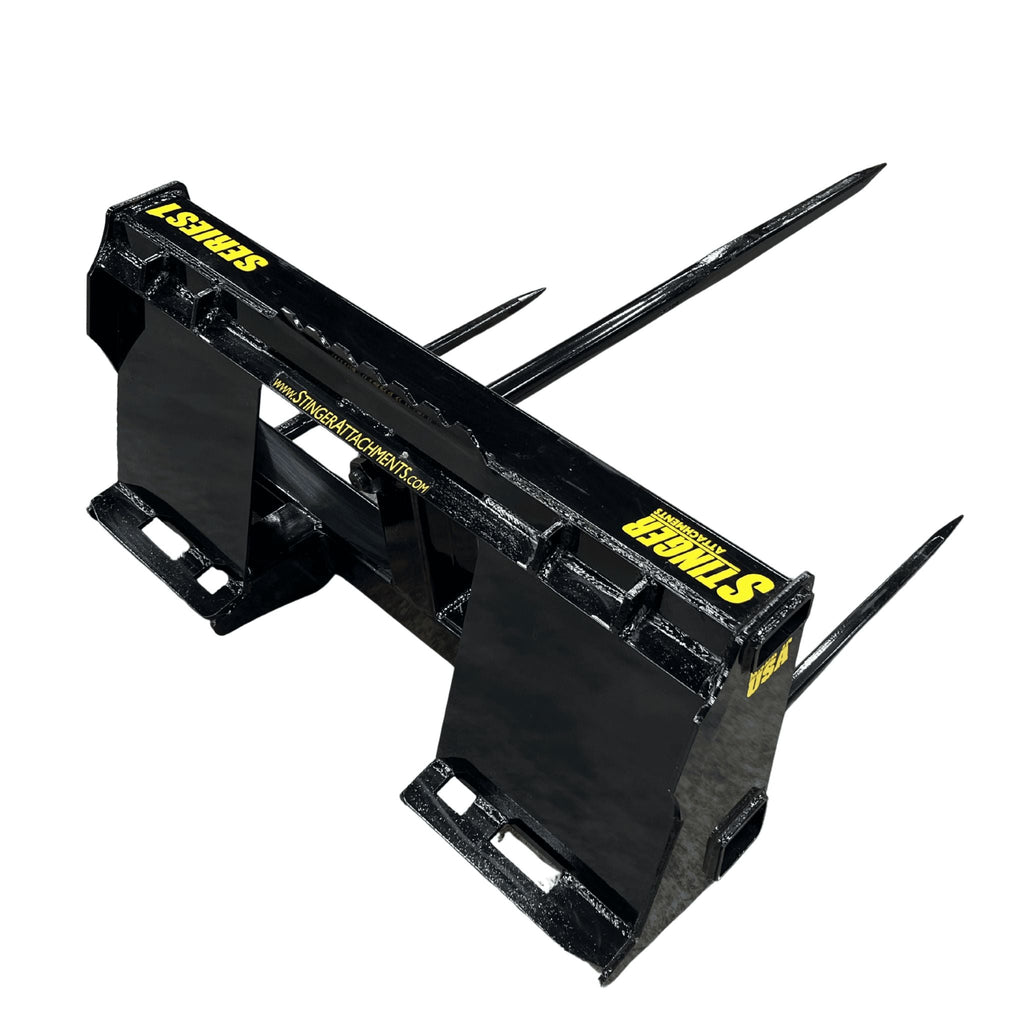

- Triple-Spear (Square/Heavy): Features (3) 49" Main Spears in a triangle pattern. Best for large square bales, double-stacking, and heavy silage.
⚙️ Technical Specifications
| Main Spear Type: | Conus 2 Forged (49" Length) |
| Frame Construction: | 4" x 4" x ¼" Bottom Tube | 4" x 2" x ¼" Top Tube |
| Side Plates: | Grade 50 High-Tensile Steel |
| Safety Feature: | Integrated Safety Step for easy machine entry |
| Maintenance: | Fully Replaceable Tines (Double Nut Securement) |
| Warranty: | 1-Year Structural Warranty |
⚠️ Safety & Setup Note
Ballast Required: When using the Triple-Spear model for heavy loads (2,000lb+ bales), ensure your machine has proper rear ballast to prevent tipping.
Check Your Lift Capacity: While the Triple-Spear is rated for 10,500 lbs, you must not exceed the Rated Operating Capacity (ROC) of your specific skid steer or tractor.
✅ Machine Compatibility
1. Mount Type:
Universal Skid Steer Quick Attach (SSQA). Fits most modern skid steers, compact track loaders, and compact tractors.
2. Ideal For:
- Farmers & Ranchers: Hay production, feeding, and bedding.
- Commercial Ag: Loading/Unloading flatbeds quickly (Triple-Spear).
- Compact Tractors: (Check lift capacity before ordering High Capacity model).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Machine Size Class | ["Skid Steer"] |
| Primary Steel Grade | Grade 50 |
| Material Thickness | 1/4" |
