Description

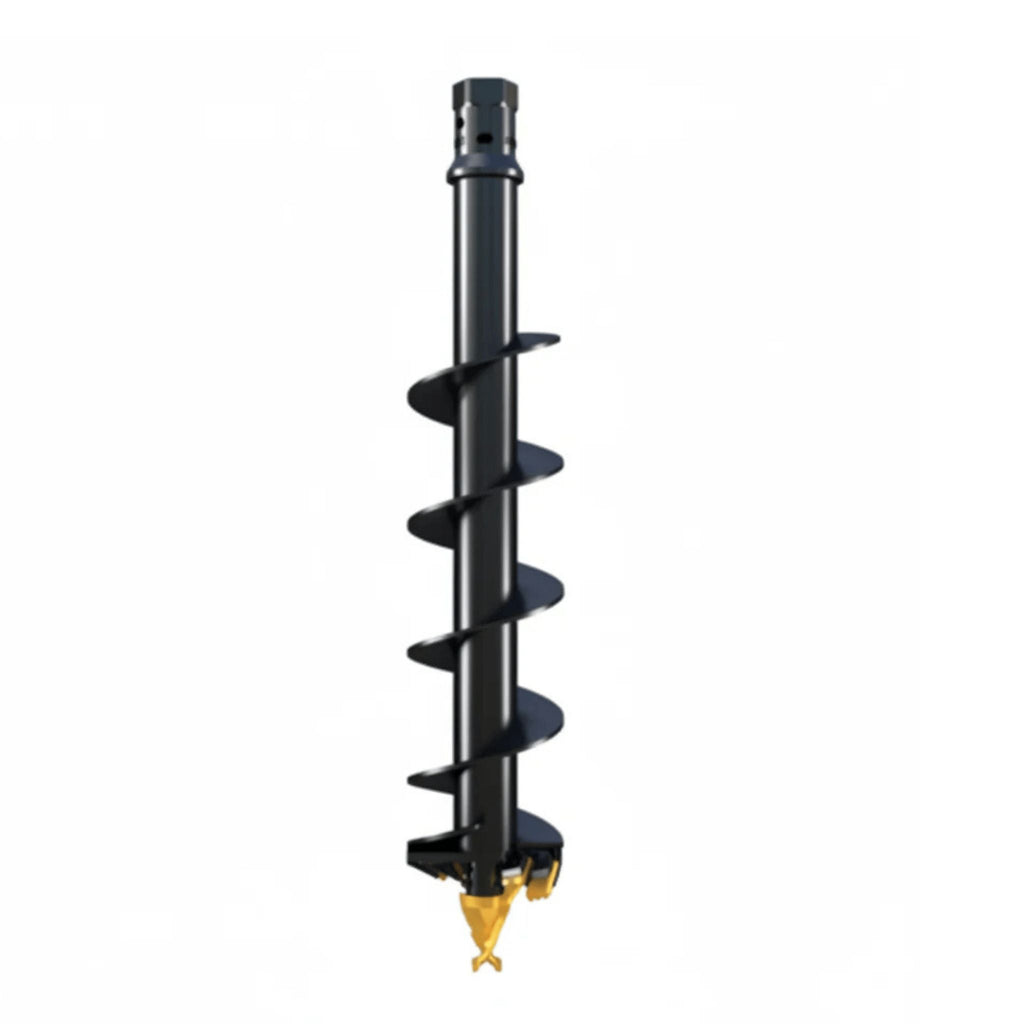

The "True Cut" Guarantee: Stinger Auger Bits are engineered for precision. While inferior bits wobble and create cone-shaped holes (wasting concrete), Stinger's True Cut Design ensures that a 12-inch auger drills exactly a 12-inch hole. Combined with Shallow Pitch Flighting, these bits remove spoil efficiently without clogging, even in sticky clay.
Select Your Soil Type:

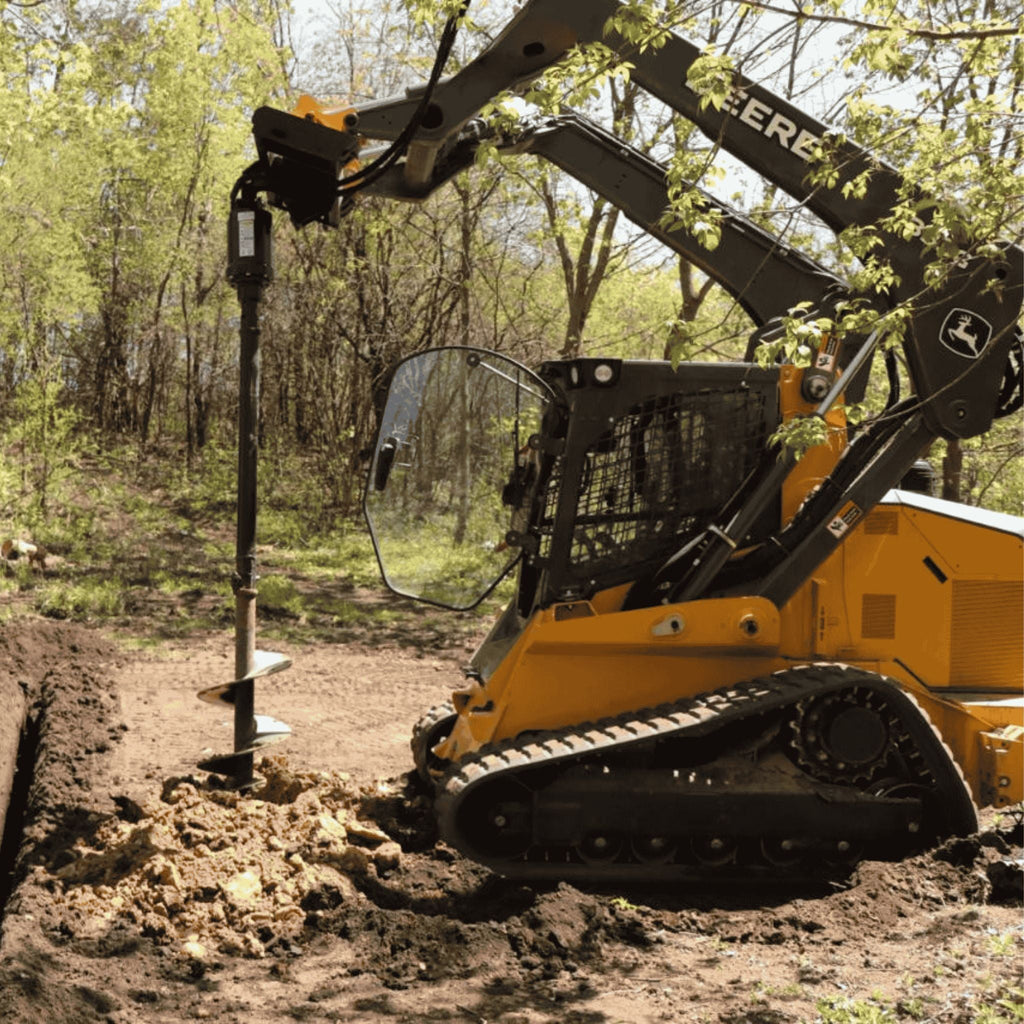

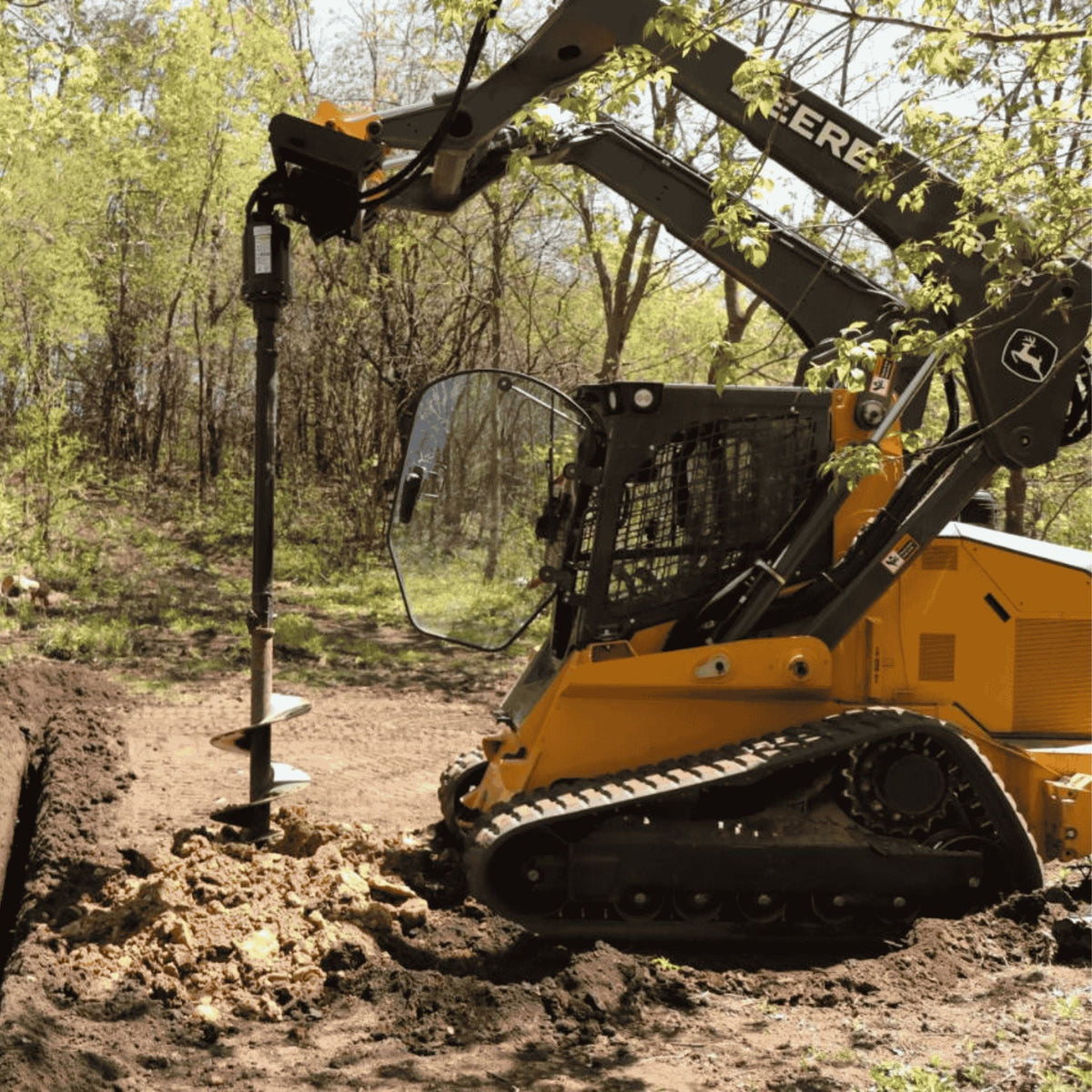

✅ Machine Compatibility & Carrier Fitment
⚠️ Critical Check: Hub Size
2" vs 2.5" Hex: These bits are available with either a 2" Hex or 2.5" Hex hub.
Please verify your Auger Drive's output shaft size before ordering. Stinger DSS Drives typically use 2" Hex.
⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)
| Overall Length | 60 Inches (5 ft) |
| Hub Size | 2.5" Hex (Standard) or 2" Hex (Optional) |
| A6 / RC6 Flights | 5/16" Thick |
| DR6 Flights | 5/8" Lead / 3/8" Carry (Heavy Duty) |

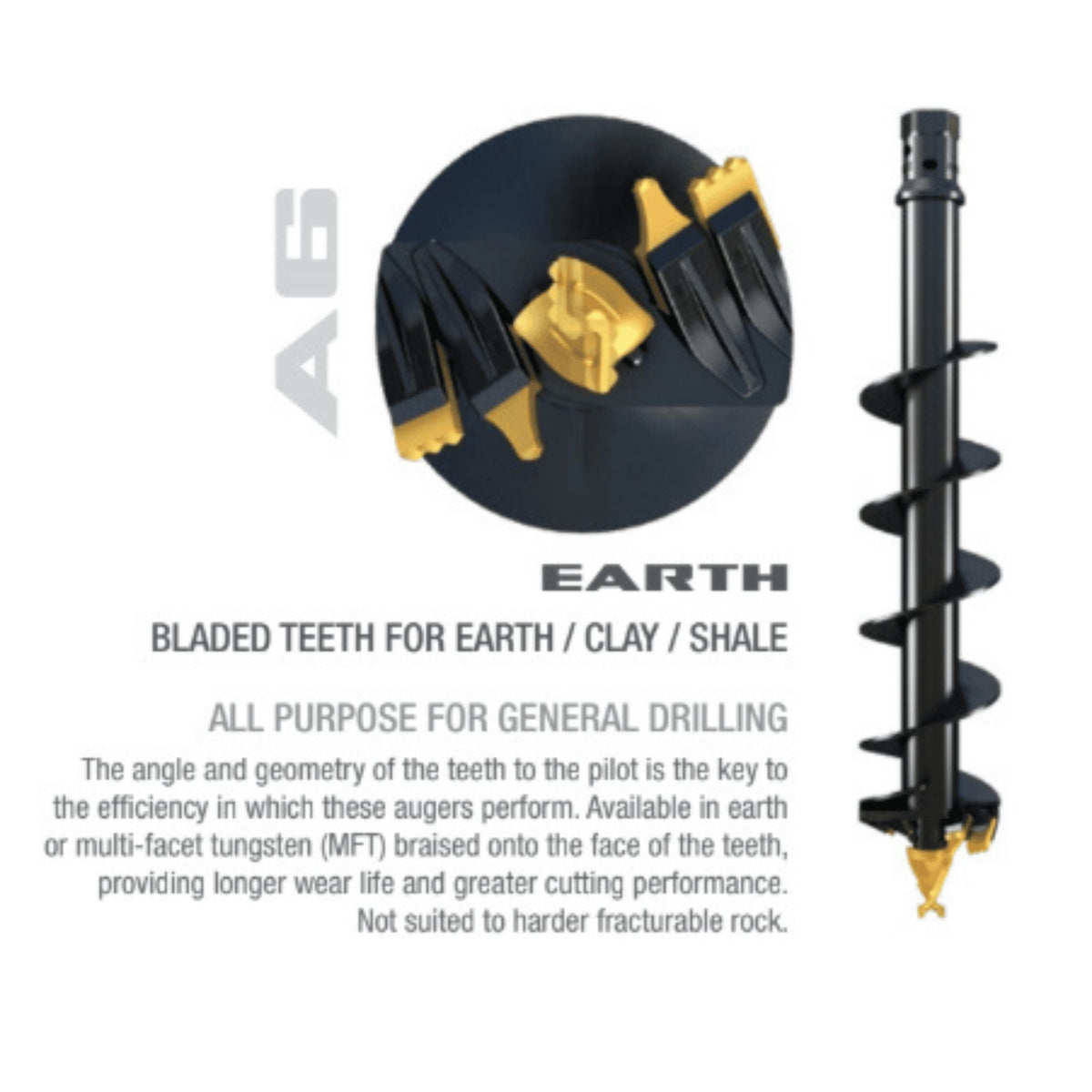

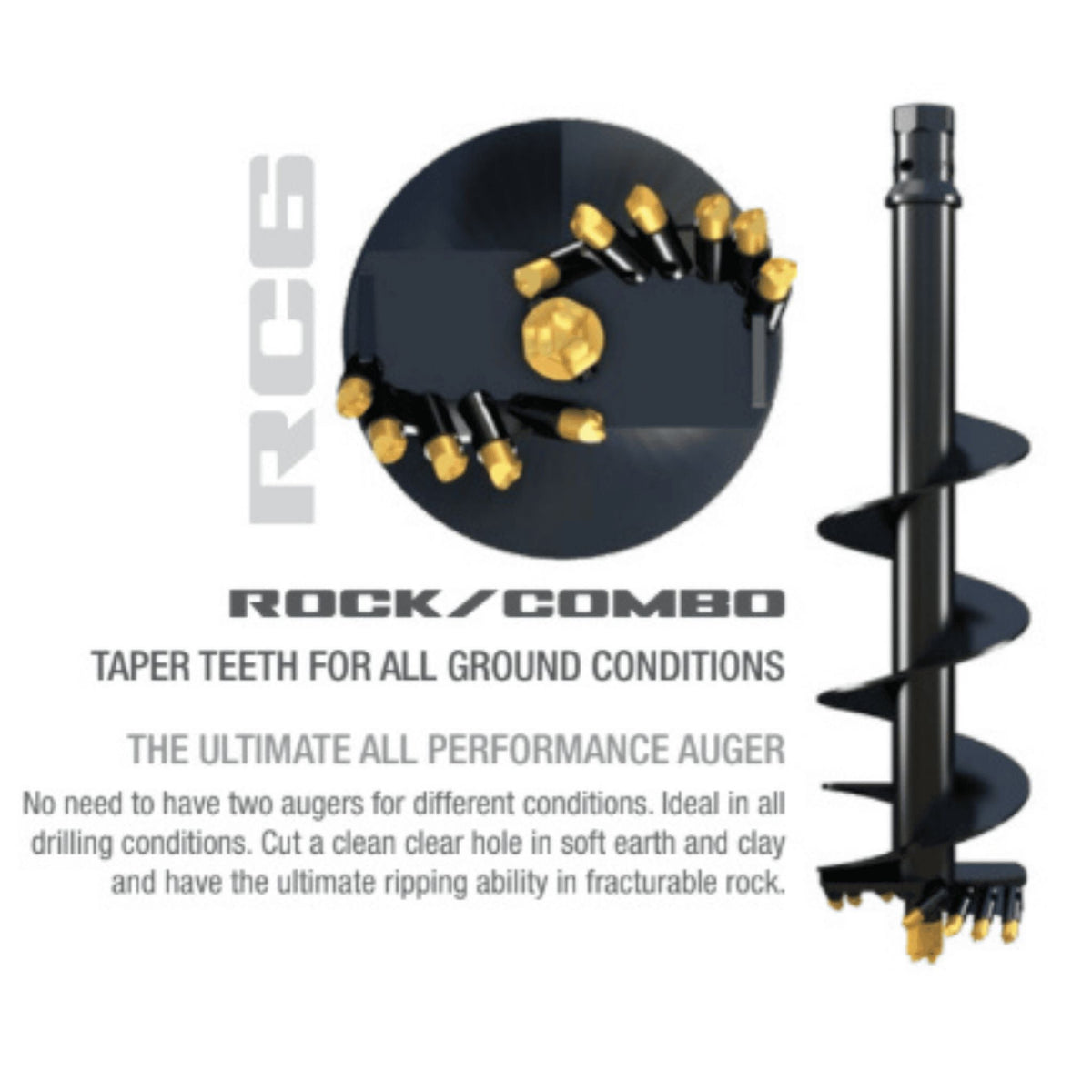

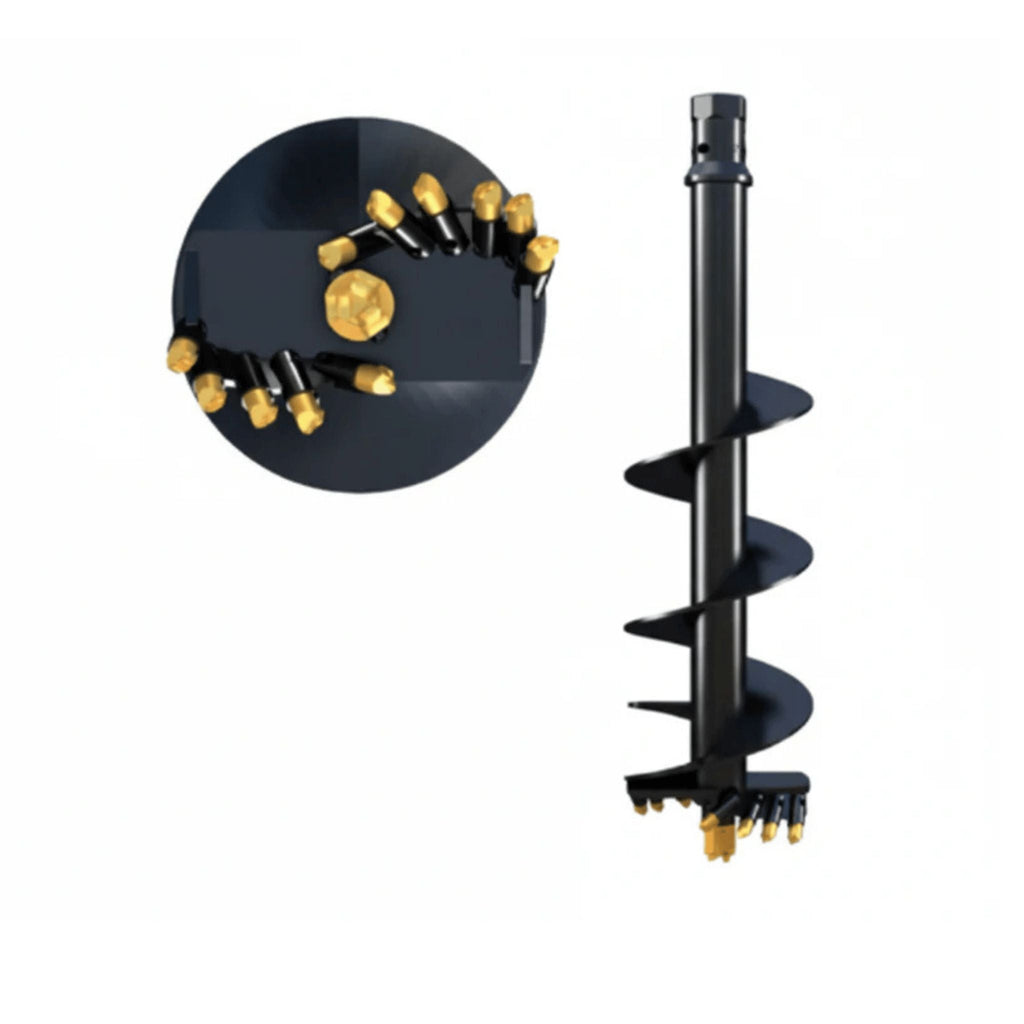

| Teeth Style | Bladed (A6) | Taper (RC6) | Rotating Pick (DR6) |
| Drill Speed (Earth) | 55-65 RPM |
| Drill Speed (Rock) | 10-25 RPM |
| Operating Weight | A6 Earth (Bladed): 115–590 lbs (52–268 kg) | RC6 Combo (Tapered): 105–620 lbs (48–281 kg) | DR6 Rock (Picks): 125–520 lbs (57–236 kg) |
| Included Standard | 48"-Long True-Cut Auger Bit with Replaceable Pilot Point, Bolt-On/Pocket Teeth & Heavy-Duty Drive Collar |
