🇺🇸 Made in USA | Authorized Dealer | Guaranteed Fitment | Direct-to-Site Delivery

Stinger Angle Broom | Poly/Wire Hybrid | Hydraulic or Manual

Stinger Attachments

Width: 72"

Angling Style: Manual Angle

Support Wheels: No Wheels

Price:

$15,350 CAD

Quantity:

🚜 Want us to verify fitment? Enter your Machine Make & Model (Optional)

🔒 Risk-Free Checkout. We manually review every order for machine fitment and confirm your delivery timeline before capturing your payment.

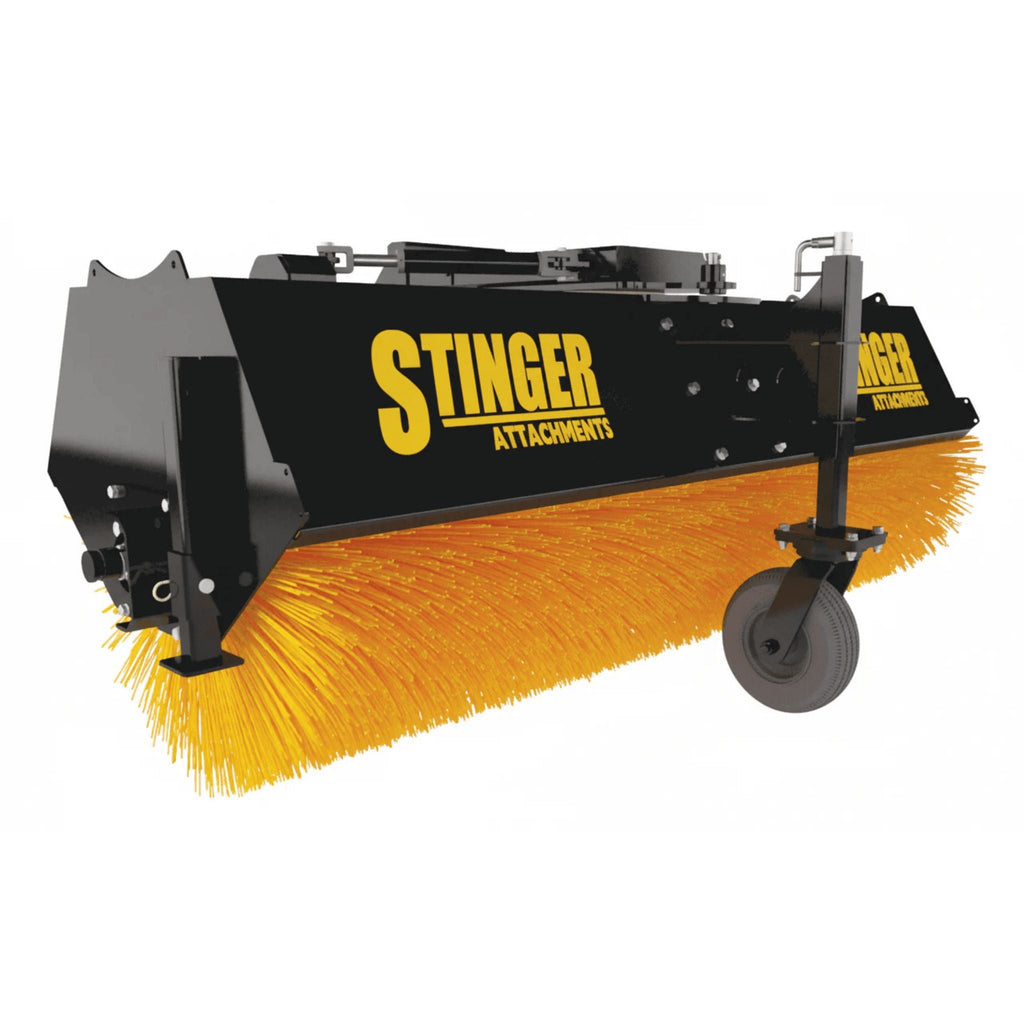

Commercial Eaton-Powered Hydraulic Angle Broom with a Floating Linkage & 50/50 Poly-Wire Hybrid Bristles. Manufactured in the USA by Stinger Attachments in 72", 84", and 96" widths, this heavy-duty sweeper contours automatically to uneven pavement to clear mud, gravel, construction debris, and light snow.

The Heavy-Duty Sweeper

The Stinger Angle Broom is engineered for commercial cleanup, from construction sites to municipal streets. Unlike standard brooms that bounce over uneven terrain, the Stinger features a Floating Head Design that automatically contours to the ground, ensuring a clean sweep even on crowned roads or potholed driveways. Powered by a premium Eaton Hydraulic Motor, it delivers high-torque rotation to throw heavy debris.

Hybrid Bristle Advantage

Stop replacing bristles every season. Stinger equips every broom with a 50/50 Poly & Wire Wafer Mix. The wire bristles cut through packed mud and ice, while the poly bristles flick fine dust away. This combination lasts significantly longer than standard poly brooms.

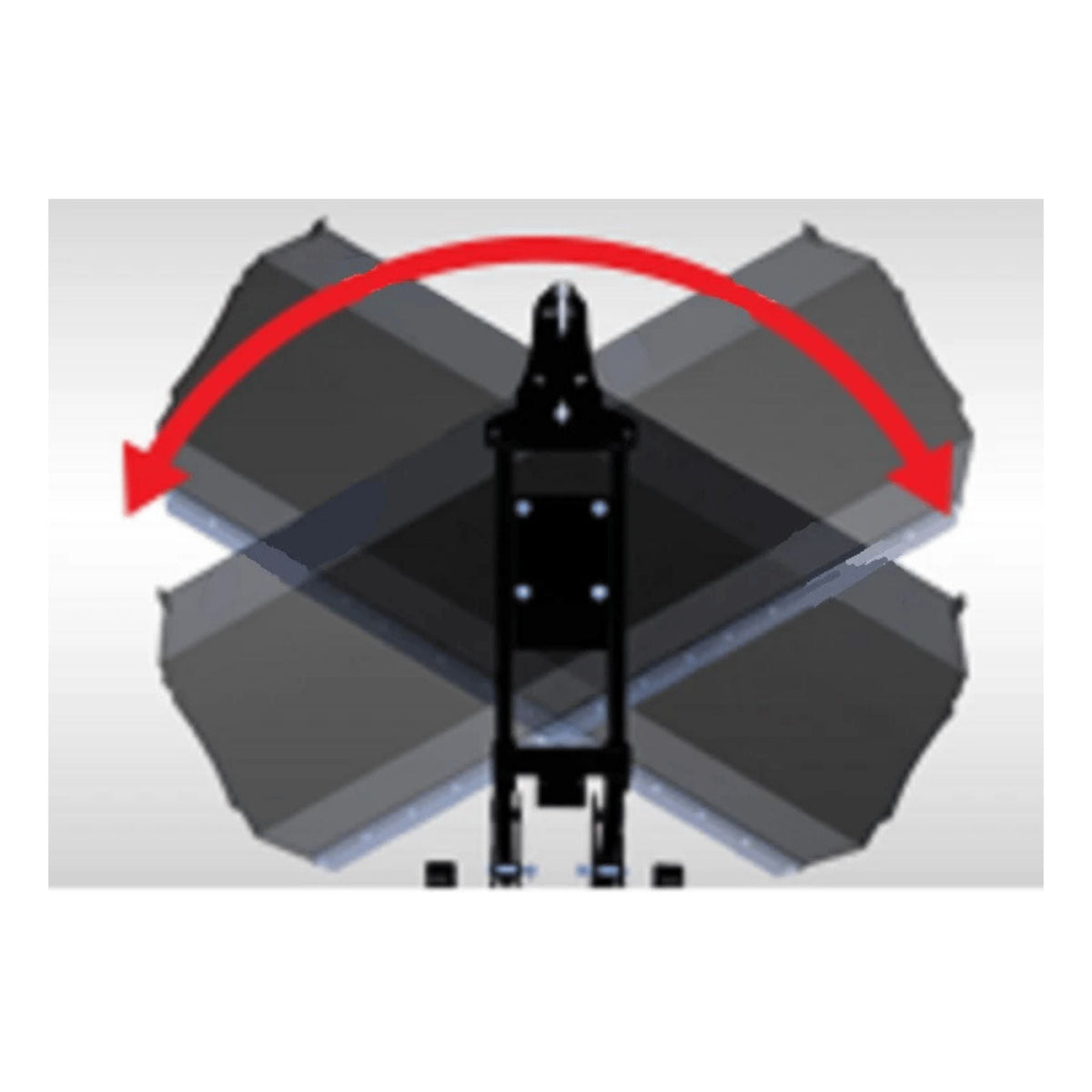

Available in Manual Angling (Pin Adjustment) or Hydraulic Angling (Cab Control).

✅ Machine Compatibility & Carrier Fitment

Carrier Class

45–120+ HP Skid Steer / CTL

Hydraulic Flow

12 – 28 GPM (Std Flow)

Bristle Wafer

32" Dia. 50/50 Poly-Wire Hybrid

Mount Interface

Universal SSQA

1. Select Broom Width & Angling Control (Manual Pin vs. Cab Hydraulic):

72" Angle Broom (950–1,030 lbs)Sweeps a 65" angled path — Ideal for Mid-Frame Skid Steers & CTLs (Kubota SSV65/SVL75-3, Bobcat S590/S650/T66, Deere 317G–325G, CAT 246D3/259D3/255)

84" (1,060–1,140 lbs) & 96" (1,165–1,245 lbs)Sweeps a 76"–87" angled path — Ideal for Large-Frame CTLs, Skid Steers & Compact Wheel Loaders (SVL97-2, Bobcat T76/T770/T86/T870, Deere 331P/333P, CAT 265/275/285)

2. Confirmed Compatible Skid Steer & CTL Models:

KubotaSSV65, SSV75, SVL65-2, SVL75-2, SVL75-3, SVL95-2s, SVL97-2

BobcatS550, S570, S590, S650, S64, S66, S76, S770, S86, T550, T590, T64, T66, T76, T770, T86, T870

John Deere & CATDeere 317G, 318G, 320G, 324G, 325G, 331G, 331P, 333G, 333P, 335P; CAT 236D3, 246D3, 259D3, 279D3, 289D3, 299D3, Next-Gen 250, 255, 265, 275, 285

Case, New Holland, Takeuchi & ASVCase SR210B, SV280B, TR270B, TR310B, TR340B, TV370B, TV450B; New Holland L320–L328, C327–C345; Takeuchi TL8R2, TL10V2, TL12V2; ASV RT-65, RT-75, RT-120

🔩 Mounting Interface: Built-in North American Universal Skid Steer Quick-Attach (SSQA) plate—fits 99% of modern skid steers, compact track loaders, and SSQA-equipped utility tractors.

⚠️ Setup Requirement: Hydraulics

Standard Flow: Requires standard auxiliary flow. Includes 1/2" Flat-Face Couplers.
Hydraulic Angle Models: These require a way to divert flow to the angling cylinder. Ensure your machine has a 14-pin connector or secondary aux circuit, or select the manual angle version if you only have one aux circuit.

⚙️ Technical Specifications (Tap to Expand Full Specs & Weights)

Bristle Type	50/50 Poly & Wire Mix (Replaceable Wafers)
Hydraulic Motor	Eaton (High Torque)
Head Design	Floating Linkage
Parking	Fold-Away Storage Stands
Angling	Manual (Pin) or Hydraulic (Cylinder)
Optional Upgrade	Caster/Jockey Wheels (Turf Protection)
Warranty	1-Year Commercial
Operating Weight	72": 950–1,030 lbs (431–467 kg) \| 84": 1,060–1,140 lbs (481–517 kg) \| 96": 1,165–1,245 lbs (528–565 kg)
Included Standard	Floating-Head Angle Broom, Eaton High-Torque Motor, 50/50 Poly-Wire Wafers, Fold-Away Stands, Whip Hoses, 1/2" Flat-Face Couplers & Universal SSQA Mount
